HZJ81V-RNPGS (1993)

Toyota Land Cruiser Van

Production May 1993 - Aug 1996
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9405-9407)

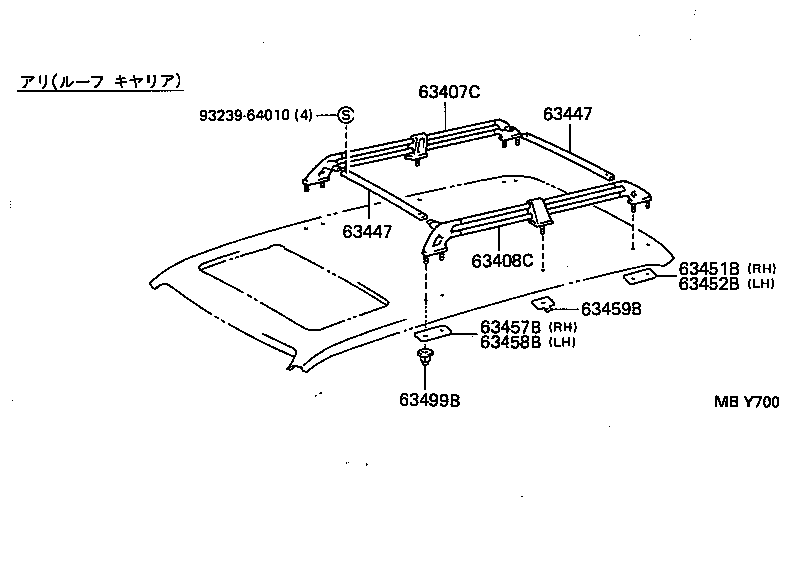

Click highlighted areas on diagram

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

diagram 63407C 63408C 63447 63447 63451B 63452B 63457B 63458B 63459B 63499B 9323964010
Part # Description Qty Price
63407C - CARRIER SUB-ASSY, ROOF, RH
63407-60030

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

 1
63408C - CARRIER SUB-ASSY, ROOF, LH
63408-60020

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

 1
63447 - BAR, ROOF CARRIER, FRONT
63447-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

 2
63447 - BAR, ROOF CARRIER, FRONT
63447-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

 2
63451B - REINFORCEMENT, ROOF RACK, NO.1
63451-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,ｱﾘ(ﾙ-ﾌﾚ-ﾙ)

 1
63452B - REINFORCEMENT, ROOF RACK, NO.2
63452-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,ｱﾘ(ﾙ-ﾌﾚ-ﾙ)

 1
63457B - RETAINER, ROOF CARRIER, NO.1 RH
63457-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,ｱﾘ(ﾙ-ﾌﾚ-ﾙ)

 1
63458B - RETAINER, ROOF CARRIER, NO.1 LH
63458-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,ｱﾘ(ﾙ-ﾌﾚ-ﾙ)

 1
63459B - RETAINER, ROOF CARRIER, NO.2
63459-60010

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,ｱﾘ(ﾙ-ﾌﾚ-ﾙ)

 2
63499B - NUT, ROOF CARRIER
90176-06035

FZJ80,HDJ81,HZJ81..VXL

ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ

 10
Common parts
93239-64010
