HZJ81V-RNPGS (1993)
Toyota Land Cruiser Van

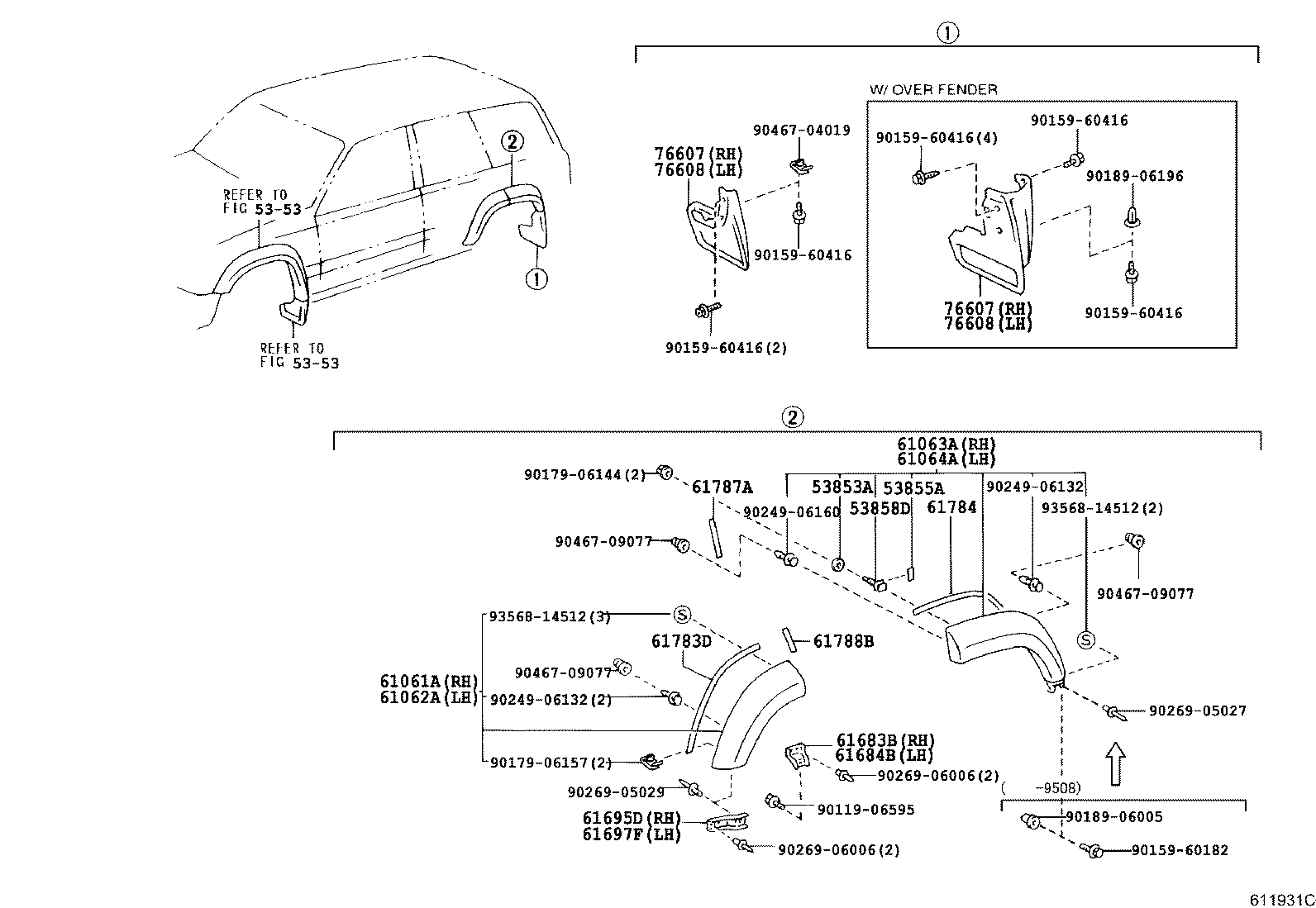

ILLUST NO. 2 OF 2(9501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53853A - PAD, REAR WHEEL OPENING EXTENSION | ||||
| 53853-60020 |
FZJ80,HDJ81,HZJ81..LUB |
4 | ||
| 90540-05030 |
FZJ80,HDJ81,HZJ81..LUB |
4 | ||
| 53855A - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 53855-60010 |
FZJ80,HDJ81,HZJ81..LUB |
2 | ||
| 53858D - BOLT, WHEEL OPENING | ||||
| 53858-60050 |
FZJ80,HDJ81,HZJ81..LUB |
4 | ||
| 53858-60020 |
FZJ80,HDJ81,HZJ81..LUB |
4 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61695-60030 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61699-60010 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61697-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61783-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61783-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60081A1 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61783-60081D1 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61784-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61784-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,左側 |
1 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61784-60100A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,左側 |
1 | ||
| 61784-60100D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,右側 |
1 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,右側 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76607-60020 |
HZJ81 塗装不要 |
1 | ||
| 76607-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76607-60020 |
HZJ81 塗装不要 |
1 | ||
| 76607-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76608-60020 |
HZJ81 塗装不要 |
1 | ||
| 76608-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76608-60020 |
HZJ81 塗装不要 |
1 | ||
| 76608-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90179-06144 | ||||
| 90179-06157 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90249-06160 | ||||
| 90269-05027 | ||||
| 90269-05029 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5353 | ||||

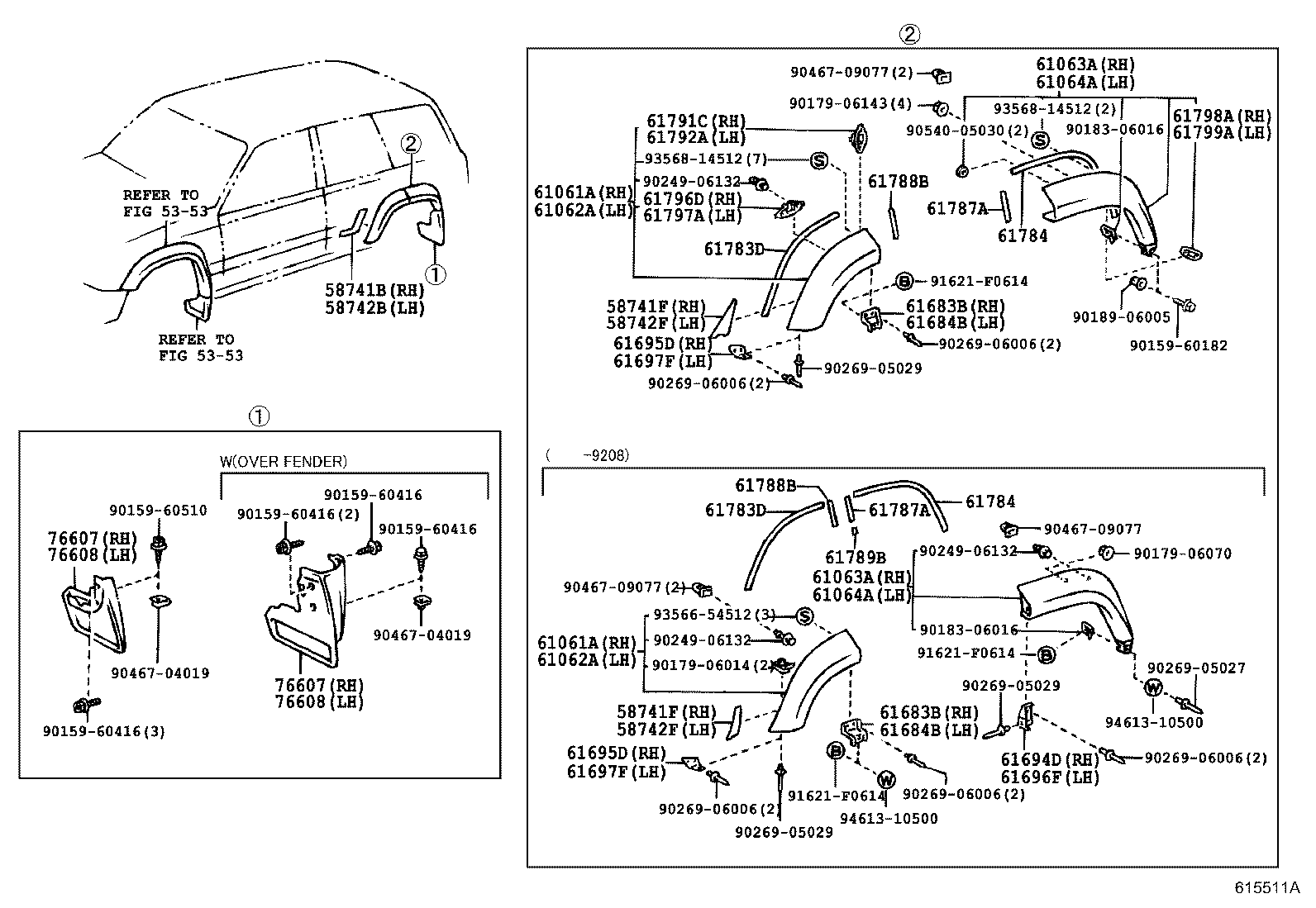

ILLUST NO. 2 OF 2(9001-9501)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61695-60030 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61695-60030 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61699-60010 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61697-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61699-60010 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 61697-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61783-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61783-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60081A1 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61783-60081D1 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61783-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61783-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61783-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60081C1 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60081A1 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61783-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61783-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61783-60081D1 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61784-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61784-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,左側 |
1 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61784-60100A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,左側 |
1 | ||
| 61784-60100D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,右側 |
1 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,右側 |
1 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL ｽﾍﾟｼﾔﾙﾊﾟﾂｹ-ｼﾞ,BLACK,204 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ,BLACK,2AG |
2 | ||
| 61784-60060D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL ﾒﾓﾘｱﾙ ﾊﾟﾂｹ-ｼﾞ,BLACK,23Z |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,183 ,6M1 |
2 | ||
| 61784-60080A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045 |
2 | ||
| 61784-60060C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,183 ,26P ,6M1 |
2 | ||
| 61784-60080D0 |
FZJ80,HDJ81,HZJ81..LUB RED,3H4 |
2 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0 |
2 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,左側 |
1 | ||
| 61784-60080C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0 |
2 | ||
| 61784-60100A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,右側 |
1 | ||
| 61794-60030C0 |
FZJ80,HDJ81,HZJ81..VXL BLACK,1A6 ,2AB ,2AC ,6M1 ,8K0,左側 |
1 | ||
| 61794-60030A0 |
FZJ80,HDJ81,HZJ81..VX WHITE,045,左側 |
1 | ||
| 61784-60100D0 |
FZJ80,HDJ81,HZJ81..LUB MAROON,3H4,右側 |
1 | ||
| 61784-60100C0 |
FZJ80,HDJ81,HZJ81..VX BLACK,1A6 ,6M1 ,8K0,右側 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76607-60020 |
HZJ81 塗装不要 |
1 | ||
| 76607-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76607-60020 |
HZJ81 塗装不要 |
1 | ||
| 76607-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76607-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76608-60020 |
HZJ81 塗装不要 |
1 | ||
| 76608-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60180 |
FZJ80,HDJ81,HZJ81..VXL 塗装不要,VXﾘﾐﾃﾂﾄﾞ Gﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 76608-60020 |
HZJ81 塗装不要 |
1 | ||
| 76608-60170 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| 76608-60150 |
FZJ80,HDJ81,HZJ81..LUB 塗装不要 |
1 | ||
| Common parts | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90159-60510 | ||||
| 90179-06014 | ||||
| 90179-06070 | ||||
| 90179-06143 | ||||
| 90183-06016 | ||||
| 90189-06005 | ||||
| 90249-06132 | ||||
| 90269-05027 | ||||
| 90269-05029 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 90540-05030 | ||||
| 91621-F0614 | ||||
| 93566-54512 | ||||
| 93568-14512 | ||||
| 94613-10500 | ||||
| Linked diagrams | ||||
| 5353 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
