HZJ81V-RNPES (1993)

Toyota Land Cruiser Van

Production May 1993 - Aug 1996
Engine 1HZ
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9305- )

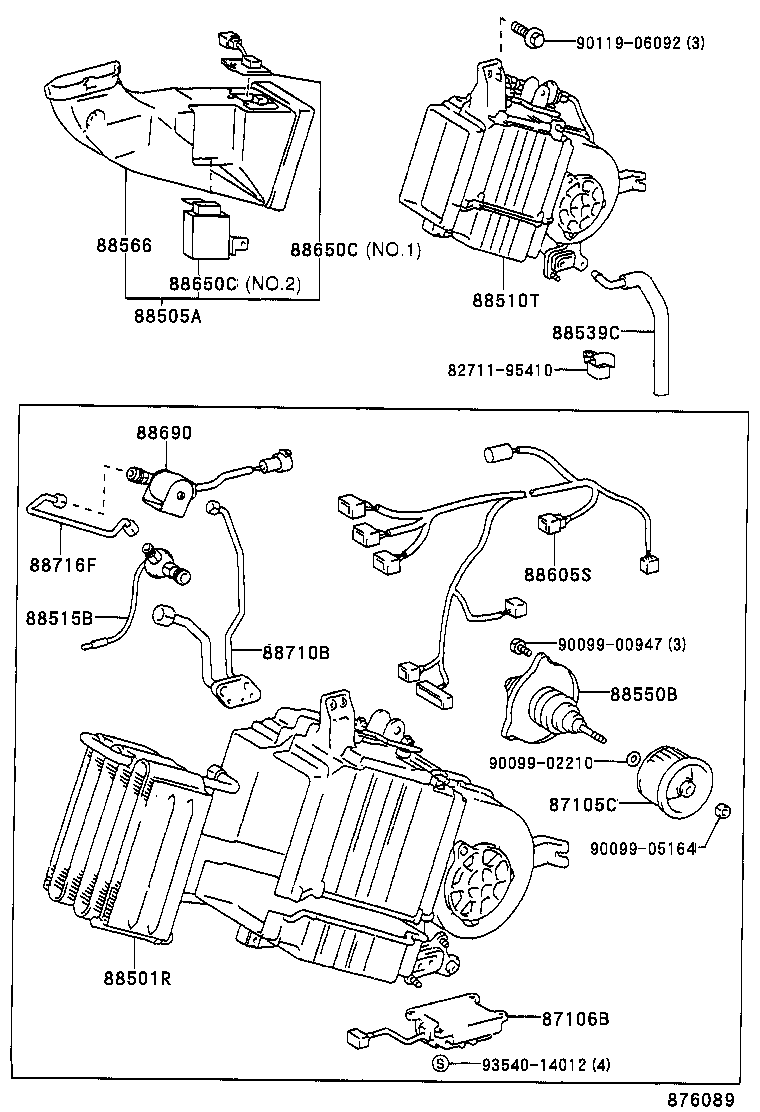

Click highlighted areas on diagram

REAR

diagram 8271195410 87105C 87106B 88501R 88505A 88510T 88515B 88539C 88550B 88566 88605S 88650C 88650C 88690 88710B 88716F 9009900947 9009902210 9009905164 9011906092 9354014012
Part # Description Qty Price
88539C - HOSE, COOLER UNIT DRAIN, NO.2
88539-60130

FZJ80,HDJ81,HZJ81..LUB

 1
Common parts
82711-95410
90099-00947
90099-02210
90099-05164
90119-06092
93540-14012
