HZJ81V-RCPNS (1993)
Toyota Land Cruiser Van

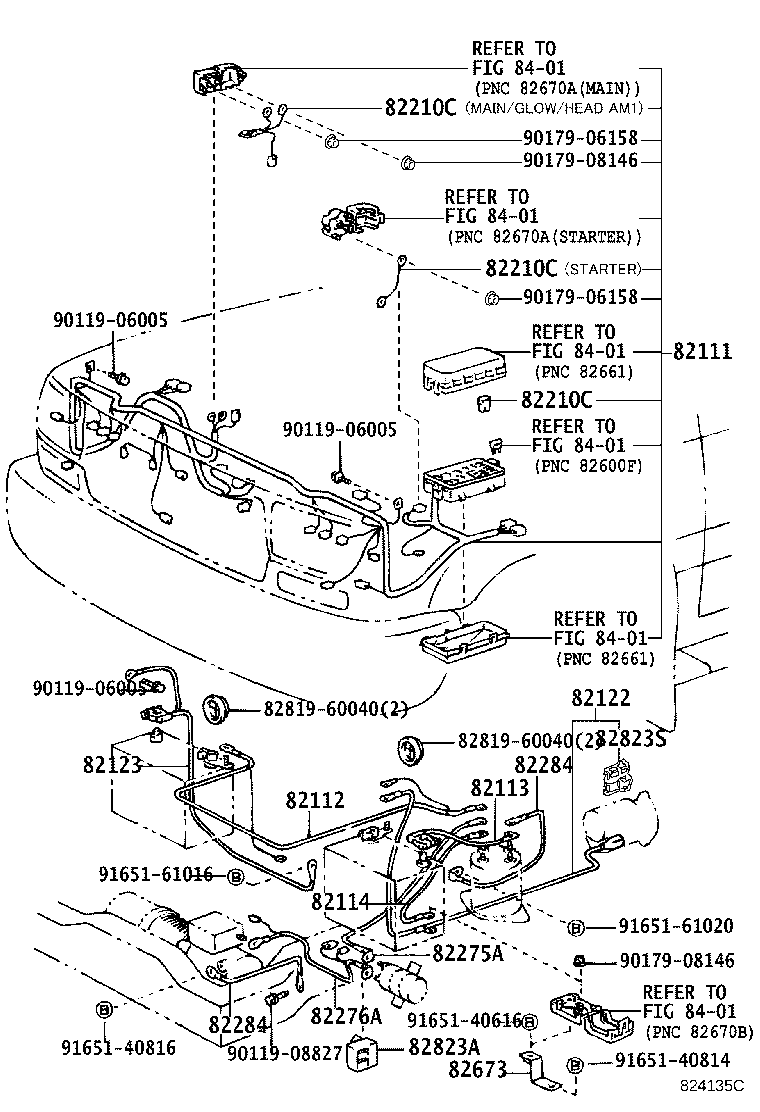

ILLUST NO. 1 OF 9(9001-9501)HDJ81,HZJ81
ｴﾝｼﾞﾝﾙｰﾑ & ｳｲﾝﾁ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60120 |
HDJ81,HZJ81 |
1 | ||
| 82111-60130 |
HZJ81 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 82111-60134 |
HZJ81 |
1 | ||
| 82111-60134 |
HZJ81 |
1 | ||
| 82111-60135 |
HZJ81 |
1 | ||
| 82111-60135 |
HZJ81 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60050 |
HDJ81,HZJ81 |
1 | ||
| 82112-60050 |
HDJ81,HZJ81..DSL,TD2 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60010 |
HDJ81,HZJ81 |
1 | ||
| 82113-60011 |
HDJ81,HZJ81 |
1 | ||
| 82113-60011 |
HDJ81,HZJ81 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60010 |
HDJ81,HZJ81 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60050 |
HDJ81,HZJ81 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60040 |
HDJ81,HZJ81 |
1 | ||
| 82123-60041 |
HDJ81,HZJ81 |
1 | ||
| 82123-60042 |
HDJ81,HZJ81 |
1 | ||
| 82123-60042 |
HDJ81,HZJ81 |
1 | ||
| 82123-60041 |
HDJ81,HZJ81 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60050 |
HDJ81,HZJ81 |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60020 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60020 |
HDJ81,HZJ81 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ),WINCH---FRAME |
1 | ||
| 82284-60010 |
HDJ81,HZJ81 TRANSFER RELAY EARH |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60020 |
HDJ81,HZJ81 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ),WINCH---FRAME |
1 | ||
| 82284-60010 |
HDJ81,HZJ81 TRANSFER RELAY EARH |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-60010 |
HDJ81,HZJ81 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 82819-60040 | ||||
| 90119-06005 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| 91651-61016 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 8401 | ||||

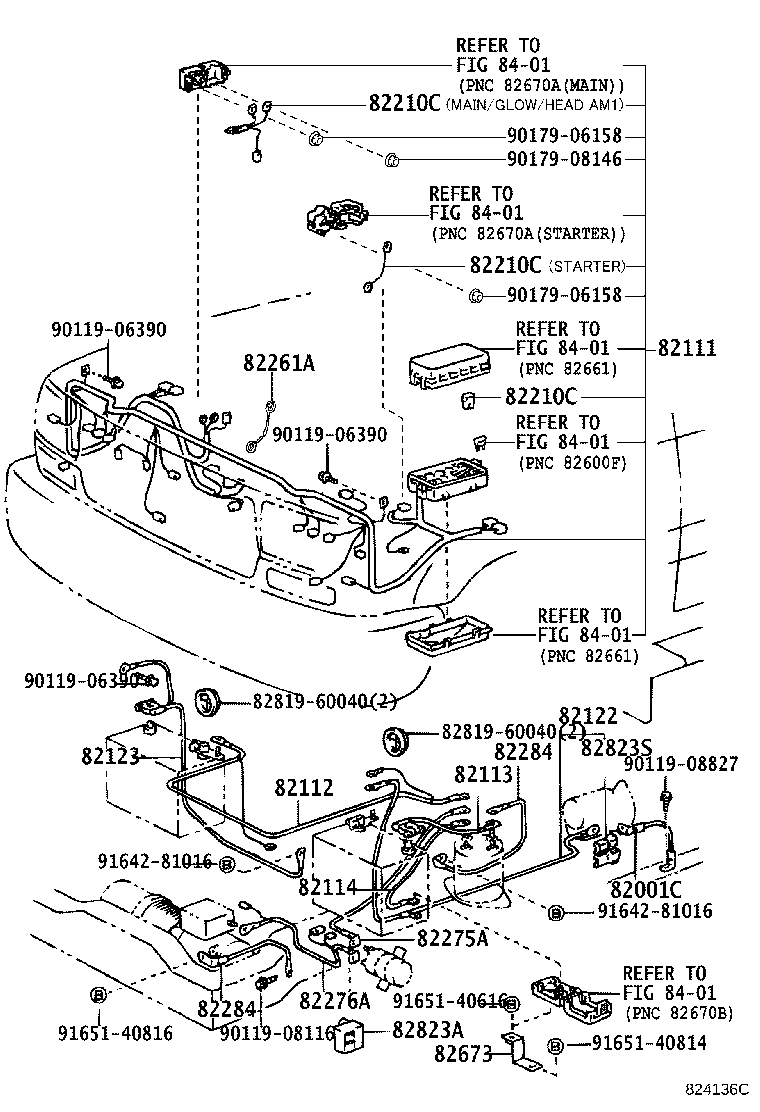

ILLUST NO. 1 OF 9(9501- )HDJ81,HZJ81
ｴﾝｼﾞﾝﾙｰﾑ & ｳｲﾝﾁ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001C - CABLE, BOND, NO.2 | ||||
| 90980-07187 |
HDJ81,HZJ81 |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60120 |
HDJ81,HZJ81 |
1 | ||
| 82111-60130 |
HZJ81 ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) OR ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 82111-60134 |
HZJ81 |
1 | ||
| 82111-60134 |
HZJ81 |
1 | ||
| 82111-60135 |
HZJ81 |
1 | ||
| 82111-60135 |
HZJ81 |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-60050 |
HDJ81,HZJ81 |
1 | ||
| 82112-60050 |
HDJ81,HZJ81..DSL,TD2 |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-60010 |
HDJ81,HZJ81 |
1 | ||
| 82113-60011 |
HDJ81,HZJ81 |
1 | ||
| 82113-60011 |
HDJ81,HZJ81 |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-60010 |
HDJ81,HZJ81 |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-60050 |
HDJ81,HZJ81 |
1 | ||
| 82123 - WIRE, ENGINE, NO.3 | ||||
| 82123-60040 |
HDJ81,HZJ81 |
1 | ||
| 82123-60041 |
HDJ81,HZJ81 |
1 | ||
| 82123-60042 |
HDJ81,HZJ81 |
1 | ||
| 82123-60042 |
HDJ81,HZJ81 |
1 | ||
| 82123-60041 |
HDJ81,HZJ81 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82261A - WIRE, ALTERNATOR | ||||
| 82261-60020 |
HDJ81,HZJ81 |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-60050 |
HDJ81,HZJ81 |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-60020 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60020 |
HDJ81,HZJ81 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ),WINCH---FRAME |
1 | ||
| 82284-60010 |
HDJ81,HZJ81 TRANSFER RELAY EARH |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-60020 |
HDJ81,HZJ81 ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ),WINCH---FRAME |
1 | ||
| 82284-60010 |
HDJ81,HZJ81 TRANSFER RELAY EARH |
1 | ||
| 82673 - BRACKET, JUNCTION BLOCK | ||||
| 82673-60010 |
HDJ81,HZJ81 |
1 | ||
| 82823A - CAP, TERMINAL, NO.2 | ||||
| 82823-90300 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 82819-60040 | ||||
| 90119-06390 | ||||
| 90119-08116 | ||||
| 90119-08827 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 91642-81016 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 8401 | ||||

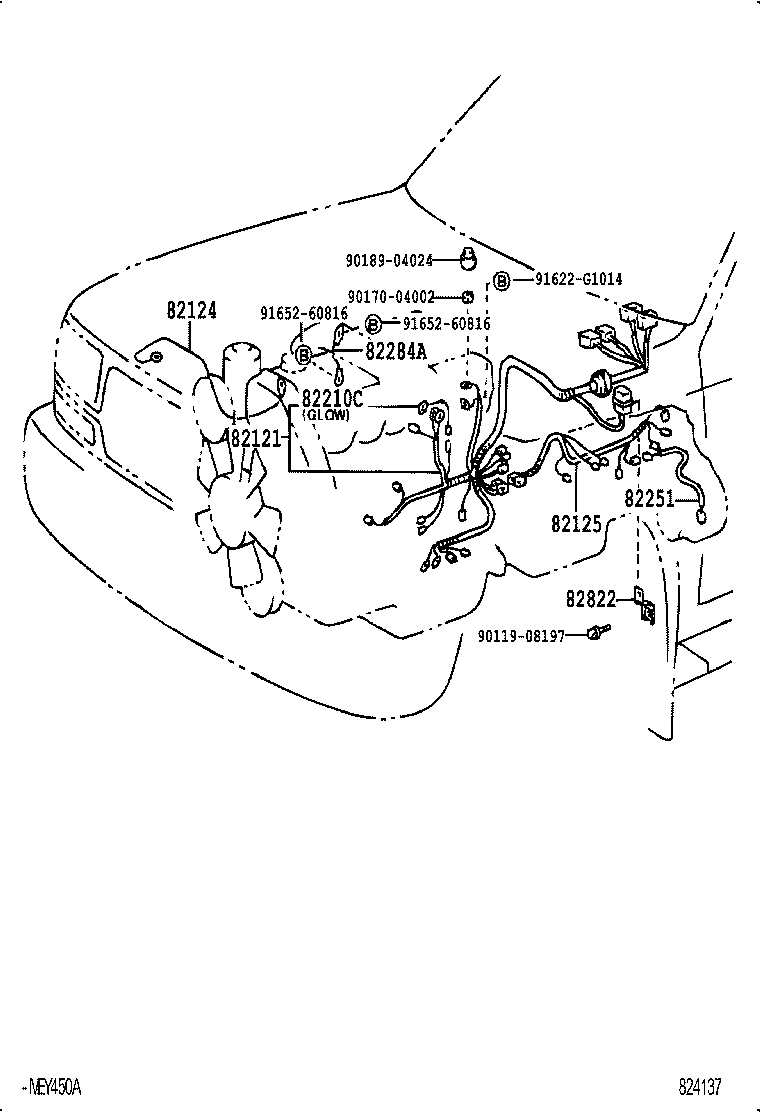

ILLUST NO. 3 OF 9(9501- )HDJ81,HZJ81
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60125 |
HZJ81..ATM |
1 | ||
| 82121-60120 |
HDJ81,HZJ81..ATM |
1 | ||
| 82121-60124 |
HZJ81..ATM |
1 | ||
| 82121-60123 |
HZJ81..ATM |
1 | ||
| 82121-60124 |
HZJ81..ATM |
1 | ||
| 82121-60123 |
HZJ81..ATM |
1 | ||
| 82121-60125 |
HZJ81..ATM |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60082 |
HDJ81,HZJ81..ATM |
1 | ||
| 82125-60082 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60083 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60070 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60082 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60083 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-60050 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| Common parts | ||||
| 90119-08197 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 91622-G1014 | ||||
| 91652-60816 | ||||

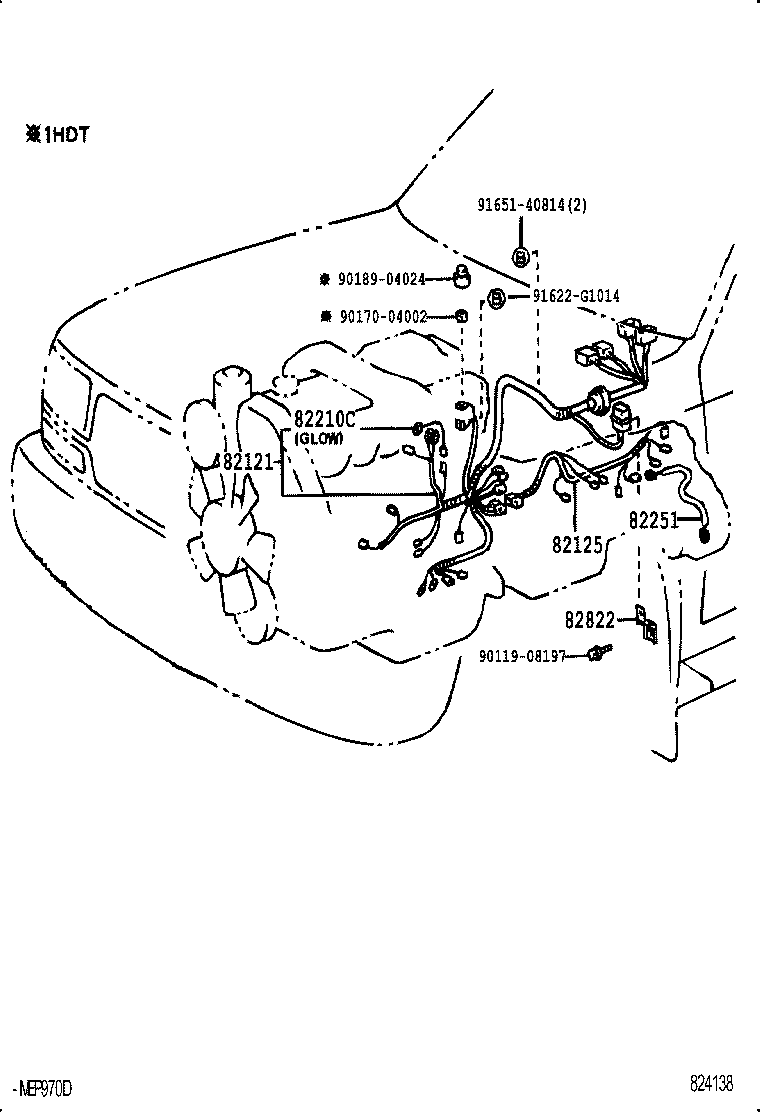

ILLUST NO. 3 OF 9(9001-9501)HDJ81,HZJ81
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-60125 |
HZJ81..ATM |
1 | ||
| 82121-60120 |
HDJ81,HZJ81..ATM |
1 | ||
| 82121-60124 |
HZJ81..ATM |
1 | ||
| 82121-60123 |
HZJ81..ATM |
1 | ||
| 82121-60124 |
HZJ81..ATM |
1 | ||
| 82121-60123 |
HZJ81..ATM |
1 | ||
| 82121-60125 |
HZJ81..ATM |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-60082 |
HDJ81,HZJ81..ATM |
1 | ||
| 82125-60082 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60083 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60070 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60082 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82125-60083 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08227 |
FJ80,HDJ81,HZJ81 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08206 |
HZJ81;HDJ81..ATM GLOW RESISTER,E/G WIRE GLOW |
1 | ||
| 90982-08266 |
HDJ81,HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08265 |
HDJ81,HZJ81 長さ=110,0.5 ｸﾞﾘｰﾝ,STARTER |
1 | ||
| 90982-08266 |
HZJ81 MAIN,GLOW,HEAD,AM1 |
1 | ||
| 82251 - WIRE, SPEED SENSOR | ||||
| 82251-60050 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82822 - BRACKET,CONNECTOR BLOCK | ||||
| 82822-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| Common parts | ||||
| 90119-08197 | ||||
| 90170-04002 | ||||
| 90189-04024 | ||||
| 91622-G1014 | ||||
| 91651-40814 | ||||

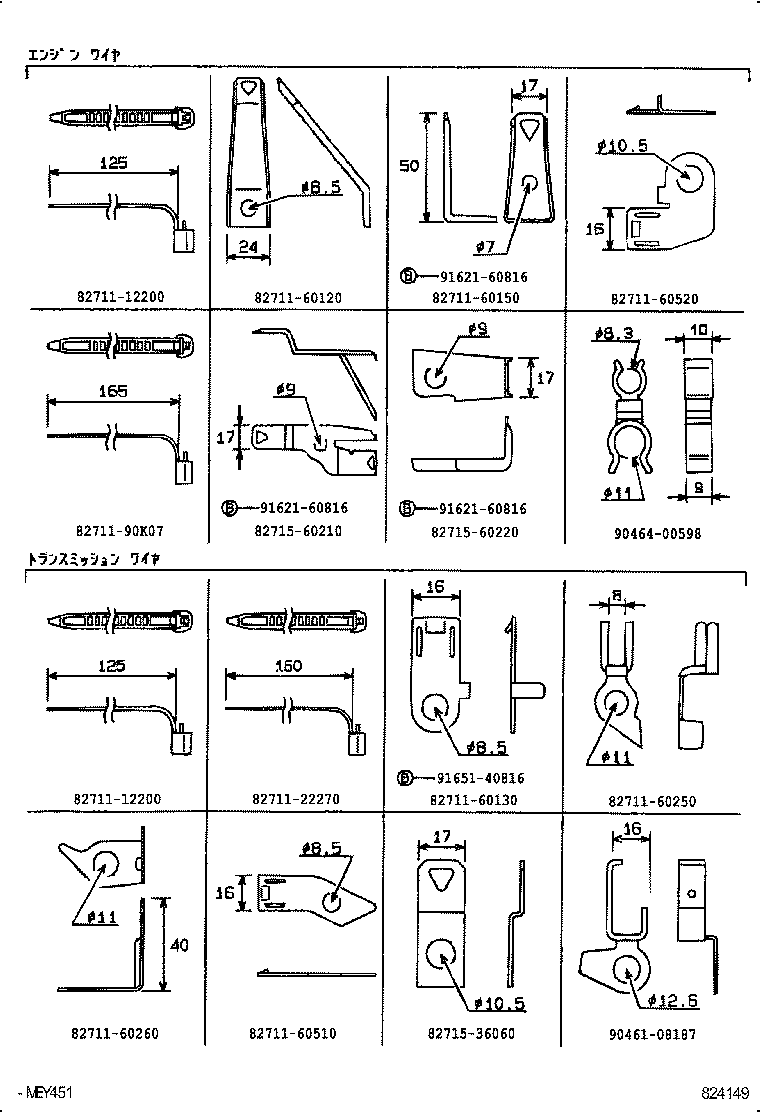

ILLUST NO. 3 OF 9(9501- )HDJ81,HZJ81
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-22270 | ||||
| 82711-60120 | ||||
| 82711-60130 | ||||
| 82711-60150 | ||||
| 82711-60250 | ||||
| 82711-60260 | ||||
| 82711-60510 | ||||
| 82711-60520 | ||||
| 82711-90K07 | ||||
| 82715-36060 | ||||
| 82715-60210 | ||||
| 82715-60220 | ||||
| 90461-08187 | ||||
| 90464-00598 | ||||
| 91621-60816 | ||||
| 91651-40816 | ||||

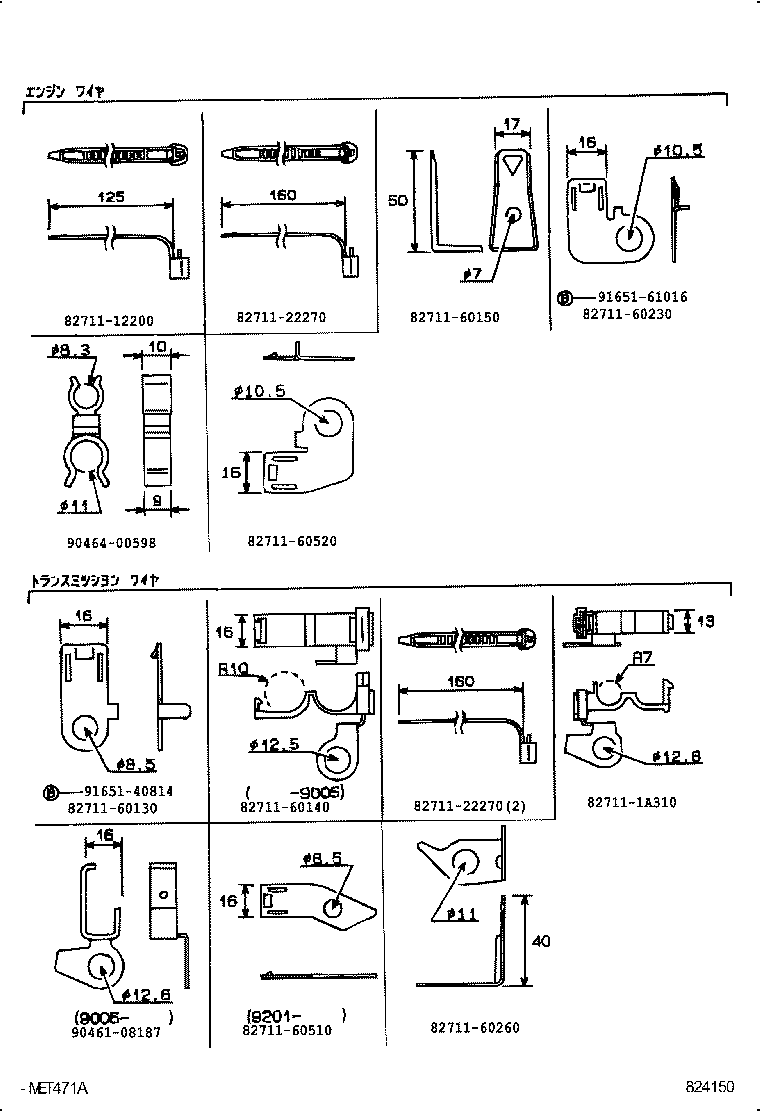

ILLUST NO. 3 OF 9(9001-9501)HDJ81,HZJ81
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-1A310 | ||||
| 82711-22270 | ||||
| 82711-60130 | ||||
| 82711-60140 | ||||
| 82711-60150 | ||||
| 82711-60230 | ||||
| 82711-60260 | ||||
| 82711-60510 | ||||
| 82711-60520 | ||||
| 90461-08187 | ||||
| 90464-00598 | ||||
| 91651-40814 | ||||
| 91651-61016 | ||||

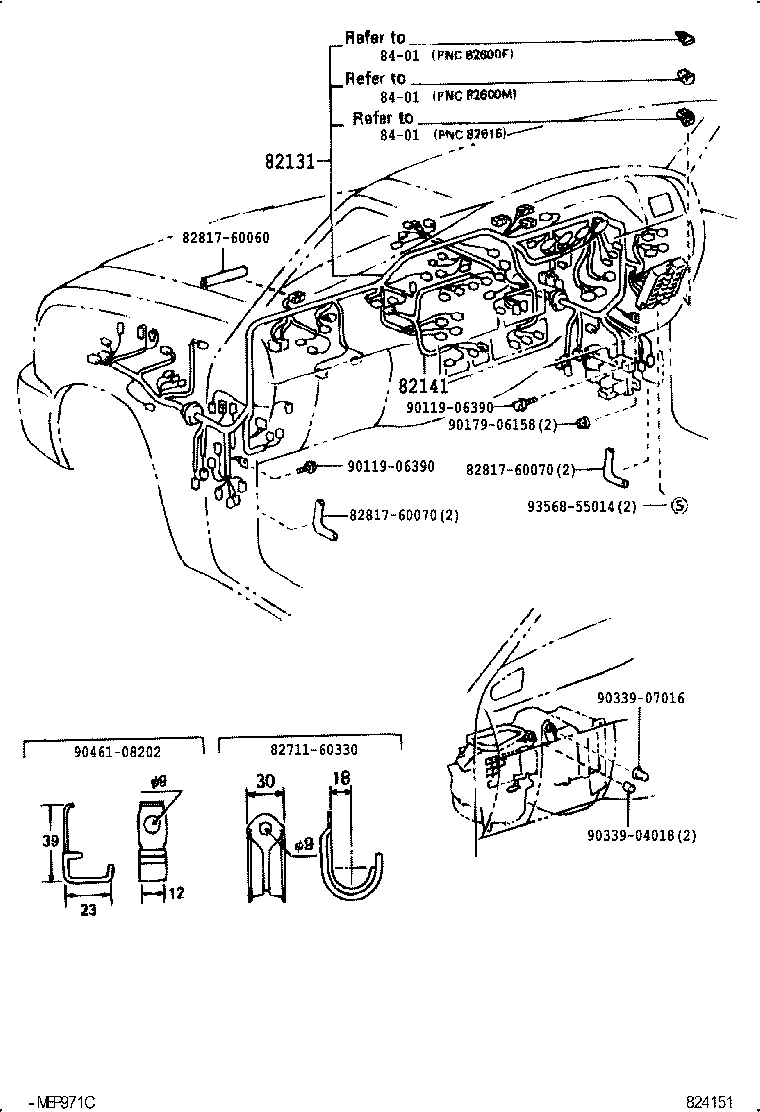

ILLUST NO. 4 OF 9(9001-9501)
ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60260 |
HZJ81 |
1 | ||
| 82131-60270 |
HZJ81..GX ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) OR ｱﾘ(ﾃﾞﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(5 ｽﾋﾟ-ｶ) |
1 | ||
| 82131-60283 |
HDJ81,HZJ81 ｱﾘ(*66) |
1 | ||
| 82131-60284 |
HDJ81,HZJ81 ｱﾘ(*66) |
1 | ||
| 82131-6A802 |
HDJ81,HZJ81 |
1 | ||
| 82131-6A801 |
HDJ81,HZJ81 |
1 | ||
| 82131-60286 |
HDJ81,HZJ81 |
1 | ||
| 82131-60285 |
HDJ81,HZJ81 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60020 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60022 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60023 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60023 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60022 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 82711-60330 | ||||
| 82817-60060 | ||||
| 82817-60070 | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 90339-04018 | ||||
| 90339-07016 | ||||
| 90461-08202 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||

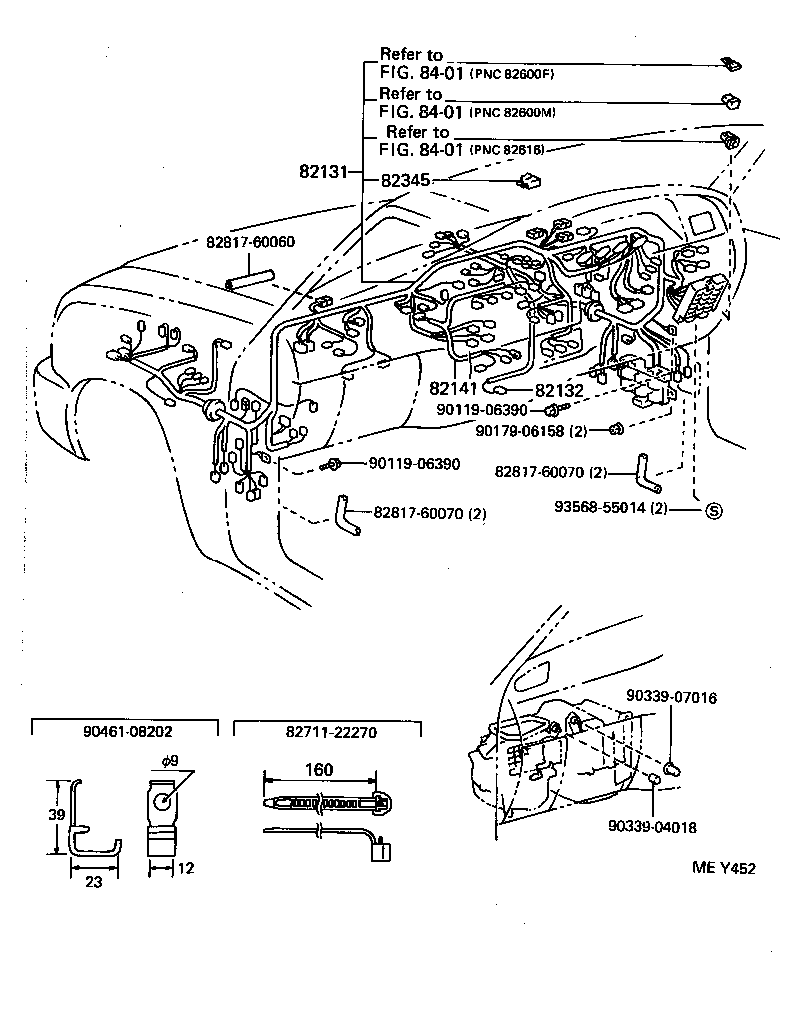

ILLUST NO. 4 OF 9(9501- )
ｶｳﾙ & ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ ﾜｲﾔ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-60260 |
HZJ81 |
1 | ||
| 82131-60270 |
HZJ81..GX ｱﾘ(ﾌﾕ-ｴﾙ ﾋ-ﾀ) OR ｱﾘ(ﾃﾞﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) OR ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) OR ｱﾘ(5 ｽﾋﾟ-ｶ) |
1 | ||
| 82131-60283 |
HDJ81,HZJ81 ｱﾘ(*66) |
1 | ||
| 82131-60284 |
HDJ81,HZJ81 ｱﾘ(*66) |
1 | ||
| 82131-6A802 |
HDJ81,HZJ81 |
1 | ||
| 82131-6A801 |
HDJ81,HZJ81 |
1 | ||
| 82131-60286 |
HDJ81,HZJ81 |
1 | ||
| 82131-60285 |
HDJ81,HZJ81 |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-60080 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82132-60080 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-60020 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60022 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60023 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60023 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82141-60022 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 82345 - DIODE | ||||
| 82345-32020 |
FZJ80,HDJ81,HZJ81..GX NO.3 |
1 | ||
| 82345-32020 |
FZJ80,HDJ81,HZJ81 NO.3 |
1 | ||
| 82345-20060 |
HDJ81,HZJ81 NO.2 |
1 | ||
| 82345-12050 |
FZJ80,HDJ81,HZJ81 NO.1 |
2 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 82817-60060 | ||||
| 82817-60070 | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 90339-04018 | ||||
| 90339-07016 | ||||
| 90461-08202 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
