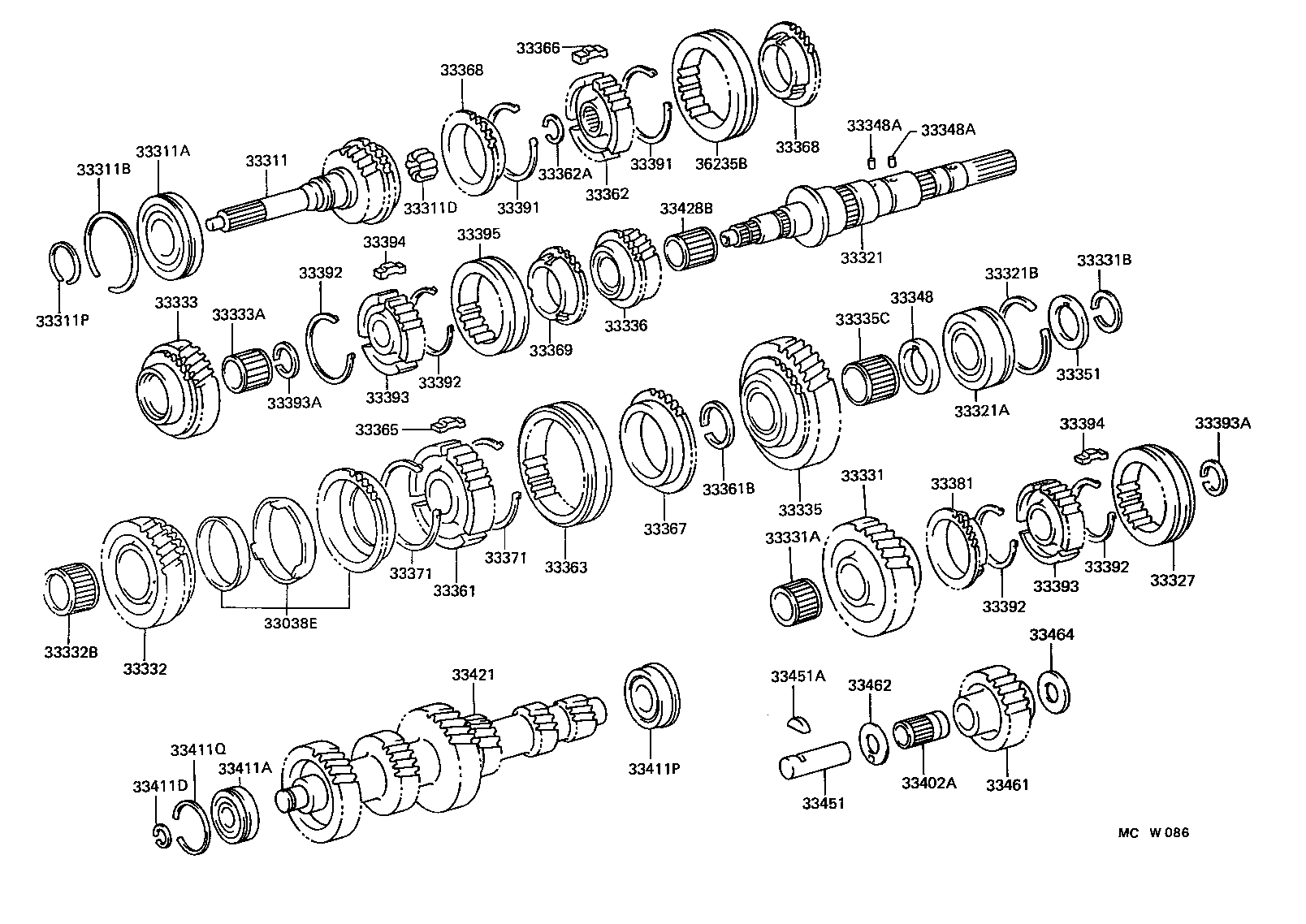

HZJ81V-RCMRS (1990)
Toyota Land Cruiser Van
(9001-9208)HZJ81..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-60020 |
HZJ81..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-50006 |
HZJ81..MTM |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99009 |
HZJ81..MTM 内径=106.1,外径=115.64 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
FZJ80,HZJ81..MTM |
12 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-45003 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-45005 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ C |
1 | ||
| 90520-45004 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ B |
1 | ||
| 90520-45006 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ D |
1 | ||
| 90520-45008 |
FZJ80,HZJ81..MTM 厚さ=2.75−2.80,ﾏｰｸ F |
1 | ||
| 90520-45007 |
FZJ80,HZJ81..MTM 厚さ=2.70−2.75,ﾏｰｸ E |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60120 |
FZJ80,HZJ81..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-45017 |
HZJ81..MTM |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-96002 |
HZJ81..MTM 厚さ=2.41,内径=96.1 |
1 | ||
| 33327 - SLEEVE, TRANSMISSION HUB, NO.4 | ||||
| 33327-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-44003 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331B - RING, SET (FOR REVERSE GEAR) | ||||
| 90520-41007 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-41006 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-41008 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-41009 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-41013 |
FZJ80,HZJ81..MTM 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 90520-41010 |
FZJ80,HZJ81..MTM 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 90520-41012 |
FZJ80,HZJ81..MTM 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90520-41011 |
FZJ80,HZJ81..MTM 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-60010 |
HZJ81..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-58003 |
FZJ80,HZJ81..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-60010 |
HZJ81..MTM |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-38017 |
FZJ80,HZJ81..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-60010 |
HZJ81..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-50001 |
FZJ80,HZJ81..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-60010 |
HZJ81..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-04056 |
FZJ80,HDJ81,HZJ81..MTM |
2 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-04056 |
FZJ80,HDJ81,HZJ81..MTM |
2 | ||
| 33351 - WASHER, REVERSE GEAR THRUST | ||||
| 33351-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-60010 |
FZJ80,HDJ81,HZJ81..MTM |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-46005 |
FZJ80,HZJ81..MTM 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-46007 |
FZJ80,HZJ81..MTM 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| 90520-46004 |
FZJ80,HZJ81..MTM 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-46008 |
FZJ80,HZJ81..MTM 厚さ=3.10−3.15,ﾏｰｸ E |
1 | ||
| 90520-46009 |
FZJ80,HZJ81..MTM 厚さ=3.15−3.20,ﾏｰｸ F |
1 | ||
| 90520-46006 |
FZJ80,HZJ81..MTM 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-60010 |
FZJ80,HDJ81,HZJ81..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28055 |
FZJ80,HZJ81..MTM 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-28054 |
FZJ80,HZJ81..MTM 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28057 |
FZJ80,HZJ81..MTM 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-28056 |
FZJ80,HZJ81..MTM 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-28059 |
FZJ80,HZJ81..MTM 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28058 |
FZJ80,HZJ81..MTM 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-60010 |
HZJ81..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-60010 |
FZJ80,HZJ81..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-60010 |
FZJ80,HZJ81..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-60020 |
HZJ81..MTM 1STｷﾞﾔ側 |
1 | ||
| 33367-60030 |
HZJ81..MTM 2NDｷﾞﾔ側 |
1 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-60020 |
HZJ81..MTM 1STｷﾞﾔ側 |
1 | ||
| 33367-60030 |
HZJ81..MTM 2NDｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60040 |
HZJ81..MTM 3RDｷﾞﾔ側 |
1 | ||
| 33368-60020 |
HZJ81..MTM 4THｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60040 |
HZJ81..MTM 3RDｷﾞﾔ側 |
1 | ||
| 33368-60020 |
HZJ81..MTM 4THｷﾞﾔ側 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-34020 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
2 | ||
| 90520-34019 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
2 | ||
| 90520-34021 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
2 | ||
| 90520-34018 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
2 | ||
| 90520-34023 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ F |
2 | ||
| 90520-34022 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ E |
2 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-34020 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
2 | ||
| 90520-34019 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
2 | ||
| 90520-34021 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
2 | ||
| 90520-34018 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
2 | ||
| 90520-34023 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ F |
2 | ||
| 90520-34022 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ E |
2 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-60010 |
FZJ80,HZJ81..MTM |
6 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-60010 |
FZJ80,HZJ81..MTM |
6 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30028 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-27055 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27053 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27054 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27056 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 90520-27058 |
FZJ80,HZJ81..MTM 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27057 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-36002 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-63001 |
FZJ80,HZJ81..MTM 厚さ=1.60−1.70 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-60110 |
HZJ81..MTM |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-46005 |
FZJ80,HZJ81..MTM |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
FZJ80,HZJ81..MTM |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-60040 |
FZJ80,HZJ81..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 36235B - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 36235-60040 |
HZJ81..MTM |
1 | ||
(9208- )HZJ81..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33311 - SHAFT, INPUT | ||||
| 33301-60020 |
HZJ81..MTM |
1 | ||
| 33311A - BEARING (FOR INPUT SHAFT FRONT) | ||||
| 90363-50006 |
HZJ81..MTM |
1 | ||
| 33311B - RING, SHAFT SNAP (FOR FRONT BEARING) | ||||
| 90520-99009 |
HZJ81..MTM 内径=106.1,外径=115.64 |
1 | ||
| 33311D - BEARING, INPUT SHAFT | ||||
| 90361-08004 |
FZJ80,HZJ81..MTM |
12 | ||
| 33311P - RING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING) | ||||
| 90520-45003 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ A |
1 | ||
| 90520-45005 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ C |
1 | ||
| 90520-45004 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ B |
1 | ||
| 90520-45006 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ D |
1 | ||
| 90520-45008 |
FZJ80,HZJ81..MTM 厚さ=2.75−2.80,ﾏｰｸ F |
1 | ||
| 90520-45007 |
FZJ80,HZJ81..MTM 厚さ=2.70−2.75,ﾏｰｸ E |
1 | ||
| 33321 - SHAFT, OUTPUT | ||||
| 33321-60120 |
FZJ80,HZJ81..MTM |
1 | ||
| 33321A - BEARING (FOR OUTPUT SHAFT REAR) | ||||
| 90363-45017 |
HZJ81..MTM |
1 | ||
| 33321B - RING, SHAFT SNAP (FOR OUTPUT SHAFT BEARING) | ||||
| 90520-96002 |
HZJ81..MTM 厚さ=2.41,内径=96.1 |
1 | ||
| 33327 - SLEEVE, TRANSMISSION HUB, NO.4 | ||||
| 33327-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331 - GEAR, REVERSE | ||||
| 33031-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331A - BEARING (FOR REVERSE GEAR) | ||||
| 90364-44003 |
FZJ80,HZJ81..MTM |
1 | ||
| 33331B - RING, SET (FOR REVERSE GEAR) | ||||
| 90520-41007 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
1 | ||
| 90520-41006 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
1 | ||
| 90520-41008 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
1 | ||
| 90520-41009 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
1 | ||
| 90520-41013 |
FZJ80,HZJ81..MTM 厚さ=2.75,ﾏｰｸ H |
1 | ||
| 90520-41010 |
FZJ80,HZJ81..MTM 厚さ=2.60,ﾏｰｸ E |
1 | ||
| 90520-41012 |
FZJ80,HZJ81..MTM 厚さ=2.70,ﾏｰｸ G |
1 | ||
| 90520-41011 |
FZJ80,HZJ81..MTM 厚さ=2.65,ﾏｰｸ F |
1 | ||
| 33332 - GEAR, 2ND | ||||
| 33033-60010 |
HZJ81..MTM |
1 | ||
| 33332B - BEARING, NEEDLE ROLLER (FOR 2ND GEAR) | ||||
| 90364-58003 |
FZJ80,HZJ81..MTM |
1 | ||
| 33333 - GEAR, 3RD | ||||
| 33034-60010 |
HZJ81..MTM |
1 | ||
| 33333A - BEARING, NEEDLE ROLLER (FOR 3RD GEAR) | ||||
| 90364-38017 |
FZJ80,HZJ81..MTM |
1 | ||
| 33335 - GEAR, 1ST | ||||
| 33032-60010 |
HZJ81..MTM |
1 | ||
| 33335C - BEARING, NEEDLE ROLLER(FOR 1ST GEAR) | ||||
| 90364-50001 |
FZJ80,HZJ81..MTM |
1 | ||
| 33336 - GEAR, 5TH | ||||
| 33036-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33348 - WASHER, 1ST GEAR THRUST | ||||
| 33348-60010 |
HZJ81..MTM |
1 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-04056 |
FZJ80,HDJ81,HZJ81..MTM |
2 | ||
| 33348A - PIN OR BALL (FOR 1ST GEAR THRUST WASHER) | ||||
| 90250-04056 |
FZJ80,HDJ81,HZJ81..MTM |
2 | ||
| 33351 - WASHER, REVERSE GEAR THRUST | ||||
| 33351-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33361 - HUB, TRANSMISSION CLUTCH, NO.1 | ||||
| 33361-60010 |
FZJ80,HDJ81,HZJ81..MTM |
1 | ||
| 33361B - RING, SHAFT SNAP (FOR CLUTCH HUB NO.1) | ||||
| 90520-46005 |
FZJ80,HZJ81..MTM 厚さ=2.95−3.00,ﾏｰｸ B |
1 | ||
| 90520-46007 |
FZJ80,HZJ81..MTM 厚さ=3.05−3.10,ﾏｰｸ D |
1 | ||
| 90520-46004 |
FZJ80,HZJ81..MTM 厚さ=2.90−2.95,ﾏｰｸ A |
1 | ||
| 90520-46008 |
FZJ80,HZJ81..MTM 厚さ=3.10−3.15,ﾏｰｸ E |
1 | ||
| 90520-46009 |
FZJ80,HZJ81..MTM 厚さ=3.15−3.20,ﾏｰｸ F |
1 | ||
| 90520-46006 |
FZJ80,HZJ81..MTM 厚さ=3.00−3.05,ﾏｰｸ C |
1 | ||
| 33362 - HUB, TRANSMISSION CLUTCH, NO.2 | ||||
| 33362-60010 |
FZJ80,HDJ81,HZJ81..MTM |
1 | ||
| 33362A - RING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING) | ||||
| 90520-28055 |
FZJ80,HZJ81..MTM 厚さ=1.95−2.00,ﾏｰｸ 5 |
1 | ||
| 90520-28054 |
FZJ80,HZJ81..MTM 厚さ=1.90−1.95,ﾏｰｸ 4 |
1 | ||
| 90520-28057 |
FZJ80,HZJ81..MTM 厚さ=2.05−2.10,ﾏｰｸ 7 |
1 | ||
| 90520-28056 |
FZJ80,HZJ81..MTM 厚さ=2.00−2.05,ﾏｰｸ 6 |
1 | ||
| 90520-28059 |
FZJ80,HZJ81..MTM 厚さ=2.15−2.20,ﾏｰｸ 9 |
1 | ||
| 90520-28058 |
FZJ80,HZJ81..MTM 厚さ=2.10−2.15,ﾏｰｸ 8 |
1 | ||
| 33363 - SLEEVE, TRANSMISSION HUB, NO.1 | ||||
| 33363-60010 |
HZJ81..MTM |
1 | ||
| 33365 - KEY, SYNCHROMESH SHIFTING, NO.1 | ||||
| 33365-60010 |
FZJ80,HZJ81..MTM |
3 | ||
| 33366 - KEY, SYNCHROMESH SHIFTING, NO.2 | ||||
| 33366-60010 |
FZJ80,HZJ81..MTM |
3 | ||
| 33367 - RING, SYNCHRONIZER, NO.1 | ||||
| 33367-60020 |
HZJ81..MTM 1STｷﾞﾔ側 |
1 | ||
| 33367-60030 |
HZJ81..MTM 2NDｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60040 |
HZJ81..MTM 3RDｷﾞﾔ側 |
1 | ||
| 33368-60020 |
HZJ81..MTM 4THｷﾞﾔ側 |
1 | ||
| 33368 - RING, SYNCHRONIZER, NO.2 | ||||
| 33368-60040 |
HZJ81..MTM 3RDｷﾞﾔ側 |
1 | ||
| 33368-60020 |
HZJ81..MTM 4THｷﾞﾔ側 |
1 | ||
| 33369 - RING, SYNCHRONIZER, NO.3 | ||||
| 33369-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33371 - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 | ||||
| 33371-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33381 - RING, 2ND SYNCHRONIZER OUTER | ||||
| 33381-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33391 - SPRING, SYNCHROMESH SHIFTING KEY, NO.2 | ||||
| 33391-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33392 - SPRING, SYNCHROMESH SHIFTING KEY, NO.3 | ||||
| 33392-60010 |
FZJ80,HZJ81..MTM |
4 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33393 - HUB, TRANSMISSION CLUTCH, NO.3 | ||||
| 33393-60010 |
FZJ80,HZJ81..MTM |
2 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-34020 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
2 | ||
| 90520-34019 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
2 | ||
| 90520-34021 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
2 | ||
| 90520-34018 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
2 | ||
| 90520-34023 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ F |
2 | ||
| 90520-34022 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ E |
2 | ||
| 33393A - RING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3) | ||||
| 90520-34020 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ C |
2 | ||
| 90520-34019 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ B |
2 | ||
| 90520-34021 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ D |
2 | ||
| 90520-34018 |
FZJ80,HZJ81..MTM 厚さ=2.40−2.45,ﾏｰｸ A |
2 | ||
| 90520-34023 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ F |
2 | ||
| 90520-34022 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ E |
2 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-60010 |
FZJ80,HZJ81..MTM |
6 | ||
| 33394 - KEY, SYNCHROMESH SHIFTING, NO.3 | ||||
| 33394-60010 |
FZJ80,HZJ81..MTM |
6 | ||
| 33395 - SLEEVE, TRANSMISSION HUB, NO.3 | ||||
| 33395-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33402A - BUSH OR BEARING (FOR REVERSE IDLER GEAR) | ||||
| 90364-28010 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411A - BEARING OR ROLLER(FOR COUNTER GEAR FRONT) | ||||
| 90365-30028 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411D - RING, COUNTER GEAR FRONT BEARING SNAP, NO.1 | ||||
| 90520-27055 |
FZJ80,HZJ81..MTM 厚さ=2.55−2.60,ﾏｰｸ C |
1 | ||
| 90520-27053 |
FZJ80,HZJ81..MTM 厚さ=2.45−2.50,ﾏｰｸ A |
1 | ||
| 90520-27054 |
FZJ80,HZJ81..MTM 厚さ=2.50−2.55,ﾏｰｸ B |
1 | ||
| 90520-27056 |
FZJ80,HZJ81..MTM 厚さ=2.60−2.65,ﾏｰｸ D |
1 | ||
| 90520-27058 |
FZJ80,HZJ81..MTM 厚さ=2.70−2.75,ﾏｰｸ F |
1 | ||
| 90520-27057 |
FZJ80,HZJ81..MTM 厚さ=2.65−2.70,ﾏｰｸ E |
1 | ||
| 33411P - BEARING, COUNTER SHAFT CENTER | ||||
| 90365-36002 |
FZJ80,HZJ81..MTM |
1 | ||
| 33411Q - RING, COUNTER GEAR FRONT BEARING SNAP, NO.2 | ||||
| 90520-63001 |
FZJ80,HZJ81..MTM 厚さ=1.60−1.70 |
1 | ||
| 33421 - GEAR, COUNTER | ||||
| 33421-60110 |
HZJ81..MTM |
1 | ||
| 33428B - BEARING (FOR COUNTER 5TH GEAR) | ||||
| 90364-46005 |
FZJ80,HZJ81..MTM |
1 | ||
| 33451 - SHAFT, REVERSE IDLER GEAR | ||||
| 33451-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33451A - KEY, WOODRUFF (FOR REVERSE IDLER GEAR SHAFT) | ||||
| 90280-03002 |
FZJ80,HZJ81..MTM |
1 | ||
| 33461 - GEAR, REVERSE IDLER | ||||
| 33461-60040 |
FZJ80,HZJ81..MTM |
1 | ||
| 33462 - WASHER, REVERSE IDLER THRUST | ||||
| 33462-60020 |
FZJ80,HZJ81..MTM |
1 | ||
| 33464 - WASHER, REVERSE IDLER THRUST, NO.2 | ||||
| 33464-60010 |
FZJ80,HZJ81..MTM |
1 | ||
| 36235B - SLEEVE, TRANSMISSION HUB, NO.2 | ||||
| 36235-60040 |
HZJ81..MTM |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
