HZJ81V-RCMRS (1990)

Toyota Land Cruiser Van

Production Jan 1990 - May 1993

Engine 1HZ

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

(9001- )1HDT,1HZ

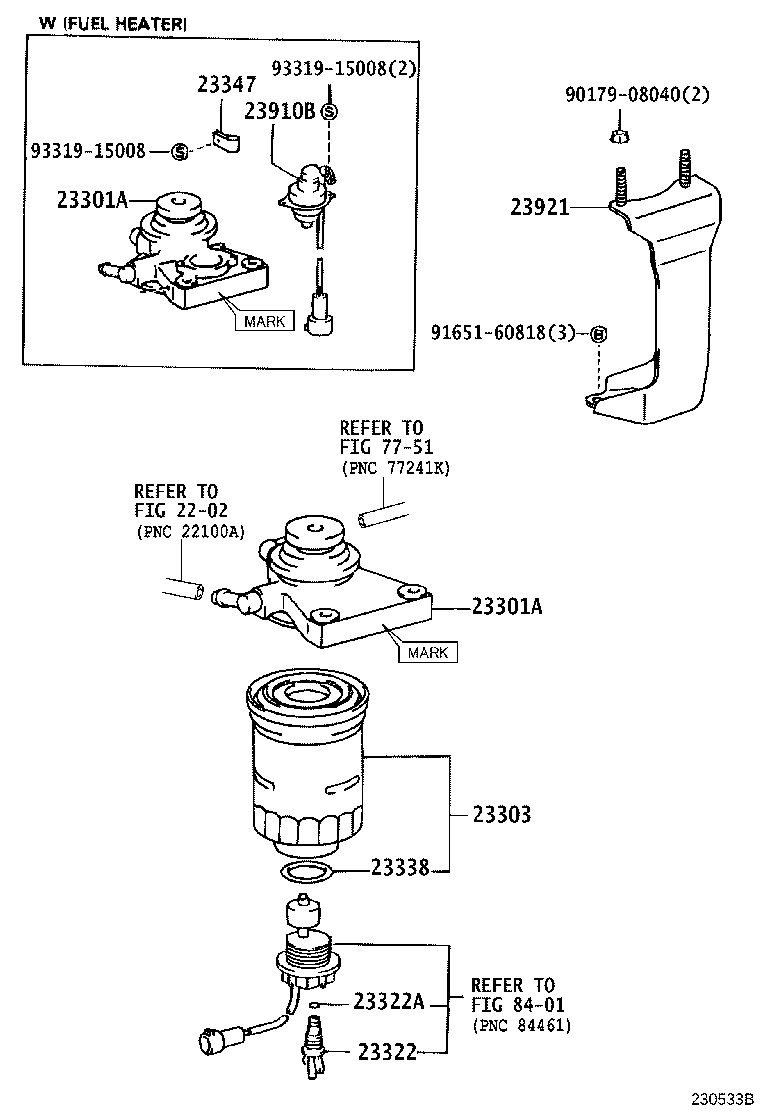

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
23301A - CAP ASSY, FUEL FILTER
23301-17020	1HZ..HZJ81 ｱﾘ(ﾌﾕｰｴﾙﾋｰﾀ)	01/1990 - 08/1992	1
23301-17010	1HZ..HZJ81	01/1990 - 08/1992	1
23301-17160	1HZ..HZJ81 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1992 - 05/1993	1
23301A - CAP ASSY, FUEL FILTER
23301-17020	1HZ..HZJ81 ｱﾘ(ﾌﾕｰｴﾙﾋｰﾀ)	01/1990 - 08/1992	1
23301-17010	1HZ..HZJ81	01/1990 - 08/1992	1
23301-17160	1HZ..HZJ81 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1992 - 05/1993	1
23303 - ELEMENT SUB-ASSY, FUEL FILTER
23303-64010	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
23322 - PLUG, DRAIN(FOR FUEL FILTER)
23322-64010	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
23347 - CLIP, CORD
23347-54010	1H#..HDJ81,HZJ81	01/1990 - 08/1992	1
23910B - HEATER ASSY, FUEL
23910-17020	1H#..HDJ81,HZJ81	01/1990 - 08/1992	1
23910-17040	1H#..HDJ81,HZJ81 ｱﾘ(ﾌﾕ-ｴﾙﾋ-ﾀ)	08/1992 - 02/1993	1
23921 - SUPPORT, FUEL FILTER
23904-17010	1H#..HDJ81,HZJ81	01/1990 - 05/1992	1
Common parts
90179-08040
91651-60818
93319-15008
Linked diagrams
2202
7751
8401
