HZJ81V-RCMRS (1990)
Toyota Land Cruiser Van

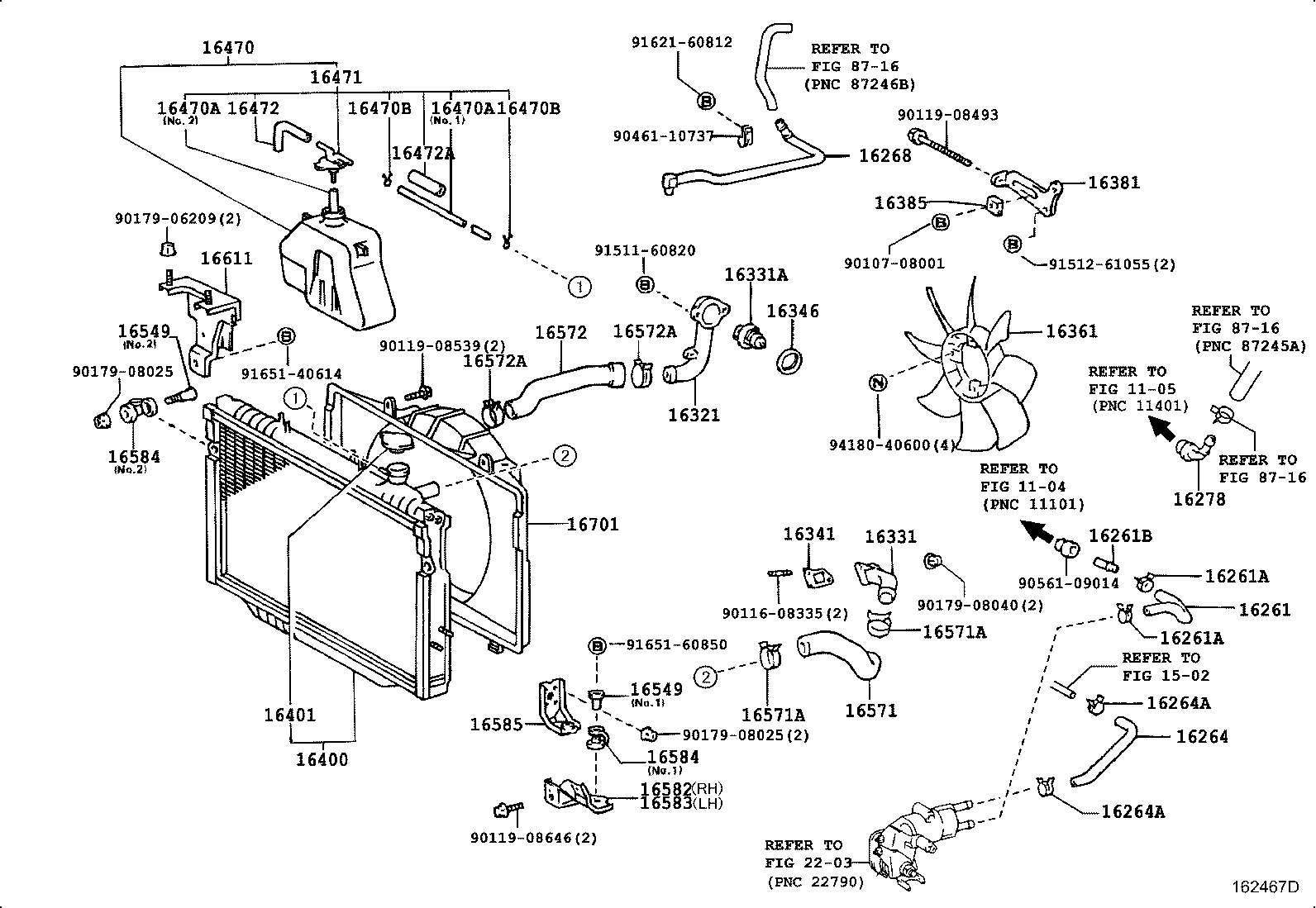

ILLUST NO. 1 OF 2(9001-9608)1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-17010 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90467-15022 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16261B - UNION(FOR WATER BY-PASS HOSE) | ||||
| 90406-10014 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 16264-17010 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-15022 |
1HZ..HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
2 | ||
| 16268 - PIPE, WATER BY-PASS, NO.1 | ||||
| 16268-17010 |
1HZ..HZJ81 |
1 | ||
| 16278 - PIPE, WATER BY-PASS, NO.2 | ||||
| 16278-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16321 - INLET, WATER | ||||
| 16321-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-17010 |
1HZ..HZJ81 |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03089 |
1HD#,1HZ..HDJ81,HZJ81 *WAX 76−90 |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| 16346-66020 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16361 - FAN | ||||
| 16361-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-17010 |
1HDT,1HZ..HDJ81,HZJ81 |
1 | ||
| 16385 - SLIDER, FAN BELT ADJUSTING | ||||
| 16385-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-17020 |
1HZ..HZJ81..MTM |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-61060 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33466 |
1H#..HDJ81,HZJ81 *H,L=210,NO.2 |
1 | ||
| 90099-33466 |
1H#..HDJ81,HZJ81 *H,L=210,NO.2 |
1 | ||
| 90445-12781 |
1HD#,1HZ..HDJ81,HZJ81 *H,L=750,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90099-33466 |
1H#..HDJ81,HZJ81 *H,L=210,NO.2 |
1 | ||
| 90099-33466 |
1H#..HDJ81,HZJ81 *H,L=210,NO.2 |
1 | ||
| 90445-12781 |
1HD#,1HZ..HDJ81,HZJ81 *H,L=750,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ81,HZJ81 |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
1HD#,1HZ..HDJ81,HZJ81 |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-61040 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16472 - HOSE, BREATHER | ||||
| 85338-95A01 |
1HZ..HZJ81 |
1 | ||
| 85338-95A01 |
1H#..HDJ81,HZJ81 |
1 | ||
| 85338-22020 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16472A - PROTECTOR, HOSE | ||||
| 85338-70070 |
1HZ..HZJ81 |
1 | ||
| 85338-70070 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61020 |
1HD#,1HZ..HDJ81,HZJ81 NO.2 |
2 | ||
| 16549-61010 |
1HD#,1HZ..HDJ81,HZJ81 NO.1 |
2 | ||
| 16549 - COLLAR, RADIATOR SUPPORT, NO.2 | ||||
| 16549-61020 |
1HD#,1HZ..HDJ81,HZJ81 NO.2 |
2 | ||
| 16549-61010 |
1HD#,1HZ..HDJ81,HZJ81 NO.1 |
2 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDJ81,HZJ81 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-42001 |
1HD#,1HZ..HDJ81,HZJ81 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
1HD#,1HZ..HDJ81,HZJ81 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10530 |
1HD#,1HZ..HDJ81,HZJ81 ｴﾝｼﾞﾝ側 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10490 |
1HD#,1HZ..HDJ81,HZJ81 ﾗｼﾞｴｰﾀ側 |
1 | ||
| 96111-10530 |
1HD#,1HZ..HDJ81,HZJ81 ｴﾝｼﾞﾝ側 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-61030 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-61030 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDJ81,HZJ81 NO.1 |
2 | ||
| 16584-61030 |
1HD#,1HZ..HDJ81,HZJ81 NO.2 |
2 | ||
| 16584 - INSULATOR, RADIATOR MOUNTING | ||||
| 16584-61020 |
1HD#,1HZ..HDJ81,HZJ81 NO.1 |
2 | ||
| 16584-61030 |
1HD#,1HZ..HDJ81,HZJ81 NO.2 |
2 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-61020 |
1HD#,1HZ..HDJ81,HZJ81 |
2 | ||
| 16611 - BRACKET, RADIATOR RESERVE TANK | ||||
| 16611-61040 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-17010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 90107-08001 | ||||
| 90116-08335 | ||||
| 90119-08493 | ||||
| 90119-08539 | ||||
| 90119-08646 | ||||
| 90179-06209 | ||||
| 90179-08025 | ||||
| 90179-08040 | ||||
| 90461-10737 | ||||
| 90561-09014 | ||||
| 91511-60820 | ||||
| 91512-61055 | ||||
| 91621-60812 | ||||
| 91651-40614 | ||||
| 91651-60850 | ||||
| 94180-40600 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1105 | ||||
| 1502 | ||||
| 2203 | ||||
| 8716 | ||||
ILLUST NO. 2 OF 2(9001-9608)1HD#,1HZ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

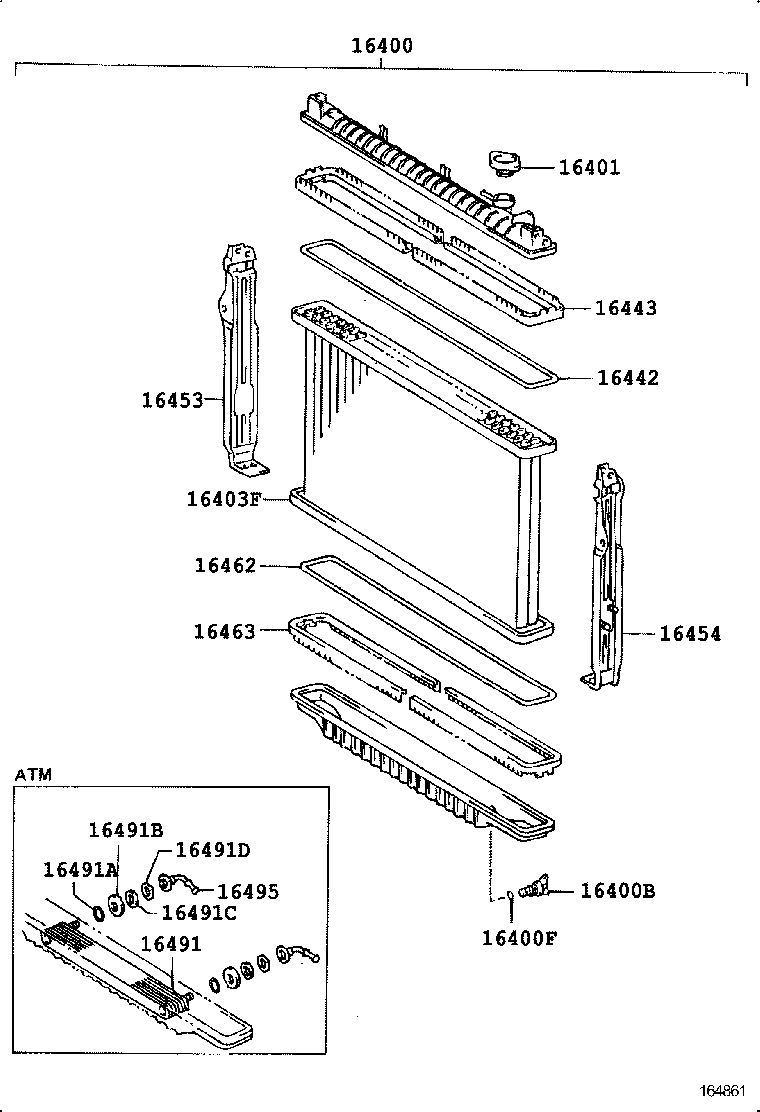

| 16400 - RADIATOR ASSY | ||||
| 16400-17020 |
1HZ..HZJ81..MTM |
1 | ||
| 16400-17020 |
1HZ..HZJ81..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 16417-15210 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16417-15210 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 16418-24200 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16418-24200 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16418-24200 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16418-24200 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-71010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16401-71010 |
1HD#,1HZ..HDJ81,HZJ81 |
1 | ||
| 16403F - CORE SUB-ASSY, RADIATOR | ||||
| 16403-17020 |
1HZ..HZJ81 |
1 | ||
| 16403-17020 |
1HZ..HZJ81 |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16442-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16443 - PLATE, RADIATOR TANK, LOCK, UPPER | ||||
| 16443-61160 |
1H#..HDJ81,HZJ81 |
2 | ||
| 16443-61160 |
1H#..HDJ81,HZJ81 |
2 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-61160 |
1HZ..HZJ81;1HDT..HDJ81..ATM |
1 | ||
| 16453-61160 |
1HZ..HZJ81;1HDT..HDJ81..ATM |
1 | ||
| 16453-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16453-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-61160 |
1HZ..HZJ81;1HDT..HDJ81..ATM |
1 | ||
| 16454-61160 |
1HZ..HZJ81;1HDT..HDJ81..ATM |
1 | ||
| 16454-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16454-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16442-61160 |
1H#..HDJ81,HZJ81 |
1 | ||
| 16463 - PLATE, RADIATOR TANK, LOCK, LOWER | ||||
| 16443-61160 |
1H#..HDJ81,HZJ81 |
2 | ||
| 16443-61160 |
1H#..HDJ81,HZJ81 |
2 | ||
