HJ61V-PEMZX (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )HRF

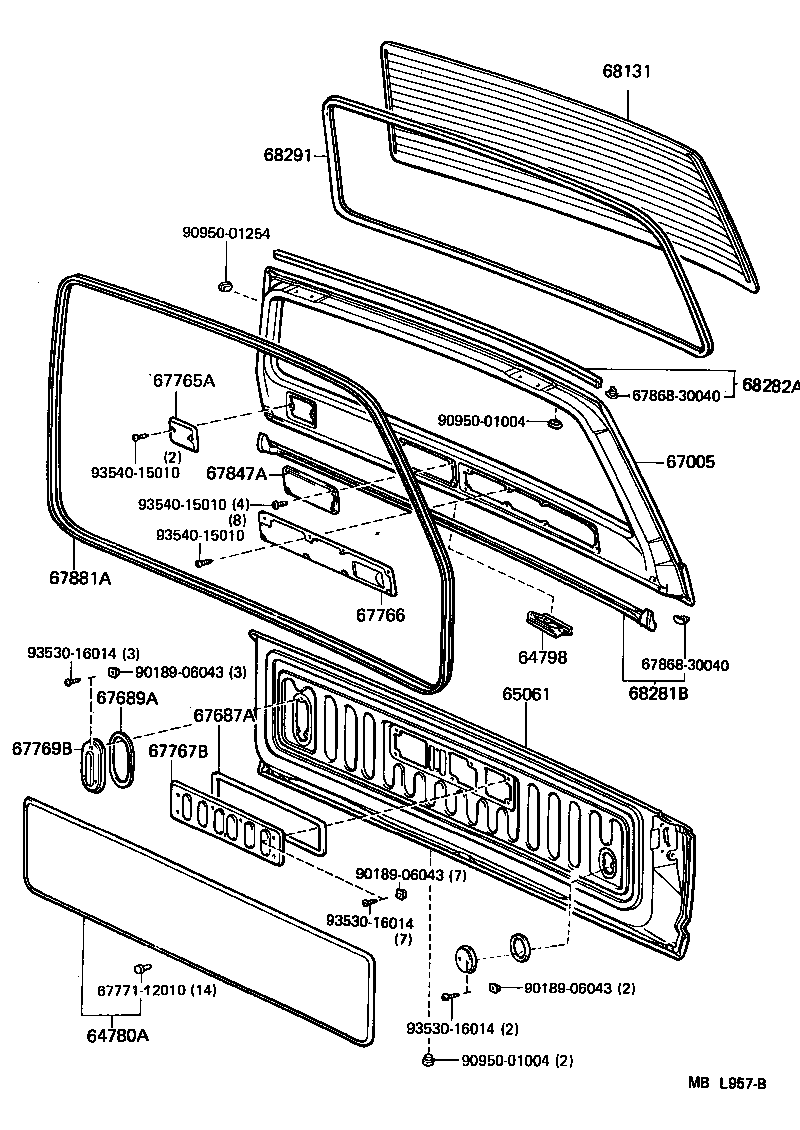

Click highlighted areas on diagram

diagram 64780A 64798 65061 67005 67687A 67689A 67765A 67766 67767B 67769B 6777112010 67847A 6786830040 6786830040 67881A 68131 68281B 68282A 68291 9018906043 9018906043 9018906043 9095001004 9095001004 9095001254 9353016014 9353016014 9353016014 9354015010 9354015010 9354015010
Part # Description Qty Price
64780A - PANEL ASSY, BACK DOOR TRIM
64780-90A0203

FJ62,HJ61..VX

SHADOW GRAY,TRIM1#

 1
64780-90A0216

FJ62,HJ61..VX

SEPIA BROWN,TRIM4#

 1
64798 - COVER, BACK DOOR LOCK
64798-90A00

FJ62,HJ6#..HRF

 1
65061 - PANEL SUB-ASSY, TAIL GATE
65061-90A18

FJ62,HJ6#..HRF

 1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-90A23

HJ6#..HRF

 1
67687A - PACKING, BACK DOOR SERVICE HOLE, NO.3
67687-90A00

FJ62,HJ6#..HRF

 1
67689A - PACKING, BACK DOOR SERVICE HOLE, NO.5
67689-90A00

FJ62,HJ6#..HRF

 1
67765A - COVER, BACK DOOR SERVICE HOLE, NO.1
67765-90A00

FJ62,HJ6#..HRF

 1
67766 - COVER, BACK DOOR SERVICE HOLE, NO.2
67766-90A00

FJ62,HJ6#..HRF

 1
67767B - COVER, BACK DOOR SERVICE HOLE, NO.3
67767-90A00

FJ62,HJ6#..HRF

 1
67769B - COVER, BACK DOOR SERVICE HOLE, NO.5
67769-90A00

FJ62,HJ6#..HRF

 1
67847A - COVER, BACK DOOR SERVICE HOLE
67847-90A01

FJ62,HJ6#..HRF

 1
67881A - WEATHERSTRIP, BACK DOOR
67881-90A06

FJ62,HJ6#..HRF

 1
68131 - GLASS, BACK DOOR
68131-90A35

HJ6#..HRF

*EHT,厚さ=3.5,ﾌﾞﾛﾝｽﾞ

 1
68281B - WEATHERSTRIP, LIFT GATE
68281-90A00

FJ62,HJ6#..HRF

 1
68282A - WEATHERSTRIP, LIFT GATE, UPPER
68282-90A00

FJ62,HJ6#..HRF

 1
68291 - WEATHERSTRIP, BACK DOOR GLASS
68291-90A01

FJ62,HJ6#..HRF

 1
Common parts
67771-12010
67868-30040
90189-06043
90950-01004
90950-01254
93530-16014
93540-15010
