HJ61V-PEMZX (1987)
Toyota Land Cruiser Van
Production
Aug 1987
-
Jan 1990
Engine
12HT
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )

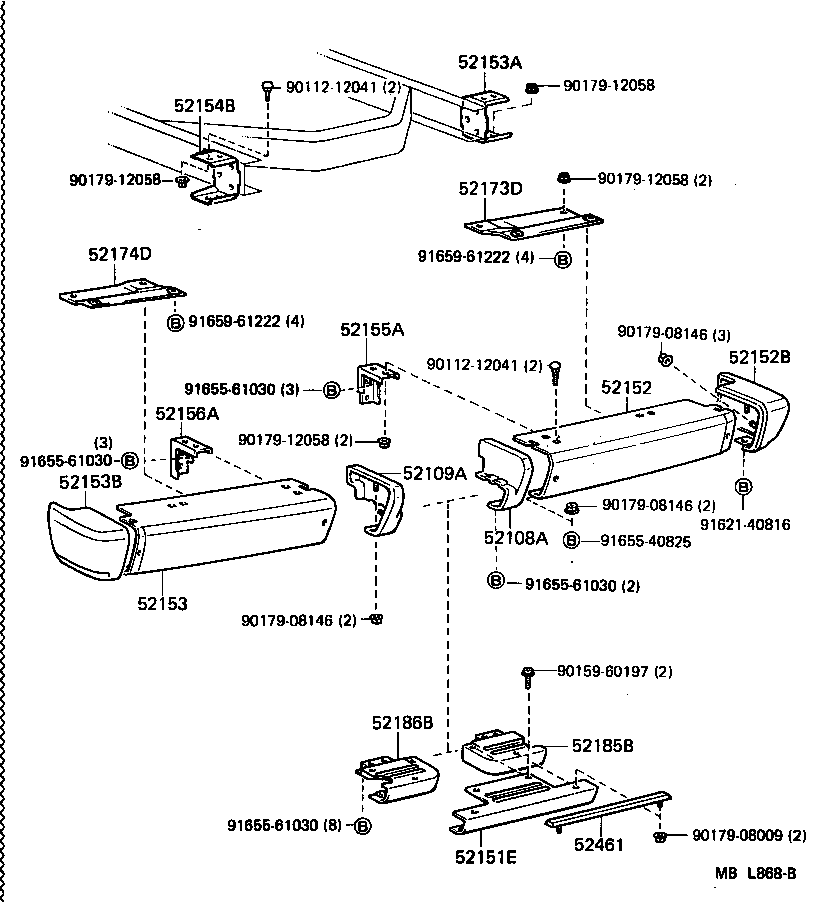

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52108A - BUMPER SUB-ASSY, REAR SIDE, RH | ||||
| 52108-90A00 |
FJ62,HJ6#..CBU |
1 | ||
| 52109A - BUMPER SUB-ASSY, REAR SIDE, LH | ||||
| 52109-90A00 |
FJ62,HJ6#..CBU |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52151-60100 |
FJ62,HJ6#..CBU |
1 | ||
| 52152 - BAR, REAR BUMPER, RH | ||||
| 52152-90A01 |
FJ62,HJ6#..GX,VX |
1 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-90A01 |
FJ62,HJ6#..CBU |
1 | ||
| 52153 - BAR, REAR BUMPER, LH | ||||
| 52153-90A01 |
FJ62,HJ6#..GX,VX |
1 | ||
| 52153A - STAY, REAR BUMPER SIDE, RH | ||||
| 52153-60060 |
FJ62,HJ6#..CBU |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-90A00 |
FJ62,HJ6#..CBU |
1 | ||
| 52154B - STAY, REAR BUMPER SIDE, LH | ||||
| 52154-60010 |
FJ62,HJ6#..CBU |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-60030 |
FJ62,HJ6#..CBU |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-60010 |
FJ62,HJ6#..CBU |
1 | ||
| 52173D - REINFORCEMENT, REAR BUMPER BAR, RH | ||||
| 52173-60040 |
FJ62,HJ6#..CBU |
1 | ||
| 52174D - REINFORCEMENT, REAR BUMPER BAR, LH | ||||
| 52174-60040 |
FJ62,HJ6#..CBU |
1 | ||
| 52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH | ||||
| 52185-60020 |
FJ62,HJ6#..CBU |
1 | ||
| 52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH | ||||
| 52186-60010 |
FJ62,HJ6#..CBU |
1 | ||
| 52461 - PAD, REAR BUMPER, CENTER | ||||
| 52057-60010 |
FJ62,HJ6#..CBU |
1 | ||
| Common parts | ||||
| 90112-12041 | ||||
| 90159-60197 | ||||
| 90179-08009 | ||||
| 90179-08146 | ||||
| 90179-12058 | ||||
| 91621-40816 | ||||
| 91655-40825 | ||||
| 91655-61030 | ||||
| 91659-61222 | ||||
