HJ61V-PEMZX (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 12HT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )ATM

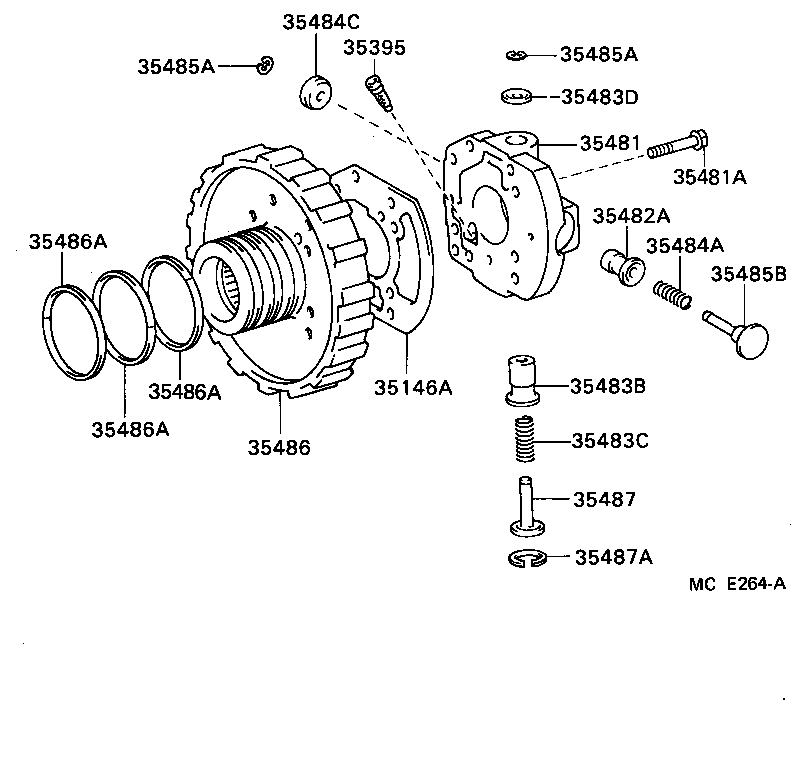

Click highlighted areas on diagram

A440F

diagram 35146A 35395 35481 35481A 35482A 35483B 35483C 35483D 35484A 35484C 35485A 35485A 35485B 35486 35486A 35486A 35486A 35487 35487A
Part # Description Qty Price
35146A - GASKET, GOVERNOR BODY
35146-36010

FJ62,HJ6#..ATM

 1
35395 - STRAINER, GOVERNOR OIL
35395-36010

FJ62,HJ6#..ATM

 1
35481 - BODY, GOVERNOR
35481-36011

HJ6#..ATM

 1
35481-36012

FJ62,HJ6#..ATM

 1
35481A - BOLT (FOR GOVERNOR BODY)
90105-06069

FJ62,HJ6#..ATM

 8
35482A - VALVE, GOVERNOR, NO.1
35482-36010

HJ6#..ATM

 1
35482-36011

HJ6#..ATM

 1
35483B - VALVE, GOVERNOR, NO.2
35483-36010

HJ6#..ATM

 1
35483C - SPRING, COMPRESSION (FOR GOVERNOR VALVE NO.2)
90501-12081

HJ6#..ATM

 1
35483D - SPACER (FOR GOVERNOR VALVE NO.2)
90561-06006

FJ62,HJ6#..ATM

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-07068

HJ6#..ATM

 1
90501-07038

HJ6#..ATM

 1
35484C - WEIGHT, GOVERNOR
35484-36011

HJ6#..ATM

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05002

FJ62,HJ6#..ATM

 2
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05002

FJ62,HJ6#..ATM

 2
35485B - SHAFT, GOVERNOR VALVE, NO.1
35485-36010

HJ6#..ATM

 1
35486 - SUPPORT, GOVERNOR BODY
35486-36010

FJ62,HJ6#..ATM

 1
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..ATM

 3
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..ATM

 3
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..ATM

 3
35487 - SHAFT, GOVERNOR VALVE, NO.2
35487-36010

FJ62,HJ6#..ATM

 1
35487A - RING, SNAP (FOR GOVERNOR VALVE SHAFT NO.2)
96151-02500

FJ62,HJ6#..ATM

 1
