HJ61V-MMZX (1985)

Toyota Land Cruiser Van

Production Oct 1985 - Aug 1987
Engine 12HT
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8510- )HJ61

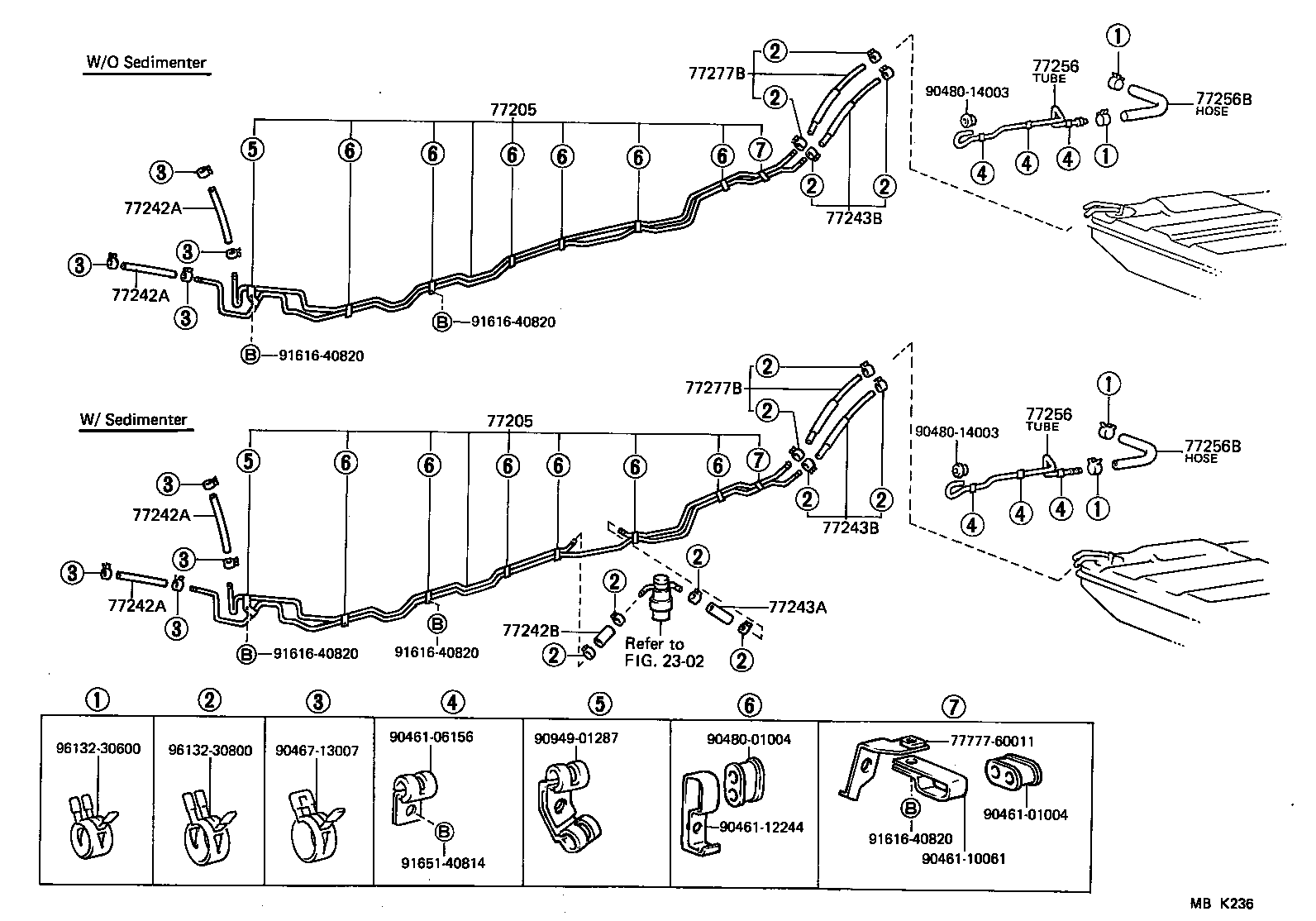

Click highlighted areas on diagram

diagram 2302 77205 77205 77242A 77242A 77242A 77242A 77242B 77243A 77243B 77243B 77256 77256 77256B 77256B 77277B 77277B 7777760011 9046101004 9046106156 9046110061 9046112244 9046713007 9048001004 9048014003 9048014003 9094901287 9161640820 9161640820 9161640820 9161640820 9161640820 9165140814 9613230600 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60290

HJ61

W/SEDIMENTER

 1
77205-60280

HJ61

 1
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60290

HJ61

W/SEDIMENTER

 1
77205-60280

HJ61

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08030

HJ61

*H,L=240,内径=7.6

 1
95332-08020

HJ61

*H,L=200,内径=7.6

 1
95333-08030

HJ61

*H,L=240

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08030

HJ61

*H,L=240,内径=7.6

 1
95332-08020

HJ61

*H,L=200,内径=7.6

 1
95333-08030

HJ61

*H,L=240

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08030

HJ61

*H,L=240,内径=7.6

 1
95332-08020

HJ61

*H,L=200,内径=7.6

 1
95333-08030

HJ61

*H,L=240

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
95332-08030

HJ61

*H,L=240,内径=7.6

 1
95332-08020

HJ61

*H,L=200,内径=7.6

 1
95333-08030

HJ61

*H,L=240

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95333-08020

HJ6#

*H,L=130,W/SEDIMENTER

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95333-08020

HJ6#

*H,L=130,W/SEDIMENTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

BJ6#,HJ6#

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60130

BJ6#,HJ6#

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ6#,FJ6#,HJ6#

*H,L=240

 1
95333-06030

FJ62,HJ6#

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ6#,FJ6#,HJ6#

*H,L=240

 1
95333-06030

FJ62,HJ6#

*H,L=240

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77260-60060

HJ61

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
77260-60060

HJ61

 1
Common parts
77777-60011
90461-01004
90461-06156
90461-10061
90461-12244
90467-13007
90480-01004
90480-14003
90949-01287
91616-40820
91651-40814
96132-30600
96132-30800
Linked diagrams
2302
