HJ61V-MEMZX (1987)
Toyota Land Cruiser Van
Production
Aug 1987
-
Jan 1990
Engine
12HT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )CBU

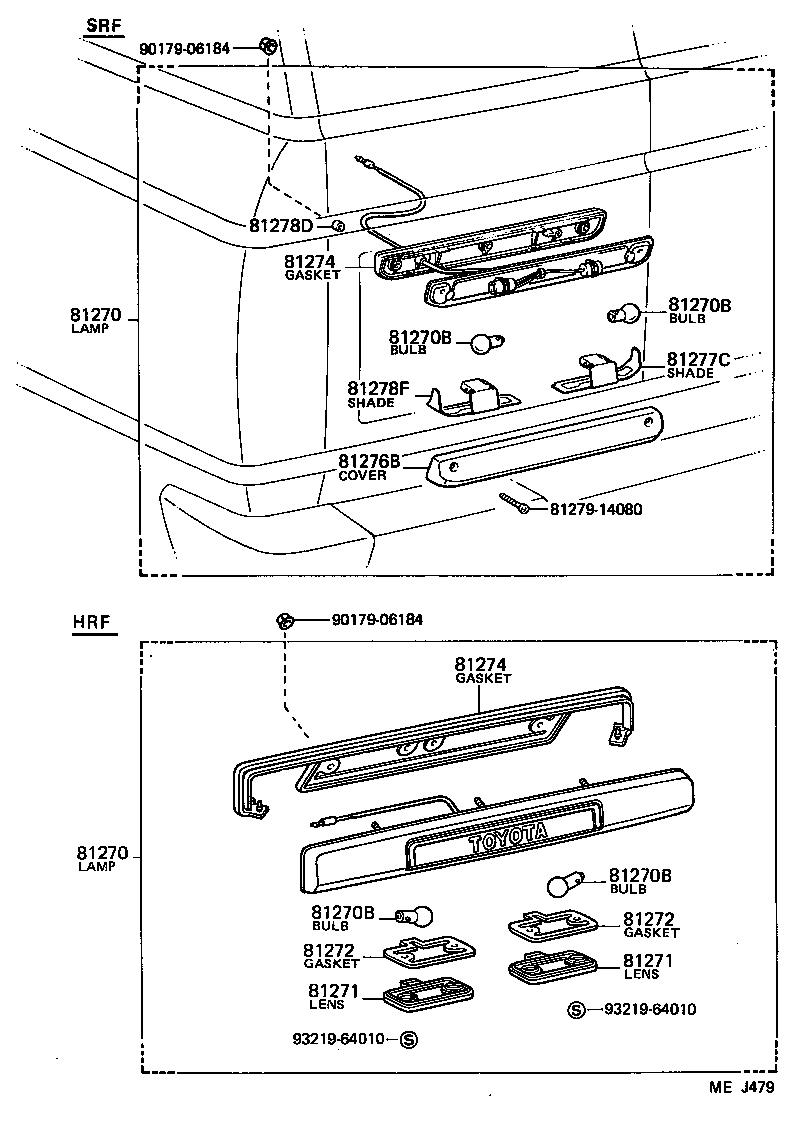

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95A09 |
HJ6#..HRF |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-95A09 |
HJ6#..HRF |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HJ6#..HRF 24V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HJ6#..HRF 24V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HJ6#..HRF 24V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 90981-16016 |
HJ6#..HRF 24V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-13070 |
FJ62,HJ6#..HRF |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-13070 |
FJ62,HJ6#..HRF |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-13070 |
FJ62,HJ6#..HRF |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-13070 |
FJ62,HJ6#..HRF |
2 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-95A00 |
FJ62,HJ6#..HRF |
1 | ||
| 81274 - GASKET, LICENSE PLATE LAMP BODY | ||||
| 81274-95A00 |
FJ62,HJ6#..HRF |
1 | ||
| Common parts | ||||
| 81279-14080 | ||||
| 90179-06184 | ||||
| 93219-64010 | ||||
