HJ60V-PNMZ (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CBU

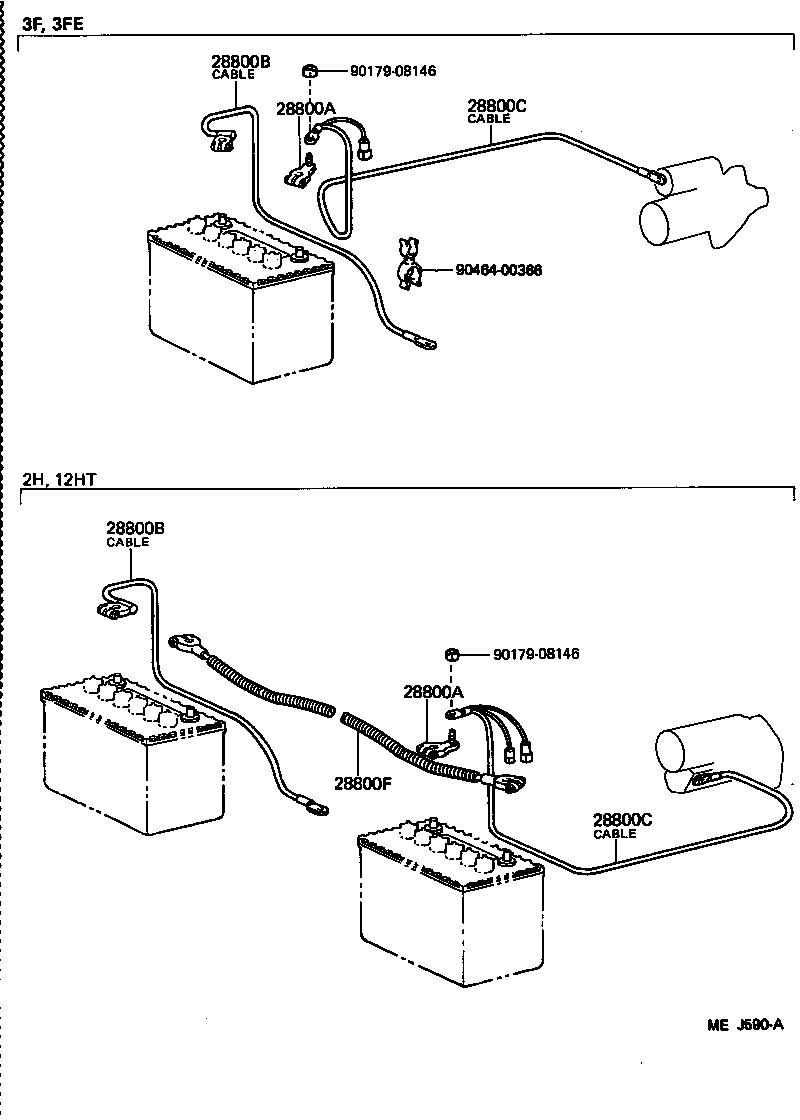

Click highlighted areas on diagram

diagram 28800A 28800A 28800B 28800B 28800C 28800C 28800F 9017908146 9017908146 9046400366
Part # Description Qty Price
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3F..FJ62..IV4;12HT,3FE,2H..FJ62,HJ6#

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3F..FJ62..IV4;12HT,3FE,2H..FJ62,HJ6#

 1
28800B - CABLE, BATTERY TO GROUND
90982-02207

12HT,3F#,2H..FJ62,HJ6#..CBU

 1
28800B - CABLE, BATTERY TO GROUND
90982-02207

12HT,3F#,2H..FJ62,HJ6#..CBU

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01414

12HT,2H..HJ6#

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
90982-01414

12HT,2H..HJ6#

 1
28800F - CABLE, BATTERY TO BATTERY
90982-03019

12HT,2H..HJ6#

 1
Common parts
90179-08146
90464-00366
