HJ60V-PNMZ (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

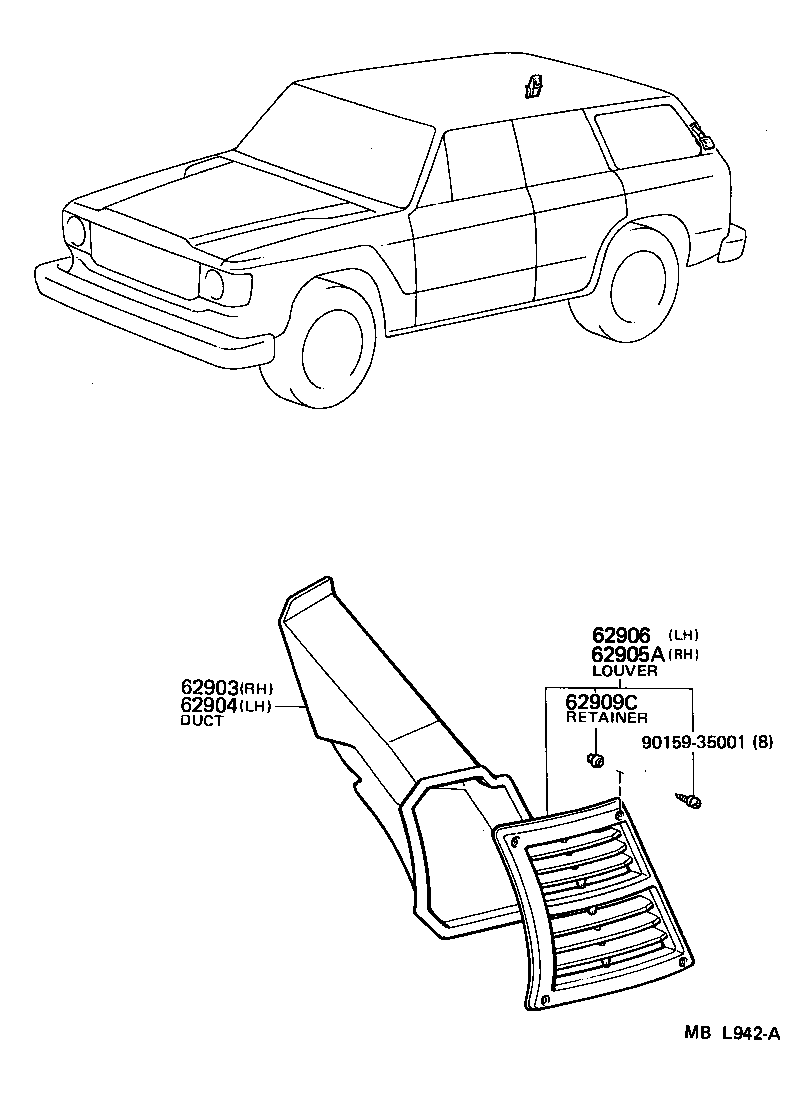

Click highlighted areas on diagram

diagram 62903 62904 62905A 62906 62909C 9015935001
Part # Description Qty Price
62903 - DUCT SUB-ASSY, QUARTER VENTILATOR, RH
62903-90A00

FJ62,HJ6#..CBU

 1
62904 - DUCT SUB-ASSY, QUARTER VENTILATOR, LH
62904-90A00

FJ62,HJ6#..CBU

 1
62905A - LOUVER, QUATER VENTILATION, RH
62905-69015

FJ62,HJ6#..CBU

 1
62906 - LOUVER, QUATER VENTILATION, LH
62906-69015

FJ62,HJ6#..CBU

 1
62909C - RETAINER SUB-ASSY, ROOF SIDE VENT LOUVER
62909-22010

FJ62,HJ6#..CBU

 8
Common parts
90159-35001
