HJ60V-PNMZ (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )12HT,2H

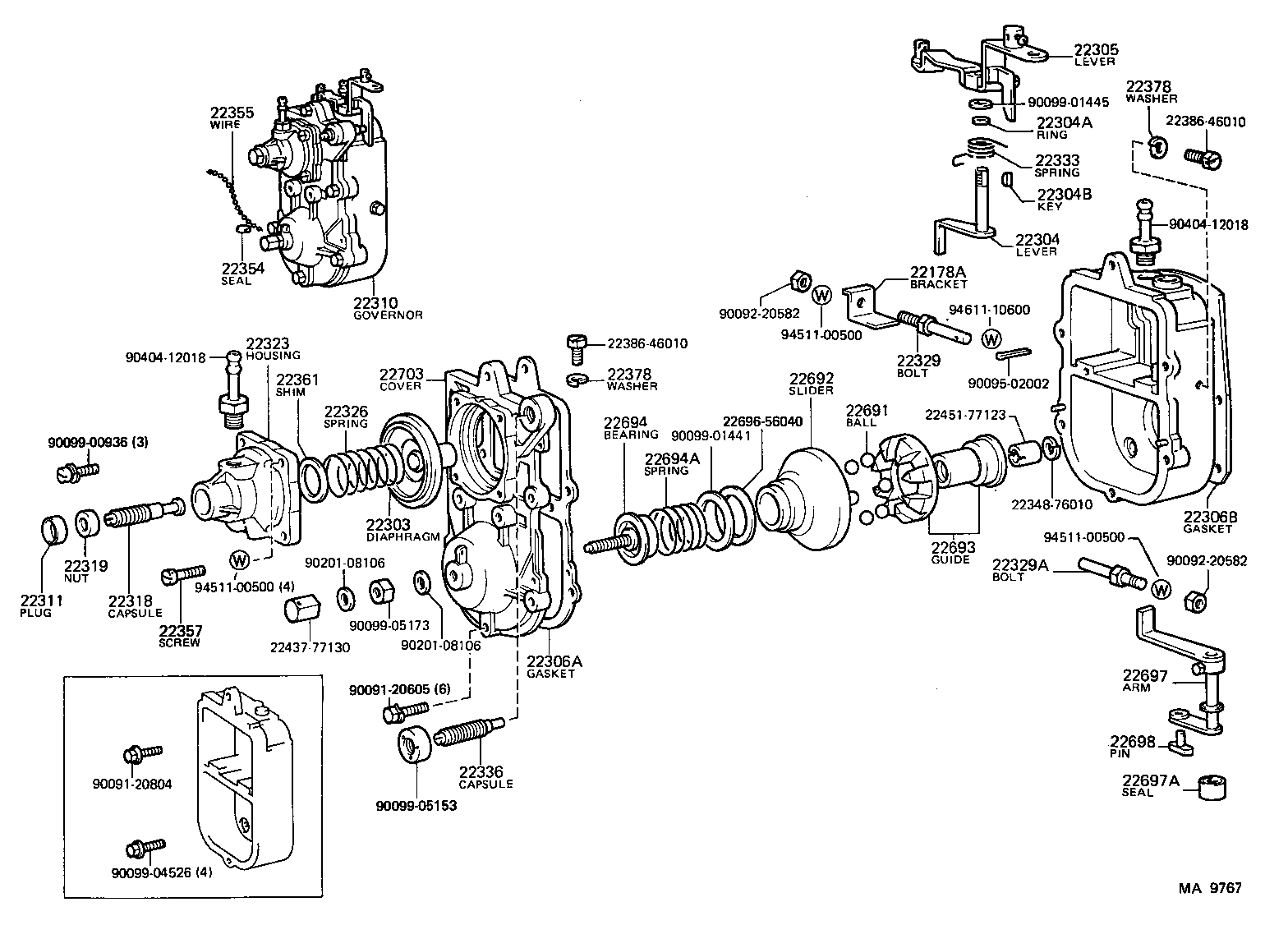

Click highlighted areas on diagram

diagram 22178A 22303 22304 22304A 22304B 22305 22306A 22306B 22310 22311 22318 22319 22323 22326 22329 22329A 22333 22336 2234876010 22354 22355 22357 22361 22378 22378 2238646010 2238646010 2243777130 2245177123 22691 22692 22693 22694 22694A 2269656040 22697 22697A 22698 22703 9009120605 9009120804 9009220582 9009220582 9009502002 9009900936 9009901441 9009901445 9009904526 9009905153 9009905173 9020108106 9020108106 9040412018 9040412018 9451100500 9451100500 9451100500 9461110600
Part # Description Qty Price
22354 - SEAL, LEAD
22354-77050

2H..HJ60

 2
22355 - WIRE, GOVERNOR HOUSING SEAL
22355-36010

2H..HJ60

 2
Common parts
22348-76010
22386-46010
22437-77130
22451-77123
22696-56040
90091-20605
90091-20804
90092-20582
90095-02002
90099-00936
90099-01441
90099-01445
90099-04526
90099-05153
90099-05173
90201-08106
90404-12018
94511-00500
94611-10600
