HJ60V-PMZ (1984)
Toyota Land Cruiser Van
Production
Nov 1984
-
Aug 1987
Engine
2H
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )4FC

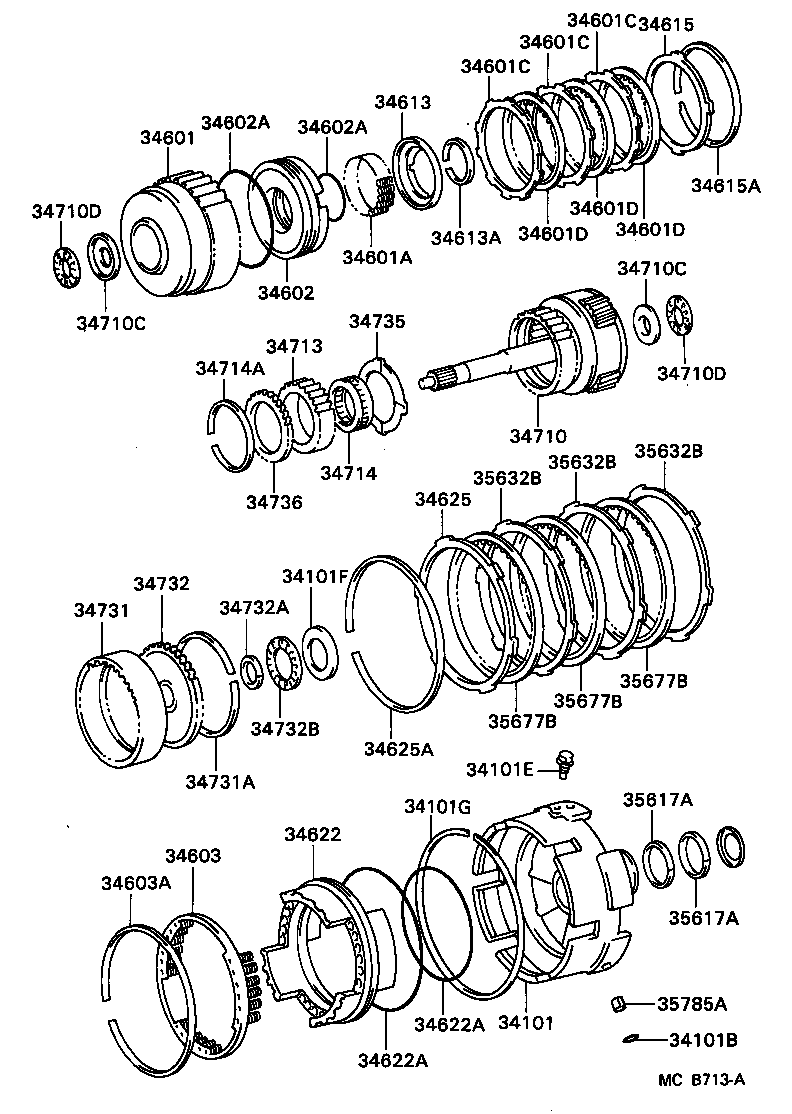

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 34101 - CASE SUB-ASSY, OVERDRIVE | ||||
| 34101-60010 |
HJ6#..4FC |
1 | ||
| 34101B - RING, O (FOR OVERDRIVE CASE) | ||||
| 90301-09008 |
HJ6#..4FC |
4 | ||
| 34101E - BOLT (FOR OVERDRIVE CASE & TRANSAXLE CASE SETTING) | ||||
| 90105-10096 |
HJ6#..4FC *10−1.25PX20.5−13 |
3 | ||
| 34101F - RACE, THRUST BEARING (FOR OVERDRIVE CASE FRONT) | ||||
| 35789-36020 |
HJ6#..4FC |
1 | ||
| 34101G - RING, HOLE SNAP (FOR OVERDRIVE CASE) | ||||
| 90521-99043 |
HJ6#..4FC |
1 | ||
| 34601 - DRUM SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34601-36010 |
HJ6#..4FC |
1 | ||
| 34601A - SPRING, COMPRESSION (FOR OVERDRIVE DIRECT CLUTCH) | ||||
| 90501-10087 |
HJ6#..4FC |
24 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-36010 |
HJ6#..4FC |
3 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-36010 |
HJ6#..4FC |
3 | ||
| 34601C - PLATE, CLUTCH (FOR OVERDRIVE) | ||||
| 35634-36010 |
HJ6#..4FC |
3 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35633-36020 |
HJ6#..4FC |
3 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35633-36020 |
HJ6#..4FC |
3 | ||
| 34601D - DISC, CLUTCH (FOR OVERDRIVE) | ||||
| 35633-36020 |
HJ6#..4FC |
3 | ||
| 34602 - PISTON SUB-ASSY, OVERDRIVE DIRECT CLUTCH | ||||
| 34602-36010 |
HJ6#..4FC |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99027 |
HJ6#..4FC OUTER |
1 | ||
| 90301-59003 |
HJ6#..4FC INNER |
1 | ||
| 34602A - RING, O (FOR OVERDRIVE DIRECT CLUTCH PISTON) | ||||
| 90301-99027 |
HJ6#..4FC OUTER |
1 | ||
| 90301-59003 |
HJ6#..4FC INNER |
1 | ||
| 34603 - SPRING SUB-ASSY, OVERDRIVE BRAKE RETURN | ||||
| 35608-36010 |
HJ6#..4FC |
1 | ||
| 34603A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE RETURN SPRING) | ||||
| 90521-99021 |
HJ6#..4FC |
1 | ||
| 34613 - SEAT, OVERDRIVE DIRECT CLUTCH RETURN SPRING | ||||
| 34613-36010 |
HJ6#..4FC |
1 | ||
| 34613A - RING, SHAFT SNAP (FOR OVERDRIVE DIRECT CLUTCH RETURN SP | ||||
| 90520-50001 |
HJ6#..4FC |
1 | ||
| 34615 - FLANGE, OVERDRIVE CLUTCH | ||||
| 35675-36010 |
HJ6#..4FC 厚さ=5.0 |
1 | ||
| 34615A - RING, HOLE SNAP (FOR OVERDRIVE CLUTCH FLANGE) | ||||
| 90521-99017 |
HJ6#..4FC |
1 | ||
| 34622 - PISTON, OVERDRIVE BRAKE | ||||
| 35621-36010 |
HJ6#..4FC |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
HJ6#..4FC INNER |
1 | ||
| 90301-99030 |
HJ6#..4FC OUTER |
1 | ||
| 34622A - RING, O (FOR OVERDRIVE BRAKE PISTON) | ||||
| 90301-99031 |
HJ6#..4FC INNER |
1 | ||
| 90301-99030 |
HJ6#..4FC OUTER |
1 | ||
| 34625 - FLANGE, OVERDRIVE BRAKE, NO.1 | ||||
| 35676-36010 |
HJ6#..4FC 厚さ=5.0 |
3 | ||
| 34625A - RING, HOLE SNAP (FOR OVERDRIVE BRAKE FLANGE) | ||||
| 90521-99021 |
HJ6#..4FC |
1 | ||
| 34710 - GEAR ASSY, OVERDRIVE PLANETARY | ||||
| 34710-36010 |
HJ6#..4FC |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-36070 |
HJ6#..4FC FR |
1 | ||
| 35789-36010 |
HJ6#..4FC RR |
1 | ||
| 34710C - RACE, THRUST BEARING(FOR OVERDRIVE PLANETARY GEAR) | ||||
| 35789-36070 |
HJ6#..4FC FR |
1 | ||
| 35789-36010 |
HJ6#..4FC RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-28007 |
HJ6#..4FC FR |
1 | ||
| 90374-25004 |
HJ6#..4FC RR |
1 | ||
| 34710D - BEARING, THRUST NEEDLE ROLLER(FOR OVERDRIVE PLANETARY G | ||||
| 90374-28007 |
HJ6#..4FC FR |
1 | ||
| 90374-25004 |
HJ6#..4FC RR |
1 | ||
| 34713 - RACE, 1 WAY CLUTCH OUTER (FOR OVERDRIVE) | ||||
| 34713-36010 |
HJ6#..4FC |
1 | ||
| 34714 - CLUTCH, 1 WAY(FOR OVERDRIVE) | ||||
| 35791-36010 |
HJ6#..4FC |
1 | ||
| 34714A - RING, HOLE SNAP(FOR 1 WAY CLUTCH) | ||||
| 90521-90002 |
HJ6#..4FC |
1 | ||
| 34731 - GEAR, OVERDRIVE PLANETARY RING | ||||
| 34731-36010 |
HJ6#..4FC |
1 | ||
| 34731A - RING, HOLE SNAP (FOR OVERDRIVE PLANETARY RING GEAR) | ||||
| 90521-99019 |
HJ6#..4FC |
1 | ||
| 34732 - FLANGE, OVERDRIVE PLANETARY RING GEAR | ||||
| 34732-36010 |
HJ6#..4FC |
1 | ||
| 34732A - RING, OIL SEAL (FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 35712-36010 |
HJ6#..4FC |
1 | ||
| 34732B - BEARING, THRUST(FOR OVERDRIVE PLANETARY RING GEAR FLANG | ||||
| 90374-34001 |
HJ6#..4FC |
1 | ||
| 34735 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.1 | ||||
| 34737-36010 |
HJ6#..4FC |
1 | ||
| 34736 - WASHER, OVERDRIVE PLANETARY GEAR THRUST, NO.2 | ||||
| 34738-36010 |
HJ6#..4FC |
1 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
HJ6#..4FC |
2 | ||
| 35617A - RING, CLUTCH DRUM OIL SEAL (FOR OVERDRIVE) | ||||
| 35617-36020 |
HJ6#..4FC |
2 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-36010 |
HJ6#..4FC |
3 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-36010 |
HJ6#..4FC |
3 | ||
| 35632B - PLATE, BRAKE (FOR OVERDRIVE) | ||||
| 35632-36010 |
HJ6#..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-36010 |
HJ6#..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-36010 |
HJ6#..4FC |
3 | ||
| 35677B - DISC, CLUTCH (FOR OVERDRIVE BRAKE) | ||||
| 35633-36010 |
HJ6#..4FC |
3 | ||
| 35785A - RETAINER, OVERDRIVE CASE RING | ||||
| 35785-36010 |
HJ6#..4FC |
4 | ||
