HJ60V-PMZ (1984)

Toyota Land Cruiser Van

Production Nov 1984 - Aug 1987
Engine 2H
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )2H..4FC

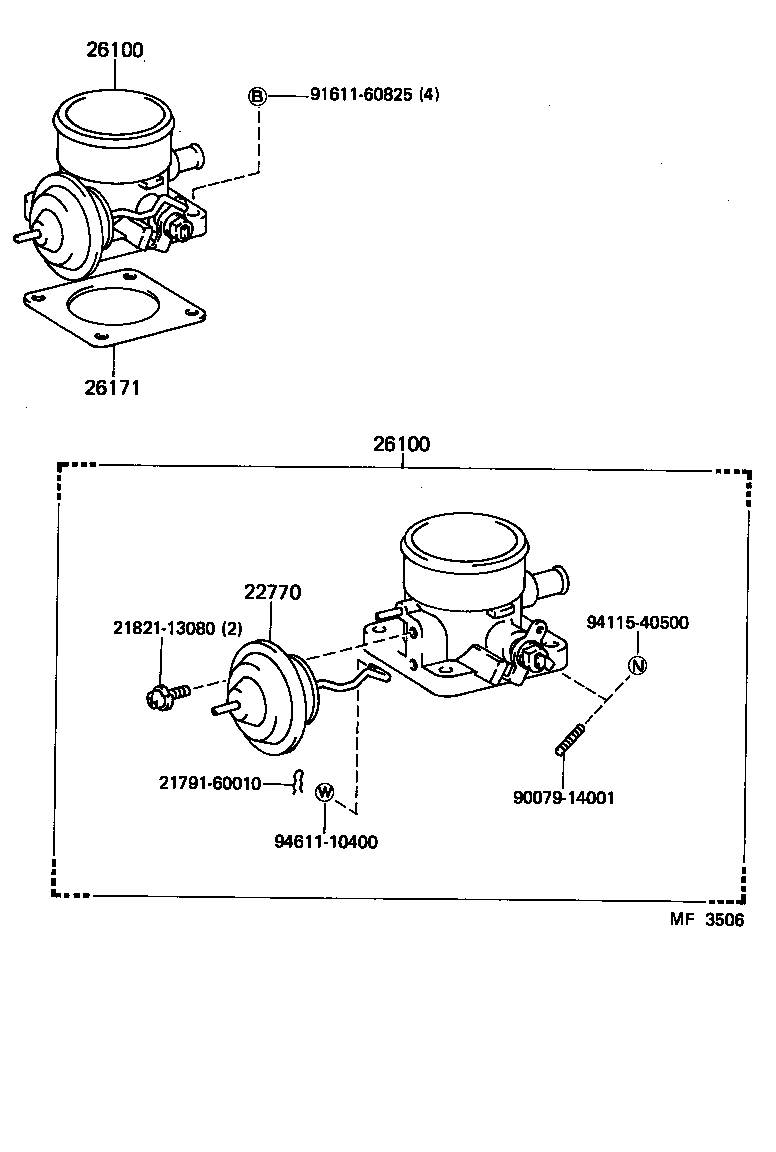

Click highlighted areas on diagram

diagram 2179160010 2182113080 22770 26100 26100 26171 9007914001 9161160825 9411540500 9461110400
Part # Description Qty Price
22770 - ACTUATOR, IDEL UP
26133-68030

2H..HJ60..4FC

 1
26100 - VENTURI ASSY
26100-68030

2H..HJ60..4FC

 1
26100 - VENTURI ASSY
26100-68030

2H..HJ60..4FC

 1
Common parts
21791-60010
21821-13080
90079-14001
91611-60825
94115-40500
94611-10400
