HJ60V-MRC (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )SRF

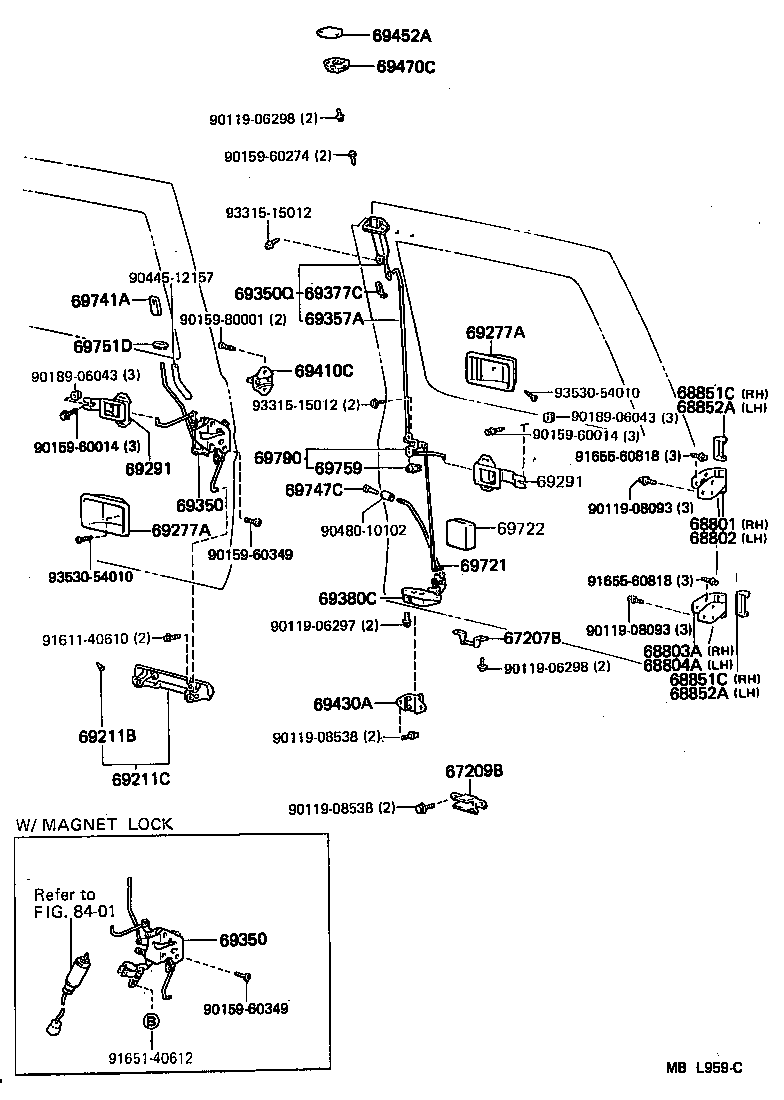

Click highlighted areas on diagram

diagram 67207B 67209B 68801 68802 68803A 68804A 68851C 68851C 68852A 68852A 69211B 69211C 69277A 69277A 69291 69291 69350 69350 69350Q 69357A 69377C 69380C 69410C 69430A 69452A 69470C 69721 69722 69741A 69747C 69751D 69759 69790 8481 9011906297 9011906298 9011906298 9011908093 9011908093 9011908538 9011908538 9015960014 9015960014 9015960274 9015960349 9015960349 9015980001 9018906043 9018906043 9044512057 9048010102 9161140610 9165140612 9165560818 9165560818 9331515012 9331515012 9353054010 9353054010
Part # Description Qty Price
67207B - STOPPER SUB-ASSY, BACK DOOR, UPPER
67206-90K00

FJ62,HJ60..SRF..CBU

 1
67209B - STOPPER SUB-ASSY, BACK DOOR, LOWER
67208-90A01

FJ62,HJ60..SRF..CBU

 1
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-90A00

FJ62,HJ60..SRF..CBU

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68802-90A00

FJ62,HJ60..SRF..CBU

 1
68803A - HINGE SUB-ASSY, BACK DOOR, LOWER RH
68803-90A00

FJ62,HJ60..SRF..CBU

 1
68804A - HINGE SUB-ASSY, BACK DOOR, LOWER LH
68804-90A00

FJ62,HJ60..SRF..CBU

 1
68851C - COVER, BACK DOOR HINGE, RH
68852-90A00

FJ62,HJ60..SRF..CBU

LOWER

 1
68851-90A00

FJ62,HJ60..SRF..CBU

UPPER

 1
68851C - COVER, BACK DOOR HINGE, RH
68852-90A00

FJ62,HJ60..SRF..CBU

LOWER

 1
68851-90A00

FJ62,HJ60..SRF..CBU

UPPER

 1
68852A - COVER, BACK DOOR HINGE, LH
68851-90A00

FJ62,HJ60..SRF..CBU

UPPER

 1
68852-90A00

FJ62,HJ60..SRF..CBU

LOWER

 1
68852A - COVER, BACK DOOR HINGE, LH
68851-90A00

FJ62,HJ60..SRF..CBU

UPPER

 1
68852-90A00

FJ62,HJ60..SRF..CBU

LOWER

 1
69211B - CUSHION(FOR BACK DOOR OUTSIDE HANDLE)
90541-03021

FJ62,HJ60..SRF..CBU

 1
69211C - HANDLE, BACK DOOR OUTSIDE
69210-14030

FJ62,HJ60..SRF..CBU

 1
69277A - BEZEL, BACK DOOR INSIDE HANDLE
69277-1604036

FJ62,HJ60..SRF..CBU

SEPIA BROWN,TRIM4#

 2
69277A - BEZEL, BACK DOOR INSIDE HANDLE
69277-1604036

FJ62,HJ60..SRF..CBU

SEPIA BROWN,TRIM4#

 2
69291 - HANDLE ASSY, BACK DOOR INSIDE
69206-20020

FJ62,HJ60..SRF..CBU

 2
69291 - HANDLE ASSY, BACK DOOR INSIDE
69206-20020

FJ62,HJ60..SRF..CBU

 2
69350 - LOCK ASSY, BACK DOOR
69350-90A05

FJ62,HJ60..STD..CBU

 1
69350 - LOCK ASSY, BACK DOOR
69350-90A05

FJ62,HJ60..STD..CBU

 1
69350Q - LOCK ASSY, BACK DOOR, UPPER
69350-90A00

FJ62,HJ60..SRF..CBU

 1
69357A - ROD, BACK DOOR OPENING, UPPER
69357-90A00

FJ62,HJ60..SRF..CBU

 1
69377C - SNAP, DOOR LOCK CONTROL ROD
69377-90A00

FJ62,HJ60..SRF..CBU

 1
69380C - LOCK ASSY, BACK DOOR, LOWER
69380-90A01

FJ62,HJ6#..CBU

 1
69410C - PLATE ASSY, BACK DOOR LOCK STRIKER
69410-12070

FJ62,HJ60..SRF..CBU

 1
69430A - STRIKER ASSY, BACK DOOR LOWER LOCK
69430-90A00

FJ62,HJ60..SRF..CBU

 1
69452A - PLATE, BACK DOOR UPPER LOCK STRIKER
69452-90A00

FJ62,HJ60..SRF..CBU

 1
69470C - STRIKER ASSY, BACK DOOR UPPER LOCK
69470-90A01

FJ62,HJ60..SRF..CBU

 1
69721 - ROD, BACK DOOR LOWER LOCK CONTROL, NO.1
69721-90A00

FJ62,HJ60..SRF..CBU

 1
69722 - PAD, BACK DOOR LOCK CONTROL
69722-90A00

FJ62,HJ6#..CBU

 1
69741A - KNOB, BACK DOOR LOCK CONTROL
69741-90K0006

FJ62,HJ60..SRF..CBU

SEPIA BROWN,TRIM4#

 1
69747C - BUTTON, DOOR LOCKING(FOR BACK DOOR)
69747-2002001

FJ62,HJ6#..CBU

BLACK,TRIM1#,4#

 1
69751D - HOLDER, DOOR LOCK CONTROL KNOB(FOR BACK DOOR)
69079-90K0006

FJ62,HJ60..SRF..CBU

SEPIA BROWN,TRIM4#

 1
69759 - SNAP, DOOR LOCK CONTROL LINK, NO.1
69759-12030

FJ62,HJ60..SRF..CBU

 3
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-90A02

FJ62,HJ60..SRF..CBU

 1
Common parts
90119-06297
90119-06298
90119-08093
90119-08538
90159-60014
90159-60274
90159-60349
90159-80001
90189-06043
90445-12057
90480-10102
91611-40610
91651-40612
91655-60818
93315-15012
93530-54010
Linked diagrams
8481
