HJ60V-MNMZ (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

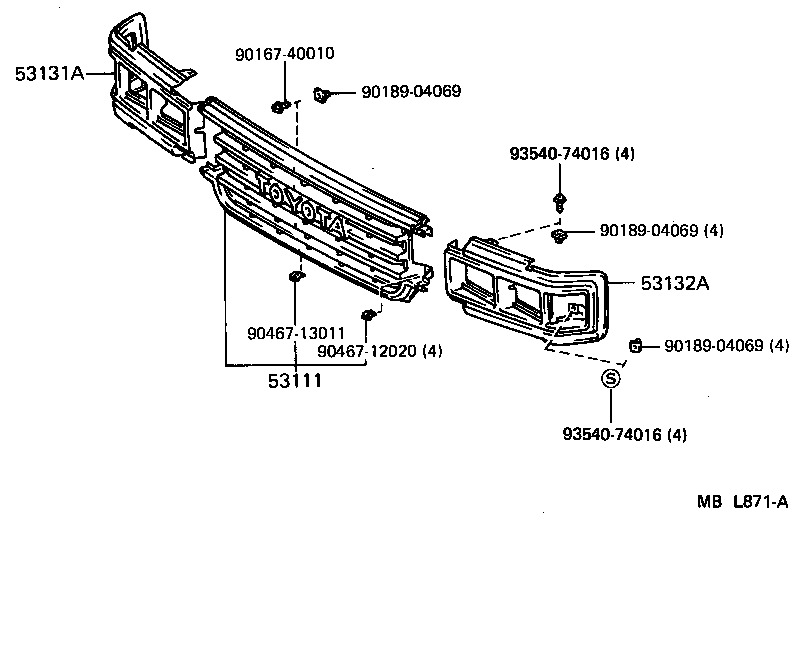

Click highlighted areas on diagram

diagram 53111 53131A 53132A 9016740010 9018904069 9018904069 9018904069 9046712020 9046713011 9354074016 9354074016
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-90A06

FJ62,HJ6#..GX,VX

 1
53111-90A09

FJ62,HJ6#..GX,VX

 1
53131A - DOOR, HEADLAMP, RH
53131-90A10

FJ62,HJ60..GX

ｱﾘ(ﾍﾂﾄﾞ ﾗﾝﾌﾟ ｸﾘ-ﾅ)

 1
53131-90A09

FJ62,HJ60..GX

 1
53132A - DOOR, HEADLAMP, LH
53132-90A10

FJ62,HJ60..GX

ｱﾘ(ﾍﾂﾄﾞ ﾗﾝﾌﾟ ｸﾘ-ﾅ)

 1
53132-90A09

FJ62,HJ60..GX

 1
Common parts
90167-40010
90189-04069
90467-12020
90467-13011
93540-74016
