HJ60V-MNMZ (1987)
Toyota Land Cruiser Van

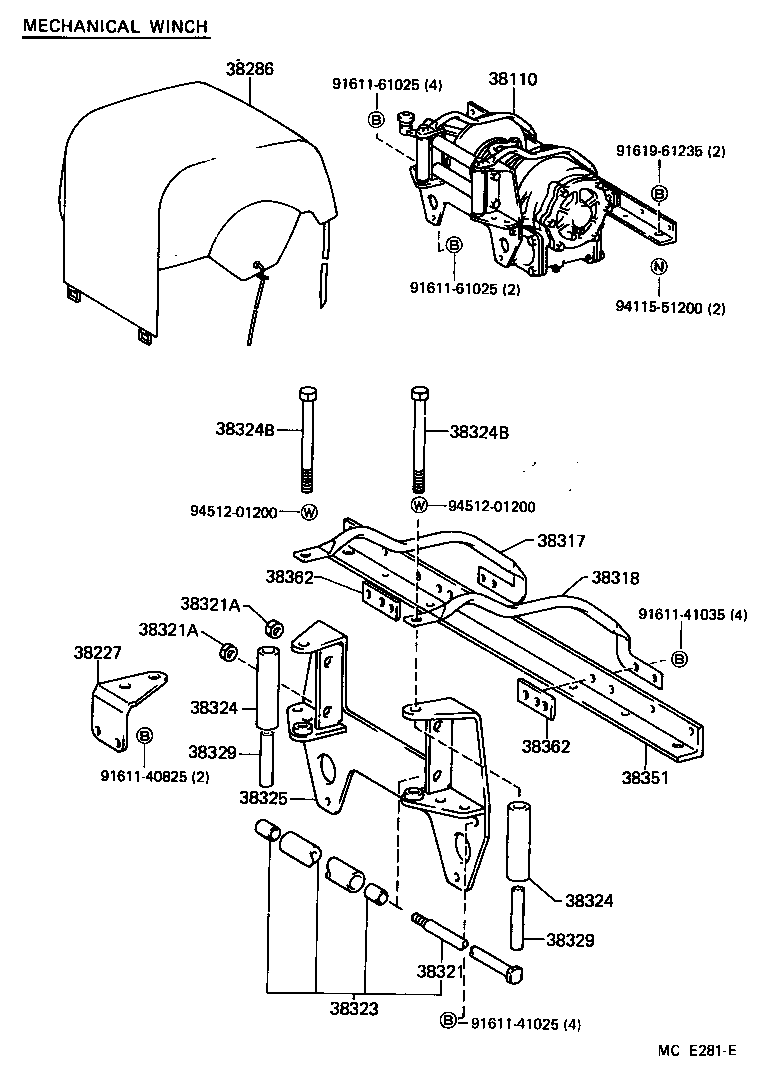

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60150 |
HJ6#..HRF ｴﾚｸﾄﾘｶﾙｳｲﾝﾁ,ﾄｸﾍﾞﾂ ｼﾖｳｼﾔ |
1 | ||
| 38110-60140 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38110-60160 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38227 - PLATE, WINCH CLUTCH LEVER SHIFT LOCK | ||||
| 38227-60050 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-60050 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38286-60060 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38317 - SUPPORT, ROLLER BRACKET, NO.1 | ||||
| 38317-60030 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38318 - SUPPORT, ROLLER BRACKET, NO.2 | ||||
| 38318-60030 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38321-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38321A - NUT, HEXAGON (FOR WINCH ROLLER SHAFT) | ||||
| 90170-14057 |
HJ6# |
2 | ||
| 38321A - NUT, HEXAGON (FOR WINCH ROLLER SHAFT) | ||||
| 90170-14057 |
HJ6# |
2 | ||
| 38323 - ROLLER, WINCH WIRE GUIDE, NO.1 | ||||
| 38323-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38302-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38324-60150 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38324-60150 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38324B - BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER) | ||||
| 90101-12029 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38324B - BOLT, HEXAGON (FOR WINCH WIRE GUIDE ROLLER) | ||||
| 90101-12029 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38325 - BRACKET, WINCH ROLLER, NO.1 | ||||
| 38325-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38325-60140 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 90387-13027 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38329-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 90387-13027 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38329-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60040 |
HJ6# |
1 | ||
| 38362 - SPACER, WINCH ROLLER BRACKET | ||||
| 38362-60020 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38362 - SPACER, WINCH ROLLER BRACKET | ||||
| 38362-60020 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| Common parts | ||||
| 91611-40825 | ||||
| 91611-41025 | ||||
| 91611-41035 | ||||
| 91611-61025 | ||||
| 91619-61235 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||

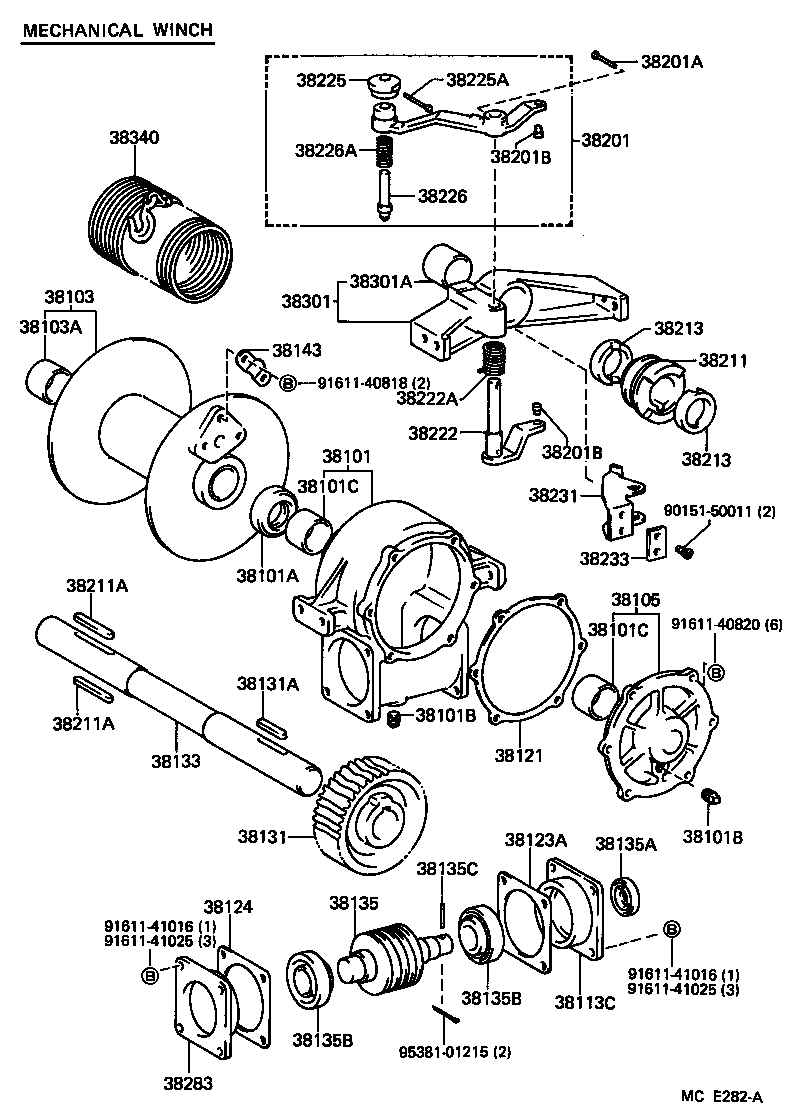

ILLUST NO. 2 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60011 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38101-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38101A - SEAL, TYPE T OIL (FOR WINCH GEAR CASE) | ||||
| 90311-38040 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) | ||||
| 90345-53020 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38101B - PLUG, W/HEAD TAPER SCREW (FOR WINCH GEAR CASE) | ||||
| 90345-53020 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) | ||||
| 90380-38019 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38101C - BUSH, SOLID (FOR WINCH GEAR CASE) | ||||
| 90380-38019 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38103-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38103A - BUSH (FOR WINCH DRUM) | ||||
| 90380-38005 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38105-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38113C - RETAINER, WORM BEARING, NO.1 | ||||
| 38113-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38121-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38123A - SHIM, WINCH WORM ADJUST, NO.1 | ||||
| 38123-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) 厚さ=0.5 |
1 | ||
| 38124 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38124-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38131 - GEAR, WORM | ||||
| 38131-60090 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38131A - KEY, SLIDING (FOR WINCH WORM GEAR) | ||||
| 90281-12001 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38133 - SHAFT, WORM GEAR | ||||
| 38133-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38135 - WORM, WINCH | ||||
| 38135-60090 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38135A - SEAL, TYPE T OIL (FOR WINCH WORM) | ||||
| 90311-28004 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38135B - BEARING (FOR WINCH WORM) | ||||
| 97600-30206 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38135C - PIN, SAFETY LOCK | ||||
| 90255-04002 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
HJ6# |
1 | ||
| 38201 - LEVER SUB-ASSY, WINCH CLUTCH | ||||
| 38201-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38201A - PIN, WINCH CLUTCH LEVER | ||||
| 90241-04007 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38201B - PIN, WINCH CLUTCH | ||||
| 90241-08009 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38211 - CLUTCH, WINCH | ||||
| 38211-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38211A - KEY, WINCH CLUTCH | ||||
| 90281-12015 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38213 - SPACER, CLUTCH FEATHER KEY | ||||
| 38213-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
2 | ||
| 38222 - LEVER, WINCH CLUTCH, LOWER | ||||
| 38222-60011 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38222A - SPRING (FOR WINCH CLUTCH LOWER LEVER) | ||||
| 90508-26393 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38225-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38225A - PIN, WINCH CLUTCH LEVER KNOB | ||||
| 90241-03008 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38226 - PIN, LEVER SHIFT LOCK | ||||
| 38226-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38226A - SPRING, LEVER SHIFT LOCK PIN | ||||
| 90501-12167 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38231 - SHOE, BRAKE | ||||
| 38231-60011 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38233 - PLATE, BRAKE | ||||
| 38233-66020 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38283 - RETAINER, WORM BEARING, NO.2 | ||||
| 38283-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38301 - BRACKET SUB-ASSY, WINCH END | ||||
| 38301-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38301A - BUSH (FOR WINCH END BRACKET) | ||||
| 90380-38005 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60060 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38340-60050 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| Common parts | ||||
| 90151-50011 | ||||
| 91611-40818 | ||||
| 91611-40820 | ||||
| 91611-41016 | ||||
| 91611-41025 | ||||
| 95381-01215 | ||||

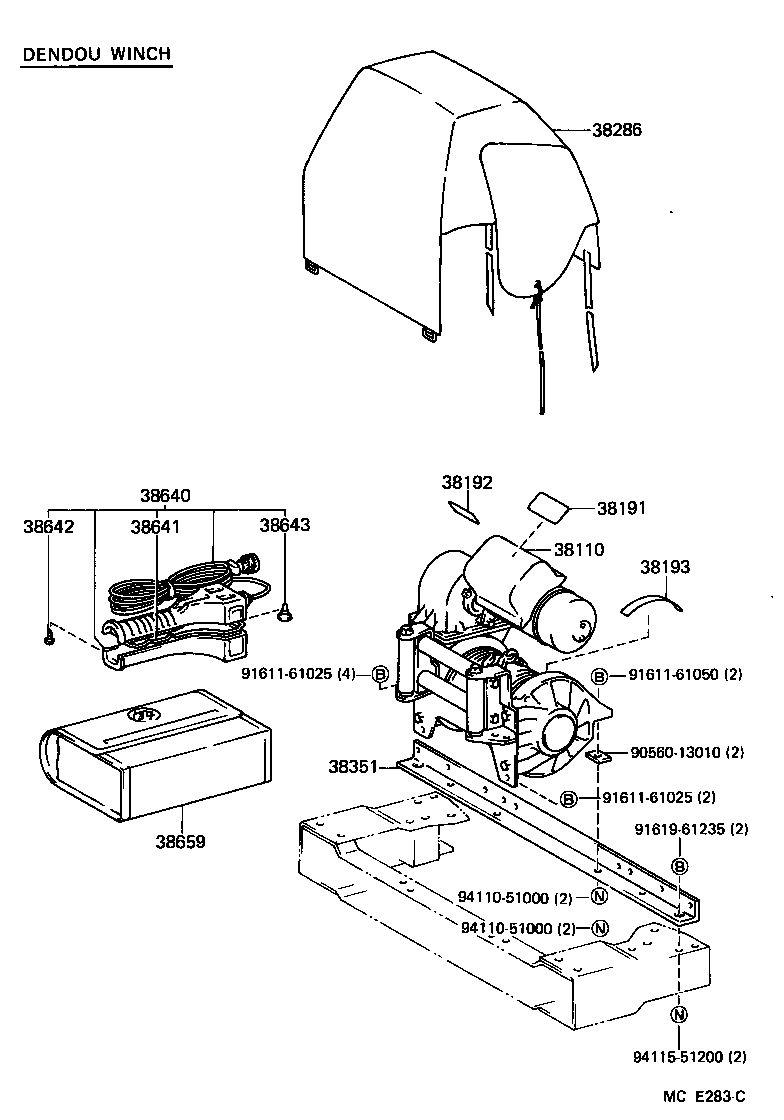

ILLUST NO. 1 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38110 - WINCH ASSY | ||||
| 38110-60150 |
HJ6#..HRF ｴﾚｸﾄﾘｶﾙｳｲﾝﾁ,ﾄｸﾍﾞﾂ ｼﾖｳｼﾔ |
1 | ||
| 38110-60140 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38110-60160 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38191 - PLATE, WINCH CAUTION, NO.1 | ||||
| 38191-60020 |
HJ6# |
1 | ||
| 38192 - PLATE, WINCH CAUTION, NO.2 | ||||
| 38192-60020 |
HJ6# |
1 | ||
| 38193 - PLATE, WINCH CAUTION, NO.3 | ||||
| 38193-60020 |
HJ6# |
1 | ||
| 38286 - COVER, WINCH | ||||
| 38286-60050 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38286-60060 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38351 - BASE, WINCH | ||||
| 38351-60040 |
HJ6# |
1 | ||
| 38640 - SWITCH ASSY, WINCH CONTROL | ||||
| 38640-60020 |
HJ6# |
1 | ||
| 38641 - GASKET (FOR WINCH CONTROL SWITCH) | ||||
| 38641-60010 |
HJ6# |
1 | ||
| 38642 - SCREW (FOR WINCH CONTROL SWITCH) | ||||
| 93510-13012 |
HJ6# |
8 | ||
| 38643 - BULB (FOR WINCH CONTROL SWICH) | ||||
| 38643-60010 |
HJ6# |
2 | ||
| 38659 - COVER, WINCH CONTROL SWITCH | ||||
| 38659-60010 |
HJ6# |
1 | ||
| Common parts | ||||
| 90560-13010 | ||||
| 91611-61025 | ||||
| 91611-61050 | ||||
| 91619-61235 | ||||
| 94110-51000 | ||||
| 94115-51200 | ||||

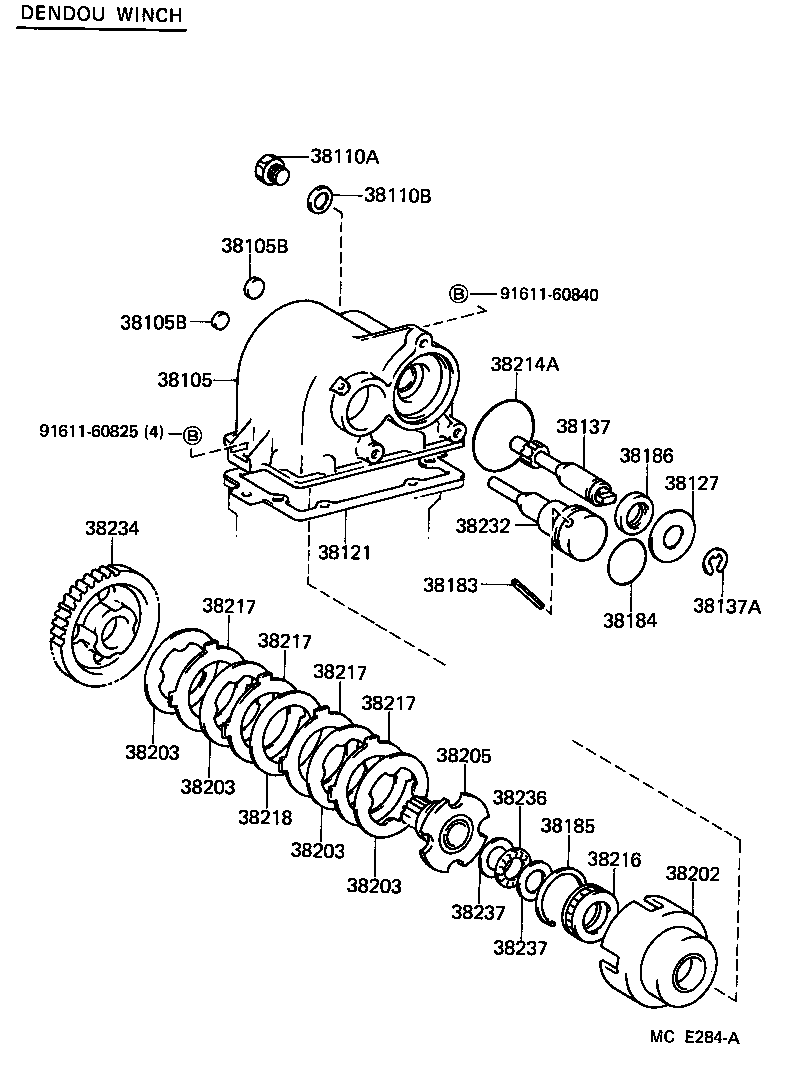

ILLUST NO. 2 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38105 - COVER SUB-ASSY, WINCH GEAR CASE | ||||
| 38105-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38105-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-20044 |
HJ6# 外径=20 |
1 | ||
| 96411-11600 |
HJ6# OD=16 |
1 | ||
| 38105B - PLUG, TIGHT (FOR WINCH GEAR CASE COVER) | ||||
| 90331-20044 |
HJ6# 外径=20 |
1 | ||
| 96411-11600 |
HJ6# OD=16 |
1 | ||
| 38110A - PLUG, FILLER | ||||
| 90341-18006 |
HJ6# |
1 | ||
| 38110B - GASKET (FOR FILLER PLUG) | ||||
| 90430-18008 |
HJ6# |
1 | ||
| 38121 - GASKET, WINCH GEAR CASE COVER | ||||
| 38121-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38121-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38127 - SPACER, INPUT SHAFT | ||||
| 38127-60040 |
HJ6# |
1 | ||
| 38137 - SHAFT, WINCH INPUT | ||||
| 38137-60040 |
HJ6# |
1 | ||
| 38137A - RING, E (FOR WINCH INPUT SHAFT) | ||||
| 96160-01500 |
HJ6# |
1 | ||
| 38183 - PIN, BRAKE SHAFT LOCK | ||||
| 38183-60041 |
HJ6# |
1 | ||
| 38184 - RING, BRAKE SHAFT, O | ||||
| 38184-60041 |
HJ6# |
1 | ||
| 38185 - RING, CLUTCH OUTER RACE SNAP | ||||
| 38185-60041 |
HJ6# |
1 | ||
| 38186 - SEAL, GEAR CASE COVER OIL | ||||
| 38186-60040 |
HJ6# |
1 | ||
| 38202 - RACE SUB-ASSY, CLUTCH, OUTER | ||||
| 38202-60041 |
HJ6# |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
HJ6# |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
HJ6# |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
HJ6# |
1 | ||
| 38203 - DISC SUB-ASSY, WINCH CLUTCH, INNER | ||||
| 38203-60040 |
HJ6# |
1 | ||
| 38205 - GEAR SUB-ASSY, BRAKE SHAFT DRIVEN | ||||
| 38205-60040 |
HJ6# |
1 | ||
| 38214A - RING, O (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 90301-11053 |
HJ6# ID=11.8,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 90301-59044 |
HJ6# ID=59.4,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38216 - CLUTCH, WINCH 1 WAY | ||||
| 38216-60041 |
HJ6# |
1 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
HJ6# |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
HJ6# |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
HJ6# |
4 | ||
| 38217 - DISC, WINCH CLUTCH, OUTER | ||||
| 38217-60040 |
HJ6# |
4 | ||
| 38218 - SPACER, CLUTCH DISC | ||||
| 38218-60040 |
HJ6# |
1 | ||
| 38232 - SHAFT, WINCH BRAKE | ||||
| 38232-60041 |
HJ6# |
1 | ||
| 38234 - GEAR, BRAKE SHAFT DRIVE | ||||
| 38234-60040 |
HJ6# |
1 | ||
| 38236 - BEARING, GEAR THRUST | ||||
| 38236-60040 |
HJ6# |
1 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
HJ6# |
2 | ||
| 38237 - RACE, GEAR THRUST BEARING | ||||
| 38237-60040 |
HJ6# |
2 | ||
| Common parts | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||

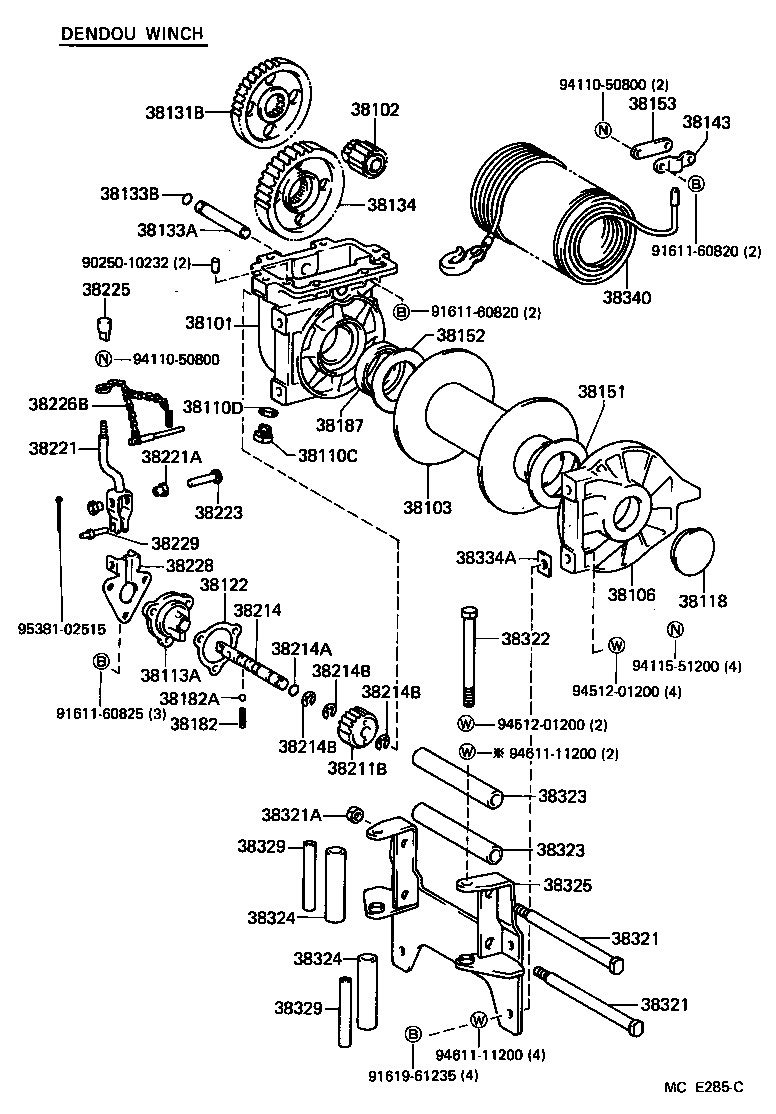

ILLUST NO. 3 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38101 - CASE SUB-ASSY, WINCH GEAR | ||||
| 38101-60011 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38101-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38102 - GEAR SUB-ASSY, COUNTERSHAFT | ||||
| 38102-60040 |
HJ6# |
1 | ||
| 38103 - DRUM SUB-ASSY, WINCH | ||||
| 38103-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38103-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38106 - HOUSING SUB-ASSY, WINCH DRUM | ||||
| 38106-60040 |
HJ6# |
1 | ||
| 38110C - PLUG, DRAIN | ||||
| 90341-18057 |
HJ6# |
1 | ||
| 38110D - GASKET (FOR DRAIN PLUG) | ||||
| 90430-18008 |
HJ6# |
1 | ||
| 38113A - RETAINER, SHIFT SHAFT | ||||
| 38113-60040 |
HJ6# |
1 | ||
| 38118 - COVER, WINCH DRUM HOUSING | ||||
| 38118-60040 |
HJ6# |
1 | ||
| 38122 - GASKET, SHIFT SHAFT RETAINER | ||||
| 38122-60040 |
HJ6# |
1 | ||
| 38131B - GEAR, COUNTER, NO.1 | ||||
| 38131-60040 |
HJ6# |
1 | ||
| 38133A - COUNTER SHAFT | ||||
| 38133-60040 |
HJ6# |
1 | ||
| 38133B - RING, O (FOR COUNTER SHAFT) | ||||
| 96711-24014 |
HJ6# |
1 | ||
| 38134 - GEAR, WINCH OUTPUT | ||||
| 38134-60040 |
HJ6# |
1 | ||
| 38143 - LOCK, WIRE | ||||
| 38143-60010 |
HJ6# |
1 | ||
| 38151 - SPACER, WINCH DRUM, NO.1 | ||||
| 38151-60040 |
HJ6# |
1 | ||
| 38152 - SPACER, WINCH DRUM, NO.2 | ||||
| 38152-60040 |
HJ6# |
1 | ||
| 38153 - PLATE, WIRE LOCK | ||||
| 38153-60040 |
HJ6# |
1 | ||
| 38182 - SPRING, SHIFT LOCK | ||||
| 38182-60040 |
HJ6# |
1 | ||
| 38182A - BALL (FOR SHIFT LOCK SPRING) | ||||
| 90360-06004 |
HJ6# |
1 | ||
| 38187 - SEAL, GEAR CASE OIL | ||||
| 38187-60040 |
HJ6# |
1 | ||
| 38211B - HUB, WINCH CLUTCH | ||||
| 38211-60040 |
HJ6# |
1 | ||
| 38214 - SHIM, WINCH WORM ADJUST, NO.2 | ||||
| 38214-60040 |
HJ6# |
1 | ||
| 38214A - RING, O (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 90301-11053 |
HJ6# ID=11.8,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 90301-59044 |
HJ6# ID=59.4,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 96160-01200 |
HJ6# |
3 | ||
| 38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 96160-01200 |
HJ6# |
3 | ||
| 38214B - RING, E (FOR CLUTCH HUB SHIFT SHAFT) | ||||
| 96160-01200 |
HJ6# |
3 | ||
| 38221 - LEVER, CLUTCH HUB SHIFT | ||||
| 38221-60040 |
HJ6# |
1 | ||
| 38221A - BUSH (FOR CLUTCH HUB SHIFT LEVER) | ||||
| 90386-10015 |
HJ6# |
2 | ||
| 38223 - SHAFT, CLUTCH SHIFT LEVER | ||||
| 38223-60040 |
HJ6# |
1 | ||
| 38225 - KNOB, WINCH CLUTCH LEVER | ||||
| 38225-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38225-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38226B - PIN, CLUTCH SHIFT LEVER LOCK | ||||
| 38226-60040 |
HJ6# |
1 | ||
| 38228 - SUPPORT, CLUTCH SHIFT LEVER | ||||
| 38228-60040 |
HJ6# |
1 | ||
| 38229 - PIN, CLUTCH SHIFT LEVER | ||||
| 38229-60040 |
HJ6# |
1 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38321-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38321 - SHAFT, WINCH ROLLER | ||||
| 38321-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38321-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38321A - NUT, HEXAGON (FOR WINCH ROLLER SHAFT) | ||||
| 90170-14057 |
HJ6# |
2 | ||
| 38322 - SHAFT, WINCH ROLLER, NO.2 | ||||
| 90101-12029 |
HJ6# |
2 | ||
| 38323 - ROLLER, WINCH WIRE GUIDE, NO.1 | ||||
| 38323-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38302-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38323 - ROLLER, WINCH WIRE GUIDE, NO.1 | ||||
| 38323-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38302-60010 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38324-60150 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38324 - ROLLER, WINCH WIRE GUIDE, NO.2 | ||||
| 38324-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38324-60150 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38325 - BRACKET, WINCH ROLLER, NO.1 | ||||
| 38325-60150 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38325-60140 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 90387-13027 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38329-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38329 - SPACER, WINCH WIRE GUIDE ROLLER | ||||
| 90387-13027 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
2 | ||
| 38329-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 38334A - SPACER, REAR MEMBER | ||||
| 38334-60040 |
HJ6# |
4 | ||
| 38340 - WIRE ASSY, WINCH CHAIN | ||||
| 38340-60060 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38340-60050 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| Common parts | ||||
| 90250-10232 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91619-61235 | ||||
| 94110-50800 | ||||
| 94115-51200 | ||||
| 94512-01200 | ||||
| 94611-11200 | ||||
| 95381-02515 | ||||

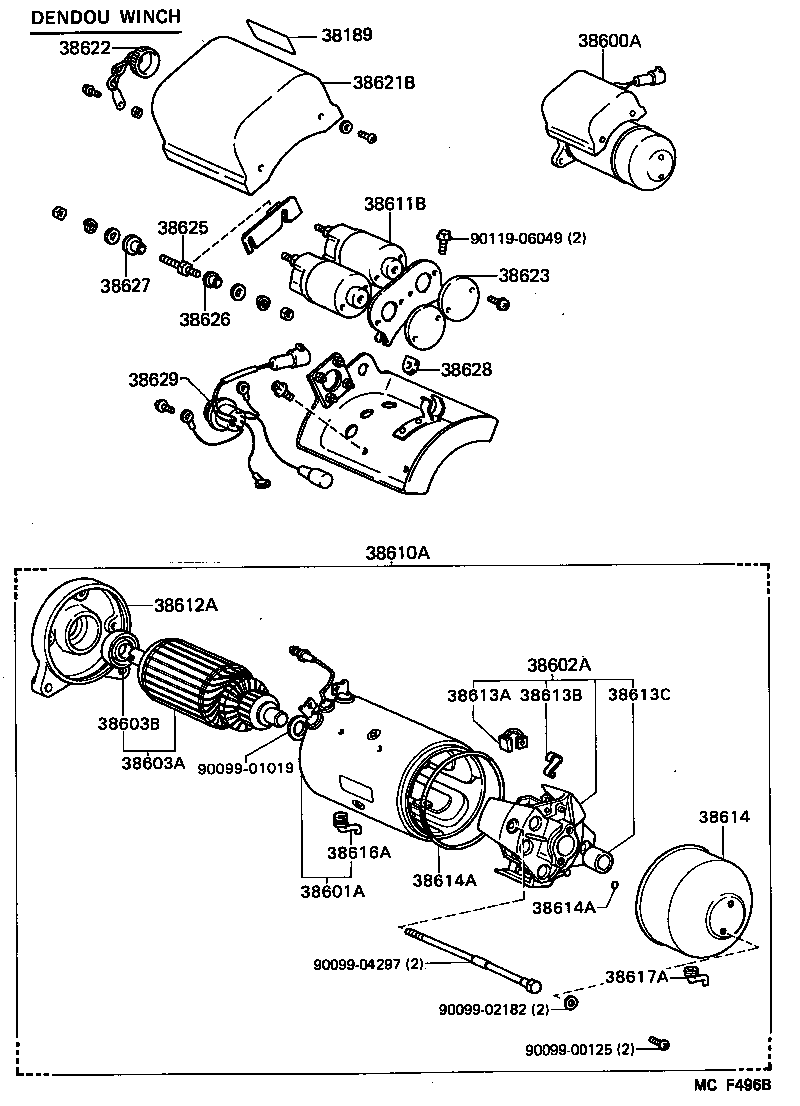

ILLUST NO. 4 OF 4(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38600A - MOTOR ASSY, W/MAGNET SWITCH, WINCH | ||||
| 38600-60040 |
HJ6# |
1 | ||
| 38601A - YOKE SUB-ASSY, WINCH MOTOR | ||||
| 38601-60040 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38602A - FRAME SUB-ASSY, CUMMUTATOR END (FOR WINCH MOTER) | ||||
| 38602-60020 |
HJ6# |
1 | ||
| 38603A - ARMATURE SUB-ASSY, WINCH MOTOR | ||||
| 38603-60040 |
HJ6# |
1 | ||
| 38603B - BEARING, NO.1 (FOR WINCH MOTOR ARMATURE) | ||||
| 90099-10130 |
HJ6# |
1 | ||
| 38610A - MOTOR ASSY, WINCH | ||||
| 38610-60040 |
HJ6# |
1 | ||
| 38611B - SWITCH, MAGNET, NO.2 (FOR WINCH MOTOR) | ||||
| 38611-60020 |
HJ6# |
2 | ||
| 38612A - FRAME, WINCH MOTOR END | ||||
| 38612-60030 |
HJ6# |
1 | ||
| 38613A - BRUSH, WINCH MOTOR | ||||
| 38613-60020 |
HJ6# |
2 | ||
| 38613B - SPRING, WINCH MOTOR BRUSH | ||||
| 28143-46012 |
HJ6# |
4 | ||
| 38613C - BUSH (FOR WINCH MOTOR) | ||||
| 28111-46011 |
HJ6# |
1 | ||
| 38614 - COVER, COMMUTATOR WINCH | ||||
| 38614-60030 |
HJ6# |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14014 |
HJ6# OD=7.6,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 90099-14023 |
HJ6# OD=112.4,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38614A - RING, O(FOR WINCH MOTOR) | ||||
| 90099-14014 |
HJ6# OD=7.6,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
2 | ||
| 90099-14023 |
HJ6# OD=112.4,ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38616A - DUCT, YOKE WINCH | ||||
| 38616-60010 |
HJ6# |
1 | ||
| 38617A - DUCT, COVER WINCH | ||||
| 38617-60010 |
HJ6# |
1 | ||
| 38621B - COVER, MAGNET SWITCH WINCH | ||||
| 38621-60010 |
HJ6# |
1 | ||
| 38622 - COVER, CONNECTOR WINCH | ||||
| 38622-60010 |
HJ6# |
1 | ||
| 38623 - STOPPER, WINCH MOTOR | ||||
| 38623-60010 |
HJ6# |
2 | ||
| 38625 - BOLT, STUD WINCH MOTOR | ||||
| 38625-60010 |
HJ6# |
1 | ||
| 38626 - BUSHING, STEPPED FEMALE WINCH MOTOR | ||||
| 38626-60010 |
HJ6# |
1 | ||
| 38627 - BUSHING, STEPPED MALE WINCH MOTOR | ||||
| 38627-60011 |
HJ6# |
1 | ||
| 38628 - GROMET, WINCH | ||||
| 38628-60010 |
HJ6# ｱﾘ(ﾃﾞﾝﾄﾞｳ ｳｲﾝﾁ) |
1 | ||
| 38629 - WIRE, WINCH MOTOR | ||||
| 38629-60030 |
HJ6# |
1 | ||
| Common parts | ||||
| 90099-00125 | ||||
| 90099-01019 | ||||
| 90099-02182 | ||||
| 90099-04297 | ||||
| 90119-06049 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
