HJ60V-MNMZ (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

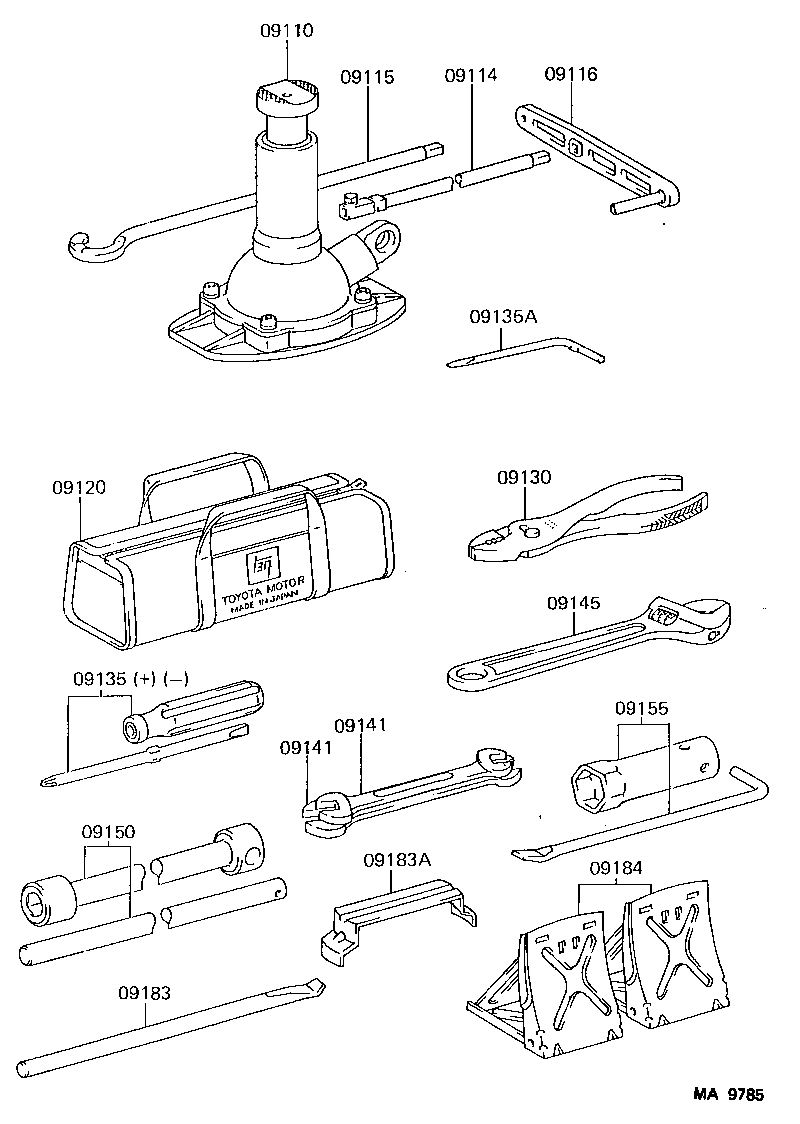

Click highlighted areas on diagram

diagram 09110 09114 09115 09116 09120 09130 09135 09135A 09141 09141 09145 09150 09155 09183 09183A 09184
Part # Description Qty Price
09110 - JACK ASSY
09111-60050

FJ62,HJ6#

 1
09114 - EXTENSION SUB-ASSY, JACK HANDLE
09114-60050

FJ62,HJ6#

 2
09115 - ROD SUB-ASSY, JACK HANDLE
09115-60030

FJ62,HJ6#

 1
09116 - LEVER, JACK HANDLE
09116-35041

FJ62,HJ6#

 1
09120 - BAG, TOOL
09120-60090

FJ62,HJ6#

 1
09130 - PLIERS
99913-11500

FJ62,HJ6#

 1
09135 - DRIVER, SCREW
99915-10700

FJ62,HJ6#

 1
09135A - BIT, SCREW DRIVER
09135-60010

FJ62,HJ6#..HRF

 1
09141 - SPANNER
99914-10810

FJ62,HJ6#

8 X 10

 1
99914-11214

FJ62,HJ6#

12 X 14

 1
09141 - SPANNER
99914-10810

FJ62,HJ6#

8 X 10

 1
99914-11214

FJ62,HJ6#

12 X 14

 1
09145 - WRENCH, MONKEY
99911-11200

FJ62,HJ6#

 1
09150 - WRENCH, HUB NUT BOX
09150-60020

FJ62..IV4;HJ60..STD;HJ60..HRF;FJ62,HJ61..GX,VX

 1
09183 - WRENCH, WHEEL CAP
09183-00030

FJ62,HJ6#..GX,VX

 1
09183A - REPLACER, WHEEL CAP
09183-60010

FJ62,HJ6#..GX,VX

 1
09184 - STOPPER, WHEEL
09184-00031

FJ62..IV4;HJ60..STD;HJ60..HRF;FJ62,HJ61..GX,VX

 2
