HJ60V-MNCM (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

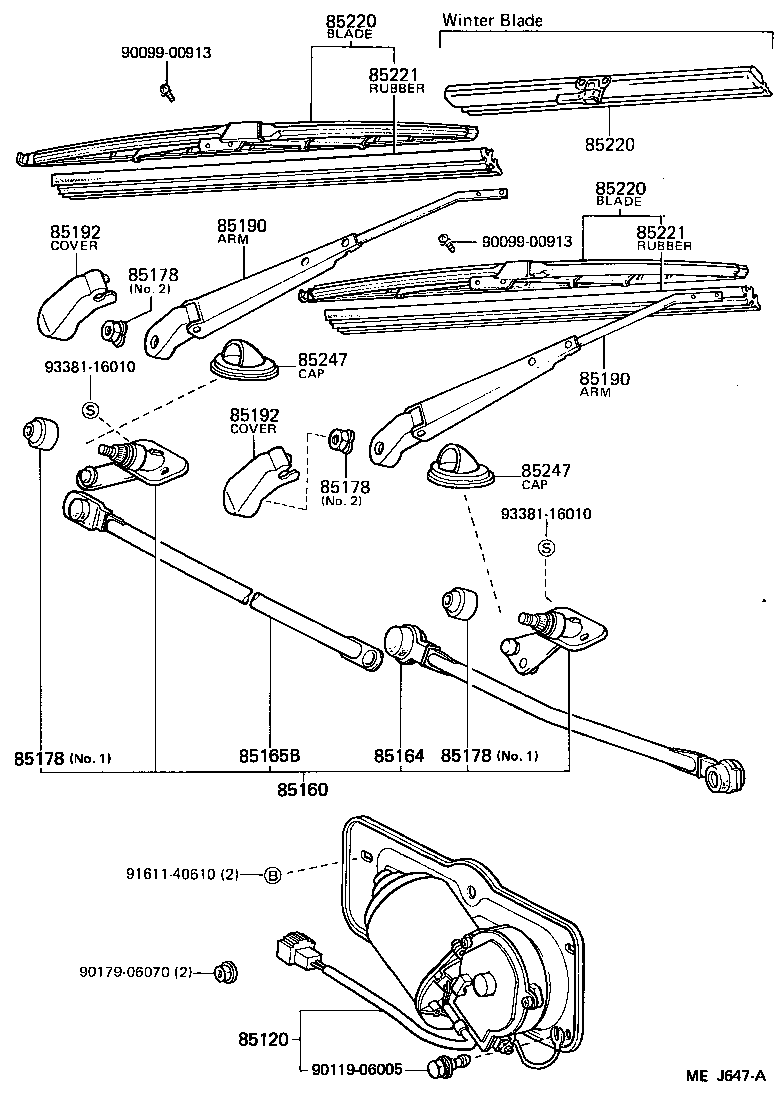

Click highlighted areas on diagram

diagram 85120 85160 85164 85165B 85178 85178 85178 85178 85190 85190 85192 85192 85220 85220 85220 85221 85221 85247 85247 9009900913 9009900913 9011906005 9017906070 9161140610 9338116010 9338116010
Part # Description Qty Price
85120 - MOTOR AND BRACKET ASSY, WINDSHIELD WIPER
85120-90A32

HJ6#

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85160-90A03

FJ62,HJ6#

 1
85164 - ROD, WINDSHIELD WIPER LINK, NO.1
85164-90A00

FJ62,HJ6#

 1
85165B - ROD, WIPER LINK, NO.2
85165-90A00

FJ62,HJ6#

 1
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85178-90A00

FJ62,HJ6#

NO.1

 2
90179-08026

FJ62,HJ6#

NO.2

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85178-90A00

FJ62,HJ6#

NO.1

 2
90179-08026

FJ62,HJ6#

NO.2

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85178-90A00

FJ62,HJ6#

NO.1

 2
90179-08026

FJ62,HJ6#

NO.2

 2
85178 - NUT (FOR FRONT WIPER ARM SETTING)
85178-90A00

FJ62,HJ6#

NO.1

 2
90179-08026

FJ62,HJ6#

NO.2

 2
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90A01

FJ62,HJ6#

右側

 1
85210-90A00

FJ62,HJ6#

左側

 1
85190 - ARM ASSY, WINDSHIELD WIPER
85190-90A01

FJ62,HJ6#

右側

 1
85210-90A00

FJ62,HJ6#

左側

 1
85192 - COVER, WINDSHIELD WIPER ARM
85192-14040

FJ62,HJ6#

 2
85192 - COVER, WINDSHIELD WIPER ARM
85192-14040

FJ62,HJ6#

 2
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16410

FJ62,HJ6#

右側

 1
85220-12620

HJ60..SRF

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85220-16420

FJ62,HJ6#

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16410

FJ62,HJ6#

右側

 1
85220-12620

HJ60..SRF

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85220-16420

FJ62,HJ6#

左側

 1
85220 - BLADE ASSY, WINDSHIELD WIPER
85220-16410

FJ62,HJ6#

右側

 1
85220-12620

HJ60..SRF

ｳｲﾝﾀ ﾌﾞﾚ-ﾄﾞ

 2
85220-16420

FJ62,HJ6#

左側

 1
85221 - BLADE, WINDSHIELD WIPER
85221-30120

FJ62,HJ6#

 2
85221 - BLADE, WINDSHIELD WIPER
85221-30120

FJ62,HJ6#

 2
85247 - CAP, SHIELD
85247-90A01

FJ62,HJ6#

 2
85247 - CAP, SHIELD
85247-90A01

FJ62,HJ6#

 2
Common parts
90099-00913
90119-06005
90179-06070
91611-40610
93381-16010
