HJ60V-MNCM (1987)
Toyota Land Cruiser Van
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

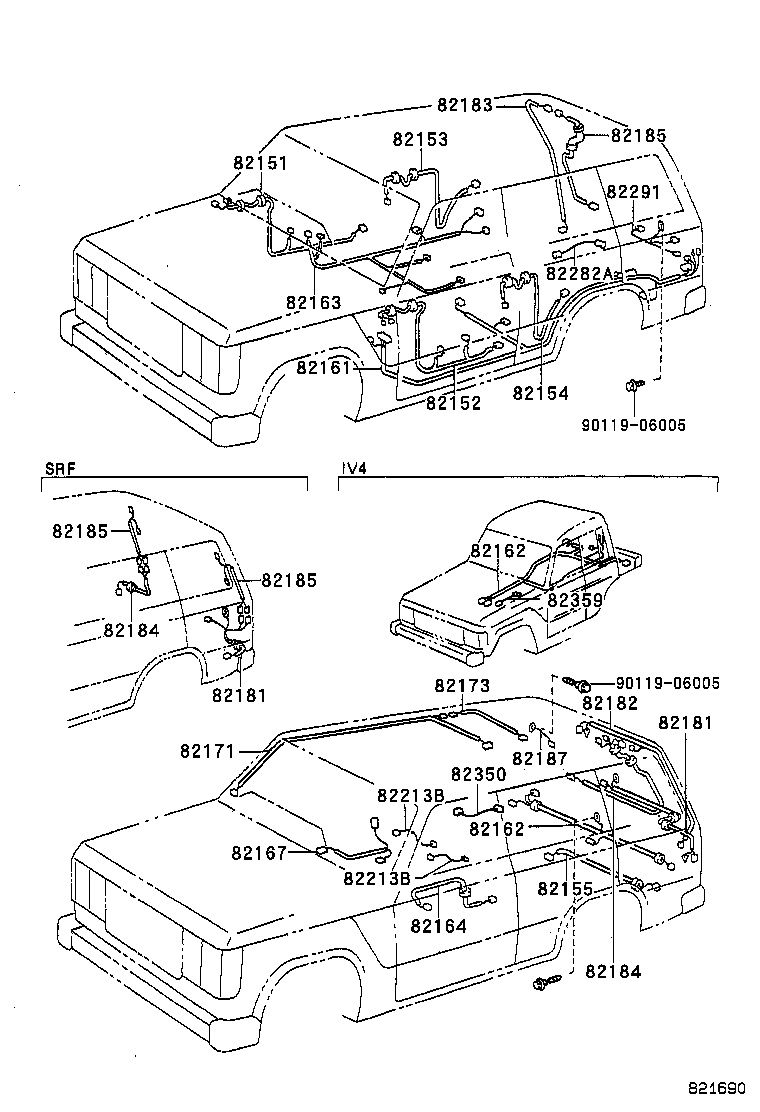

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-90A07 |
FJ62,HJ60..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82151-90A15 |
FJ62,HJ60..GX |
1 | ||
| 82151-90A09 |
FJ62,HJ60..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-90A06 |
FJ62,HJ60..GX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-90A05 |
FJ62,HJ60..GX ｱﾘ(ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82152-90A06 |
FJ62,HJ60..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ) |
1 | ||
| 82151-90A13 |
FJ62,HJ60..GX |
1 | ||
| 82152-90A05 |
FJ62,HJ60..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞｳ & ﾌｴﾝﾀﾞ ﾐﾗ-) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82154-90A03 |
FJ62,HJ60..GX |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82154-90A03 |
FJ62,HJ60..GX |
1 | ||
| 82155 - WIRE, CENTER PILLER, NO.1 | ||||
| 82155-90A01 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-90A38 |
FJ62,HJ60..SRF..GX |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90A35 |
HJ6#..GX,VX |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-90A35 |
HJ6#..GX,VX |
1 | ||
| 82163 - WIRE, FLOOR, NO.3 | ||||
| 82163-90A22 |
FJ62,HJ60..MTM..CBU |
1 | ||
| 82163-90A15 |
FJ62,HJ60..MTM..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82163-90A23 |
HJ60..GX ｱﾘ(ｼ-ﾄ ﾋ-ﾀ) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-90A03 |
HJ60..MTM;FJ62,HJ61..CBU |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-90A12 |
FJ62,HJ60..SRF..GX ｱﾘ(ｱｸｾｻﾘ ﾒ-ﾀ) |
1 | ||
| 82171-90A10 |
FJ62,HJ60..SRF |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-90A00 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A03 |
FJ62,HJ60..SRF..GX |
1 | ||
| 82181 - WIRE, LUGGAGE ROOM, NO.1 | ||||
| 82181-90A03 |
FJ62,HJ60..SRF..GX |
1 | ||
| 82182 - WIRE, LUGGAGE ROOM, NO.2 | ||||
| 82182-90A00 |
FJ62,HJ60..SRF..CBU |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A07 |
FJ62,HJ60..SRF..GX 右側 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-90A07 |
FJ62,HJ60..SRF..GX 右側 |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
FJ62,HJ60..SRF..GX |
2 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
FJ62,HJ60..SRF..GX |
2 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-90A02 |
FJ62,HJ60..SRF..GX |
2 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A04 |
HJ60..MTM;FJ62,HJ61..CBU FRONT |
1 | ||
| 82282-90A05 |
HJ60..MTM;FJ62,HJ61..CBU REAR |
1 | ||
| 82291 - WIRING, TO SOLENOID | ||||
| 82291-90A01 |
FJ62,HJ60..GX |
1 | ||
| 82291-90A02 |
FJ62,HJ60..GX ｱﾘ(ﾊﾟﾜ- ｳｲﾝﾄﾞ) |
1 | ||
| 82350 - WIRING ASSY, COURTESY LAMP SWITCH (FOR FR OR RR DOOR) | ||||
| 82153-90A00 |
FJ62,HJ6#..CBU |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

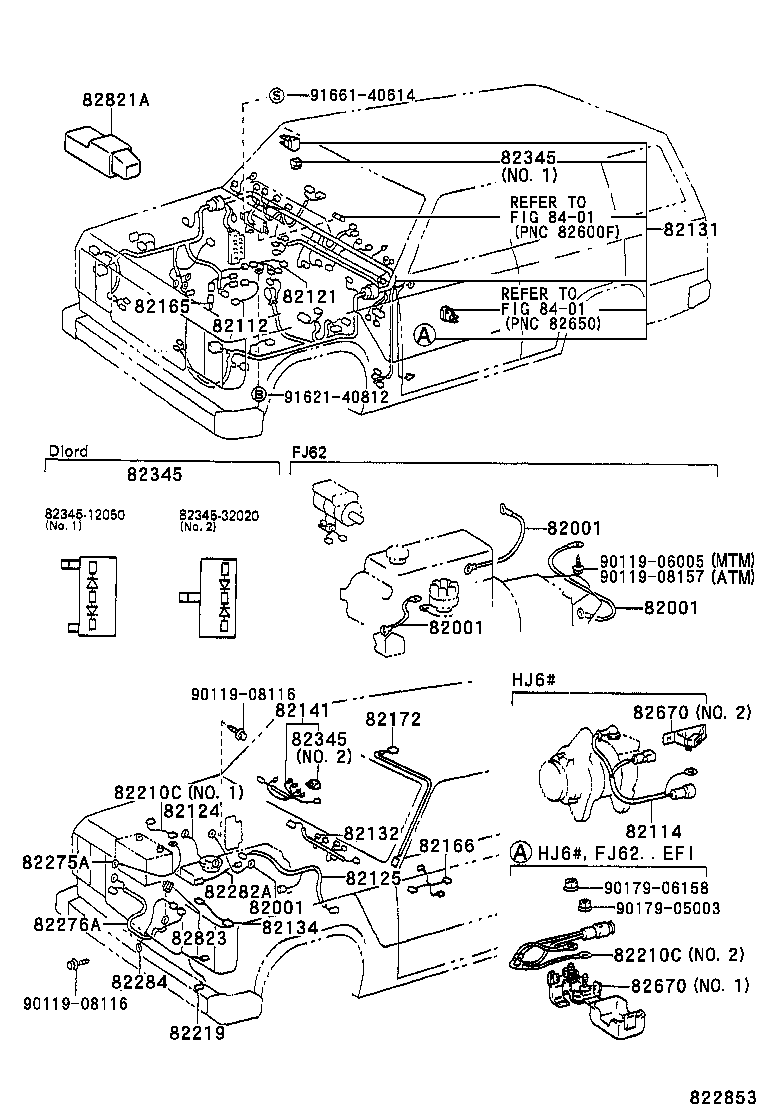

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07003 |
FJ62,HJ6# FRAME-ENGINE |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-90K05 |
HJ6# |
1 | ||
| 82114-90K05 |
HJ6# |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-90A01 |
HJ6# |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82114-90K08 |
HJ60 |
1 | ||
| 82124-90A00 |
HJ60 |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-90A03 |
HJ6#..MTM |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-90G73 |
HJ60 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82131-90G72 |
HJ60 |
1 | ||
| 82131-90R08 |
HJ60 |
1 | ||
| 82131-90R09 |
HJ60 ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-90A15 |
FJ62,HJ6#..CBU |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-90A00 |
HJ6# |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-90A20 |
FJ62,HJ6#..GX,VX |
1 | ||
| 82141-90A21 |
HJ60..MTM;FJ62,HJ61..CBU ｱﾘ(ﾃﾞｲﾌｱﾚﾝｼﾔﾙ ﾛﾂｸ) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-90A00 |
HJ6#..MTM |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-90A00 |
FJ62,HJ6#..CBU |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-90A02 |
FJ62,HJ60..GX |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08187 |
HJ60 長さ=120,GX2,Y,B,NO.2 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08187 |
HJ60 長さ=120,GX2,Y,B,NO.2 |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-90A00 |
HJ60..GX |
1 | ||
| 82275A - CABLE, BATTERY TO MAGNET SWITCH | ||||
| 82275-90A00 |
HJ6# |
1 | ||
| 82276A - CABLE, MAGNET SWITCH TO WINCH | ||||
| 82276-90A02 |
HJ6# |
1 | ||
| 82282A - WIRE, INDICATOR (FOR DIFF LOCK) | ||||
| 82282-90A04 |
HJ60..MTM;FJ62,HJ61..CBU FRONT |
1 | ||
| 82282-90A05 |
HJ60..MTM;FJ62,HJ61..CBU REAR |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-90A00 |
HJ6# |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
HJ6# NO.1 |
2 | ||
| 82345-12050 |
HJ60 NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6#..GX,VX NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
HJ6# NO.1 |
2 | ||
| 82345-12050 |
HJ60 NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6#..GX,VX NO.2 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
HJ6# NO.1 |
2 | ||
| 82345-12050 |
HJ60 NO.1 |
1 | ||
| 82345-32020 |
FJ62,HJ6#..GX,VX NO.2 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K02 |
HJ6# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 82670-90K02 |
HJ6# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 82670-90A00 |
HJ60 NO.1 |
1 | ||
| 82670 - BLOCK ASSY, JUNCTION, NO.1 | ||||
| 82670-90K02 |
HJ6# ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 82670-90K02 |
HJ6# ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ,NO.2 |
1 | ||
| 82670-90A00 |
HJ60 NO.1 |
1 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12150 |
FJ62,HJ6#..DSL,EFI,TD |
1 | ||
| 82823 - CAP, TERMINAL, NO.1 | ||||
| 82823-90300 |
HJ6# |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-08116 | ||||
| 90119-08157 | ||||
| 90179-05003 | ||||
| 90179-06158 | ||||
| 91621-40812 | ||||
| 91661-40614 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8708- )

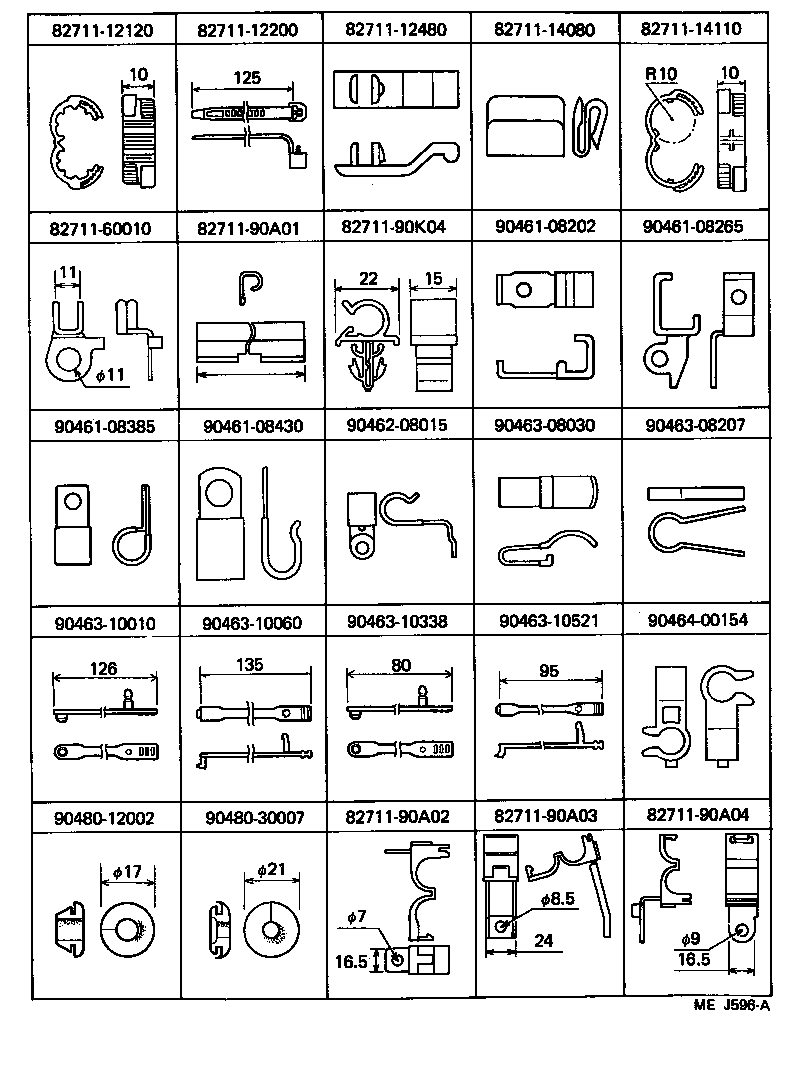

CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12120 | ||||
| 82711-12200 | ||||
| 82711-12480 | ||||
| 82711-14080 | ||||
| 82711-14110 | ||||
| 82711-60010 | ||||
| 82711-90A01 | ||||
| 82711-90A02 | ||||
| 82711-90A03 | ||||
| 82711-90A04 | ||||
| 82711-90K04 | ||||
| 90461-08202 | ||||
| 90461-08265 | ||||
| 90461-08385 | ||||
| 90461-08430 | ||||
| 90462-08015 | ||||
| 90463-08030 | ||||
| 90463-08207 | ||||
| 90463-10010 | ||||
| 90463-10060 | ||||
| 90463-10338 | ||||
| 90463-10521 | ||||
| 90464-00154 | ||||
| 90480-12002 | ||||
| 90480-30007 | ||||
(8808- )

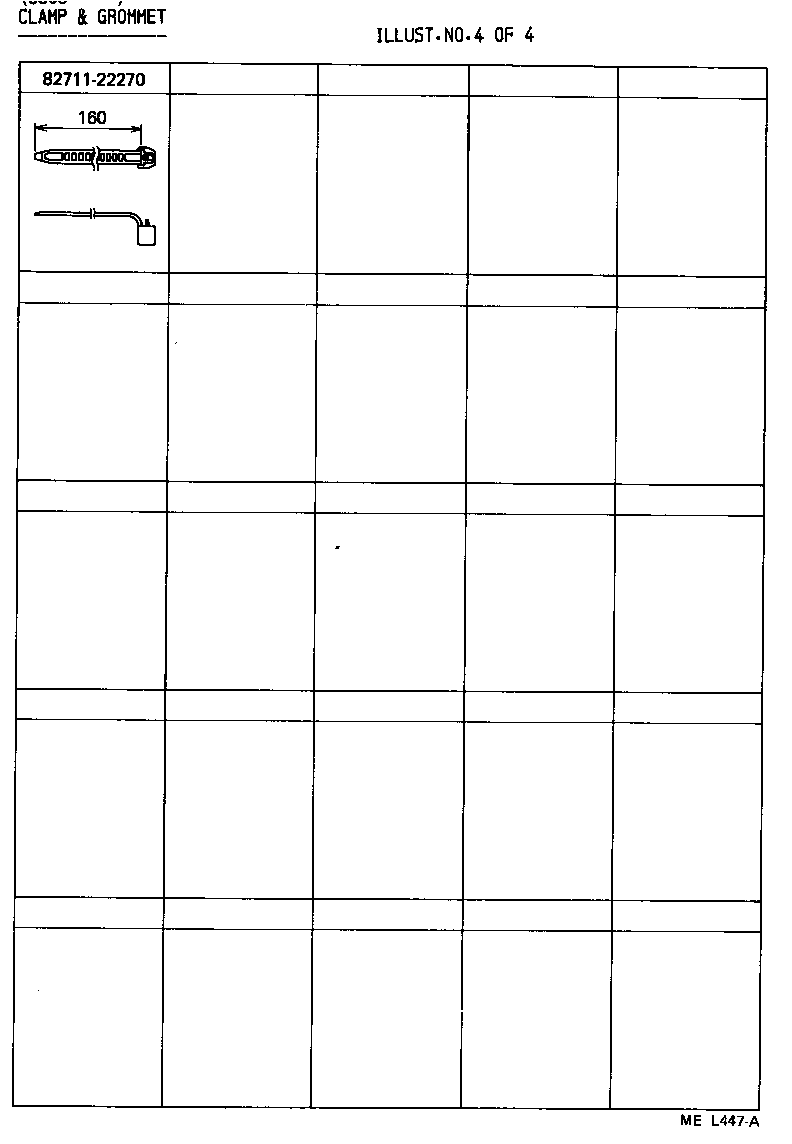

CLAMP & GROMMET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-22270 | ||||
