HJ60V-MNCM (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

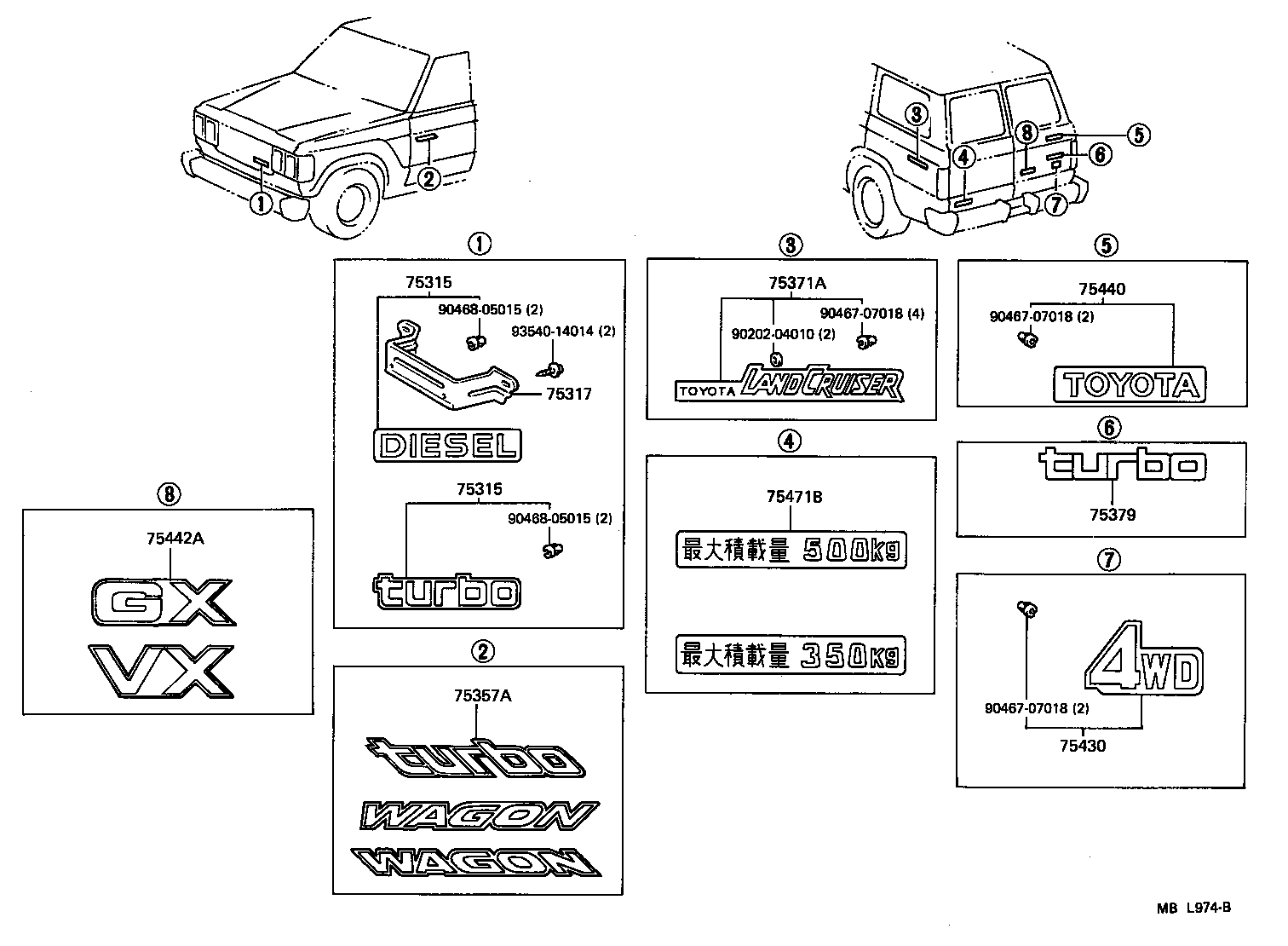

Click highlighted areas on diagram

diagram 75315 75315 75317 75357A 75371A 75379 75430 75440 75442A 75471B 9020204010 9046707018 9046707018 9046707018 9046805015 9046805015 9354014014
Part # Description Qty Price
75315 - ORNAMENT, RADIATOR GRILLE
75315-90A02

HJ60

 1
75315 - ORNAMENT, RADIATOR GRILLE
75315-90A02

HJ60

 1
75317 - PLATE, RADIATOR GRILLE ORNAMENT
75317-90A01

HJ6#

 1
75371A - EMBLEM, QUARTER PANEL
75370-90A02

FJ62,HJ6#

TOYOTA LANDCRUISER

 2
75430 - EMBLEM ASSY, BACK DOOR, NO.1
75430-90K00

FJ62,HJ6#..CBU

 1
75440 - EMBLEM ASSY, BACK DOOR, NO.2
75440-90A01

FJ62,HJ60..SRF..CBU

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-90A01

FJ62,HJ60..GX

GX

 1
75471B - PLATE, REAR BODY NAME, NO.1
75471-89116

HJ6#..GX,VX

 1
Common parts
90202-04010
90467-07018
90468-05015
93540-14014
