HJ60V-MNCM (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 2H
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

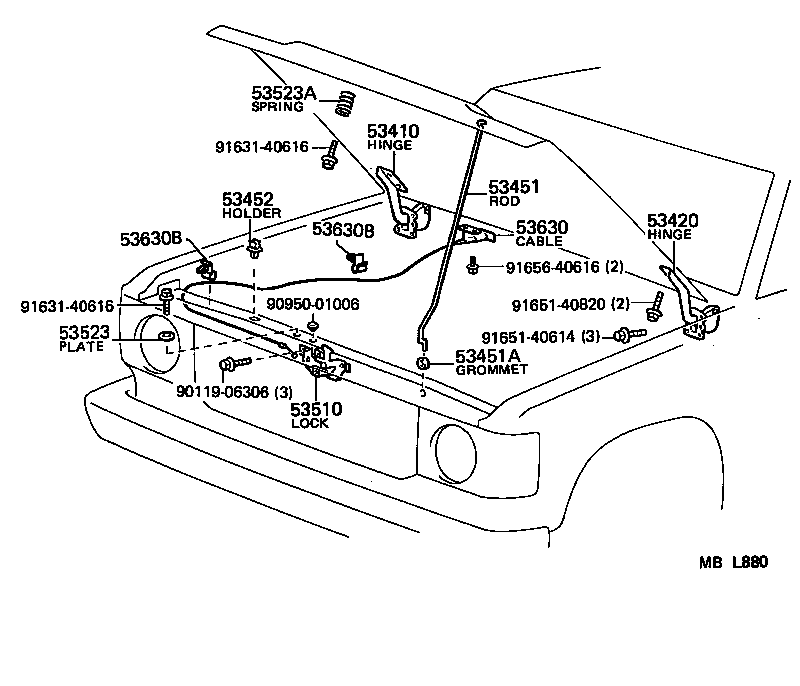

Click highlighted areas on diagram

diagram 53410 53420 53451 53451A 53452 53510 53523 53523A 53630 53630B 53630B 9011906306 9095001006 9163140616 9163140616 9165140614 9165140820 9165640616
Part # Description Qty Price
53410 - HINGE ASSY, HOOD, RH
53410-90A01

FJ62,HJ6#

 1
53420 - HINGE ASSY, HOOD, LH
53420-90A01

FJ62,HJ6#

 1
53451 - ROD, HOOD SUPPORT
53451-90A00

FJ62,HJ6#

 1
53451A - GROMMET(FOR HOOD SUPPORT ROD)
90480-15002

FJ62,HJ6#

 1
53452 - HOLDER, HOOD STAY
53452-90351

FJ62,HJ6#

 1
53510 - LOCK ASSY, HOOD
53510-90A00

FJ62,HJ6#

 1
53523 - PLATE, HOOD LOCK AUXILIARY SPRING
53523-90A00

FJ62,HJ6#

 1
53523A - SPRING, HOOD LOCK AUXILIARY
90504-29001

FJ62,HJ6#

 1
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-90A02

FJ62,HJ6#

 1
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

FJ62,HJ6#

 2
53630B - CLAMP(FOR HOOD LOCK CONTROL CABLE)
69749-12010

FJ62,HJ6#

 2
Common parts
90119-06306
90950-01006
91631-40616
91651-40614
91651-40820
91656-40616
