HJ60V-MNCM (1987)
Toyota Land Cruiser Van

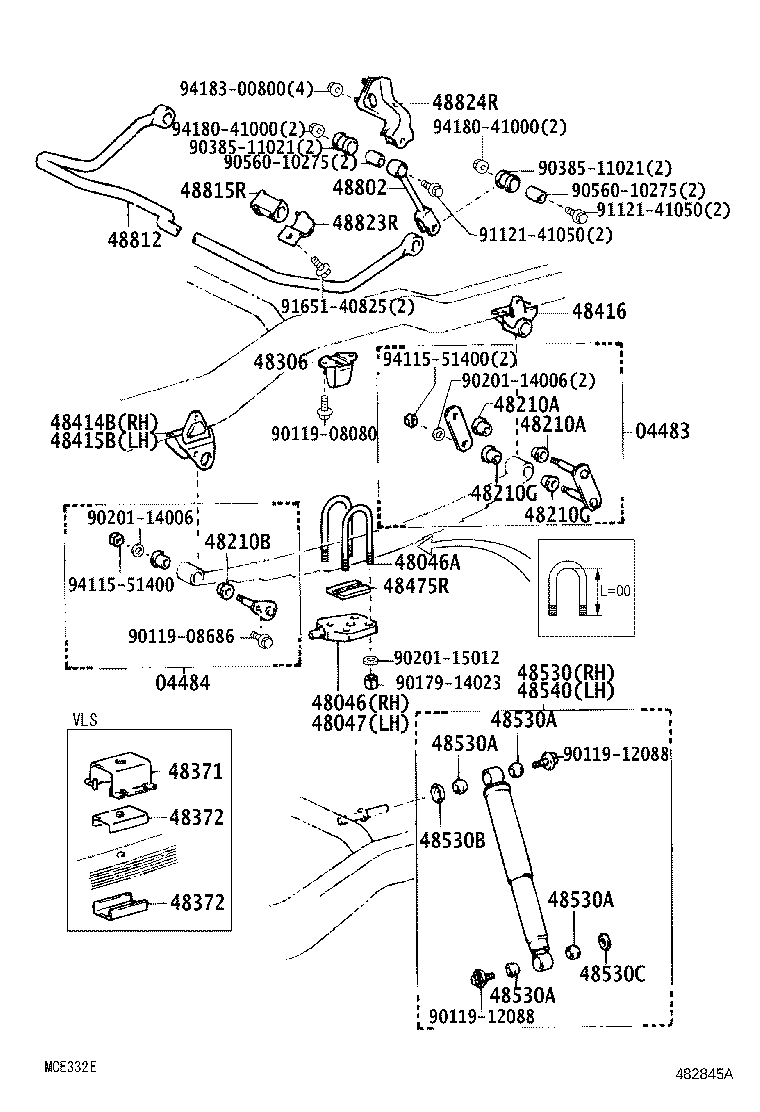

ILLUST NO. 1 OF 2(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-60050 |
FJ62,HJ6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-60040 |
FJ62,HJ6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-60052 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-14032 |
HJ60..GX 長さ=200 |
1 | ||
| 90117-14180 |
HJ60..GX 長さ=205 |
1 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48047-60052 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
FJ62,HJ6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90389-18002 |
FJ62,HJ6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90389-18002 |
FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
FJ62,HJ6# |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90389-18002 |
FJ62,HJ6# |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-60030 |
FJ62,HJ60..CBU |
2 | ||
| 48371 - RETAINER, REAR SPRING PAD | ||||
| 48371-60050 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
4 | ||
| 48372 - PAD, REAR SPRING | ||||
| 48372-23030 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
4 | ||
| 48414B - BRACKET, SPRING, NO.3 RH | ||||
| 48414-60042 |
FJ62,HJ6# |
1 | ||
| 48415B - BRACKET, SPRING, NO.3 LH | ||||
| 48415-60042 |
FJ62,HJ6# |
1 | ||
| 48416 - BRACKET, SPRING, NO.4 | ||||
| 48416-60030 |
FJ62,HJ6# |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-69105 |
HJ60..GX ﾏｰｸ 48531−60190 |
1 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
HJ60..GX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
HJ60..GX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
HJ60..GX |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-19057 |
HJ60..GX |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
FJ62,HJ6# |
2 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03011 |
FJ62,HJ6# |
2 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-69025 |
HJ60..GX ﾏｰｸ 48541−60050 |
1 | ||
| 48802 - LINK SUB-ASSY, STABILIZER | ||||
| 48802-60020 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48812 - BAR, STABILIZER, REAR | ||||
| 48812-60040 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
1 | ||
| 48815R - BUSH, STABILIZER(FOR REAR) | ||||
| 48815-30050 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48823R - COVER, STABILIZER LINK(FOR REAR) | ||||
| 48823-27010 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48824R - BRACKET, STABILIZER(FOR REAR) | ||||
| 48825-60031 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| Common parts | ||||
| 90119-08080 | ||||
| 90119-08686 | ||||
| 90119-12088 | ||||
| 90179-14023 | ||||
| 90201-14006 | ||||
| 90201-15012 | ||||
| 90385-11021 | ||||
| 90560-10275 | ||||
| 91121-41050 | ||||
| 91651-40825 | ||||
| 94115-51400 | ||||
| 94180-41000 | ||||
| 94183-00800 | ||||

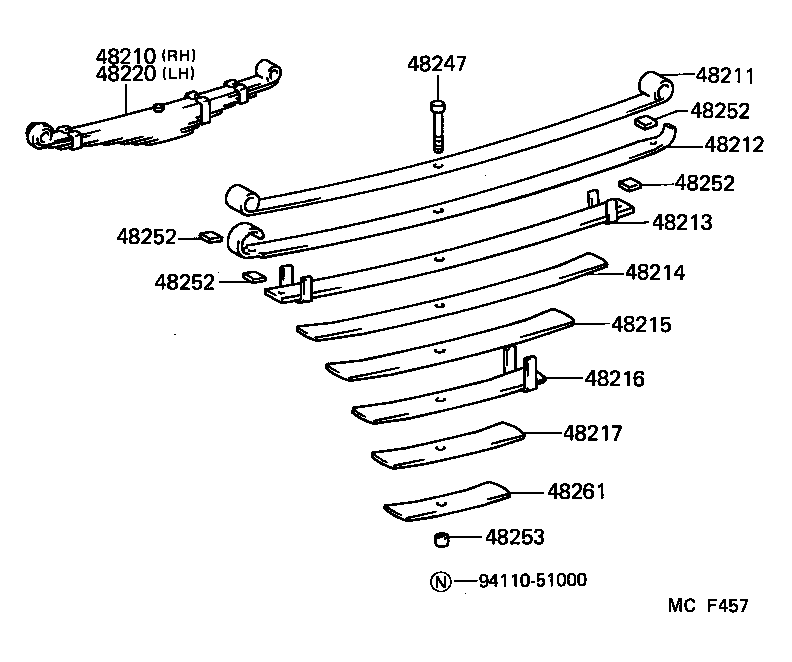

ILLUST NO. 2 OF 2(8708- )GX,VX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-60661 |
HJ60..GX |
1 | ||
| 48210-60660 |
HJ60..GX 8枚ﾘｰﾌ |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48211-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48212-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48202-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48202-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48202-60651 |
HJ60..GX 助手席側 |
1 | ||
| 48202-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48214-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48214-60651 |
HJ60..GX 助手席側 |
1 | ||
| 48214-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48215-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48215-60651 |
HJ60..GX 助手席側 |
1 | ||
| 48215-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48216 - LEAF, REAR SPRING, NO.6 | ||||
| 48203-60651 |
HJ60..GX 助手席側 |
1 | ||
| 48203-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48203-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48203-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48217 - LEAF, REAR SPRING, NO.7 | ||||
| 48217-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48217-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48217-60651 |
HJ60..GX 助手席側 |
1 | ||
| 48217-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-60651 |
HJ60..GX |
1 | ||
| 48210-60650 |
HJ60..GX |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-60651 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48247-60660 |
HJ6#..GX,VX |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
HJ60..GX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
HJ60..GX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
HJ60..GX |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-26070 |
HJ60..GX |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-15010 |
FJ62,HJ6#..(GX,VX)..(DSL,EFI,TD) |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48218-60650 |
HJ60..GX 助手席側 |
1 | ||
| 48218-60661 |
HJ60..GX 運転席側 |
1 | ||
| 48218-60660 |
HJ60..GX 運転席側 |
1 | ||
| 48218-60651 |
HJ60..GX 助手席側 |
1 | ||
| Common parts | ||||
| 94110-51000 | ||||
