HJ60V-MNCM (1987)
Toyota Land Cruiser Van
Production
Aug 1987
-
Jan 1990
Engine
2H
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708- )MTM

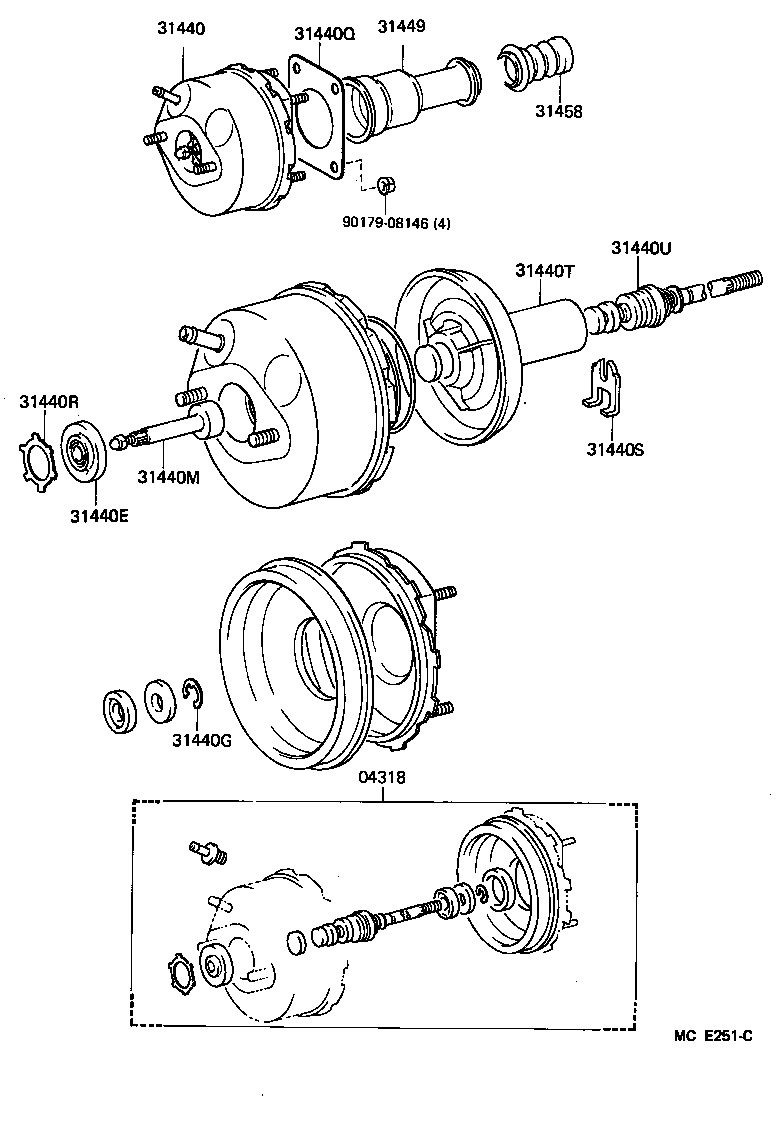

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04318 - BOOSTER KIT, CLUTCH | ||||
| 04318-60030 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER | ||||
| 31440-60060 |
HJ6#..MTM |
1 | ||
| 31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER) | ||||
| 44621-28120 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440G - RING, E(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 96160-01000 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440M - ROD SUB-ASSY, CLUTCH BOOSTER PISTON | ||||
| 44606-12520 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440Q - GASKET, BRAKE BOOSTER BRACKET | ||||
| 44785-14010 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440R - RING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE) | ||||
| 44628-28120 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440S - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER) | ||||
| 44635-12480 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440T - PISTON, BOOSTER(FOR CLUTCH BOOSTER) | ||||
| 44642-87502 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31440U - ROD, VALVE OPERATING(FOR CLUTCH BOOSTER) | ||||
| 44646-60050 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31449 - COVER, CLUTCH BOOSTER PISTON | ||||
| 31449-60010 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31458 - BOOT, CLUTCH BOOSTER PISTON COVER | ||||
| 31458-60010 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
(8708- )MTM

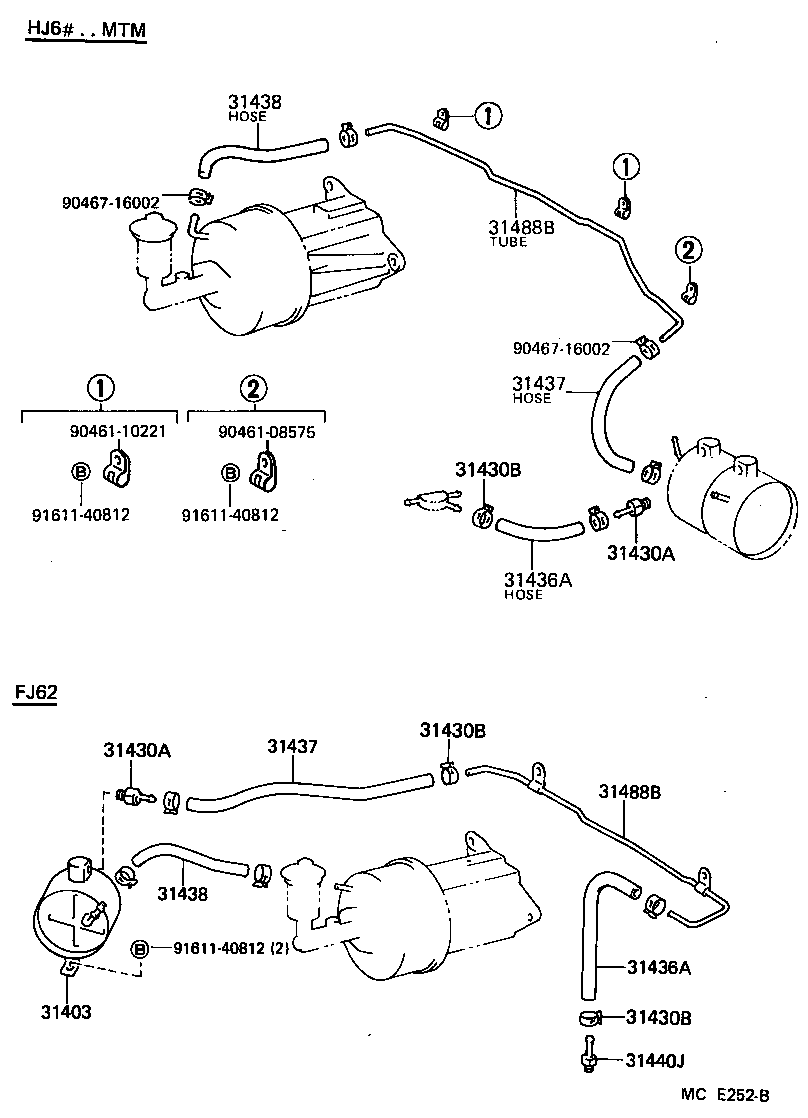

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31430A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44730-60040 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31430A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM) | ||||
| 44730-60050 |
HJ6#..MTM |
1 | ||
| 44730-60040 |
FJ62,HJ6#..MTM..CBU |
1 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..MTM..CBU |
6 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..MTM..CBU |
6 | ||
| 31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE) | ||||
| 90467-16002 |
FJ62,HJ6#..MTM..CBU |
6 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09200 |
HJ6#..MTM |
1 | ||
| 31436A - HOSE, NO.1(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09200 |
HJ6#..MTM |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09270 |
HJ6#..MTM |
1 | ||
| 31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM) | ||||
| 95441-09270 |
HJ6#..MTM |
1 | ||
| 31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31436-60010 |
HJ6#..MTM |
1 | ||
| 31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM) | ||||
| 31436-60010 |
HJ6#..MTM |
1 | ||
| 31488B - TUBE, VACUUM HOSE TO VACUUM HOSE | ||||
| 31488-60021 |
HJ6#..MTM |
1 | ||
| 31488B - TUBE, VACUUM HOSE TO VACUUM HOSE | ||||
| 31488-60021 |
HJ6#..MTM |
1 | ||
| Common parts | ||||
| 90461-08575 | ||||
| 90461-10221 | ||||
| 90467-16002 | ||||
| 91611-40812 | ||||
