HJ60V-MMZ (1982)

Toyota Land Cruiser Van

Production Oct 1982 - Aug 1987
Engine 2H
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )VLS

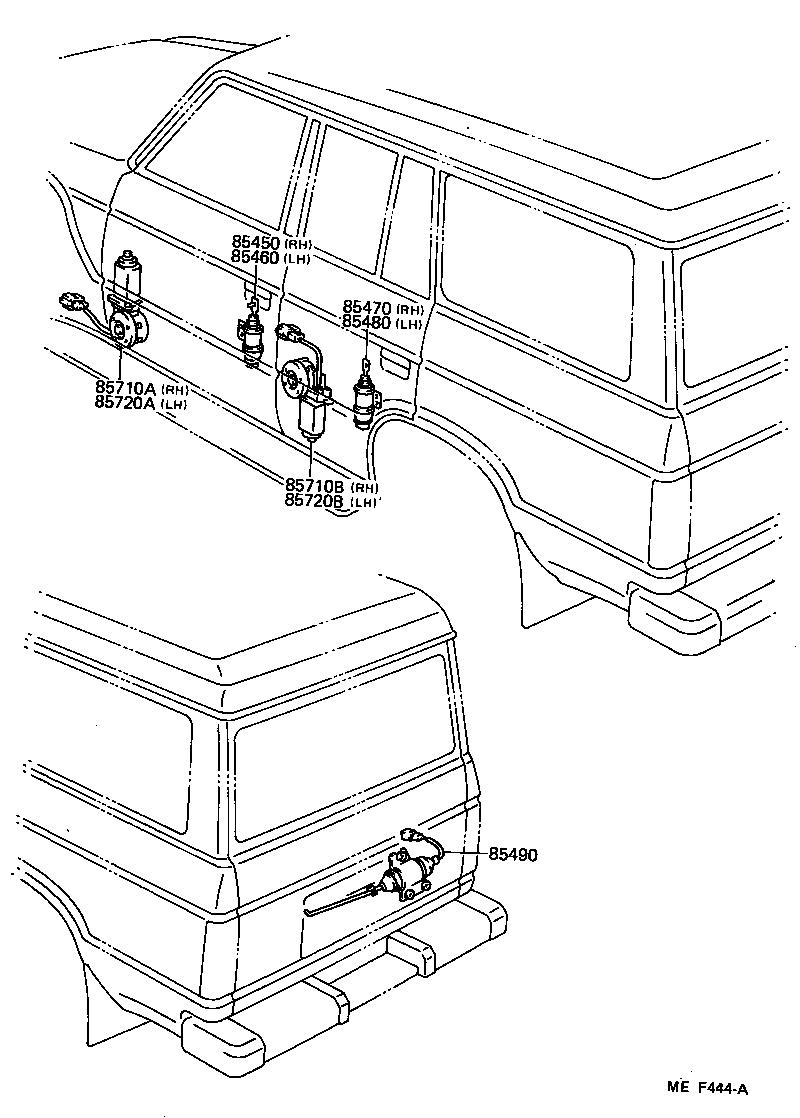

Click highlighted areas on diagram

diagram 85450 85460 85470 85480 85490 85710A 85710B 85720A 85720B
Part # Description Qty Price
85450 - SOLENOID ASSY, DOOR CONTROL, FRONT RH
85450-90A03

BJ61,HJ60..VLS

 1
85450-90A05

BJ61,HJ6#..VLS

 1
85460 - SOLENOID ASSY, DOOR CONTROL, FRONT LH
85460-90A03

BJ61,HJ6#..VLS

 1
85460-90A01

BJ61,HJ60..VLS

 1
85470 - SOLENOID ASSY, DOOR CONTROL, REAR RH
85470-90A01

BJ61,HJ60..VLS

 1
85470-90A03

BJ61,HJ6#..VLS

 1
85480 - SOLENOID ASSY, DOOR CONTROL, REAR LH
85480-90A03

BJ61,HJ6#..VLS

 1
85480-90A01

BJ61,HJ60..VLS

 1
85490 - SOLENOID ASSY, DOOR CONTROL BACK
85450-90A07

BJ61,HJ6#..VLS

 1
85450-90A01

BJ61,HJ60..VLS

 1
85710A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT RH
85710-90A02

BJ61,HJ6#..VLS

 1
85710B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR RH
85710-90A03

BJ61,HJ6#..VLS

 1
85720A - MOTOR ASSY, POWER WINDOW REGULATOR, FRONT LH
85720-90A02

BJ61,HJ6#..VLS

 1
85720B - MOTOR ASSY, POWER WINDOW REGULATOR, REAR LH
85720-90A03

BJ61,HJ6#..VLS

 1
