HDJ81V-RNPGX (1992)

Toyota Land Cruiser Van

Production Aug 1992 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

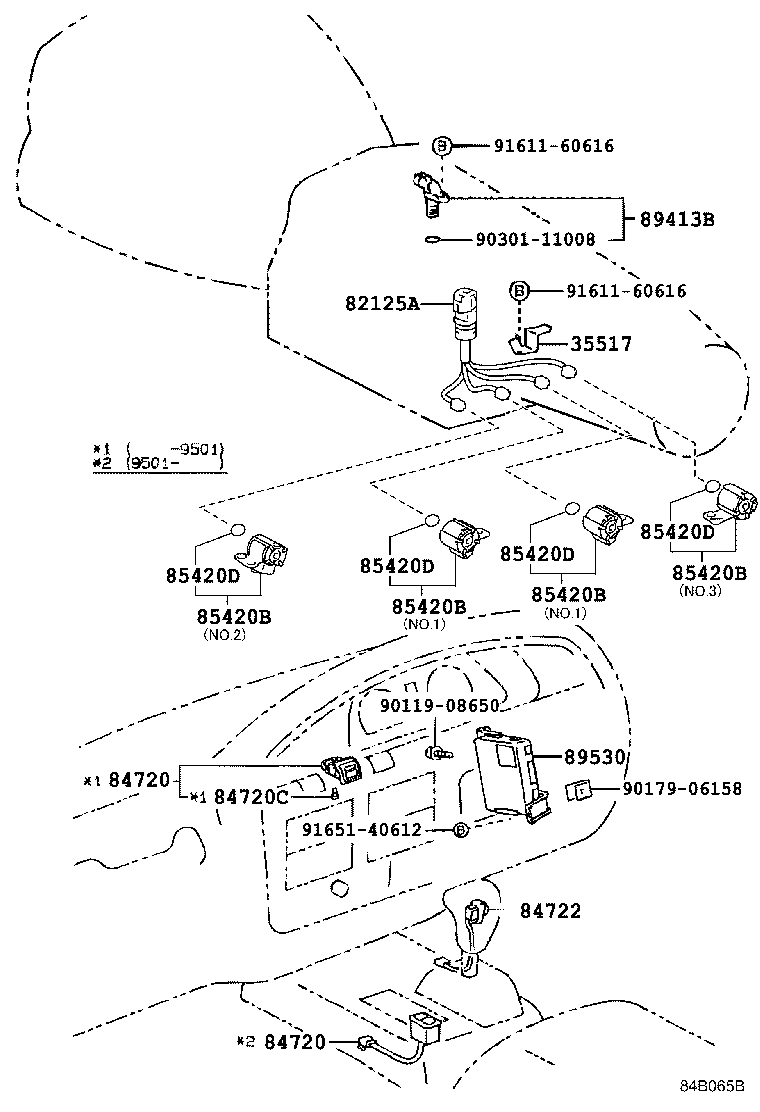

Click highlighted areas on diagram

diagram 35517 82125A 84720 84720 84720C 84722 85420B 85420B 85420B 85420B 85420D 85420D 85420D 85420D 89413B 89530 9011908650 9017906158 9030111008 9161160616 9161160616 9165140612
Part # Description Qty Price
35517 - PLATE, TRANSMISSION WIRE LOCK
35517-36010

FZJ80,HDJ81,HZJ81..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-60040

FZJ80,HDJ81,HZJ81..ATM

 1
84720 - SWITCH ASSY, PATTERN SELECT
84720-60040

FZJ80,HDJ81,HZJ81..ATM

 1
84720C - BULB(FOR PATTERN SELECT SWITCH)
84999-10320

FZJ80,HDJ81,HZJ81..ATM

14V 0.84W

 1
89530 - COMPUTER ASSY, TRANSMISSION CONTROL
89530-60090

HDJ81..ATM

 1
Common parts
90119-08650
90179-06158
90301-11008
91611-60616
91651-40612
