HDJ81V-RNPGX (1992)
Toyota Land Cruiser Van
(9001-9501)

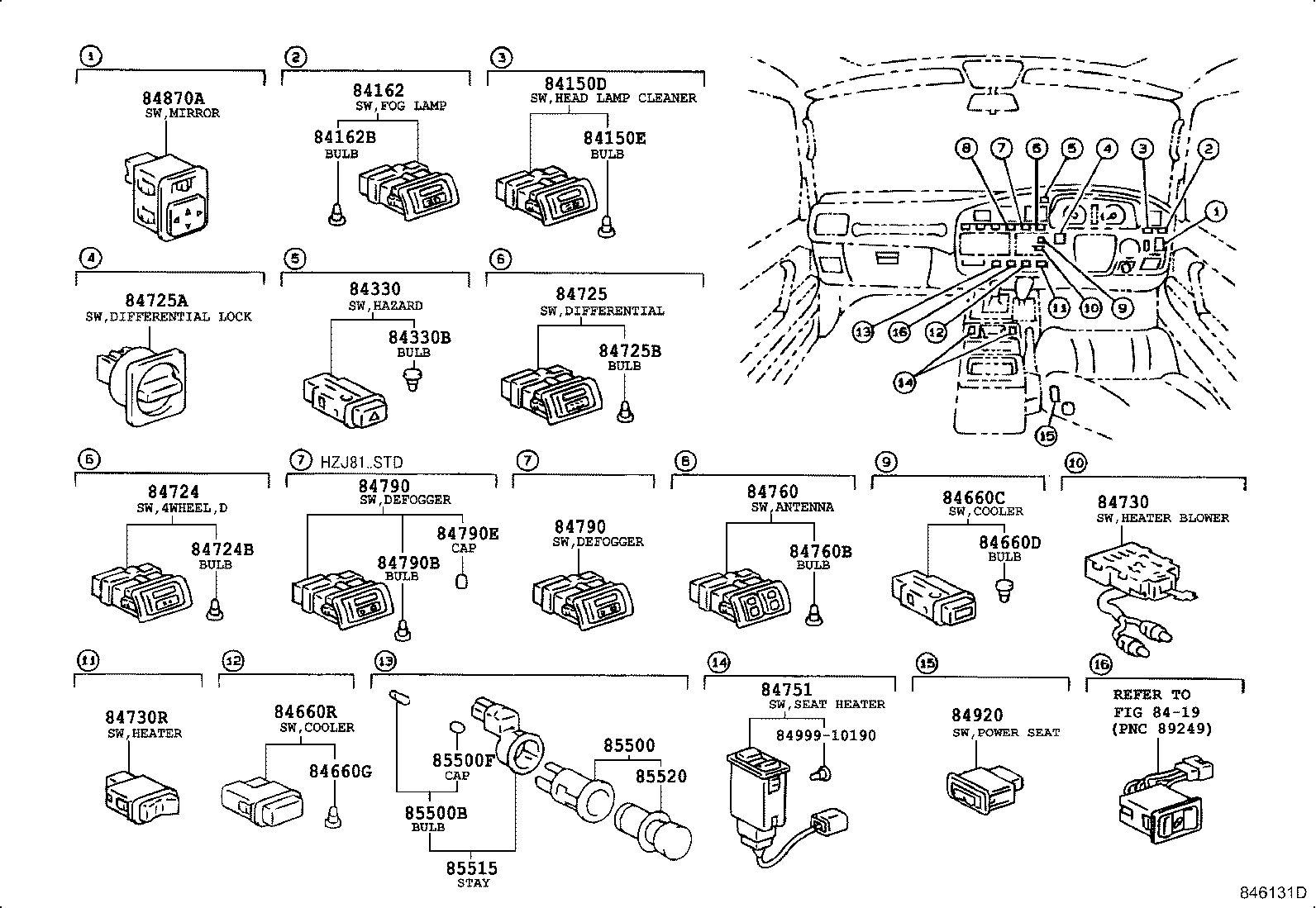

ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-60010 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84150-60010 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84150E - BULB, HEADLAMP CLEANER SWITCH | ||||
| 84999-10320 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 14V 0.84W |
1 | ||
| 84162 - SWITCH, FRONT FOG LAMP | ||||
| 84160-60030 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 84160-60030 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 84162B - BULB, FOG LAMP SWITCH | ||||
| 84999-10320 |
FZJ80,HDJ81,HZJ81 14V 0.84W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-60190 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 84332-20260 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
FJ80,HDJ81,HZJ81 14V 0.84W |
1 | ||
| 84725 - SWITCH, CENTER DIFFERENTIAL LOCK | ||||
| 84725-60010 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84725-60010 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60030 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-60010 |
HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ,右側 |
1 | ||
| 84751-60040 |
HDJ81 ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ & ｸ-ﾙﾎﾞﾂｸｽ),左側 |
1 | ||
| 84751-60030 |
HDJ81 ｱﾘ(ｶﾝﾚｲﾁ ｼﾖｳ & ｸ-ﾙﾎﾞﾂｸｽ),右側 |
1 | ||
| 84751-60020 |
HDJ81..LUB;HZJ81..GX,VX,VXL ｶﾝﾚｲﾁ ｼﾖｳ,左側 |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-60010 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84760-60010 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84760B - BULB, ANTENNA SWITCH | ||||
| 84999-10410 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 84999-10410 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-60020 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84790-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-60020 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84790-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-20050 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL ｱﾘ(ﾌｴﾝﾀﾞ ﾘﾓ-ﾄ ｺﾝﾄﾛ-ﾙ ﾐﾗ-) |
1 | ||
| 84870-20050 |
FZJ80,HDJ81,HZJ81..GX |
1 | ||
| 84870-60010 |
FJ80,FZJ80,HDJ81,HZJ81..VX,VXL |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-6001006 |
FJ80,HDJ81 SABLE,TRIM4# |
1 | ||
| 84920-6001003 |
FJ80,HDJ81 BLUISH GRAY,TRIM1# |
1 | ||
| 84920-60010E0 |
FZJ80,HDJ81,HZJ81..VX,VXL SABLE,TRIM4# |
1 | ||
| 84920-60010E0 |
FZJ80,HDJ81,HZJ81..VX,VXL SABLE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-30440 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 85500-30440 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 85500-17040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 85500-17040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
FJ80,FZJ80,HDJ81,HZJ81 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 84998-10550 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-22010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-30190 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 85520-20080 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 84999-10190 | ||||
| Linked diagrams | ||||
| 8419 | ||||

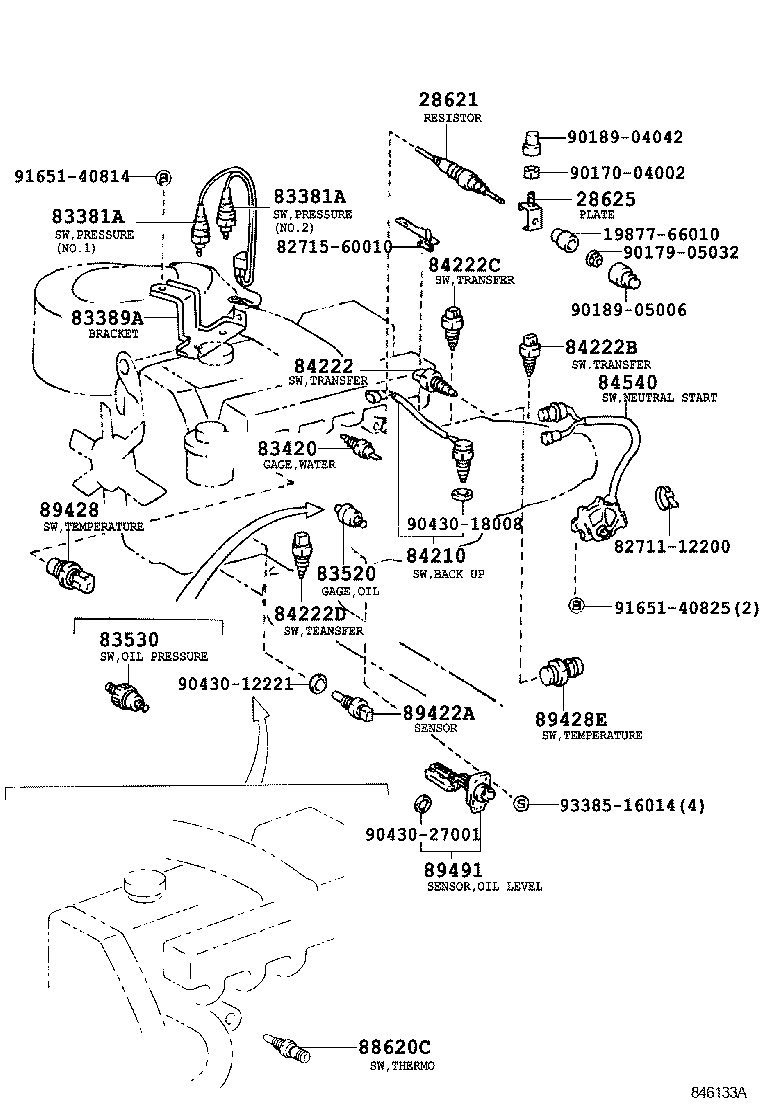

(9001-9501)HDJ81 ; (9001- )HZJ81
E/G,T/M,T/F & FR DIFF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28621 - RESISTOR, GLOW PLUG | ||||
| 28621-68010 |
1HDT,1HZ..HDJ81,HZJ81 |
1 | ||
| 28625 - PLATE, GLOW PLUG RESISTOR | ||||
| 28625-68040 |
1H#..HDJ81,HZJ81 |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-60040 |
HDJ81 NO.2,ｺｳｱﾂｶﾞﾜ |
1 | ||
| 83381-16050 |
HDJ81 NO.1,ﾃｲｱﾂｶﾞﾜ |
1 | ||
| 83381-16050 |
HDJ81 NO.1,ﾃｲｱﾂｶﾞﾜ |
1 | ||
| 83381-60040 |
HDJ81 NO.2,ｺｳｱﾂｶﾞﾜ |
1 | ||
| 83381A - SWITCH, PRESSURE | ||||
| 83381-60040 |
HDJ81 NO.2,ｺｳｱﾂｶﾞﾜ |
1 | ||
| 83381-16050 |
HDJ81 NO.1,ﾃｲｱﾂｶﾞﾜ |
1 | ||
| 83381-16050 |
HDJ81 NO.1,ﾃｲｱﾂｶﾞﾜ |
1 | ||
| 83381-60040 |
HDJ81 NO.2,ｺｳｱﾂｶﾞﾜ |
1 | ||
| 83389A - BRACKET, PRESSURE SWITCH | ||||
| 83389-60050 |
HDJ81 |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-12010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 84222B - SWITCH, TRANSFER INDICATOR, NO.2 | ||||
| 84222-60080 |
HZJ81;HDJ81..MTM..TD2;FJ80,FZJ80,HDJ81..ATM |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-12010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 84222D - SWITCH, TRANSFER INDICATOR, NO.4 | ||||
| 84222-12010 |
FJ80,FZJ80,HDJ81,HZJ81 |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-60010 |
FJ80,FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 84540-60010 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 88620C - THERMO SWITCH ASSY | ||||
| 88790-60050 |
HDJ81..ATM |
1 | ||
| 89422A - SENSOR, WATER TEMPERATURE | ||||
| 89422-20010 |
HDJ81,HZJ81 |
1 | ||
| 89428E - SWITCH, TEMPERATURE, NO.2 (FOR TRANSMISSION) | ||||
| 89428-26030 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 89428-26030 |
FJ80,FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| Common parts | ||||
| 19877-66010 | ||||
| 82711-12200 | ||||
| 82715-60010 | ||||
| 90170-04002 | ||||
| 90179-05032 | ||||
| 90189-04042 | ||||
| 90189-05006 | ||||
| 90430-12221 | ||||
| 90430-18008 | ||||
| 90430-27001 | ||||
| 91651-40814 | ||||
| 91651-40825 | ||||
| 93385-16014 | ||||
