HDJ81V-RNPGX (1992)
Toyota Land Cruiser Van
(9208- )ATM

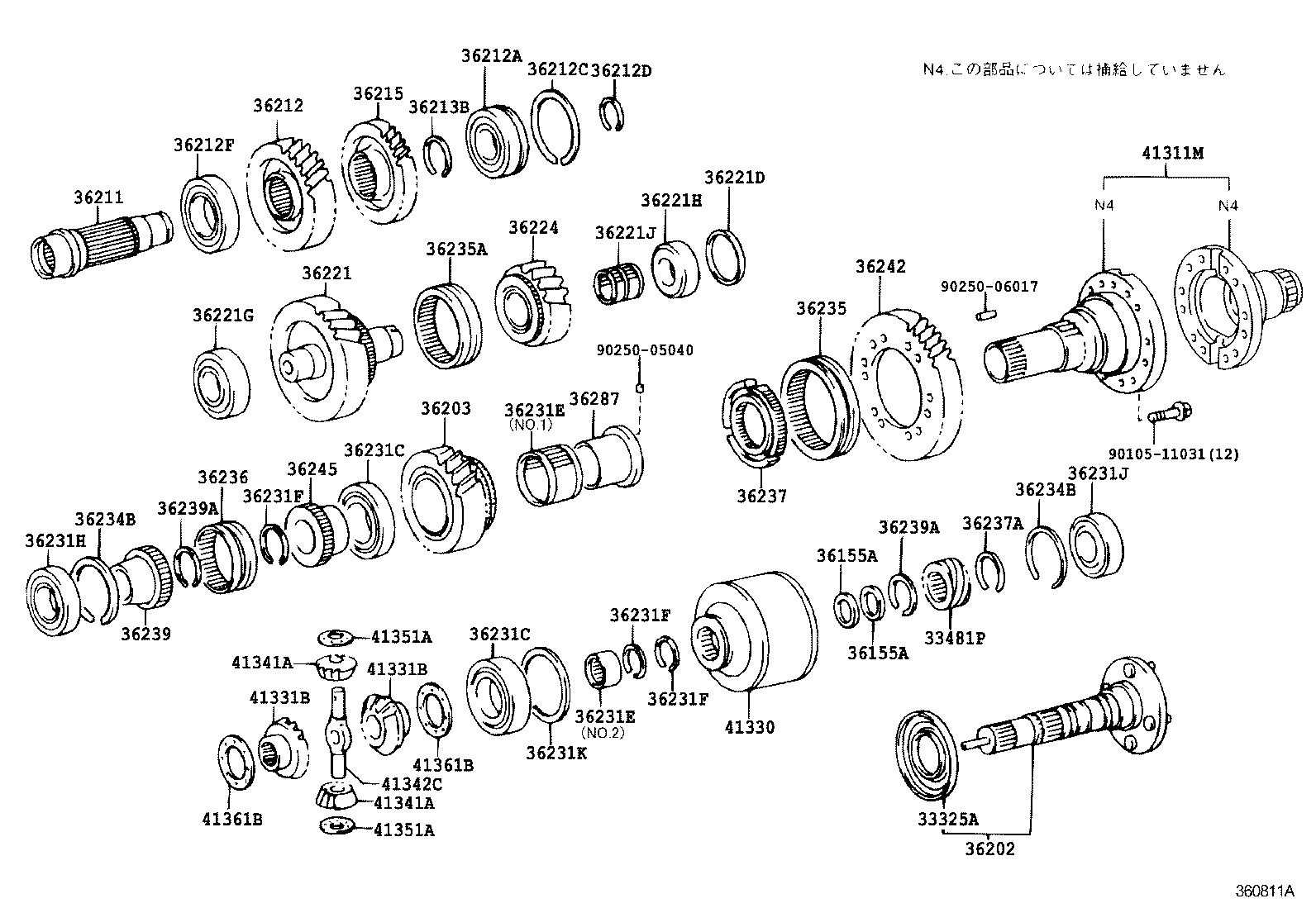

HF2AV,ｱﾘ(ﾋﾞｽｶｽ ｾﾝﾀ ﾃﾞｲﾌｱﾚﾝｼﾔﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33325A - DEFLECTOR, DUST (FOR TRANSFER OUTPUT REAR SHAFT) | ||||
| 33325-60060 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-60100 |
FJ80,HDJ81,HZJ81..STD,VX 歯数=12,ﾏｰｸ 12:31−33 |
1 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 36155A - RING, TRANSFER OIL SEAL | ||||
| 36155-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 36202 - SHAFT SUB-ASSY, TRANSFER OUTPUT, REAR | ||||
| 36202-60050 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL ｱﾘ(*CDL) |
1 | ||
| 36202-60050 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36203 - GEAR SUB-ASSY, TRANSFER HIGH SPEED OUTPUT | ||||
| 36203-60080 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36211-60030 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36211-60040 |
HDJ81,HZJ81..ATM ｱﾘ(PTO ﾄﾞﾗｲﾌﾞ ｷﾞｱ & ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 36211-60040 |
FJ80,HDJ81,HZJ81..ATM ｱﾘ(PTO ﾄﾞﾗｲﾌﾞ ｷﾞﾔ) |
1 | ||
| 36212 - GEAR, TRANSFER INPUT | ||||
| 36212-60100 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36212A - BEARING, RADIAL BALL (FOR TRANSFER INPUT GEAR) | ||||
| 90363-35029 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36212C - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR) | ||||
| 90520-82001 |
FJ80,HDJ81,HZJ81 厚さ=1.65 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-32005 |
FJ80,HDJ81,HZJ81 厚さ=2.0,ﾏｰｸ A |
1 | ||
| 90520-32007 |
FJ80,HDJ81,HZJ81 厚さ=2.2,ﾏｰｸ C |
1 | ||
| 90520-32008 |
FJ80,HDJ81,HZJ81 厚さ=2.3,ﾏｰｸ D |
1 | ||
| 90520-32009 |
FJ80,HDJ81,HZJ81 厚さ=2.4,ﾏｰｸ E |
1 | ||
| 90520-32006 |
FJ80,HDJ81,HZJ81 厚さ=2.1,ﾏｰｸ B |
1 | ||
| 36212F - BEARING, RADIAL BALL (FOR TRANSFER INPUT SHAFT FRONT) | ||||
| 90363-50003 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44023 |
FJ80,HDJ81,HZJ81 厚さ=2.1,ﾏｰｸ B |
1 | ||
| 90520-44024 |
FJ80,HDJ81,HZJ81 厚さ=2.2,ﾏｰｸ C |
1 | ||
| 90520-44030 |
FJ80,HDJ81,HZJ81 厚さ=2.8,ﾏｰｸ J |
1 | ||
| 90520-44022 |
FJ80,HDJ81,HZJ81 厚さ=2.0,ﾏｰｸ A |
1 | ||
| 90520-44029 |
FJ80,HDJ81,HZJ81 厚さ=2.7,ﾏｰｸ H |
1 | ||
| 90520-44026 |
FJ80,HDJ81,HZJ81 厚さ=2.4,ﾏｰｸ E |
1 | ||
| 90520-44027 |
FJ80,HDJ81,HZJ81 厚さ=2.5,ﾏｰｸ F |
1 | ||
| 90520-44028 |
FJ80,HDJ81,HZJ81 厚さ=2.6,ﾏｰｸ G |
1 | ||
| 90520-44025 |
FJ80,HDJ81,HZJ81 厚さ=2.3,ﾏｰｸ D |
1 | ||
| 36215 - GEAR, POWER TAKE-OFF DRIVE | ||||
| 36215-60040 |
HDJ81,HZJ81 |
1 | ||
| 36215-60040 |
HDJ81..ATM |
1 | ||
| 36221 - GEAR, TRANSFER IDLER | ||||
| 36221-60120 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36221D - WASHER, PLATE(FOR TRANSFER IDLER GEAR) | ||||
| 90201-57003 |
FJ80,HDJ81,HZJ81 厚さ=0.44−0.46,ﾏｰｸ 3 |
1 | ||
| 90201-57006 |
FJ80,HDJ81,HZJ81 厚さ=2.79−2.81,ﾏｰｸ 6 |
1 | ||
| 90201-57002 |
FJ80,HDJ81,HZJ81 厚さ=0.29−0.31,ﾏｰｸ 2 |
1 | ||
| 90201-57005 |
FJ80,HDJ81,HZJ81 厚さ=2.59−2.61,ﾏｰｸ 5 |
1 | ||
| 90201-57001 |
FJ80,HDJ81,HZJ81 厚さ=0.14−0.16,ﾏｰｸ 1 |
1 | ||
| 90201-57009 |
FJ80,HDJ81,HZJ81 厚さ=3.39−3.41,ﾏｰｸ 9 |
1 | ||
| 90201-57004 |
FJ80,HDJ81,HZJ81 厚さ=2.39−2.41,ﾏｰｸ 4 |
1 | ||
| 90201-57007 |
FJ80,HDJ81,HZJ81 厚さ=2.99−3.01,ﾏｰｸ 7 |
1 | ||
| 90201-57010 |
FJ80,HDJ81,HZJ81 厚さ=3.59−3.61,ﾏｰｸ 10 |
1 | ||
| 90201-57008 |
FJ80,HDJ81,HZJ81 厚さ=3.19−3.21,ﾏｰｸ 8 |
1 | ||
| 90201-57011 |
FJ80,HDJ81,HZJ81 厚さ=3.79−3.81,ﾏｰｸ 11 |
1 | ||
| 90201-57012 |
FJ80,HDJ81,HZJ81 厚さ=3.99−4.01,ﾏｰｸ 12 |
1 | ||
| 36221G - BEARING (FOR TRANSFER ILDER GEAR), FRONT | ||||
| 90366-35060 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36221H - BEARING (FOR TRANSFER ILDER GEAR), REAR | ||||
| 90366-33002 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 36221J - BEARING (FOR TRANSFER IDLER GEAR LOWER) | ||||
| 90364-38016 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36224 - GEAR, TRANSFER IDLER LOWER | ||||
| 36224-60010 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-60008 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL ﾘﾔ |
1 | ||
| 90366-48001 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL ﾌﾛﾝﾄ |
1 | ||
| 36231C - BEARING, TAPER ROLLER (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90366-60008 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL ﾘﾔ |
1 | ||
| 90366-48001 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL ﾌﾛﾝﾄ |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-56001 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-39022 |
HDJ81,HZJ81..LUB 厚さ=1.20,ｱﾘ(*66) |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.0,ﾏｰｸ A |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.1,ﾏｰｸ B |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.2,ﾏｰｸ C |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.6,ﾏｰｸ G |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.95,ﾏｰｸ B |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.8,ﾏｰｸ J |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.3,ﾏｰｸ D |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.7,ﾏｰｸ H |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90520-44027 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.5,ﾏｰｸ F |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.4,ﾏｰｸ E |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-39022 |
HDJ81,HZJ81..LUB 厚さ=1.20,ｱﾘ(*66) |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.0,ﾏｰｸ A |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.1,ﾏｰｸ B |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.2,ﾏｰｸ C |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.6,ﾏｰｸ G |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.95,ﾏｰｸ B |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.8,ﾏｰｸ J |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.3,ﾏｰｸ D |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.7,ﾏｰｸ H |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90520-44027 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.5,ﾏｰｸ F |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.4,ﾏｰｸ E |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-39022 |
HDJ81,HZJ81..LUB 厚さ=1.20,ｱﾘ(*66) |
1 | ||
| 90520-44022 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.0,ﾏｰｸ A |
1 | ||
| 90520-44023 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.1,ﾏｰｸ B |
1 | ||
| 90520-44024 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.2,ﾏｰｸ C |
1 | ||
| 90520-44028 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.6,ﾏｰｸ G |
1 | ||
| 90520-44032 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.95,ﾏｰｸ B |
1 | ||
| 90520-44030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.8,ﾏｰｸ J |
1 | ||
| 90520-44025 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.3,ﾏｰｸ D |
1 | ||
| 90520-44029 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.7,ﾏｰｸ H |
1 | ||
| 90520-44031 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.80,ﾏｰｸ A |
1 | ||
| 90520-44027 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.5,ﾏｰｸ F |
1 | ||
| 90520-44026 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.4,ﾏｰｸ E |
1 | ||
| 36231H - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT FRONT) | ||||
| 90363-40044 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-50005 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36231K - WASHER, PLATE(FOR TRANSFER OUTPUT REAR CASE) | ||||
| 90201-82013 |
FJ80,HDJ81,HZJ81..LUB 厚さ=0.135−0.165,ﾏｰｸ A |
1 | ||
| 90201-82017 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.19−1.21,ﾏｰｸ E |
1 | ||
| 90201-82019 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.59−1.61,ﾏｰｸ G |
1 | ||
| 90201-82020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.79−1.81,ﾏｰｸ H |
1 | ||
| 90201-82016 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=0.99−1.01,ﾏｰｸ D |
1 | ||
| 90201-82014 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=0.27−0.33,ﾏｰｸ B |
1 | ||
| 90201-82018 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.39−1.41,ﾏｰｸ F |
1 | ||
| 90201-82022 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.19−2.21,ﾏｰｸ K |
1 | ||
| 90201-82015 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=0.415−0.485,ﾏｰｸ C |
1 | ||
| 90201-82021 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.99−2.01,ﾏｰｸ J |
1 | ||
| 90201-82011 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.39−2.41,ﾏｰｸ L |
1 | ||
| 90201-82012 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.59−2.61,ﾏｰｸ M |
1 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.8,ﾏｰｸ B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.7,ﾏｰｸ A |
2 | ||
| 36234B - RING, SNAP (FOR TRANSFER OUTPUT FRONT SHAFT BEARING) | ||||
| 90521-84003 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.8,ﾏｰｸ B |
2 | ||
| 90521-84002 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.7,ﾏｰｸ A |
2 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-60040 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36235A - SLEEVE (FOR TRANSFER IDLER GEAR) | ||||
| 36235-60050 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-60060 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-60040 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-47007 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.15,ﾏｰｸ 3 |
1 | ||
| 90520-47005 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.95,ﾏｰｸ 1 |
1 | ||
| 90520-47006 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.05,ﾏｰｸ 2 |
1 | ||
| 90520-47008 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.25,ﾏｰｸ 4 |
1 | ||
| 36239 - HUB, TRANSFER DRIVE CLUTCH | ||||
| 36239-60010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36022 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.1,ﾏｰｸ D |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.0,ﾏｰｸ C |
1 | ||
| 90520-36020 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=1.9,ﾏｰｸ B |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.2,ﾏｰｸ E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.5 |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=1.8,ﾏｰｸ A |
1 | ||
| 36239A - RING, SHAFT SNAP(FOR TRANSFER DRIVE CLUTCH HUB) | ||||
| 90520-36022 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.1,ﾏｰｸ D |
1 | ||
| 90520-36021 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.0,ﾏｰｸ C |
1 | ||
| 90520-36020 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=1.9,ﾏｰｸ B |
1 | ||
| 90520-36023 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.2,ﾏｰｸ E |
1 | ||
| 90520-40009 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.5 |
1 | ||
| 90520-36019 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=1.8,ﾏｰｸ A |
1 | ||
| 36242 - GEAR, TRANSFER LOW | ||||
| 36242-60150 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-60040 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36287 - BUSH, TRANSFER HIGH SPEED OUTPUT GEAR | ||||
| 36287-60010 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 41311M - CASE, CENTER DIFFERENTIAL | ||||
| 41301-60030 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 41301-60031 |
HDJ81,HZJ81..LUB ｱﾘ(*CDL) |
1 | ||
| 41301-60070 |
HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41331B - GEAR, CENTER DIFFERENTIAL SIDE | ||||
| 41331-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41341A - PINION, CENTER DIFFERENTIAL | ||||
| 41341-30011 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41342C - SHAFT, CENTER DIFFERENTIAL PINION | ||||
| 41342-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41351A - WASHER, CENTER DIFFERENTIAL PINION TRUST | ||||
| 41351-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
2 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60250 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.6 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.85 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.7 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.15 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=3.05 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.75 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.3 |
1 | ||
| 41361-60270 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.9 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.45 |
1 | ||
| 41361B - WASHER, CENTER DIFFERENTIAL SIDE GEAR THRUST, NO.1 | ||||
| 41361-60250 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.6 |
1 | ||
| 41361-60200 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.85 |
1 | ||
| 41361-60190 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=1.7 |
1 | ||
| 41361-60220 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.15 |
1 | ||
| 41361-60280 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=3.05 |
1 | ||
| 41361-60260 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.75 |
1 | ||
| 41361-60210 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2 |
1 | ||
| 41361-60230 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.3 |
1 | ||
| 41361-60270 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.9 |
1 | ||
| 41361-60240 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 厚さ=2.45 |
1 | ||
| Common parts | ||||
| 90105-11031 | ||||
| 90250-05040 | ||||
| 90250-06017 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
