HDJ81V-RNPGW (1995)

Toyota Land Cruiser Van

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

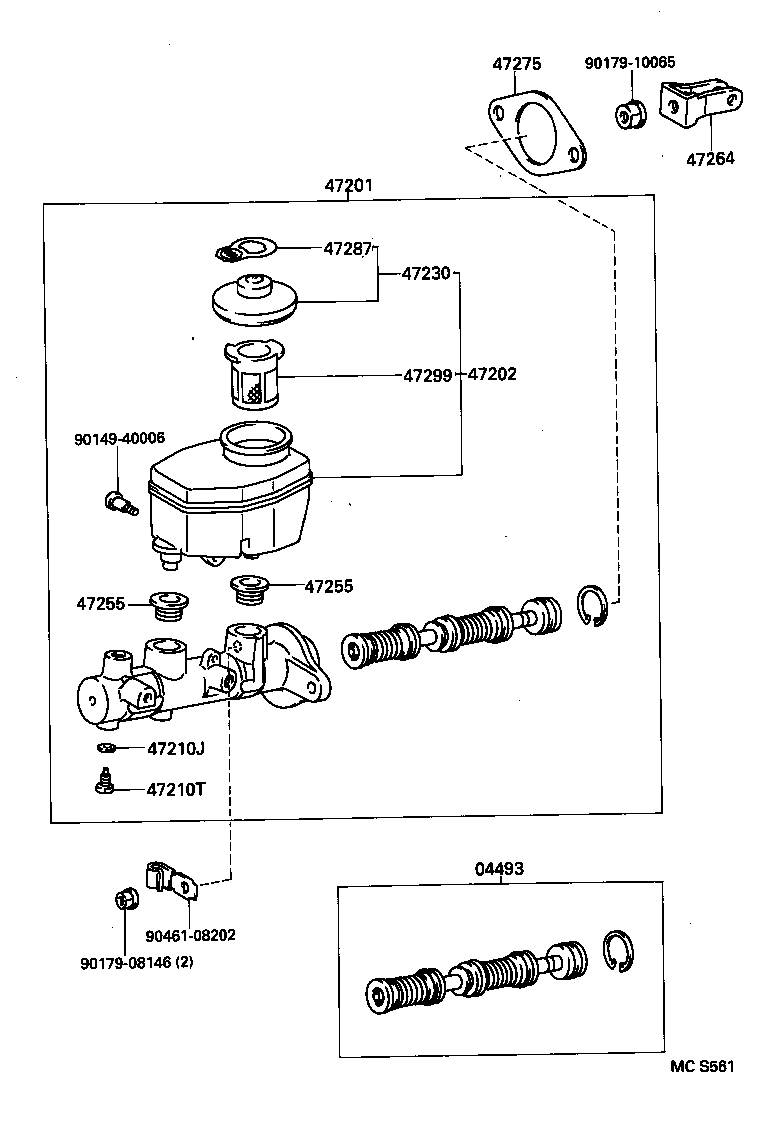

Click highlighted areas on diagram

diagram 04493 47201 47202 47210J 47210T 47230 47255 47255 47264 47275 47287 47299 9014940006 9017908146 9017910065 9046108202
Part # Description Qty Price
04493 - CYLINDER KIT, BRAKE MASTER
04493-3D010

FZJ80,HDJ81,HZJ81

ｱﾘ(*66)

 1
04493-60210

FJ80,HDJ81,HZJ81

 1
04493-60280

FZJ80,HDJ81,HZJ81

 1
04493-3D010

FZJ80,HDJ81,HZJ81

 1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-60460

FJ80,HDJ81,HZJ81

 1
47201-60610

FZJ80,HDJ81,HZJ81

ｱﾘ(*66)

 1
47201-60530

FZJ80,HDJ81,HZJ81

 1
47201-60610

FZJ80,HDJ81,HZJ81

 1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-60140

FJ80,HDJ81,HZJ81

 1
47220-60060

FZJ80,HDJ81,HZJ81

 1
47220-60050

FZJ80,HDJ81,HZJ81

 1
47220-60060

FZJ80,HDJ81,HZJ81

ｱﾘ(*66)

 1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104

FJ80,FZJ80,HDJ81,HZJ81

 1
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077

FJ80,FZJ80,HDJ81,HZJ81

 1
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
84460-40020

FJ80,HDJ81,HZJ81

 1
47230-20140

FZJ80,HDJ81,HZJ81

 1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

FJ80,FZJ80,HDJ81,HZJ81

 2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010

FJ80,FZJ80,HDJ81,HZJ81

 2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-50010

FJ80,FZJ80,HDJ81,HZJ81

 1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-24010

FJ80,FZJ80,HDJ81,HZJ81

 1
47275-12020

FZJ80,HDJ81,HZJ81

 1
47287 - LABEL, BRAKE FLUID INFORMATION
47287-20010

FZJ80,HDJ81,HZJ81

 1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-32010

FJ80,HDJ81,HZJ81

 1
Common parts
90149-40006
90179-08146
90179-10065
90461-08202
