HDJ81V-RNPEX (1990)
Toyota Land Cruiser Van

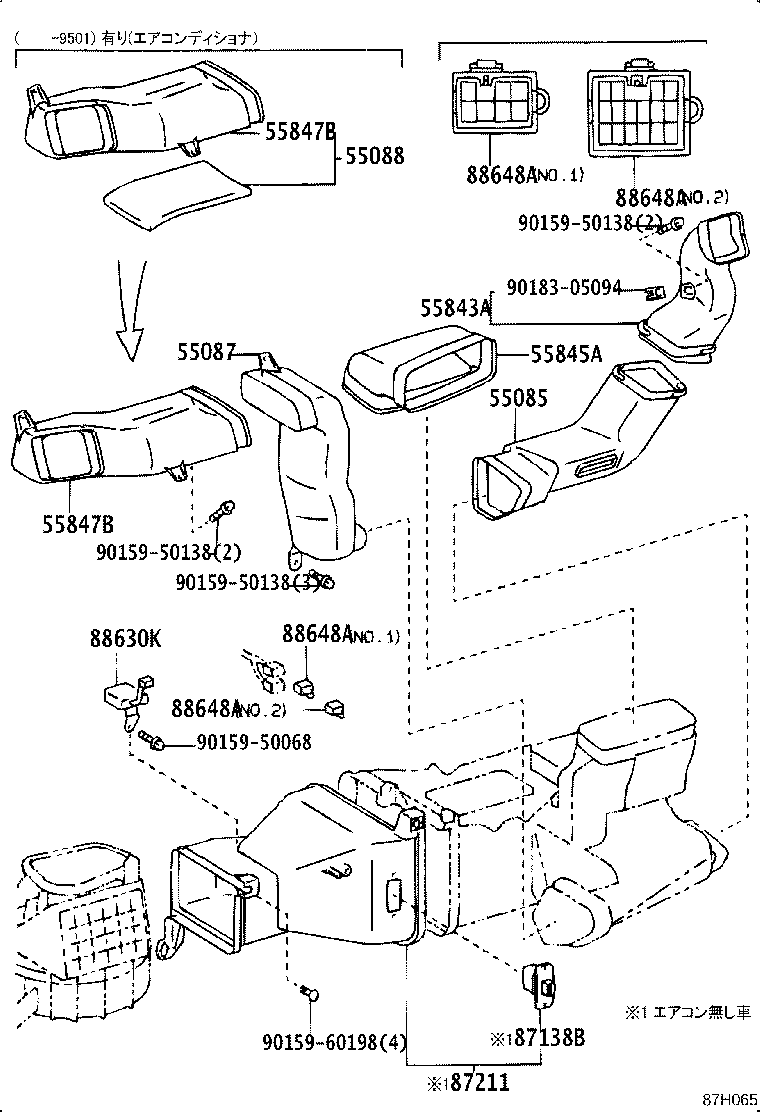

ILLUST NO. 2 OF 5(9001- )
FRONT DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55085 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.2 | ||||
| 55085-60040 |
FJ80,HDJ81,HZJ81 ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 55085-60040 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55085-60030 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 55087 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.4 | ||||
| 55087-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55088 - DUCT SUB-ASSY, HEATER TO REGISTER, NO.5 | ||||
| 55088-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60020 |
FJ80,HDJ81,HZJ81 ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 55088-60020 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 55847-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60020 |
FJ80,HDJ81,HZJ81 ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 55088-60020 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 55847-60020 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-60220 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-60190 |
HDJ81,HZJ81 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 87211-60170 |
FJ80,HDJ81,HZJ81 |
1 | ||
| 88630K - RELAY ASSY | ||||
| 88630-60050 |
FJ80,HDJ81 |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-60020 |
FJ80,HDJ81 NO.1 |
1 | ||
| 88648-60030 |
FJ80,HDJ81 NO.2 |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-60020 |
FJ80,HDJ81 NO.1 |
1 | ||
| 88648-60030 |
FJ80,HDJ81 NO.2 |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-60020 |
FJ80,HDJ81 NO.1 |
1 | ||
| 88648-60030 |
FJ80,HDJ81 NO.2 |
1 | ||
| 88648A - WIRING, COOLER | ||||
| 88648-60020 |
FJ80,HDJ81 NO.1 |
1 | ||
| 88648-60030 |
FJ80,HDJ81 NO.2 |
1 | ||
| Common parts | ||||
| 90159-50068 | ||||
| 90159-50138 | ||||
| 90159-60198 | ||||
| 90183-05094 | ||||

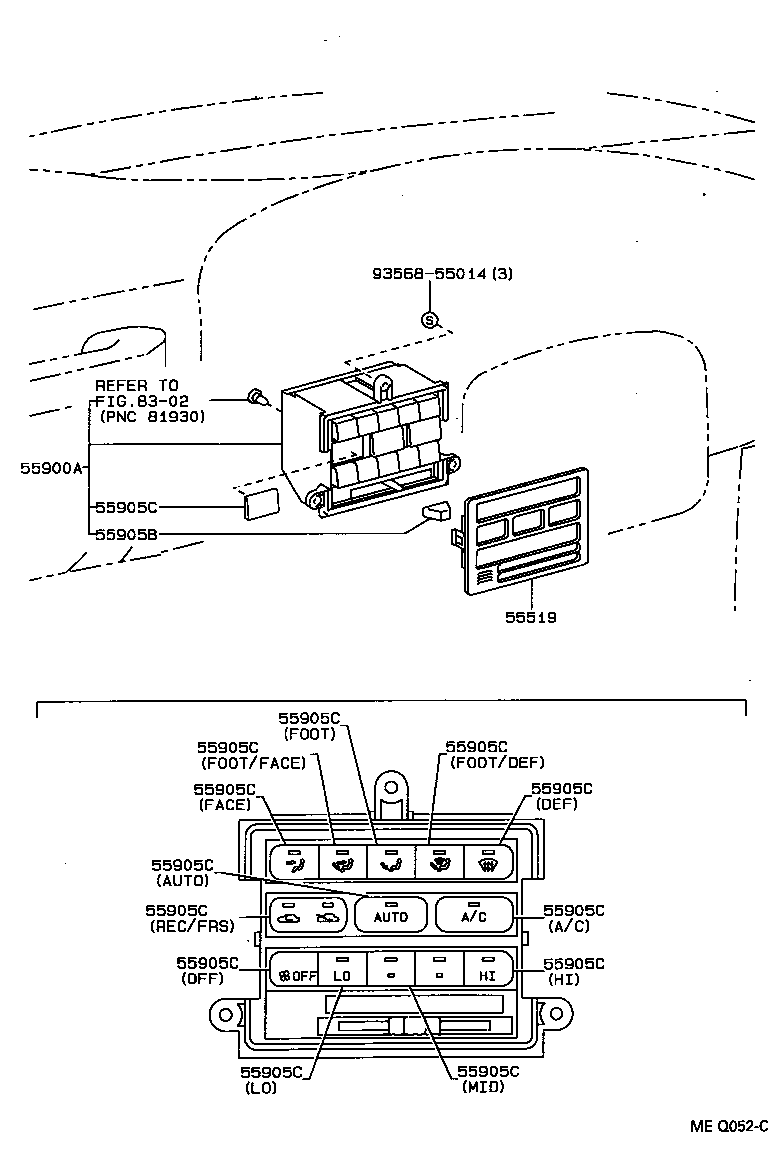

ILLUST NO. 1 OF 5(9001- )
FRONT CONTROL(PUSH TYPE)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-60010 |
HDJ81..ATM VX ﾘﾐﾃﾂﾄﾞ OR ｱﾘ(ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 55519-60020 |
FJ80,HDJ81 |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-60090 |
FJ80,HDJ81 |
1 | ||
| 55900-60010 |
HDJ81..ATM VX ﾘﾐﾃﾂﾄﾞ OR ｱﾘ(ｵ-ﾄ ｴｱｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-60140 |
FJ80,HDJ81 |
1 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| 55905C - KNOB, HEATER CONTROL, NO.3 | ||||
| 55905-60020 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),A/C |
1 | ||
| 55905-60050 |
FJ80,HDJ81 FOOT |
1 | ||
| 55905-60100 |
FJ80,HDJ81 MID |
2 | ||
| 55905-60090 |
FJ80,HDJ81 LO |
1 | ||
| 55905-60030 |
FJ80,HDJ81 FACE |
1 | ||
| 55905-60060 |
FJ80,HDJ81 FOOT/DEF |
1 | ||
| 55905-60120 |
FJ80,HDJ81 REC/FRS |
1 | ||
| 55905-60110 |
FJ80,HDJ81 HI |
1 | ||
| 55905-60040 |
FJ80,HDJ81 FOOT/FACE |
1 | ||
| 55905-60070 |
FJ80,HDJ81 DEF |
1 | ||
| 55905-60080 |
FJ80,HDJ81 OFF |
1 | ||
| 55905-60130 |
HDJ81..ATM ｱﾘ(VX ﾘﾐﾃﾂﾄﾞ ﾏ-ｸ) OR ｱﾘ(ｵ-ﾄｴｱｺﾝ),ｵｰﾄ |
1 | ||
| 55905-60150 |
FJ80,HDJ81 BLANK(HOLE PLUG) |
2 | ||
| Common parts | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||
ILLUST NO. 3 OF 5(9001- )
REAR HEATER DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-60100 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-60010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 90179-06054 | ||||
| 93540-55016 | ||||

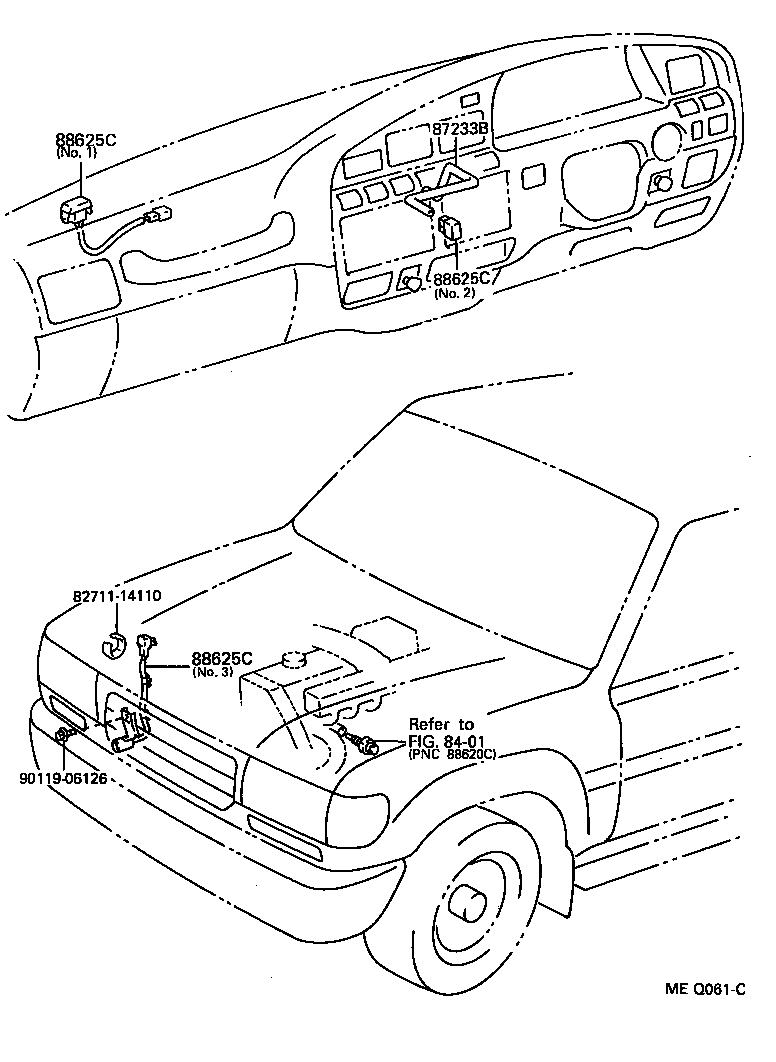

ILLUST NO. 5 OF 5(9001-9108)FJ80,HDJ81 ; (9108- )GX,VX,VXL
AUTO AIR CONDITIONER SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-60030 |
HDJ81..ATM INNER TEMP(NO.2) |
1 | ||
| 88625-20140 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
HDJ81..ATM OUTER TEMP(N0.3) |
1 | ||
| 88625-60030 |
FJ80,HDJ81,HZJ81..LUB INNER TEMP(NO.2) |
1 | ||
| 88625-60080 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
FJ80,HDJ81,HZJ81..LUB OUTER TEMP(N0.3) |
1 | ||
| 88625-60080 |
FJ80,HDJ81,HZJ81..LUB SUN LIGHT(NO.1) |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-60030 |
HDJ81..ATM INNER TEMP(NO.2) |
1 | ||
| 88625-20140 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
HDJ81..ATM OUTER TEMP(N0.3) |
1 | ||
| 88625-60030 |
FJ80,HDJ81,HZJ81..LUB INNER TEMP(NO.2) |
1 | ||
| 88625-60080 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
FJ80,HDJ81,HZJ81..LUB OUTER TEMP(N0.3) |
1 | ||
| 88625-60080 |
FJ80,HDJ81,HZJ81..LUB SUN LIGHT(NO.1) |
1 | ||
| 88625C - THERMISTOR, COOLER | ||||
| 88625-60030 |
HDJ81..ATM INNER TEMP(NO.2) |
1 | ||
| 88625-20140 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
HDJ81..ATM OUTER TEMP(N0.3) |
1 | ||
| 88625-60030 |
FJ80,HDJ81,HZJ81..LUB INNER TEMP(NO.2) |
1 | ||
| 88625-60080 |
HDJ81..ATM SUN LIGHT(NO.1) |
1 | ||
| 88790-60040 |
FJ80,HDJ81,HZJ81..LUB OUTER TEMP(N0.3) |
1 | ||
| 88625-60080 |
FJ80,HDJ81,HZJ81..LUB SUN LIGHT(NO.1) |
1 | ||
| Common parts | ||||
| 82711-14110 | ||||
| 90119-06126 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
