HDJ81V-RNPEX (1990)

Toyota Land Cruiser Van

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

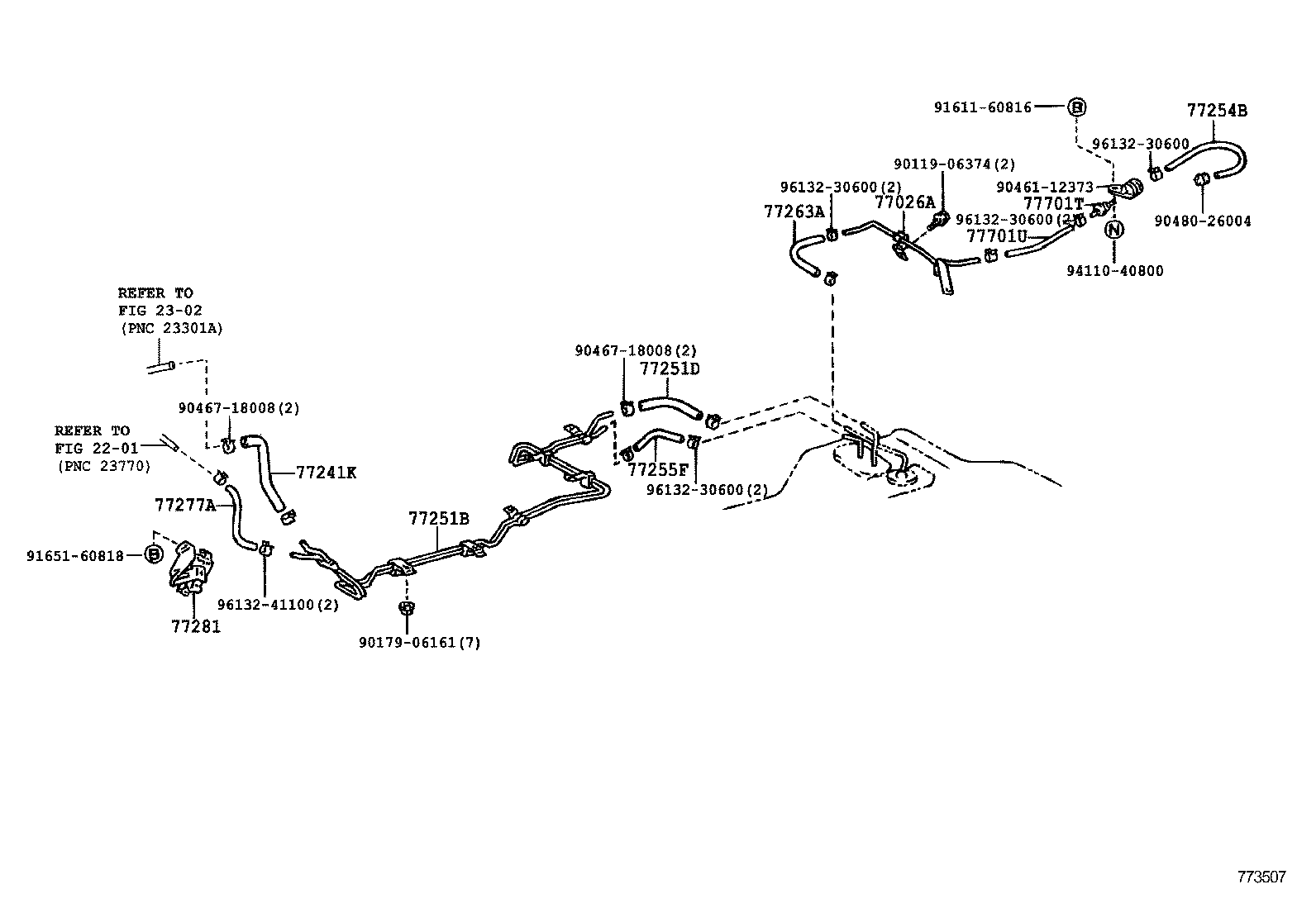

ILLUST NO. 2 OF 2(9001- )HDJ81

Click highlighted areas on diagram

diagram 2201 2302 77026A 77241K 77251B 77251D 77254B 77255F 77263A 77277A 77281 77701T 77701U 9011906374 9017906161 9046112373 9046718008 9046718008 9048026004 9161160816 9165160818 9411040800 9613230600 9613230600 9613230600 9613230600 9613241100
Part # Description Qty Price
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-60060

HDJ81,HZJ81

 1
77241K - HOSE, FUEL, NO.9
95332-12048

HDJ81

 1
77251B - TUBE, FUEL MAIN
77205-60430

HDJ81

 1
77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE)
95332-12028

HDJ81

*H,L=280,内径=12

 1
77254B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.1)
90445-12244

HDJ81,HZJ81

長さ=600

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06030

HDJ81,HZJ81

*H,L=300

 1
77263A - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER NO.3 TUBE)
95333-06020

HDJ81,HZJ81

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
95333-06060

HDJ81,HZJ81

*H,L=600

 1
23274-17020

HDJ81,HZJ81

長さ=460

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-60020

HDJ81,HZJ81

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10069

HDJ81,HZJ81

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06020

HDJ81,HZJ81

*H,L=200

 1
Common parts
90119-06374
90179-06161
90461-12373
90467-18008
90480-26004
91611-60816
91651-60818
94110-40800
96132-30600
96132-41100
Linked diagrams
2201
2302

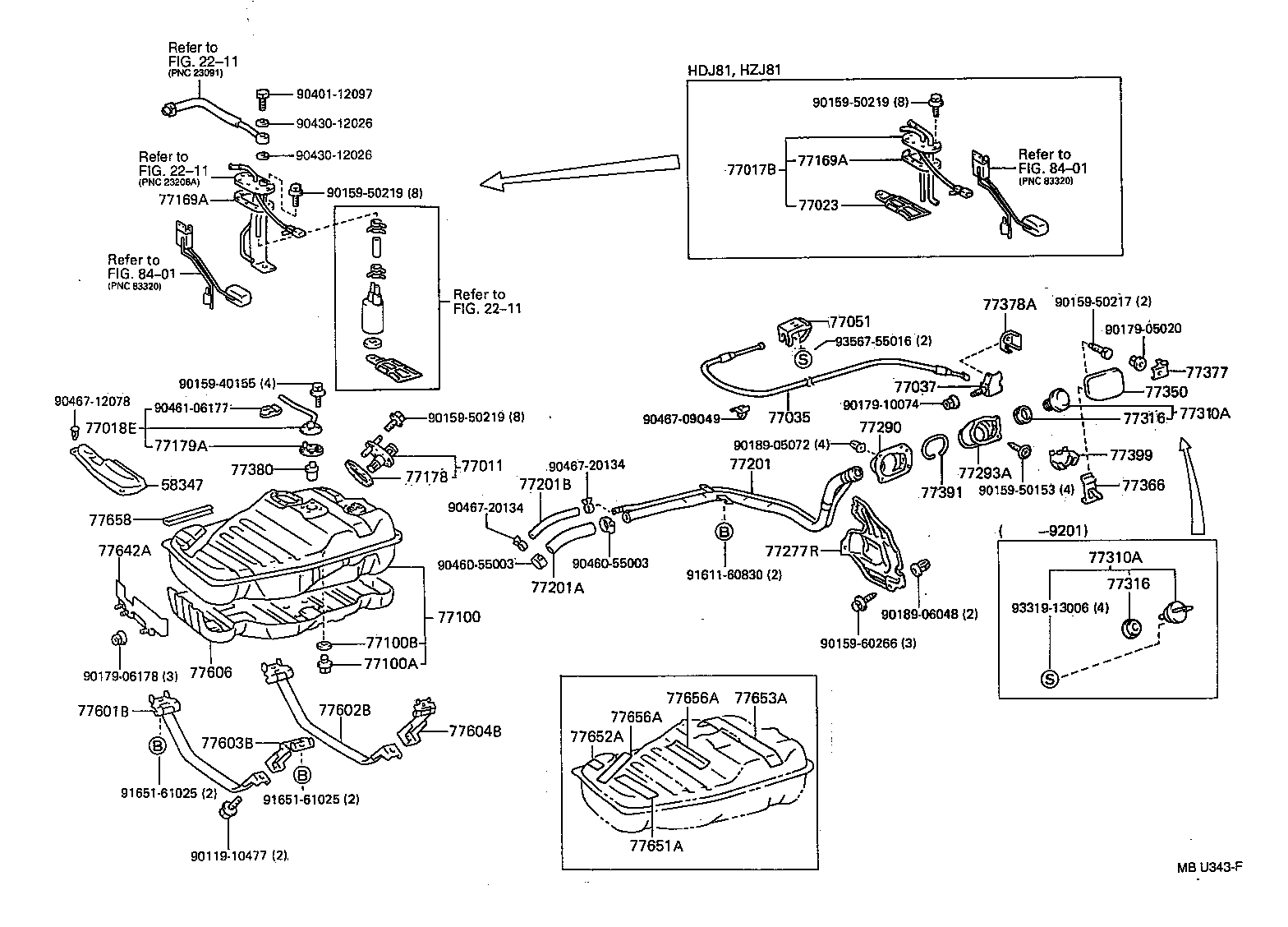

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 2211 2211 2211 58347 77011 77017B 77018E 77023 77035 77037 77051 77100 77100A 77100B 77169A 77169A 77178 77179A 77201 77201A 77201B 77277R 77290 77293A 77310A 77310A 77316 77316 77350 77366 77377 77378A 77380 77391 77399 77601B 77602B 77603B 77604B 77606 77642A 77651A 77652A 77653A 77656A 77656A 77658 8401 8401 9011910477 9015940155 9015950153 9015950217 9015950219 9015950219 9015950219 9015960266 9017905020 9017906178 9017910074 9018905072 9018906048 9040112097 9043012026 9043012026 9046055003 9046055003 9046106177 9046709049 9046712078 9046720134 9046720134 9161160830 9165161025 9165161025 9331913006 9356755016
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-60030

FJ80,FZJ80,HDJ81,HZJ81

 1
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-60150

HDJ81

 1
77018E - TUBE SUB-ASSY, FUEL TANK EVAPORATION VENT
77018-60030

FJ80,FZJ80,HDJ81,HZJ81

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-60010

HDJ81

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050

FJ80,FZJ80,HDJ81,HZJ81

 1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-3006006

FZJ80,HDJ81,HZJ81..GX,VX,VXL

SABLE,TRIM4#

 1
77051-3006006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

SABLE,TRIM4#

 1
77051-3006003

FJ80,FZJ80,HDJ81,HZJ81

BLUISH GRAY,TRIM1#

 1
77100 - TANK ASSY, FUEL
77001-69015

HDJ81,HZJ81

 1
77100A - PLUG(FOR FUEL TANK)
90105-12018

FJ80,HDJ81,HZJ81

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

FJ80,FZJ80,HDJ81,HZJ81

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010

HDJ81,HZJ81

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-60010

HDJ81,HZJ81

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-35030

FJ80,FZJ80,HDJ81,HZJ81

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-26010

FJ80,FZJ80,HDJ81,HZJ81

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60330

FJ80,HDJ81,HZJ81

 1
77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE)
77213-60090

FJ80,FZJ80,HDJ81,HZJ81

ﾏｰｸ=TANK

 1
77201B - HOSE, FUEL, NO.2(FOR FUEL TANK INLET PIPE)
95311-13022

FJ80,FZJ80,HDJ81,HZJ81

長さ=220

 1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60020

FJ80,FZJ80,HDJ81,HZJ81

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-60050

FJ80,FZJ80,HDJ81,HZJ81

 1
77310A - CAP ASSY, FUEL TANK
77310-35061

HDJ81,HZJ81

 1
77310A - CAP ASSY, FUEL TANK
77310-35061

HDJ81,HZJ81

 1
77316 - GASKET, FUEL TANK CAP
77316-12050

FJ80,HDJ81,HZJ81

 1
77316 - GASKET, FUEL TANK CAP
77316-12050

FJ80,HDJ81,HZJ81

 1
77350 - LID ASSY, FUEL FILLER OPENING
77350-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-22020

FJ80,FZJ80,HDJ81,HZJ81

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-20030

FJ80,FZJ80,HDJ81,HZJ81

 1
77378A - COVER, FUEL FILLER OPENING LID LOCK
77378-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

FJ80,FZJ80,HDJ81,HZJ81

 1
77391 - RING, FUEL INLET BOX
77391-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77399 - HANGER, FUEL TANK CAP
77399-22010

FJ80,HDJ81,HZJ81

 1
77399-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH
77601-60150

FJ80,FZJ80,HDJ81,HZJ81

 1
77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH
77602-60060

FJ80,FZJ80,HDJ81,HZJ81

 1
77603B - BAND SUB-ASSY, FUEL TANK, NO.2 RH
77603-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77604B - BAND SUB-ASSY, FUEL TANK, NO.2 LH
77604-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60050

FJ80,HDJ81,HZJ81

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-60090

FJ80,FZJ80,HDJ81,HZJ81

 1
77652A - CUSHION, FUEL TANK, NO.2
77652-60050

FJ80,FZJ80,HDJ81,HZJ81

 1
77653A - CUSHION, FUEL TANK, NO.3
77653-60040

FJ80,FZJ80,HDJ81,HZJ81

 1
77656A - CUSHION, FUEL TANK, NO.4
77654-60030

FJ80,FZJ80,HDJ81,HZJ81

80X262

 1
77655-60010

FJ80,FZJ80,HDJ81,HZJ81

80X330

 1
77656A - CUSHION, FUEL TANK, NO.4
77654-60030

FJ80,FZJ80,HDJ81,HZJ81

80X262

 1
77655-60010

FJ80,FZJ80,HDJ81,HZJ81

80X330

 1
77658 - MOULDING, FUEL TANK EDGE
77658-60040

FJ80,FZJ80,HDJ81,HZJ81

 1
Common parts
90119-10477
90159-40155
90159-50153
90159-50217
90159-50219
90159-60266
90179-05020
90179-06178
90179-10074
90189-05072
90189-06048
90401-12097
90430-12026
90460-55003
90461-06177
90467-09049
90467-12078
90467-20134
91611-60830
91651-61025
93319-13006
93567-55016
Linked diagrams
2211
8401
