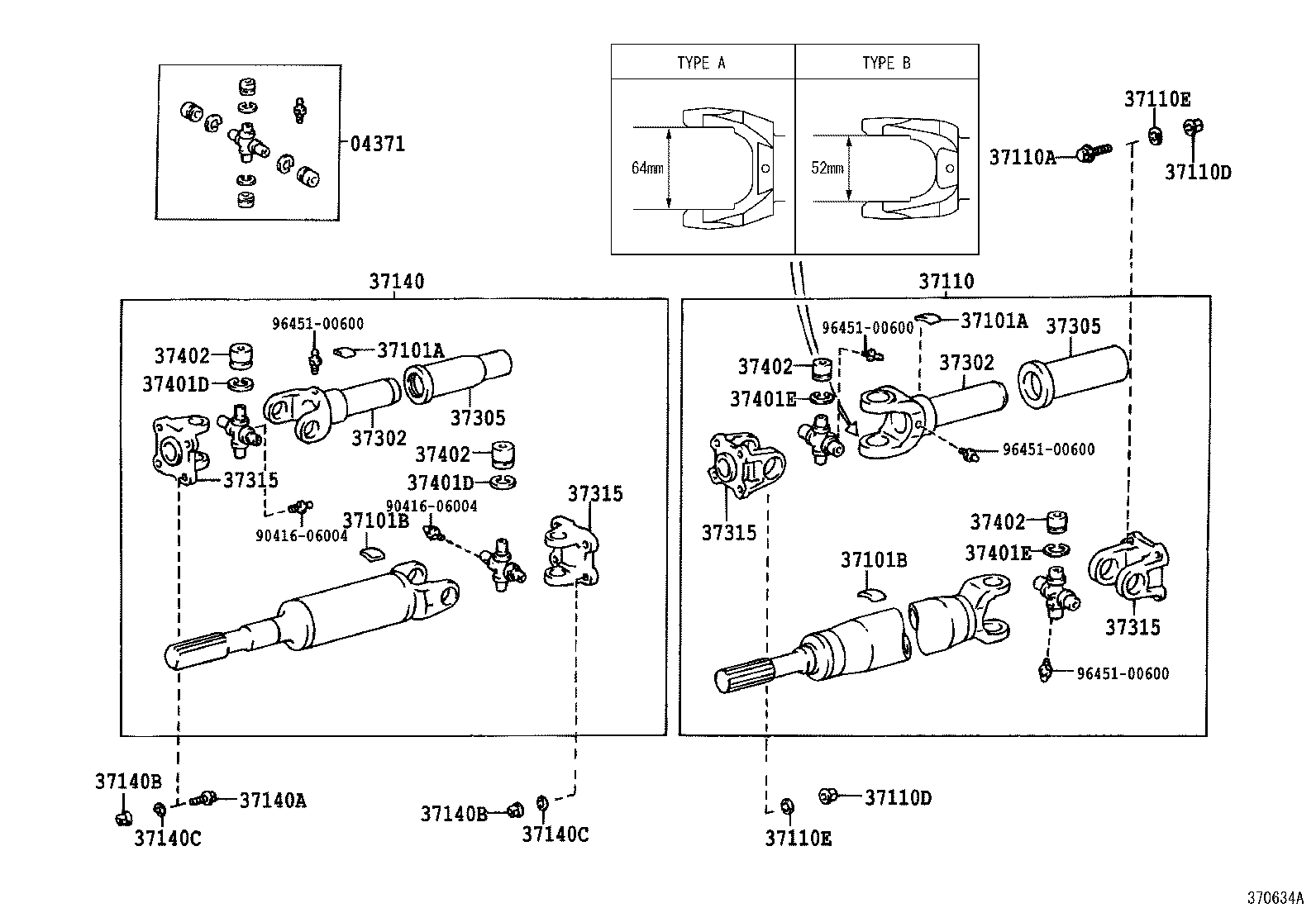

HDJ81V-RNPEX (1990)
Toyota Land Cruiser Van
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-35031 |
FJ80,FZJ80,HDJ81,HZJ81 FOR FRONT PROPELLER SHAFT |
2 | ||
| 04371-36030 |
FJ80,FZJ80,HDJ81,HZJ81 FOR REAR PROPELLER SHAFT |
2 | ||
| 04371-36030 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66),FOR REAR PROPELLER SHAFT |
2 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01199 |
FJ80,FZJ80,HDJ81,HZJ81 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01198 |
FJ80,FZJ80,HDJ81,HZJ81 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01200 |
FJ80,FZJ80,HDJ81,HZJ81 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01184 |
FJ80,FZJ80,HDJ81,HZJ81 4G,厚さ=1.6 |
1 | ||
| 90937-01271 |
FJ80,FZJ80,HDJ81,HZJ81 48G,長さ=24.6 |
1 | ||
| 90937-01191 |
FJ80,FZJ80,HDJ81,HZJ81 8G,厚さ=1.6 |
1 | ||
| 90937-01268 |
FJ80,FZJ80,HDJ81,HZJ81 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01269 |
FJ80,FZJ80,HDJ81,HZJ81 40G,長さ=25.6 |
1 | ||
| 90937-01192 |
FJ80,FZJ80,HDJ81,HZJ81 12G,厚さ=4.5 |
1 | ||
| 90937-01272 |
FJ80,FZJ80,HDJ81,HZJ81 52G,長さ=26.7 |
1 | ||
| 90937-01194 |
FJ80,FZJ80,HDJ81,HZJ81 20G,厚さ=4.5 |
1 | ||
| 90937-01193 |
FJ80,FZJ80,HDJ81,HZJ81 16G,厚さ=4.5 |
1 | ||
| 90937-01273 |
FJ80,FZJ80,HDJ81,HZJ81 56G,長さ=28.7 |
1 | ||
| 90937-01270 |
FJ80,FZJ80,HDJ81,HZJ81 44G,長さ=22.6 |
1 | ||
| 90937-01274 |
FJ80,FZJ80,HDJ81,HZJ81 60G,長さ=28.7 |
1 | ||
| 37101A - PIECE, BALANCE, NO.1 (FOR PROPELLER SHAFT) | ||||
| 90937-01199 |
FJ80,FZJ80,HDJ81,HZJ81 28G,厚さ=6,長さ=22.7 |
1 | ||
| 90937-01198 |
FJ80,FZJ80,HDJ81,HZJ81 24G,厚さ=4.5,長さ=25.1 |
1 | ||
| 90937-01200 |
FJ80,FZJ80,HDJ81,HZJ81 32G,厚さ=6,長さ=24.3 |
1 | ||
| 90937-01184 |
FJ80,FZJ80,HDJ81,HZJ81 4G,厚さ=1.6 |
1 | ||
| 90937-01271 |
FJ80,FZJ80,HDJ81,HZJ81 48G,長さ=24.6 |
1 | ||
| 90937-01191 |
FJ80,FZJ80,HDJ81,HZJ81 8G,厚さ=1.6 |
1 | ||
| 90937-01268 |
FJ80,FZJ80,HDJ81,HZJ81 36G,長さ=23.1,厚さ=8.0 |
1 | ||
| 90937-01269 |
FJ80,FZJ80,HDJ81,HZJ81 40G,長さ=25.6 |
1 | ||
| 90937-01192 |
FJ80,FZJ80,HDJ81,HZJ81 12G,厚さ=4.5 |
1 | ||
| 90937-01272 |
FJ80,FZJ80,HDJ81,HZJ81 52G,長さ=26.7 |
1 | ||
| 90937-01194 |
FJ80,FZJ80,HDJ81,HZJ81 20G,厚さ=4.5 |
1 | ||
| 90937-01193 |
FJ80,FZJ80,HDJ81,HZJ81 16G,厚さ=4.5 |
1 | ||
| 90937-01273 |
FJ80,FZJ80,HDJ81,HZJ81 56G,長さ=28.7 |
1 | ||
| 90937-01270 |
FJ80,FZJ80,HDJ81,HZJ81 44G,長さ=22.6 |
1 | ||
| 90937-01274 |
FJ80,FZJ80,HDJ81,HZJ81 60G,長さ=28.7 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
FJ80,FZJ80,HDJ81,HZJ81 20G,長さ=41.4 |
1 | ||
| 90937-01151 |
FJ80,FZJ80,HDJ81,HZJ81 12G,長さ=24.9 |
1 | ||
| 90937-01140 |
FJ80,FZJ80,HDJ81,HZJ81 30G,長さ=62.2 |
1 | ||
| 90937-01132 |
FJ80,FZJ80,HDJ81,HZJ81 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
FJ80,FZJ80,HDJ81,HZJ81 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
FJ80,FZJ80,HDJ81,HZJ81 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
FJ80,FZJ80,HDJ81,HZJ81 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
FJ80,FZJ80,HDJ81,HZJ81 16G,長さ=33.2 |
1 | ||
| 90937-01147 |
FJ80,FZJ80,HDJ81,HZJ81 2G,厚さ=2.0 |
1 | ||
| 90937-01157 |
FJ80,FZJ80,HDJ81,HZJ81 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
FJ80,FZJ80,HDJ81,HZJ81 14G,長さ=29.0 |
1 | ||
| 90937-01149 |
FJ80,FZJ80,HDJ81,HZJ81 6G,長さ=12.4 |
1 | ||
| 90937-01155 |
FJ80,FZJ80,HDJ81,HZJ81 22G,長さ=45.6 |
1 | ||
| 90937-01158 |
FJ80,FZJ80,HDJ81,HZJ81 28G,長さ=58.1 |
1 | ||
| 90937-01156 |
FJ80,FZJ80,HDJ81,HZJ81 24G,長さ=49.7 |
1 | ||
| 37101B - PIECE, BALANCE, NO.2 (FOR PROPELLER SHAFT) | ||||
| 90937-01136 |
FJ80,FZJ80,HDJ81,HZJ81 20G,長さ=41.4 |
1 | ||
| 90937-01151 |
FJ80,FZJ80,HDJ81,HZJ81 12G,長さ=24.9 |
1 | ||
| 90937-01140 |
FJ80,FZJ80,HDJ81,HZJ81 30G,長さ=62.2 |
1 | ||
| 90937-01132 |
FJ80,FZJ80,HDJ81,HZJ81 10G,長さ=20.7 |
1 | ||
| 90937-01150 |
FJ80,FZJ80,HDJ81,HZJ81 8G,長さ=16.6 |
1 | ||
| 90937-01148 |
FJ80,FZJ80,HDJ81,HZJ81 4G,厚さ=2.0 |
1 | ||
| 90937-01154 |
FJ80,FZJ80,HDJ81,HZJ81 18G,長さ=37.3 |
1 | ||
| 90937-01153 |
FJ80,FZJ80,HDJ81,HZJ81 16G,長さ=33.2 |
1 | ||
| 90937-01147 |
FJ80,FZJ80,HDJ81,HZJ81 2G,厚さ=2.0 |
1 | ||
| 90937-01157 |
FJ80,FZJ80,HDJ81,HZJ81 26G,長さ=53.9 |
1 | ||
| 90937-01152 |
FJ80,FZJ80,HDJ81,HZJ81 14G,長さ=29.0 |
1 | ||
| 90937-01149 |
FJ80,FZJ80,HDJ81,HZJ81 6G,長さ=12.4 |
1 | ||
| 90937-01155 |
FJ80,FZJ80,HDJ81,HZJ81 22G,長さ=45.6 |
1 | ||
| 90937-01158 |
FJ80,FZJ80,HDJ81,HZJ81 28G,長さ=58.1 |
1 | ||
| 90937-01156 |
FJ80,FZJ80,HDJ81,HZJ81 24G,長さ=49.7 |
1 | ||
| 37110 - SHAFT ASSY, PROPELLER | ||||
| 37110-60460 |
FJ80,FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 37110-60520 |
FZJ80,HDJ81,HZJ81..ATM ｱﾘ(*66) |
1 | ||
| 37110A - BOLT (FOR PROPELLER SHAFT) | ||||
| 90105-11013 |
FJ80,FZJ80,HDJ81,HZJ81 *11−1.00PX28−16 |
4 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37110D - NUT (FOR PROPELLER SHAFT) | ||||
| 90179-11005 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37110E - WASHER (FOR PROPELLER SHAFT) | ||||
| 90201-11013 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37140 - SHAFT ASSY, PROPELLER, FRONT | ||||
| 37140-60260 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 37140A - BOLT (F0R FRONT PROPELLER SHAFT) | ||||
| 90105-10085 |
FJ80,FZJ80,HDJ81,HZJ81 |
4 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37140B - NUT (F0R FRONT PROPELLER SHAFT) | ||||
| 90179-10059 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37140C - WASHER (F0R FRONT PROPELLER SHAFT) | ||||
| 90204-10002 |
FJ80,FZJ80,HDJ81,HZJ81 |
8 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37302-35050 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37302-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
1 | ||
| 37302 - YOKE SUB-ASSY, UNIVERSAL JOINT SLEEVE | ||||
| 37302-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37302-35050 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37302-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
1 | ||
| 37305-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37305-60020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37305 - COVER SUB-ASSY, SLIDING SHAFT DUST | ||||
| 37305-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
1 | ||
| 37305-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37305-60020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
1 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
2 | ||
| 37315 - YOKE, UNIVERSAL JOINT FLANGE | ||||
| 37315-35040 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ ﾌﾟﾛﾍﾟﾗｼｬﾌﾄ ﾖｳ |
2 | ||
| 37315-36020 |
FZJ80,HDJ81,HZJ81..LUB ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & *66) |
2 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26041 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26040 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26042 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26046 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26043 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26038 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26044 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 37401D - RING, SNAP (FOR FRONT PROPELLER SHAFT JOINT SPIDER BEAR | ||||
| 90520-26041 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.225,ﾏｰｸ 3 |
8 | ||
| 90520-26040 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.175,ﾏｰｸ 2 |
8 | ||
| 90520-26042 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.275,ﾏｰｸ 4 |
8 | ||
| 90520-26046 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.475,ﾏｰｸ 8 |
8 | ||
| 90520-26045 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.425,ﾏｰｸ 7 |
8 | ||
| 90520-26043 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.325,ﾏｰｸ 5 |
8 | ||
| 90520-26038 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.125,ﾏｰｸ 1 |
8 | ||
| 90520-26044 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.375,ﾏｰｸ 6 |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29024 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29027 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29026 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90520-29024 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.00,ﾉｰﾏｰｸ |
8 | ||
| 90520-29025 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.03,ﾌﾞﾗｳﾝ |
8 | ||
| 90520-29027 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.09,ﾉｰﾏｰｸ |
8 | ||
| 90520-29026 |
FJ80,FZJ80,HDJ81,HZJ81 厚さ=2.06,ﾌﾞﾙｰ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ |
8 | ||
| 37402-36080 |
FJ80,FZJ80,HDJ81,HZJ81 RR,WHITE PAINTED |
8 | ||
| 37402-30021 |
FJ80,FZJ80,HDJ81,HZJ81 FR,RED PAINTED |
8 | ||
| 37402-36070 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ |
8 | ||
| 37402-36080 |
FJ80,FZJ80,HDJ81,HZJ81 RR,WHITE PAINTED |
8 | ||
| 37402-30021 |
FJ80,FZJ80,HDJ81,HZJ81 FR,RED PAINTED |
8 | ||
| 37402-36070 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ |
8 | ||
| 37402-36080 |
FJ80,FZJ80,HDJ81,HZJ81 RR,WHITE PAINTED |
8 | ||
| 37402-30021 |
FJ80,FZJ80,HDJ81,HZJ81 FR,RED PAINTED |
8 | ||
| 37402-36070 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ |
8 | ||
| 37402 - BEARING SUB-ASSY, UNIVERSAL JOINT SPIDER | ||||
| 37402-30011 |
FJ80,FZJ80,HDJ81,HZJ81 ﾌﾛﾝﾄ |
8 | ||
| 37402-36080 |
FJ80,FZJ80,HDJ81,HZJ81 RR,WHITE PAINTED |
8 | ||
| 37402-30021 |
FJ80,FZJ80,HDJ81,HZJ81 FR,RED PAINTED |
8 | ||
| 37402-36070 |
FJ80,FZJ80,HDJ81,HZJ81 ﾘﾔ |
8 | ||
| Common parts | ||||
| 90416-06004 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
