HDJ81V-RNPEX (1990)

Toyota Land Cruiser Van

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )ATM

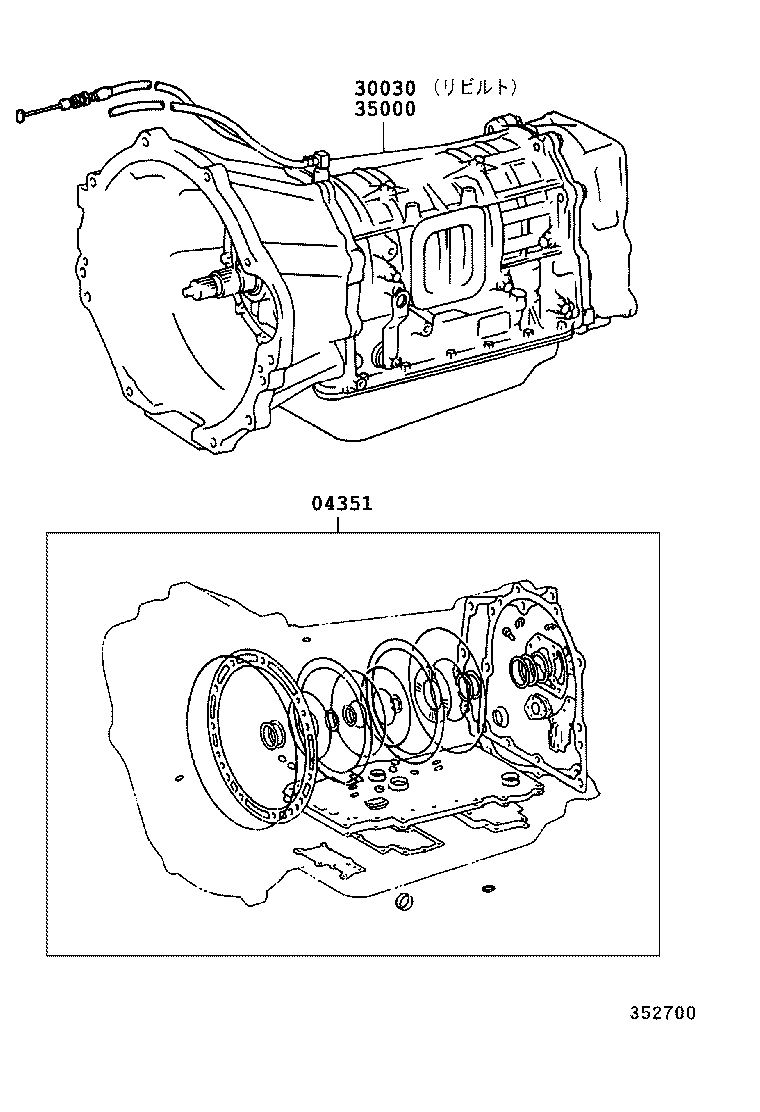

Click highlighted areas on diagram

diagram 04351 30030 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-60020

HDJ81,HZJ81..ATM

 1
04351-60060

FZJ80,HDJ81,HZJ81..ATM

 1
30030 - TRANSMISSION ASSY, REBUILT
30030-60301

HDJ81..ATM

 1
30030-60450

HDJ81..ATM

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-60300

HDJ81..ATM

ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ)

 1
35000-60310

HDJ81..ATM

ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ & ｵｰﾄ ﾄﾞﾗｲﾌﾞ)

 1
35000-60301

HDJ81..ATM

 1
35000-60450

HDJ81..ATM

 1
35000-60300

HDJ81..ATM

 1
