HDJ81V-RNPEW (1995)

Toyota Land Cruiser Van

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )LUB

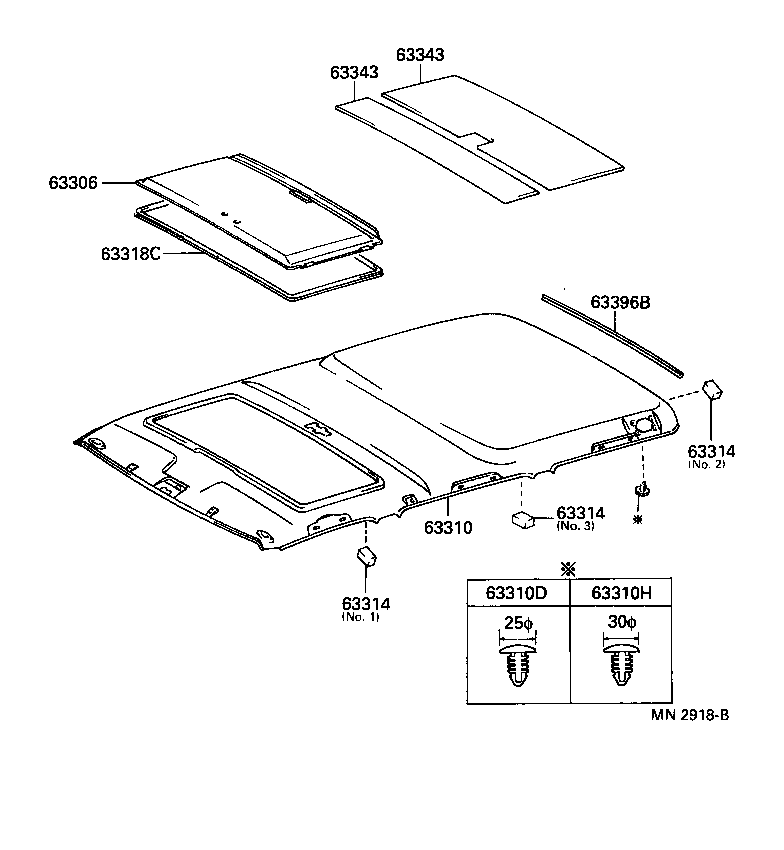

Click highlighted areas on diagram

diagram 63306 63310 63310D 63310H 63314 63314 63314 63318C 63343 63343 63396B
Part # Description Qty Price
63306 - TRIM SUB-ASSY, SUNSHADE
63306-6001006

FJ80,FZJ80,HDJ81,HZJ81..VX,VXL

SABLE,TRIM4#

 1
63306-60090B0

FZJ80,HDJ81,HZJ81..LUB

LIGHT GRAY,TRIM1#,4#

 1
63306-6001003

FJ80,FZJ80,HDJ81,HZJ81..VX,VXL

BLUISH GRAY,TRIM1#

 1
63310 - HEADLINING ASSY, ROOF
63310-6003006

FJ80,FZJ80,HDJ81,HZJ81..VX,VXL

SABLE,TRIM4#

 1
63310-6003003

FJ80,FZJ80,HDJ81,HZJ81..VX,VXL

BLUISH GRAY,TRIM1#

 1
63311-60390B0

HDJ81,HZJ81..VX

LIGHT GRAY,TRIM1#,4#

 1
63310D - CLIP, ROOF HEADLINING
90467-06070B2

HDJ81,HZJ81

LIGHT GRAY,TRIM1#,4#

 8
90467-0616101

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

BLACK,TRIM1#,4#

 2
63310H - CLIP(FOR ROOF HEADLINING)
90467-07104B0

FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#,4#

 3
63314 - WELT, ROOF HEADLINING
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 4
63314-60080

FZJ80,HDJ81,HZJ81

NO.3

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 8
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 4
63314 - WELT, ROOF HEADLINING
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 4
63314-60080

FZJ80,HDJ81,HZJ81

NO.3

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 8
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 4
63314 - WELT, ROOF HEADLINING
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 4
63314-60080

FZJ80,HDJ81,HZJ81

NO.3

 2
63314-60060

FZJ80,HDJ81,HZJ81

NO.1

 8
63314-60070

FZJ80,HDJ81,HZJ81

NO.2

 4
63318C - MOULDING, SUN ROOF OPENING TRIM
63318-6001003

FJ80,FZJ80,HDJ81,HZJ81..LUB

BLUISH GRAY,TRIM1#

 1
63318-60040B0

FZJ80,HDJ81,HZJ81..LUB

LIGHT GRAY,TRIM1#,4#

 1
63318-6001006

FJ80,FZJ80,HDJ81,HZJ81..LUB

SABLE,TRIM4#

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
63343-60032

FZJ80,HDJ81,HZJ81

410X1100

 1
63341-60051

FZJ80,HDJ81,HZJ81

200X1100

 1
63343 - PAD, ROOF SILENCER, NO.3
63343-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
63343-60032

FZJ80,HDJ81,HZJ81

410X1100

 1
63341-60051

FZJ80,HDJ81,HZJ81

200X1100

 1
63396B - TRIM, ROOF HEADLINING, REAR CENTER
63396-6001003

FJ80,FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#

 1
63396-60020B0

FZJ80,HDJ81,HZJ81

LIGHT GRAY,TRIM1#,4#

 1
63396-6001006

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

LIGHT SABLE,TRIM4#

 1
