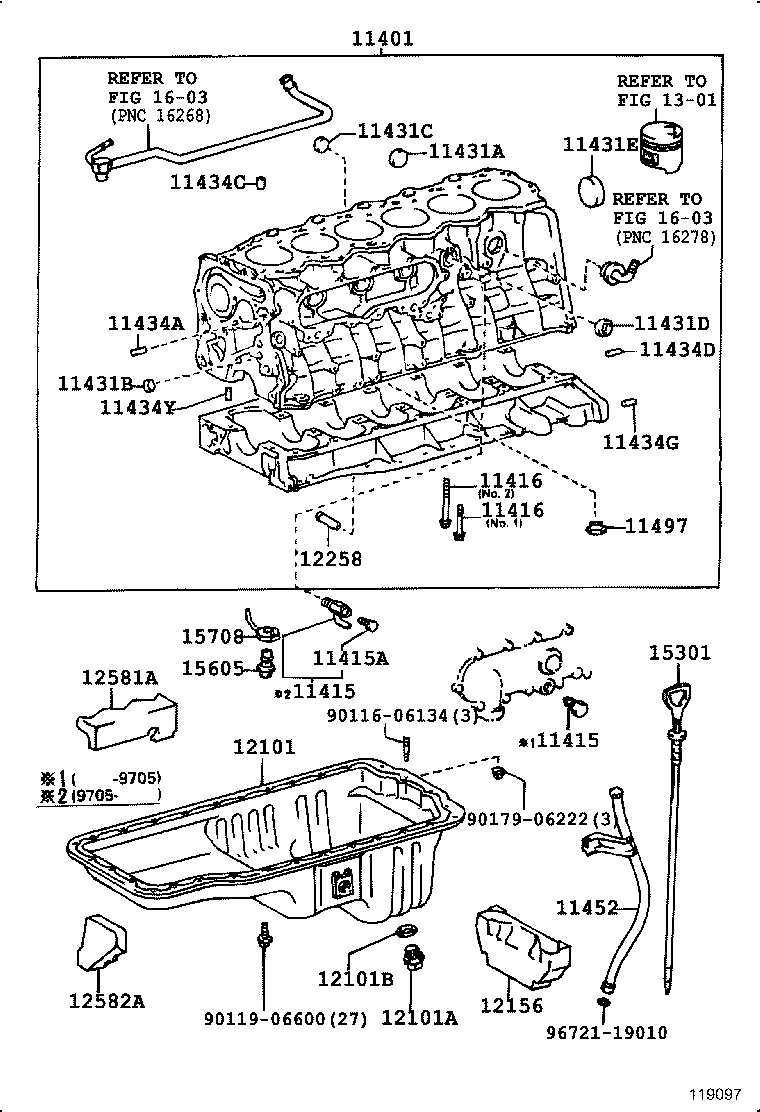

Toyota Land cruiser van HDJ81 CYLINDER BLOCK

Part #	Description	Period	Qty
11401 - BLOCK SUB-ASSY, CYLINDER
11401-19896	1HDFT..HDJ81	05/1997 - 01/1998	1
11401-19895	1HDFT..HDJ81	01/1995 - 05/1997	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09088	1H#..HDJ81,HZJ81	01/1990 - 12/1992	1
90910-09075	1H#..HDJ81,HZJ81	05/1997 - 01/1998	1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09088	1H#..HDJ81,HZJ81	01/1990 - 12/1992	1
90910-09075	1H#..HDJ81,HZJ81	05/1997 - 01/1998	1
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087	1H#..HDJ81,HZJ81	05/1997 - 01/1998	1
90910-09087	1H#..HDJ81,HZJ81	01/1990 - 12/1992	1
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182	1HD#,1HZ..HDJ81,HZJ81 NO.1	01/1990 - 01/1998	15
90910-02098	1HD#,1HZ..HDJ81,HZJ81 NO.2	01/1990 - 01/1998	14
11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET)
90119-08182	1HD#,1HZ..HDJ81,HZJ81 NO.1	01/1990 - 01/1998	15
90910-02098	1HD#,1HZ..HDJ81,HZJ81 NO.2	01/1990 - 01/1998	14
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
90331-35002	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	3
11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)
96411-41800	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	4
11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)
96411-42500	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)
96411-43500	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	6
11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)
96411-45000	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	2
11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET)
90250-08120	1HD#,1HZ..HDJ81,HZJ81 長さ=18,外径=8	01/1990 - 01/1998	2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90250-08074	1HD#,1HZ..HDJ81,HZJ81 長さ=15,外径=8	01/1990 - 01/1998	2
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06068	1HD#,1HZ..HDJ81,HZJ81 長さ=11,外径=6	01/1990 - 01/1998	2
11434G - PIN, STRAIGHT(FOR END PLATE)
90250-08054	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	2
11434Y - PIN, STRAIGHT(FOR OIL PAN)
90250-12006	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	2
11452 - GUIDE, OIL LEVEL GAGE
11452-17010	1H#..HDJ81,HZJ81	01/1990 - 01/1995	1
11452-17011	1H#..HDJ81,HZJ81	01/1995 - 01/1998	1
11497 - GASKET, CYLINDER BLOCK OIL HOLE
11497-17010	1HD#,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
12101 - PAN SUB-ASSY, OIL
12101-17010	1H#..HDJ81,HZJ81	01/1990 - 08/1992	1
12101-17071	1H#..HDJ81,HZJ81	01/1995 - 01/1998	1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12012	1H#..HDJ81,HZJ81	01/1990 - 04/1992	1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12027	1H#..HDJ81,HZJ81	01/1990 - 09/1993	1
12156 - INSULATOR, OIL PAN
12156-17010	1HDFT,1HZ..HDJ81,HZJ81	01/1990 - 01/1998	1
12258 - PIPE, OIL RETURN
12258-17010	1HD#..HDJ81	01/1990 - 01/1998	1
12581A - INSULATOR, CYLINDER BLOCK, NO.1
12581-17010	1HDFT..HDJ81;1HZ..HZJ81..MTM	01/1990 - 01/1998	1
12582A - INSULATOR, CYLINDER BLOCK, NO.2
12582-17010	1HDFT..HDJ81	01/1995 - 01/1998	1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-17030	1H#..HDJ81,HZJ81	01/1995 - 01/1998	1
15301-17010	1H#..HDJ81,HZJ81	01/1990 - 01/1995	1
15605 - VALVE SUB-ASSY, OIL CHECK
15605-54010	1H#..HDJ81,HZJ81	01/1990 - 01/1995	6
15605-17030	1H#..HDJ81,HZJ81	01/1995 - 01/1998	6
15708 - NOZZLE SUB-ASSY, OIL, NO.1
15708-17020	1HDFT..HDJ81	01/1995 - 01/1998	6
Common parts
90116-06134
90119-06600
90179-06222
96721-19010
Linked diagrams
1301
1603

HDJ81V-RNPEW (1995)

(9501- )1HDFT
