HDJ81V-RNMEX (1990)
Toyota Land Cruiser Van

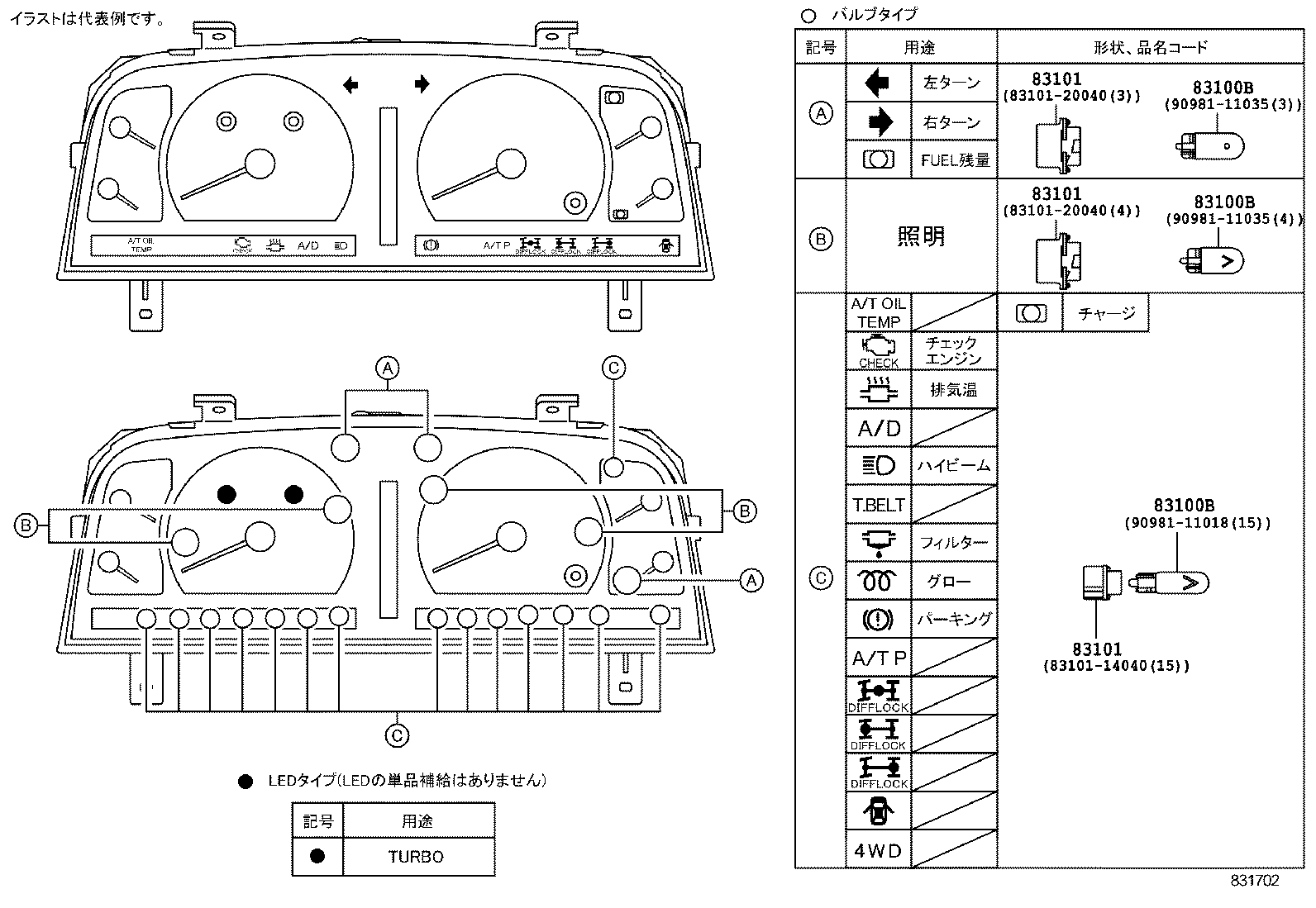

ILLUST NO. 2 OF 5(9001-9208)LUB
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||

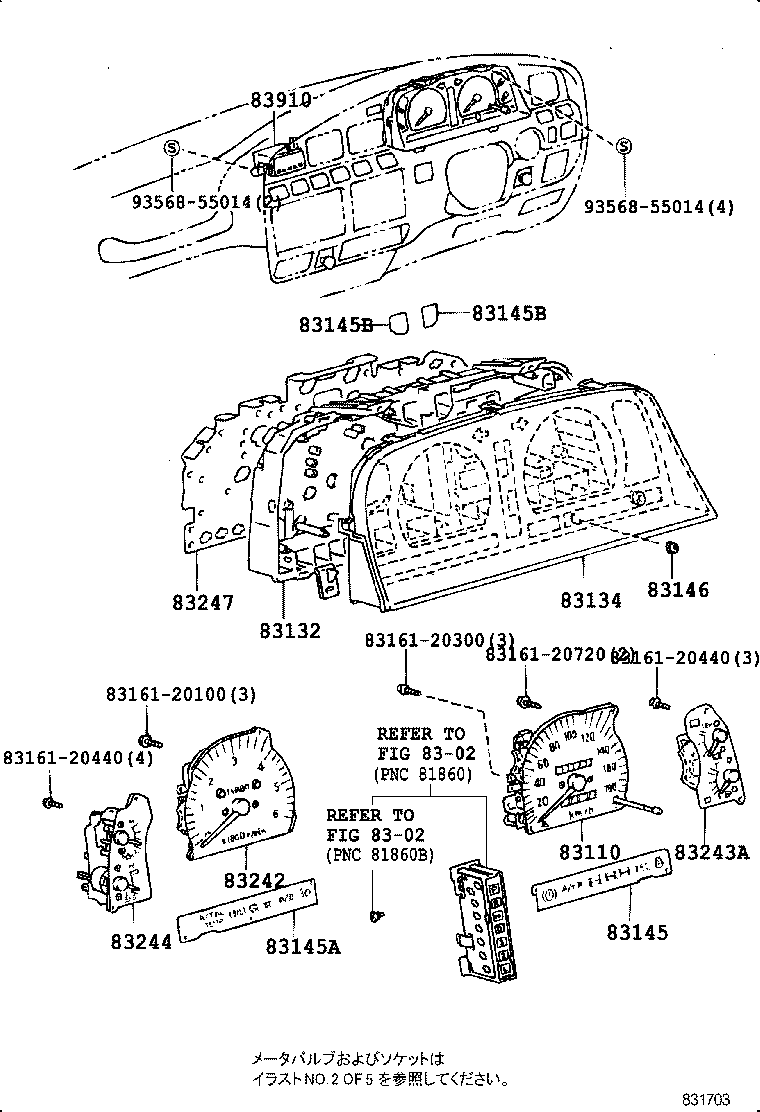

ILLUST NO. 1 OF 5(9001-9208)LUB
ｽﾋﾟｰﾄﾞﾒｰﾀ & ｸﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60320 |
HDJ81,HZJ81 |
1 | ||
| 83110-60320 |
HDJ81 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60720 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83132-60100 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60020 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83146-60140 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60100 |
HDJ81,HZJ81..LUB..MTM |
1 | ||
| 83145-60040 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60240 |
HDJ81 |
1 | ||
| 83145-60260 |
HDJ81..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60120 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60080 |
HDJ81,HZJ81..LUB..MTM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FZJ80,HDJ81;HZJ81..MTM..GX |
2 | ||
| 83145-2B460 |
FJ80,HDJ81,HZJ81..LUB |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FZJ80,HDJ81;HZJ81..MTM..GX |
2 | ||
| 83145-2B460 |
FJ80,HDJ81,HZJ81..LUB |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ81,HZJ81 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60300 |
HDJ81 |
1 | ||
| 83242-60840 |
HDJ81..MTM |
1 | ||
| 83242-6A160 |
HDJ81..MTM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60020 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83244-60240 |
HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60060 |
HDJ81,HZJ81..LUB |
1 | ||
| 83247-60080 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83149-60560 |
HDJ81,HZJ81..MTM..(GX,VX) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60060 |
FJ80,FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83910-60040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 83161-20100 | ||||
| 83161-20300 | ||||
| 83161-20440 | ||||
| 83161-20720 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

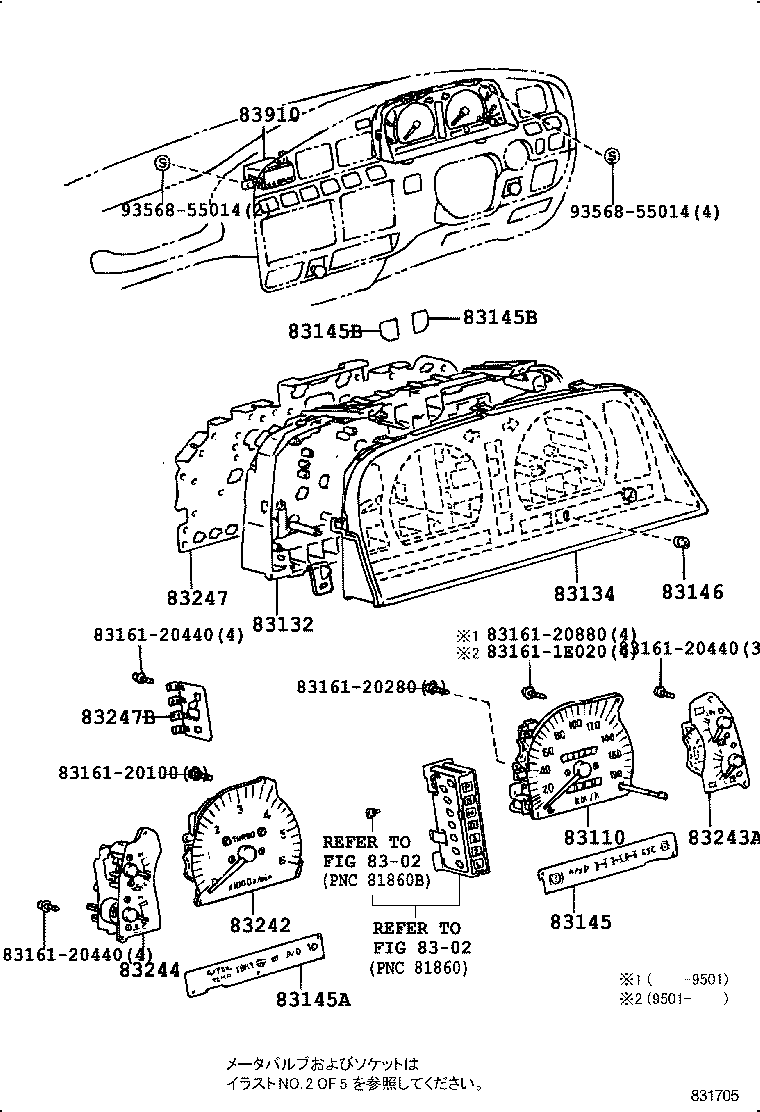

ILLUST NO. 1 OF 5(9208- )GX,VX,VXL
ｽﾋﾟｰﾄﾞﾒｰﾀ & ｸﾛｯｸ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-60320 |
HDJ81,HZJ81 |
1 | ||
| 83110-60320 |
HDJ81 |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-60720 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83132-60100 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83134-60120 |
HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83145-60020 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83146-60140 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60100 |
HDJ81,HZJ81..LUB..MTM |
1 | ||
| 83145-60040 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83145-60240 |
HDJ81 |
1 | ||
| 83145-60260 |
HDJ81..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60120 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83146-60080 |
HDJ81,HZJ81..LUB..MTM |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FZJ80,HDJ81;HZJ81..MTM..GX |
2 | ||
| 83145-2B460 |
FJ80,HDJ81,HZJ81..LUB |
2 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83145-2B460 |
FZJ80,HDJ81;HZJ81..MTM..GX |
2 | ||
| 83145-2B460 |
FJ80,HDJ81,HZJ81..LUB |
2 | ||
| 83146 - GROMMET, METER GLASS | ||||
| 83145-89318 |
HDJ81,HZJ81 |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-60300 |
HDJ81 |
1 | ||
| 83242-60840 |
HDJ81..MTM |
1 | ||
| 83242-6A160 |
HDJ81..MTM |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-60040 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-60020 |
FJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83244-60240 |
HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-60060 |
HDJ81,HZJ81..LUB |
1 | ||
| 83247-60080 |
HDJ81,HZJ81..LUB..MTM ｱﾘ(ﾜﾝﾀﾂﾁ 2-4 ｾﾚｸﾀ-) |
1 | ||
| 83149-60560 |
HDJ81,HZJ81..MTM..(GX,VX) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60060 |
FJ80,FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 83910-60040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| Common parts | ||||
| 83161-1E020 | ||||
| 83161-20100 | ||||
| 83161-20280 | ||||
| 83161-20440 | ||||
| 83161-20880 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8302 | ||||

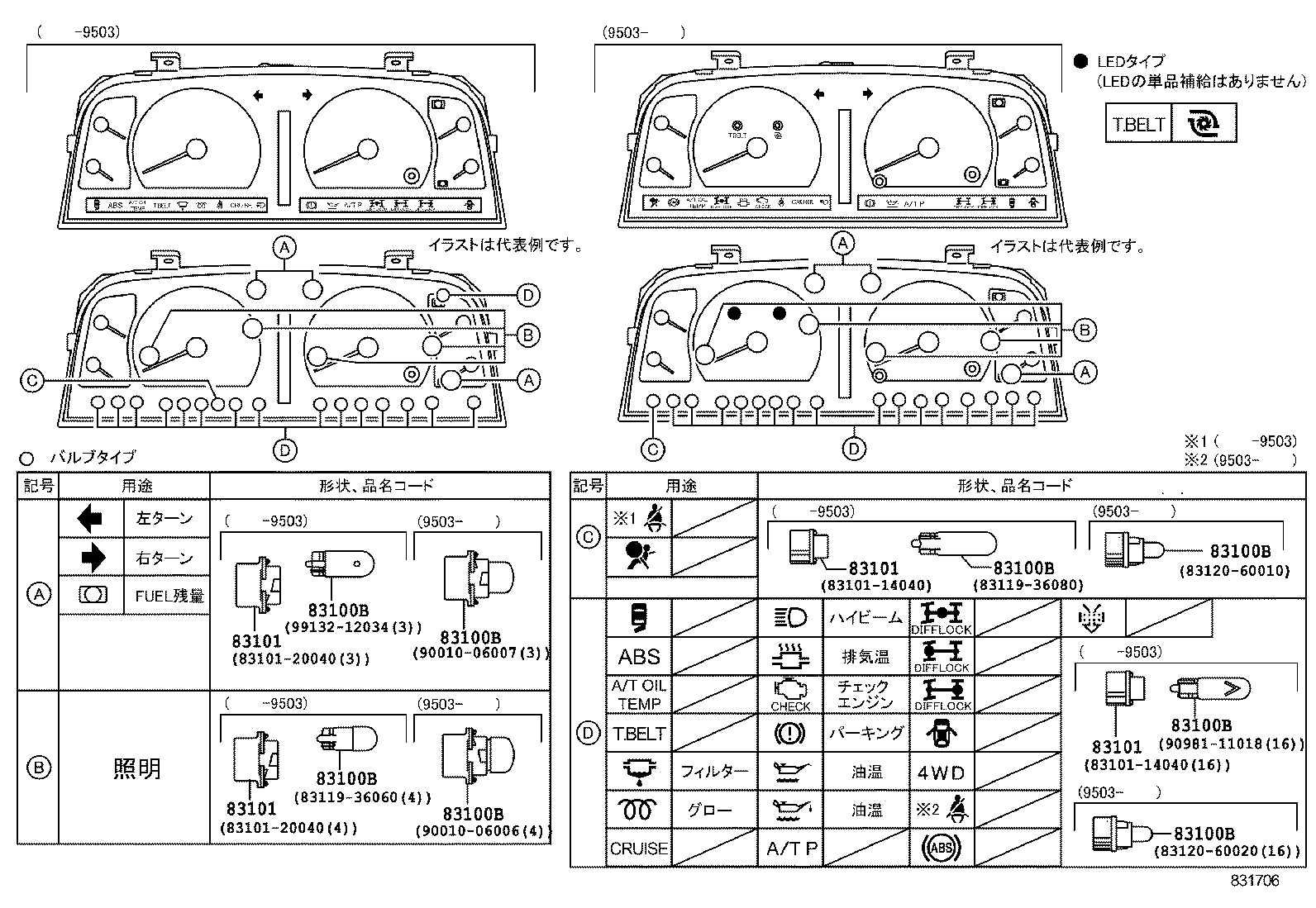

ILLUST NO. 2 OF 5(9208- )GX,VX,VXL
ﾊﾞﾙﾌﾞ & ｿｹｯﾄ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
HDJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 99132-12034 |
FJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 90981-11018 |
FZJ80,HDJ81,HZJ81 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 83119-36080 |
FZJ80,HDJ81,HZJ81 12V 2.0W |
1 | ||
| 83119-36060 |
FZJ80,HDJ81,HZJ81 12V 3.0W ｸﾞﾘｰﾝ ｷｬｯﾌﾟ |
1 | ||
| 90981-11035 |
FJ80,HDJ81,HZJ81 14V 3.4W |
1 | ||
| 99132-12034 |
FZJ80,HDJ81,HZJ81 12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
HDJ81 ﾊﾞﾙﾌﾞ:1.2W OR 1.4W |
1 | ||
| 83101-20040 |
FJ80,HDJ81,HZJ81..LUB BULB;12V 3.4W |
1 | ||

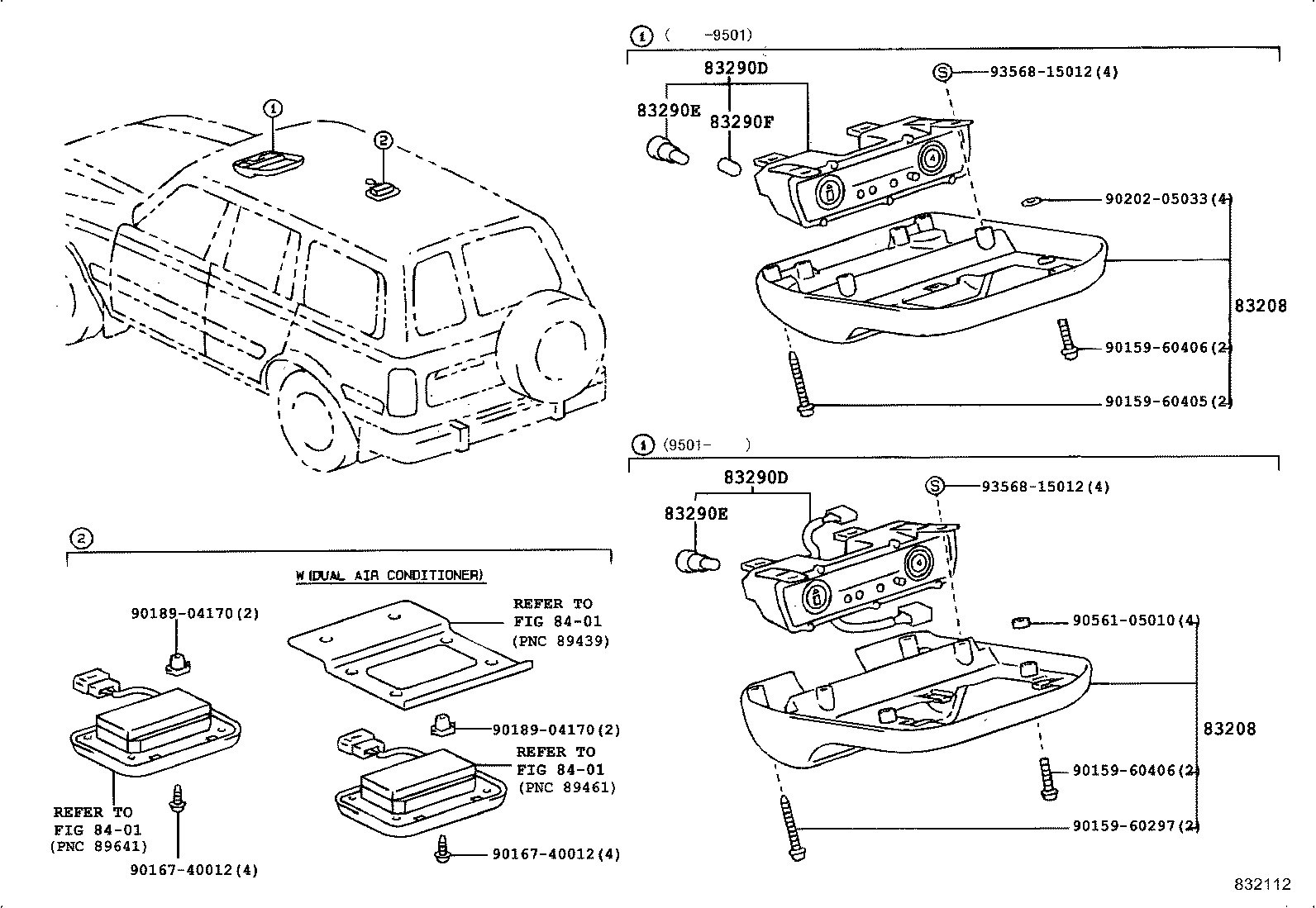

ILLUST NO. 5 OF 5(9001- )
ｱｸｾｻﾘｰﾒｰﾀ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001042 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ81,HZJ81..LUB LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001006 |
FJ80,HDJ81,HZJ81..LUB LIGHT SABLE,TRIM4# |
1 | ||
| 83208 - PANEL SUB-ASSY, ROOF CONSOLE METER | ||||
| 83208-6001042 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL SABLE,TRIM4# |
1 | ||
| 83208-60010B6 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001003 |
FJ80,HDJ81,HZJ81..LUB LIGHT GRAY,TRIM1# |
1 | ||
| 83208-6001006 |
FJ80,HDJ81,HZJ81..LUB LIGHT SABLE,TRIM4# |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83290D - METER ASSY, ACCESSORY | ||||
| 83290-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 84999-50280 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 14V 0.84W |
4 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 84999-50280 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL 14V 0.84W |
4 | ||
| 83290F - CAP, ACCESSORY METER BULB | ||||
| 84998-50001 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
4 | ||
| Common parts | ||||
| 90159-60297 | ||||
| 90159-60405 | ||||
| 90159-60406 | ||||
| 90167-40012 | ||||
| 90189-04170 | ||||
| 90202-05033 | ||||
| 90561-05010 | ||||
| 93568-15012 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF 5(9001- )
ｽﾋﾟｰﾄﾞﾒｰﾀ ｹｰﾌﾞﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83180 - DETECTOR ASSY, REVOLUTION | ||||
| 83180-32020 |
HDJ81,HZJ81..LUB |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-60200 |
HDJ81,HZJ81..MTM |
1 | ||
| 83710-60201 |
HDJ81,HZJ81..MTM |
1 | ||
| 83710-60300 |
HDJ81,HZJ81..MTM ｱﾘ(ﾊﾟﾜ- ﾃｲｸ ｵﾌ) |
1 | ||
| 83710-60202 |
HDJ81,HZJ81..MTM |
1 | ||
| 83710-60301 |
HDJ81,HZJ81..MTM ｱﾘ(ﾊﾟﾜ- ﾃｲｸ ｵﾌ) |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 83791-60010 | ||||
| 83791-60050 | ||||
| 83791-60051 | ||||
| 83791-60060 | ||||
| 83791-60070 | ||||
| 90179-06161 | ||||
| 90463-10024 | ||||
| 93568-55014 | ||||
ILLUST NO. 4 OF 5(9208- )
ｽﾋﾟｰﾄﾞﾒｰﾀｾﾝｻ
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
