HDJ81V-RNMEX (1990)

Toyota Land Cruiser Van

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

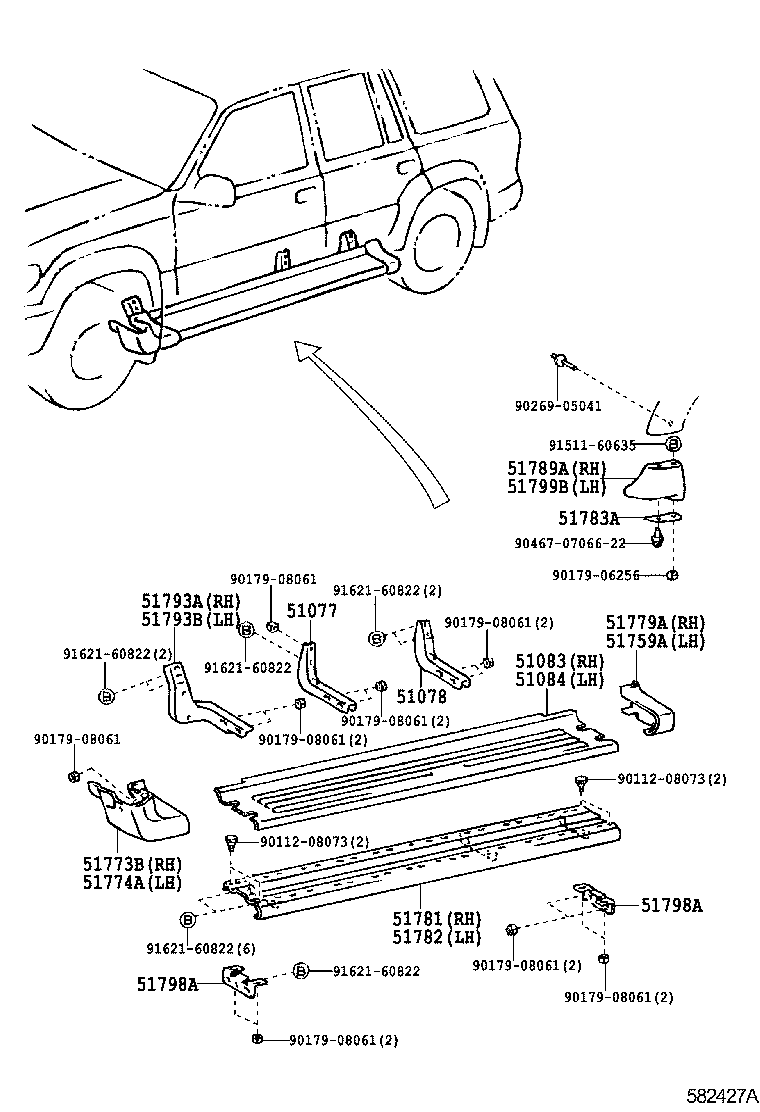

ILLUST NO. 2 OF 2(9001- )HDJ81..LUB ; (9001- )FZJ80,HZJ81

Click highlighted areas on diagram

L ﾊﾟﾂｹ-ｼﾞ

diagram 51077 51078 51083 51084 51759A 51773B 51774A 51779A 51781 51782 51783A 51789A 51793A 51793B 51798A 51798A 51799B 9011208073 9011208073 9017906256 9017908061 9017908061 9017908061 9017908061 9017908061 9017908061 9017908061 9017908061 9026905041 904670706622 9151160635 9162160822 9162160822 9162160822 9162160822 9162160822
Part # Description Qty Price
51077 - BRACKET SUB-ASSY, SIDE STEP, NO.2
51077-60010

FJ80,HDJ81,HZJ81..LUB

 2
51077-60030

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51078 - BRACKET SUB-ASSY, SIDE STEP, NO.3
51077-60010

FJ80,HDJ81,HZJ81..LUB

 2
51077-60030

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51083 - STEP SUB-ASSY, RH
51083-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51083-60020

FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51084 - STEP SUB-ASSY, LH
51084-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51084-60020

FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51759A - COVER, SIDE DOOR STEP PLATE, REAR LH
51759-60010

FJ80,HDJ81,HZJ81..LUB

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51773-60020

FJ80,HDJ81,HZJ81..LUB

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51774-60020

FJ80,HDJ81,HZJ81..LUB

 1
51779A - COVER, SIDE DOOR STEP PLATE, REAR RH
51779-60010

FJ80,HDJ81,HZJ81..LUB

 1
Common parts
90112-08073
90179-06256
90179-08061
90269-05041
90467-0706622
91511-60635
91621-60822

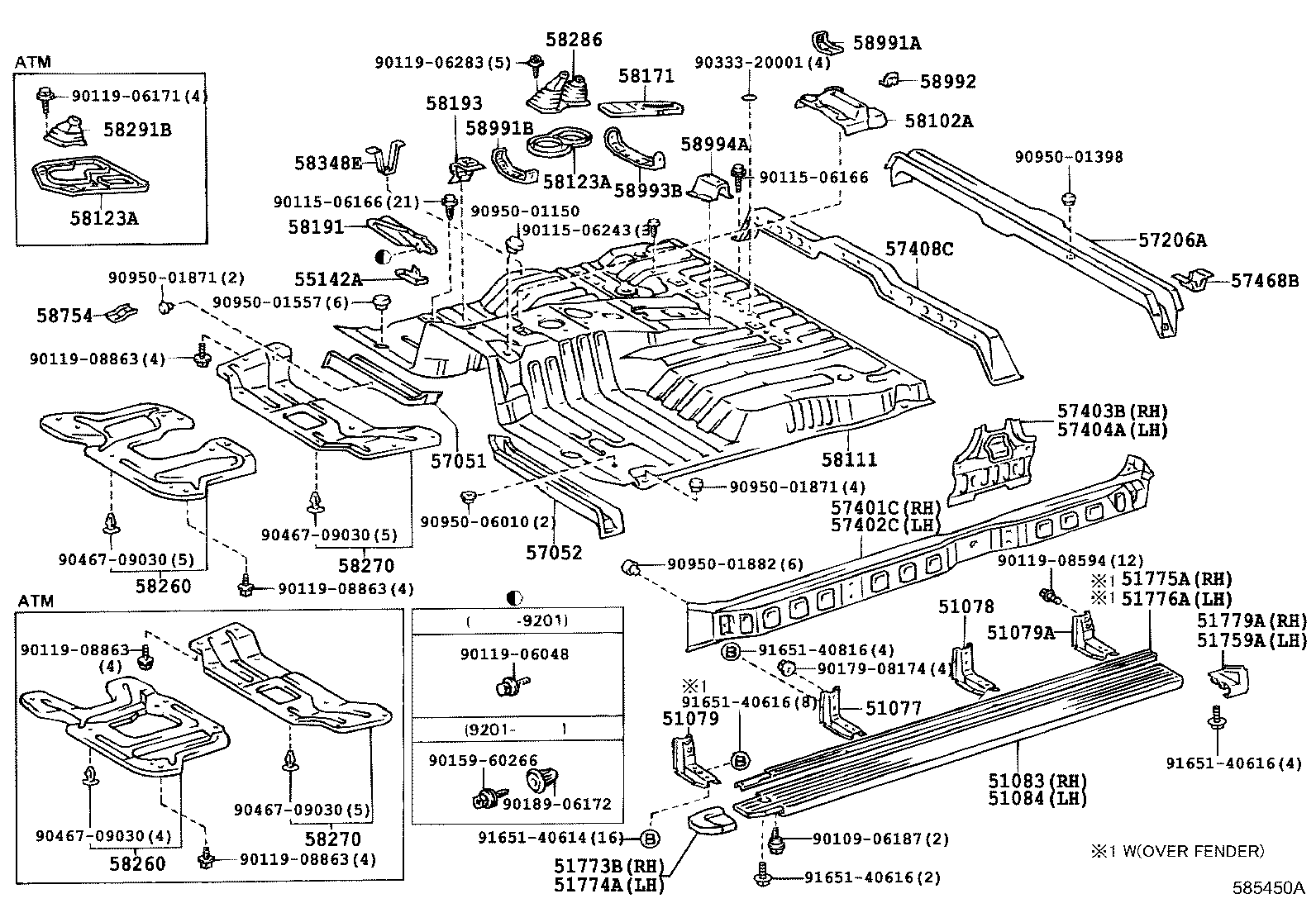

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram 51077 51078 51079 51079A 51083 51084 51759A 51773B 51774A 51775A 51776A 51779A 55142A 57051 57052 57206A 57401C 57402C 57403B 57404A 57408C 57468B 58102A 58111 58123A 58123A 58171 58191 58193 58260 58260 58270 58270 58286 58291B 58348E 58754 58991A 58991B 58992 58993B 58994A 9010906187 9011506166 9011506166 9011506243 9011906048 9011906171 9011906283 9011908594 9011908863 9011908863 9011908863 9011908863 9015960266 9017908174 9018906172 9033320001 9046709030 9046709030 9046709030 9046709030 9095001150 9095001398 9095001557 9095001871 9095001871 9095001882 9095006010 9165140614 9165140616 9165140616 9165140616 9165140816
Part # Description Qty Price
51077 - BRACKET SUB-ASSY, SIDE STEP, NO.2
51077-60010

FJ80,HDJ81,HZJ81..LUB

 2
51077-60030

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51078 - BRACKET SUB-ASSY, SIDE STEP, NO.3
51077-60010

FJ80,HDJ81,HZJ81..LUB

 2
51077-60030

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51079 - BRACKET SUB-ASSY, SIDE STEP
51079-60020

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51079-60010

FJ80,HDJ81,HZJ81..LUB

 2
51079A - BRACKET SUB-ASSY, SIDE STEP, NO.3
51078-60020

FZJ80,HDJ81,HZJ81..VX,VXL

ｱﾘ(ｵｰﾊﾞｰﾌｪﾝﾀﾞ)

 2
51079-60010

FJ80,HDJ81,HZJ81..LUB

 2
51083 - STEP SUB-ASSY, RH
51083-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51083-60020

FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51084 - STEP SUB-ASSY, LH
51084-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51084-60020

FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
51759A - COVER, SIDE DOOR STEP PLATE, REAR LH
51759-60010

FJ80,HDJ81,HZJ81..LUB

 1
51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH
51773-60020

FJ80,HDJ81,HZJ81..LUB

 1
51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH
51774-60020

FJ80,HDJ81,HZJ81..LUB

 1
51779A - COVER, SIDE DOOR STEP PLATE, REAR RH
51779-60010

FJ80,HDJ81,HZJ81..LUB

 1
55142A - BRACKET, FOOT REST MOUNTING, NO.2
55142-60010

FJ80,HDJ81,HZJ81..LUB

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-60020

FJ80,HDJ81,HZJ81

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-60020

FJ80,HDJ81,HZJ81

 1
57206A - MEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57206-60030

FJ80,HDJ81,HZJ81

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-60020

FJ80,HDJ81,HZJ81

 1
57401-60050

FZJ80,HDJ81,HZJ81

 1
57401-60050

FZJ80,HDJ81,HZJ81

 1
57402C - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-60040

FJ80,HDJ81,HZJ81

 1
57402-60041

HDJ81,HZJ81

 1
57402-60041

FJ80,HDJ81,HZJ81

 1
57403B - REINFORCE SUB-ASSY, FLOOR SIDE, INNER RH
57403-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
57404A - REINFORCE SUB-ASSY, FLOOR SIDE, INNER LH
57404-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
57408C - MEMBER SUB-ASSY, FRONT FLOOR CROSS
57408-60010

FJ80,HDJ81,HZJ81

 1
57468B - BRACKET, FRONT SEAT, REAR
57468-60011

FZJ80,HDJ81,HZJ81

 2
57468-60010

FJ80,HDJ81,HZJ81

 2
57468-60011

FZJ80,HDJ81,HZJ81

 2
58111 - PAN, FRONT FLOOR
58111-60031

HDJ81,HZJ81..MTM

 1
58111-60040

HDJ81..MTM

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
58111-60030

HDJ81,HZJ81..MTM

 1
58111-60041

HDJ81..MTM

 1
58111-60041

HDJ81..MTM

ｱﾘ(ｸ-ﾙ ﾎﾞﾂｸｽ)

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-60010

FZJ80,HDJ81,HZJ81..MTM

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-60010

FZJ80,HDJ81,HZJ81..MTM

 1
58171 - REINFORCEMENT, PARKING BRAKE BASE
58171-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
58191 - FOOTREST, FRONT FLOOR
58191-60020

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58260-60070

HDJ81,HZJ81..MTM

 1
58260 - COVER ASSY, TRANSMISSION, FRONT
58260-60070

HDJ81,HZJ81..MTM

 1
58270 - COVER ASSY, TRANSMISSION, REAR
58270-60080

HDJ81,HZJ81..MTM

 1
58270 - COVER ASSY, TRANSMISSION, REAR
58270-60080

HDJ81,HZJ81..MTM

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58280-60030

HDJ81,HZJ81..MTM

 1
58991B - BRACKET, CONSOLE BOX MOUNTING, FRONT
58991-60010

FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
58991-60010

FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL

 1
58993B - BRACKET, CONSOLE BOX MOUNTING, REAR
58993-60010

HDJ81,HZJ81..LUB..MTM

 1
58994A - BRACKET, CONSOLE BOX MOUNTING, NO.4
58994-60010

FJ80,FZJ80,HDJ81,HZJ81

 1
Common parts
90109-06187
90115-06166
90115-06243
90119-06048
90119-06171
90119-06283
90119-08594
90119-08863
90159-60266
90179-08174
90189-06172
90333-20001
90467-09030
90950-01150
90950-01398
90950-01557
90950-01871
90950-01882
90950-06010
91651-40614
91651-40616
91651-40816
