HDJ81V-RNMEW (1995)

Toyota Land Cruiser Van

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )1HDFT

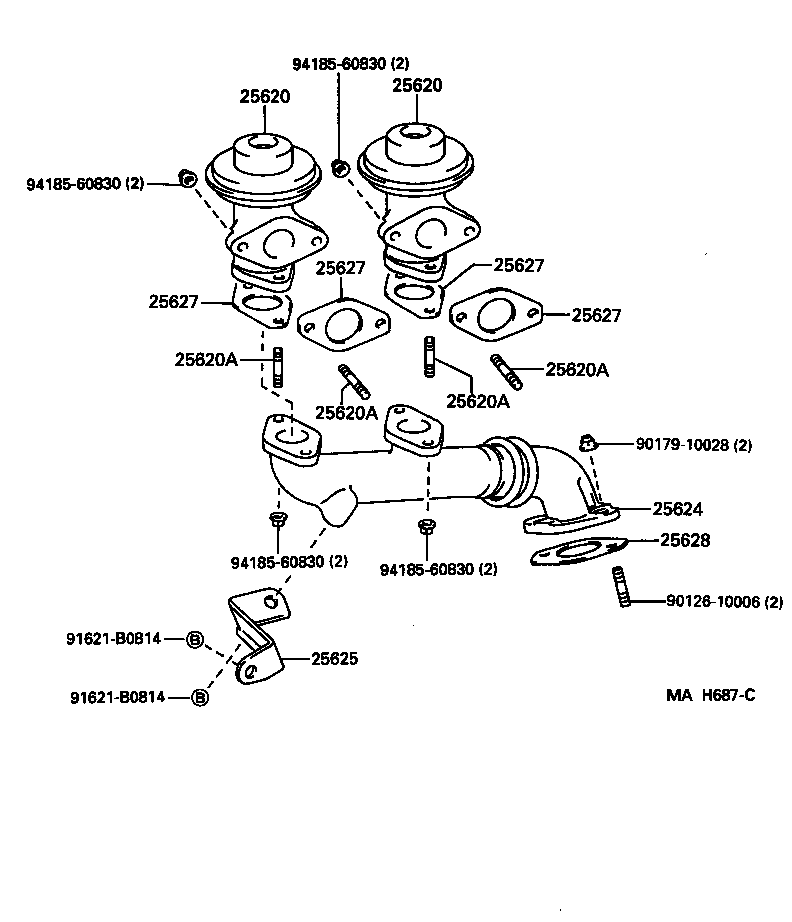

Click highlighted areas on diagram

diagram 25620 25620 25620A 25620A 25620A 25620A 25624 25625 25627 25627 25627 25627 25628 9012610006 9017910028 91621B0814 91621B0814 9418560830 9418560830 9418560830 9418560830
Part # Description Qty Price
25620 - VALVE ASSY, EGR
25620-17010

1HDFT..HDJ81

 2
25620 - VALVE ASSY, EGR
25620-17010

1HDFT..HDJ81

 2
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08018

1HDFT..HDJ81

 8
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08018

1HDFT..HDJ81

 8
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08018

1HDFT..HDJ81

 8
25620A - BOLT, STUD(FOR EGR VALVE)
90126-08018

1HDFT..HDJ81

 8
25624 - ADAPTER, EGR VALVE
25607-17010

1HDFT..HDJ81

 1
25625 - BRACKET, EGR VALVE
25625-17010

1HDFT..HDJ81

 1
25627 - GASKET, EGR VALVE
25627-17010

1HDFT..HDJ81

 4
25627 - GASKET, EGR VALVE
25627-17010

1HDFT..HDJ81

 4
25627 - GASKET, EGR VALVE
25627-17010

1HDFT..HDJ81

 4
25627 - GASKET, EGR VALVE
25627-17010

1HDFT..HDJ81

 4
25628 - GASKET, EGR INLET
25628-17010

1HDFT..HDJ81

 1
Common parts
90126-10006
90179-10028
91621-B0814
94185-60830
