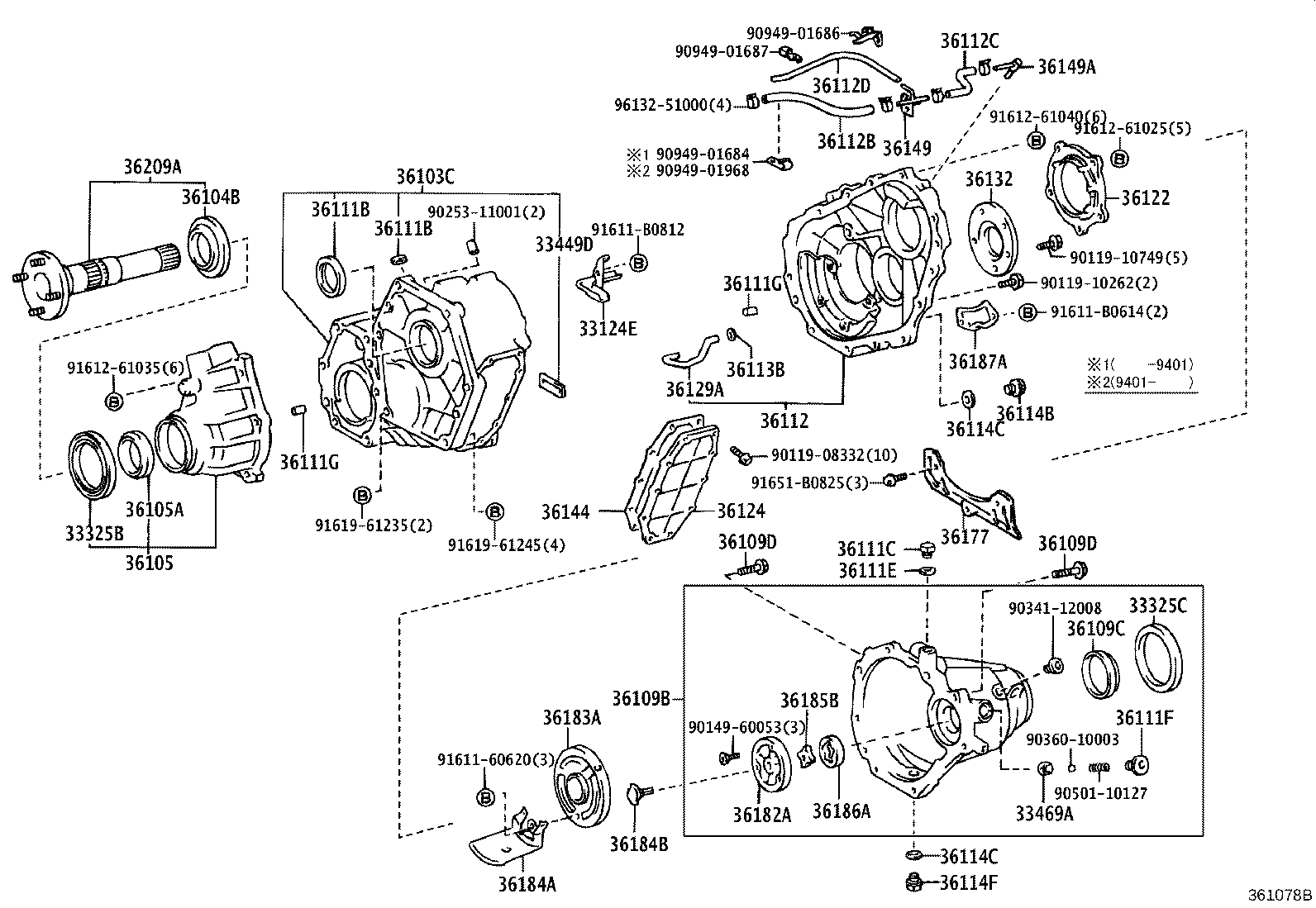

FZJ80G-GNPGK (1992)
Toyota Land Cruiser Van
(9208- )
HF2AV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-60030 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 33325B - DEFLECTOR, DUST (FOR TRANSFER EXTENSION FRONT HOUSING) | ||||
| 33325-60050 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 33325C - DEFLECTOR, DUST (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 33325-60070 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 33469A - SEAT, RELIEF VALVE (FOR TRANSFER EXTENSION REAR HOUSING | ||||
| 33469-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60230 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-60040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60020 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36105A - SEAL, OIL (TRANSFER EXTENSION FRONT HOUSING SUB-ASSY) | ||||
| 90311-50014 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36109B - HOUSING SUB-ASSY, TRANSFER EXTENSION, REAR | ||||
| 36109-60020 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36109-60040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36109-60040 |
FZJ80,HDJ81,HZJ81 ｱﾘ(*VCD) |
1 | ||
| 36109-60030 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL ｱﾘ(*VCD) |
1 | ||
| 36109C - SEAL, OIL (TRANSFER EXTENSION REAR HOUSING SUB-ASSY) | ||||
| 90311-58008 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10311 |
HZJ81..LUB;FZJ80,HDJ81 *10−1.25PX97−30,ｱﾘ(*VCD) |
1 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ81,HZJ81 *10−1.25PX75−30 |
5 | ||
| 90119-10311 |
FZJ80,HDJ81,HZJ81 *10−1.25PX97−30 |
1 | ||
| 90119-10311 |
FZJ80,HDJ81,HZJ81 *10−1.25PX97−30 |
1 | ||
| 90119-10180 |
FZJ80,HDJ81,HZJ81 *10−1.25PX75−30 |
4 | ||
| 90119-10180 |
HDJ81..LUB;FZJ80,HZJ81 *10−1.25PX75−30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ81,HZJ81 *10−1.25PX35−30 |
4 | ||
| 90119-10180 |
HZJ81..LUB;FZJ80,HDJ81 *10−1.25PX75−30,ｱﾘ(*VCD) |
4 | ||
| 90119-10390 |
FJ80,FZJ80,HDJ81,HZJ81 *10−1.25PX35−30 |
4 | ||
| 36109D - BOLT (FOR TRANSFER EXTENSION REAR HOUSING) | ||||
| 90119-10311 |
HZJ81..LUB;FZJ80,HDJ81 *10−1.25PX97−30,ｱﾘ(*VCD) |
1 | ||
| 90119-10180 |
FJ80,FZJ80,HDJ81,HZJ81 *10−1.25PX75−30 |
5 | ||
| 90119-10311 |
FZJ80,HDJ81,HZJ81 *10−1.25PX97−30 |
1 | ||
| 90119-10311 |
FZJ80,HDJ81,HZJ81 *10−1.25PX97−30 |
1 | ||
| 90119-10180 |
FZJ80,HDJ81,HZJ81 *10−1.25PX75−30 |
4 | ||
| 90119-10180 |
HDJ81..LUB;FZJ80,HZJ81 *10−1.25PX75−30 |
5 | ||
| 90119-10390 |
FZJ80,HDJ81,HZJ81 *10−1.25PX35−30 |
4 | ||
| 90119-10180 |
HZJ81..LUB;FZJ80,HDJ81 *10−1.25PX75−30,ｱﾘ(*VCD) |
4 | ||
| 90119-10390 |
FJ80,FZJ80,HDJ81,HZJ81 *10−1.25PX35−30 |
4 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90310-16001 |
FJ80,FZJ80,HDJ81,HZJ81 ﾚﾊﾞｰ側 |
1 | ||
| 90311-48018 |
FZJ80,HDJ81..ATM ｼｬﾌﾄ側 |
1 | ||
| 90311-48016 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90310-16001 |
FZJ80,HDJ81,HZJ81 ﾚﾊﾞｰ側 |
1 | ||
| 90311-48018 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-48018 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90311-48016 |
FJ80,FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90310-16001 |
FJ80,FZJ80,HDJ81,HZJ81 ﾚﾊﾞｰ側 |
1 | ||
| 90311-48018 |
FZJ80,HDJ81..ATM ｼｬﾌﾄ側 |
1 | ||
| 90311-48016 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 90310-16001 |
FZJ80,HDJ81,HZJ81 ﾚﾊﾞｰ側 |
1 | ||
| 90311-48018 |
FZJ80,HDJ81,HZJ81 ｼｬﾌﾄ側 |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18039 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ80,HDJ81,HZJ81 長さ=16,外径=12 |
6 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-12002 |
FZJ80,HDJ81,HZJ81 長さ=16,外径=12 |
6 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36104-60030 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36104-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36104-60030 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) ｱﾘ(*VCD) |
1 | ||
| 36104-60030 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36104-60030 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36112B - HOSE, NO.1 (FOR TRANSFER REAR CASE) | ||||
| 90445-11120 |
FZJ80 |
1 | ||
| 90445-11120 |
FZJ80 |
1 | ||
| 90445-11122 |
FZJ80,HDJ81,HZJ81..ATM |
1 | ||
| 90445-11122 |
FZJ80..ATM |
1 | ||
| 36112C - HOSE, NO.2 (FOR TRANSFER REAR CASE) | ||||
| 90445-11134 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 90445-11108 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36112D - HOSE, NO.3 (FOR TRANSFER REAR CASE) | ||||
| 90445-08277 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36113B - RING, O (FOR TRANSFER CASE PLUG) | ||||
| 90301-09015 |
FZJ80 内径=9.5,ｱﾘ(*VCD) |
1 | ||
| 90301-07012 |
FJ80,FZJ80,HDJ81,HZJ81 内径=6.0 |
1 | ||
| 90301-09015 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) 内径=9.5,ｱﾘ(*VCD) |
1 | ||
| 90301-09015 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL 内径=9.5 |
1 | ||
| 90301-07012 |
HZJ81..SOB..ATM;FZJ80,HDJ81..EFI,TD4 内径=6.0 |
1 | ||
| 90301-09015 |
FZJ80,HDJ81,HZJ81 内径=9.5 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HZJ81..SOB..GX;FZJ80,HDJ81..EFI,TD4 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
HZJ81..SOB..GX;FZJ80,HDJ81..EFI,TD4 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36122 - COVER, TRANSFER CASE, NO.2 | ||||
| 36122-36010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36129A - TUBE, TRANSFER OIL | ||||
| 36129-60030 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36129-60040 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36129-60040 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36129-60040 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL ｱﾘ(*VCD) |
1 | ||
| 36129-60040 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) ｱﾘ(*VCD) |
1 | ||
| 36129-60030 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36132 - RETAINER, OUTPUT SHAFT BEARING, REAR NO.1 | ||||
| 36132-60050 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36149 - PIPE, TRANSFER BREATHER | ||||
| 36149-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36149A - PIPE, TRANSFER BREATHER, NO.2 | ||||
| 36149-60020 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36177 - GUIDE, TRANSFER AIR | ||||
| 36177-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36182A - COVER, TRANSFER OIL PUMP | ||||
| 36182-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36182-60011 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36182-60011 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36182-60010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36183A - PLATE, TRANSFER OIL PUMP | ||||
| 36183-60011 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36183-60011 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36183-60012 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36183-60012 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36183-60010 |
FJ80,FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36183-60010 |
FZJ80,HDJ81,HZJ81..LUB |
1 | ||
| 36184-60010 |
HZJ81..LUB..GX;FZJ80,HDJ81..LUB..ATM..(EFI,TD2) ｱﾘ(ﾒｶﾆｶﾙ ｳｲﾝﾁ) |
1 | ||
| 36184A - SEPARATOR, TRANSFER OIL | ||||
| 36184-60050 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36184B - SHAFT, TRANSFER OIL PUMP DRIVE | ||||
| 36184-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36185B - ROTOR, TRANSFER OIL PUMP DRIVE | ||||
| 36185-60010 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36185-60010 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) ｱﾘ(*VCD) |
1 | ||
| 36185-60010 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36185-60030 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36185-60010 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36186A - ROTOR, TRANSFER OIL PUMP DRIVEN | ||||
| 36186-60020 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36186-60020 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36186-60010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36186-60020 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36186-60020 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) ｱﾘ(*VCD) |
1 | ||
| 36187A - STRAINR, TRANSFER OIL, NO.1 | ||||
| 36187-60070 |
FZJ80,HDJ81..EFI,TD4;HDJ81,HZJ81..LUB..ATM..(DSL,TD2) ｱﾘ(*VCD) |
1 | ||
| 36187-60010 |
FJ80,FZJ80,HDJ81,HZJ81 |
1 | ||
| 36187-60070 |
FZJ80 ｱﾘ(*VCD) |
1 | ||
| 36187-60070 |
FZJ80,HDJ81,HZJ81 |
1 | ||
| 36187-60070 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36209A - SHAFT, TRANSFER OUTPUT, FRONT | ||||
| 36209-60020 |
FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| 36209-60020 |
FJ80,FZJ80,HDJ81,HZJ81..GX,VX,VXL |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-10262 | ||||
| 90119-10749 | ||||
| 90149-60053 | ||||
| 90253-11001 | ||||
| 90341-12008 | ||||
| 90360-10003 | ||||
| 90501-10127 | ||||
| 90949-01684 | ||||
| 90949-01686 | ||||
| 90949-01687 | ||||
| 90949-01968 | ||||
| 91611-60620 | ||||
| 91611-B0614 | ||||
| 91611-B0812 | ||||
| 91612-61025 | ||||
| 91612-61035 | ||||
| 91612-61040 | ||||
| 91619-61235 | ||||
| 91619-61245 | ||||
| 91651-B0825 | ||||
| 96132-51000 | ||||
