FZJ80G-GNMEK (1995)

Toyota Land Cruiser Van

Production Jan 1995 - Jan 1998
Engine 1FZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

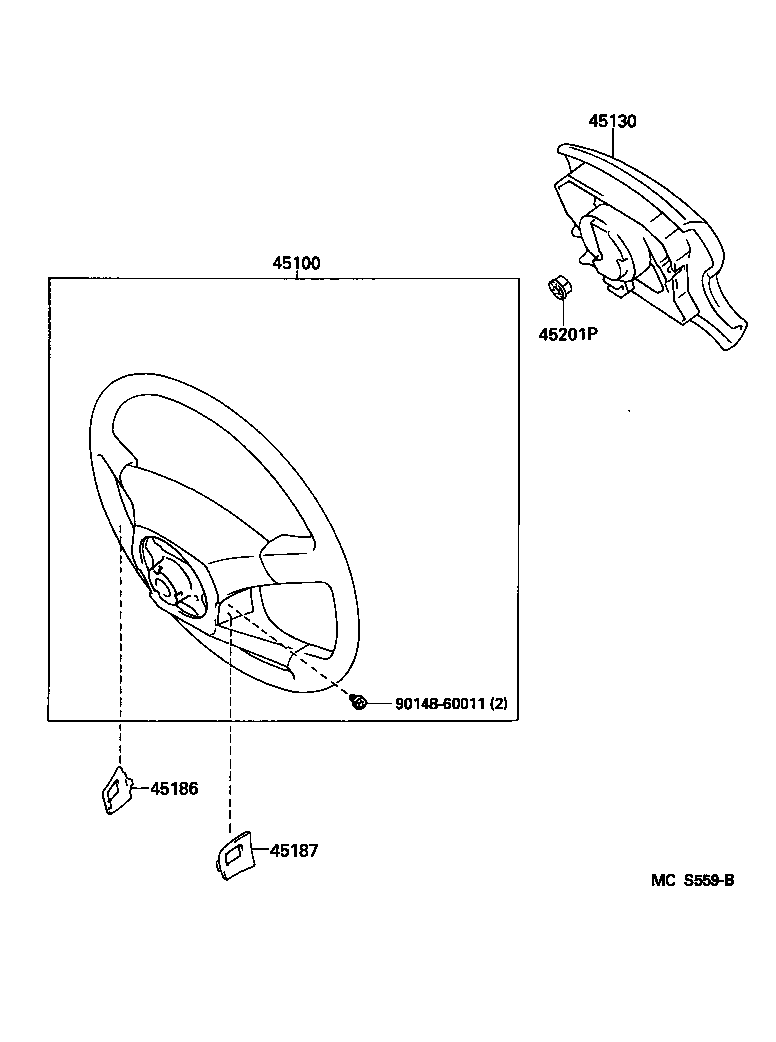

Click highlighted areas on diagram

diagram 45100 45130 45186 45187 45201P 9014860011
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60200B0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUEISH GRAY,TRIM1#

 1
45100-60170E0

FZJ80,HDJ81,HZJ81..GX,VX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60170B0

FZJ80,HDJ81,HZJ81..GX,VX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUEISH GRAY,TRIM1#

 1
45100-60200E0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60200E0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),OAK,TRIM4#

 1
45100-60200B0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUEISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-50110B1

FZJ80,HDJ81,HZJ81

ｱﾘ(*80),BLUEISH GRAY,TRIM1#

 1
45130-60161B0

FZJ80,HDJ81,HZJ81

BLUEISH GRAY,TRIM1#

 1
45130-60161E0

FZJ80,HDJ81,HZJ81

OAK,TRIM4#

 1
45130-50110E0

FZJ80,HDJ81,HZJ81

ｱﾘ(*80),OAK,TRIM4#

 1
45186 - COVER, STEERING WHEEL, LOWER NO.2
45186-60020E0

HZJ81;FZJ80,HDJ81..GX,VX

OAK,TRIM4#

 1
45186-60020B0

HZJ81;FZJ80,HDJ81..GX,VX

BLUEISHGRAY,TRIM1#

 1
45187 - COVER, STEERING WHEEL, LOWER NO.3
45187-50030E0

FZJ80,HDJ81,HZJ81

OAK,TRIM4#

 1
45187-50030B1

FZJ80,HDJ81,HZJ81

BLUEISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ80,FZJ80,HDJ81,HZJ81

 1
Common parts
90148-60011

(9501- )

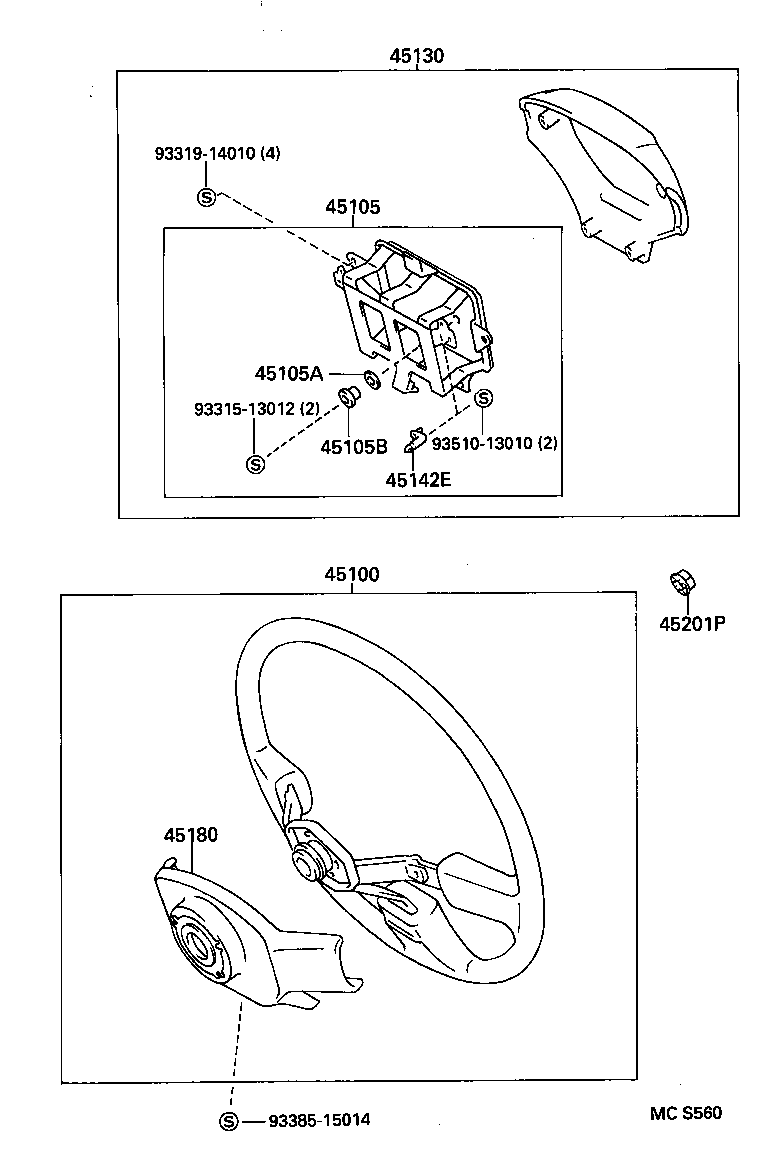

Click highlighted areas on diagram

diagram 45100 45105 45105A 45105B 45130 45142E 45180 45201P 9331513012 9331914010 9338515014 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-60200B0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),BLUEISH GRAY,TRIM1#

 1
45100-60170E0

FZJ80,HDJ81,HZJ81..GX,VX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60170B0

FZJ80,HDJ81,HZJ81..GX,VX

3本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUEISH GRAY,TRIM1#

 1
45100-60200E0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,OAK,TRIM4#

 1
45100-60200E0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,ｱﾘ(*80),OAK,TRIM4#

 1
45100-60200B0

FZJ80,HDJ81,HZJ81..GX,VX

4本ｽﾎﾟｰｸ,ｳﾚﾀﾝ,BLUEISH GRAY,TRIM1#

 1
45130 - BUTTON ASSY, HORN
45130-50110B1

FZJ80,HDJ81,HZJ81

ｱﾘ(*80),BLUEISH GRAY,TRIM1#

 1
45130-60161B0

FZJ80,HDJ81,HZJ81

BLUEISH GRAY,TRIM1#

 1
45130-60161E0

FZJ80,HDJ81,HZJ81

OAK,TRIM4#

 1
45130-50110E0

FZJ80,HDJ81,HZJ81

ｱﾘ(*80),OAK,TRIM4#

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-60040E0

FZJ80,HDJ81,HZJ81

OAK,TRIM4#

 1
45180-60040B0

FZJ80,HDJ81,HZJ81

BLUEISH GRAY,TRIM1#

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

FJ80,FZJ80,HDJ81,HZJ81

 1
Common parts
93315-13012
93319-14010
93385-15014
93510-13010
