FJ80G-GNPEE (1990)
Toyota Land Cruiser Van
(9001- )ATM

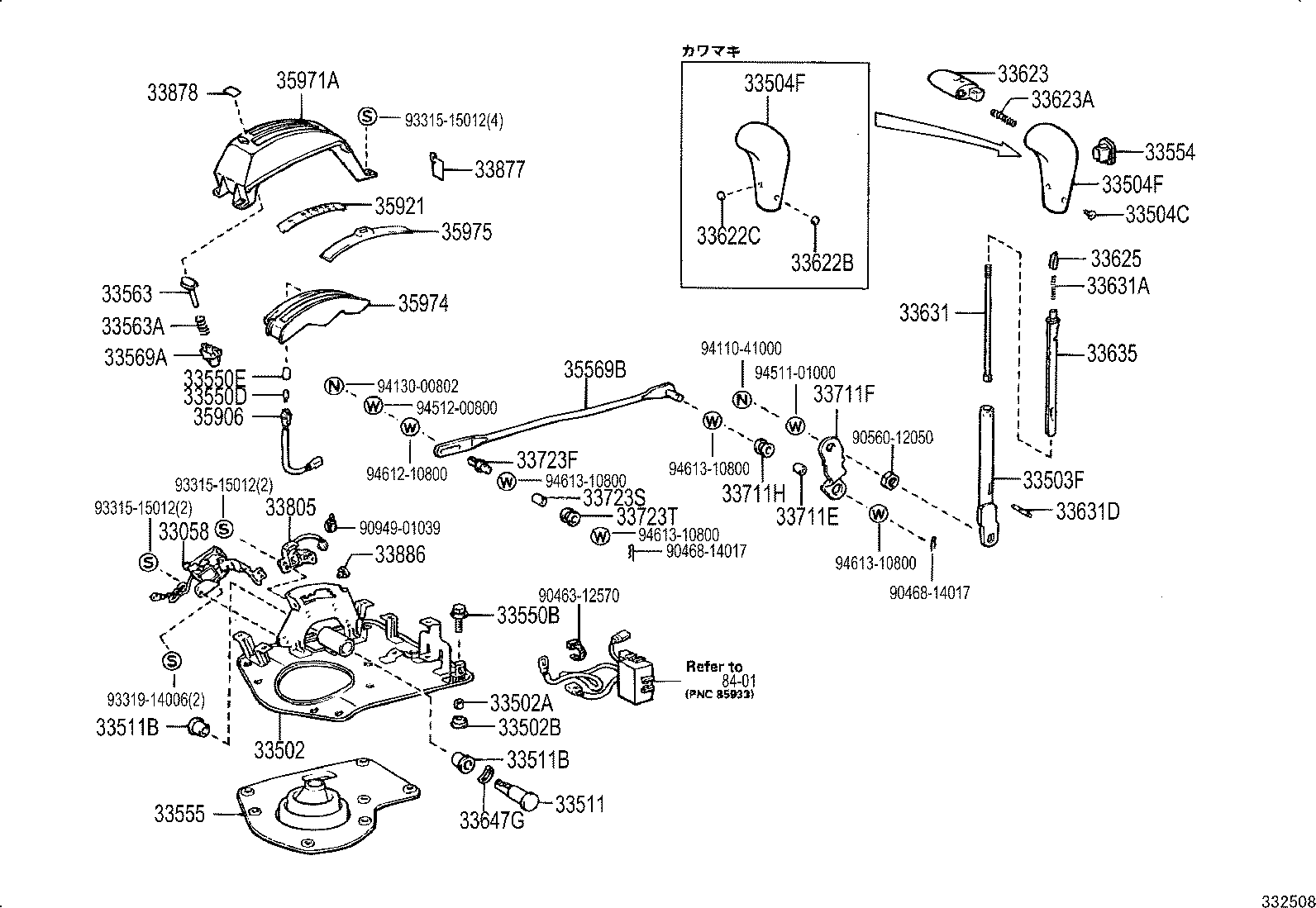

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33058 - BRACKET SUB-ASSY, SHIFT LOCK SOLENOID | ||||
| 33058-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33502 - PLATE SUB-ASSY, SHIFT LEVER | ||||
| 33502-60080 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33502A - COLLAR (FOR FLOOR SHIFT SETTING) | ||||
| 90387-06065 |
FJ80,HDJ81,HZJ81..ATM 外径=8.8 |
9 | ||
| 33502B - GROMMET (FOR SHIFT LEVER PLATE) | ||||
| 90480-13018 |
FJ80,HDJ81,HZJ81..ATM |
2 | ||
| 33503F - LEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT) | ||||
| 33503-60030 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33504C - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90159-40109 |
FJ80,HDJ81,HZJ81..ATM |
2 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-6007001 |
FJ80,HDJ81..ATM ｶﾜﾏｷ,BLACK,TRIM1#,4# |
1 | ||
| 33542-3208001 |
FJ80,HDJ81,HZJ81..ATM BLACK,TRIM1#,4# |
1 | ||
| 33504F - KNOB SUB-ASSY, SHIFT LEVER | ||||
| 33542-6007001 |
FJ80,HDJ81..ATM ｶﾜﾏｷ,BLACK,TRIM1#,4# |
1 | ||
| 33542-3208001 |
FJ80,HDJ81,HZJ81..ATM BLACK,TRIM1#,4# |
1 | ||
| 33511 - SHAFT, CONTROL (FOR FLOOR SHIFT) | ||||
| 33511-60081 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33511-60080 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-15003 |
FJ80,HDJ81,HZJ81..ATM |
2 | ||
| 33511B - BUSH (FOR CONTROL SHAFT) | ||||
| 90386-15003 |
FJ80,HDJ81,HZJ81..ATM |
2 | ||
| 33550B - BOLT, W/WASHER (FOR FLOOR SHIFT) | ||||
| 90119-06088 |
FJ80,HDJ81,HZJ81..ATM |
6 | ||
| 33550D - BULB, POSITION INDICATOR LAMP | ||||
| 90981-11018 |
FJ80,HDJ81,HZJ81..ATM 12V 1.2W ｿｹｯﾄ無し |
1 | ||
| 33550E - CAP, POSITION INDICATOR LAMP | ||||
| 90339-04014 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33554 - CAP, SHIFT LEVER | ||||
| 33554-60040 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33555 - BOOT, SHIFT LEVER | ||||
| 33555-60071 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33555-60070 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33563 - BUTTON, SHIFT LOCK RELEASE | ||||
| 33563-6001001 |
FJ80,HDJ81,HZJ81..ATM BLACK,TRIM1#,4# |
1 | ||
| 33563-6001002 |
FJ80,HDJ81,HZJ81..ATM MAROON,TRIM1#,4# |
1 | ||
| 33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON) | ||||
| 90501-06051 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33569A - GUIDE, SHIFT LOCK RELEASE BUTTON | ||||
| 33569-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33622B - PLUG, SHIFT LEVER KNOB | ||||
| 33622-60010 |
FJ80,HDJ81..ATM |
1 | ||
| 33622C - PLUG, SHIFT LEVER KNOB, NO.2 | ||||
| 33622-60020 |
FJ80,HDJ81..ATM |
1 | ||
| 33623 - BUTTON, SHIFT LEVER KNOB | ||||
| 33623-3205001 |
FJ80,HDJ81,HZJ81..ATM BLACK,TRIM1#,4# |
1 | ||
| 33623A - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-07009 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33625 - SLEEVE, SHIFT LEVER KNOB | ||||
| 33625-32010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33631 - ROD, DETENT | ||||
| 33631-30060 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33631A - SPRING, COMPRESSION (FOR DETENT ROD) | ||||
| 90501-07074 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33631D - PIN, GROOVED (FOR DETENT ROD) | ||||
| 90256-04003 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33635 - GUIDE, WIRE (FOR SHIFT LEVER) | ||||
| 33635-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33647G - WASHER, WAVE (FOR CONTROL LINK SHAFT) | ||||
| 90206-17001 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33711E - BUSH (FOR CONTROL SHAFT LEVER) | ||||
| 90389-08005 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33711F - LEVER, CONTROL SHAFT (FOR FLOOR SHIFT) | ||||
| 33711-60030 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33711H - GROMMET (FOR CONTROL SHAFT LEVER) | ||||
| 90480-17177 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33723F - SWIVEL, CONNECTING ROD (FOR FLOOR SHIFT) | ||||
| 33723-22010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33723S - BUSH (FOR CONNECTING ROD SWIVEL) | ||||
| 90389-08005 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33723T - GROMMET (FOR CONNECTING ROD SWIVEL) | ||||
| 90480-17177 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33805 - PLATE SUB-ASSY, SHIFT LOCK (FOR FLOOR SHIFT) | ||||
| 33805-60010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33877 - LABEL, SHIFT LOCK INFORMATION, NO.1 | ||||
| 33877-20010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33878 - LABEL, SHIFT LOCK INFORMATION, NO.2 | ||||
| 33878-20010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 33886 - STOPPER, SHIFT LEVER | ||||
| 33886-16010 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35569B - ROD, TRANSMISSION CONTROL (FOR FLOOR SHIFT) | ||||
| 35569-60030 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35906 - WIRE SUB-ASSY, INDICATOR LAMP | ||||
| 35906-60070 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35921 - PLATE, CONTROL POSITION INDICATOR | ||||
| 35921-60050 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35971A - HOUSING, POSITION INDICATOR, UPPER | ||||
| 35971-60070 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35974 - HOUSING, POSITION INDICATOR, LOWER | ||||
| 35974-60050 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| 35975 - COVER, SLIDE (FOR POSITION INDICATOR) | ||||
| 35975-60050 |
FJ80,HDJ81,HZJ81..ATM |
1 | ||
| Common parts | ||||
| 90463-12570 | ||||
| 90468-14017 | ||||
| 90560-12050 | ||||
| 90949-01039 | ||||
| 93315-15012 | ||||
| 93319-14006 | ||||
| 94110-41000 | ||||
| 94130-00802 | ||||
| 94511-01000 | ||||
| 94512-00800 | ||||
| 94612-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 8401 | ||||
