FJ62V-MRCH4 (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )IV4

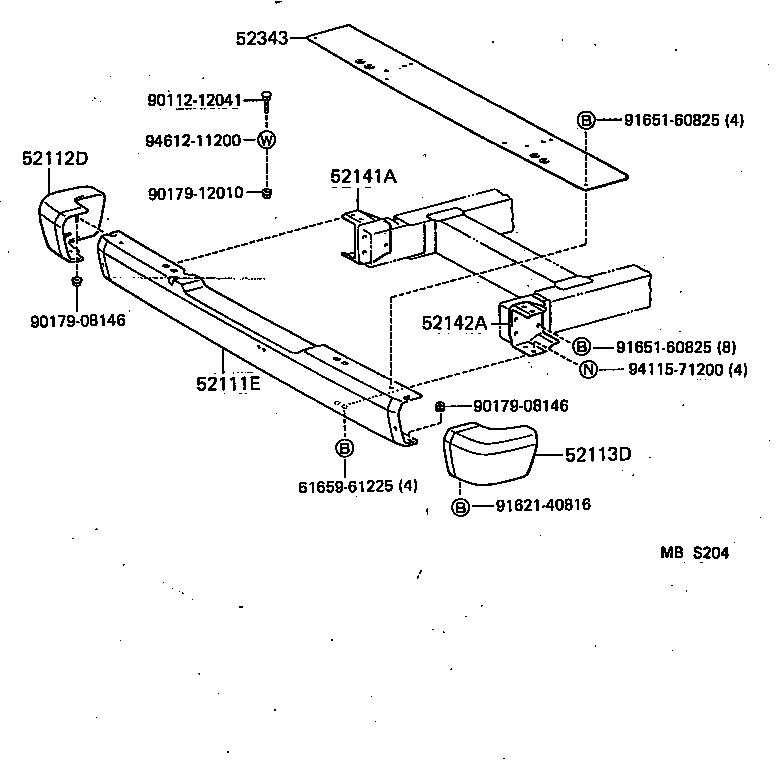

Click highlighted areas on diagram

diagram 52111E 52112D 52113D 52141A 52142A 52343 6165961225 9011212041 9017908146 9017908146 9017912010 9162140816 9165160825 9165160825 9411571200 9461211200
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52111-90A08

FJ62..IV4

 1
52112D - EXTENSION, FRONT BUMPER, RH
52102-90A00

FJ62,HJ6#

 1
52113D - EXTENSION, FRONT BUMPER, LH
52103-90A00

FJ62,HJ6#

 1
52141A - ARM, FRONT BUMPER, UPPER RH
52141-90A00

FJ62..IV4

 1
52142A - ARM, FRONT BUMPER, UPPER LH
52142-90A00

FJ62..IV4

 1
52343 - STEP, FRONT BUMPER, CENTER
52343-90A02

FJ62..IV4

 1
Common parts
61659-61225
90112-12041
90179-08146
90179-12010
91621-40816
91651-60825
94115-71200
94612-11200
