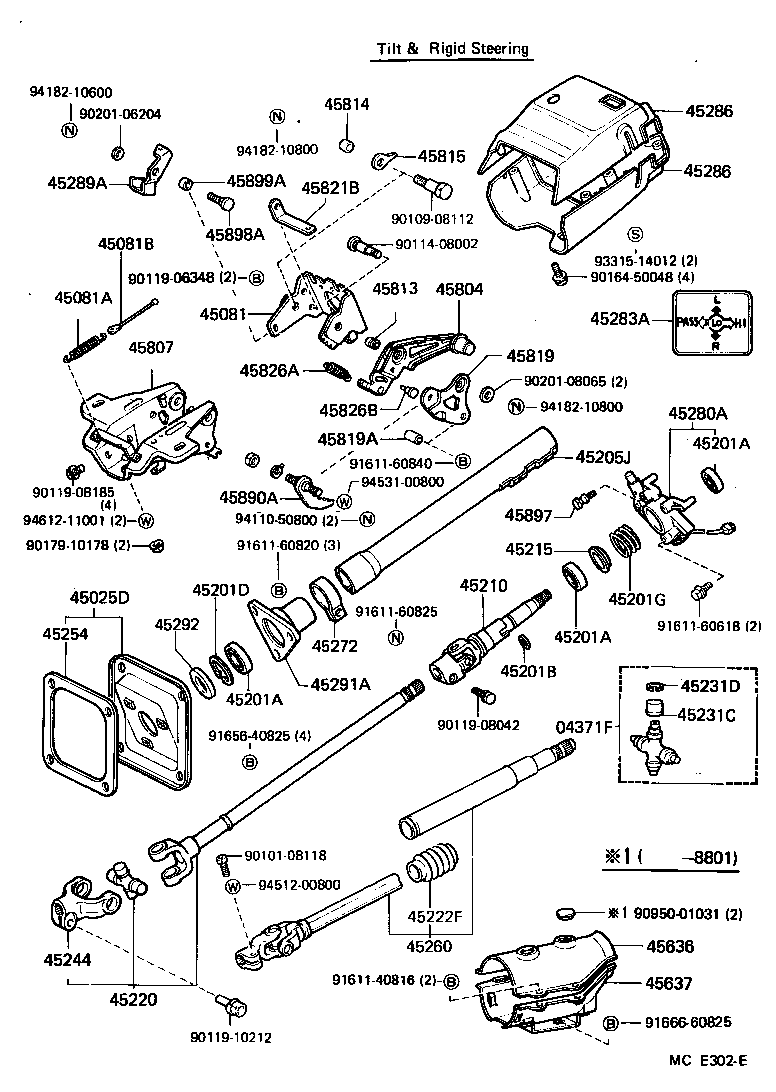

FJ62V-MRCH4 (1987)
Toyota Land Cruiser Van
(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
FJ62,HJ6# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-60010 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02038 |
FJ62..IV4;FJ62,HJ6#..GX,VX 長さ=105.5 |
2 | ||
| 90945-02034 |
FJ62..IV4;FJ62,HJ6#..GX,VX 長さ=107.5 |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FJ62,HJ6# 厚さ=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-60080 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60080 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60031 |
FJ62,HJ6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
FJ62,HJ6# |
4 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22013 |
FJ62,HJ6# |
4 | ||
| 90521-22011 |
FJ62,HJ6# |
4 | ||
| 90521-22012 |
FJ62,HJ6# |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
FJ62,HJ6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60030 |
FJ62,HJ6# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60080 |
FJ62,HJ6# |
1 | ||
| 45272 - CLAMP, STEERING COLUMN, LOWER | ||||
| 45272-35020 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60220 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
FJ62,HJ6# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2217016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,下側 |
1 | ||
| 45286-2225016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,上側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2217016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,下側 |
1 | ||
| 45286-2225016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,上側 |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45291A - SUPPORT, STEERING COLUMN TUBE | ||||
| 45291-35020 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60070 |
FJ62,HJ6# |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60050 |
FJ62,HJ6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45807 - BRACKET SUB-ASSY, STEERING COLUMN UPPER SUPPORT | ||||
| 45807-60030 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.003−18.010 |
1 | ||
| 45813-22040 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.017−18.024 |
1 | ||
| 45813-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.989−17.996 |
1 | ||
| 45813-22030 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.010−18.017 |
1 | ||
| 45813-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.996−18.003 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.982−18.000 |
1 | ||
| 45814-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.000−18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.5 |
1 | ||
| 45815-22080 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.8 |
1 | ||
| 45815-22090 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22100 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22060 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-14010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| Common parts | ||||
| 90101-08118 | ||||
| 90109-08112 | ||||
| 90114-08002 | ||||
| 90119-06348 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-10212 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90950-01031 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60820 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91656-40825 | ||||
| 91666-60825 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94512-00800 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||

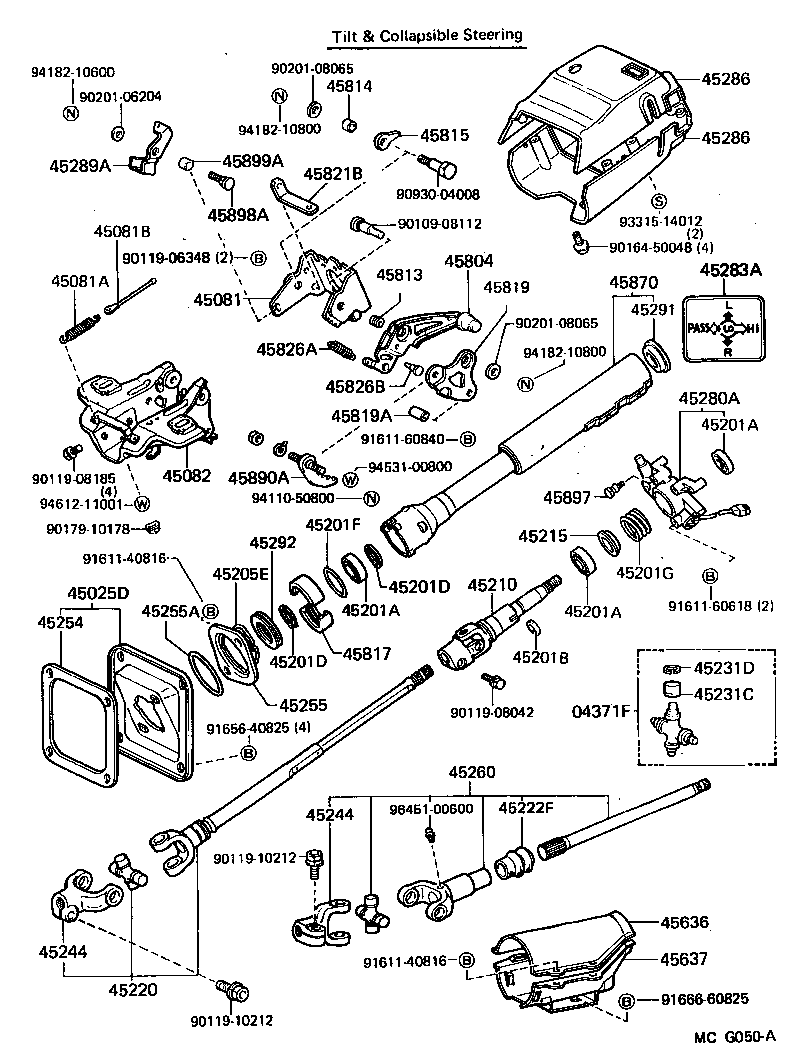

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371F - SPIDER KIT, UNIVERSAL JOINT(FOR STEERING MAIN SHAFT) | ||||
| 04371-10011 |
FJ62,HJ6# |
1 | ||
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-60010 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45081 - SUPPORT SUB-ASSY, TILT STEERING | ||||
| 45081-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-23009 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
2 | ||
| 45081B - CORD(FOR TILT STEERING) | ||||
| 90945-02038 |
FJ62..IV4;FJ62,HJ6#..GX,VX 長さ=105.5 |
2 | ||
| 90945-02034 |
FJ62..IV4;FJ62,HJ6#..GX,VX 長さ=107.5 |
2 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-28001 |
FJ62..IV4;FJ62,HJ6#..GX,VX CTR |
1 | ||
| 90363-30007 |
FJ62,HJ6# 下側 |
1 | ||
| 90363-18001 |
FJ62..IV4;FJ62,HJ6#..GX,VX 上側 |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
FJ62,HJ6# 厚さ=1.20 |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45201D - RING(FOR STEERING MAIN SHAFT) | ||||
| 96151-04700 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-45011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-22011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45220 - SHAFT ASSY, STEERING INTERMEDIATE | ||||
| 45220-60080 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45222F - COVER, DUST | ||||
| 45222-60031 |
FJ62,HJ6# |
1 | ||
| 45231C - BEARING, UNIVERSAL JOINT SPIDER(FOR STEERING MAIN SHAFT | ||||
| 37402-10020 |
FJ62,HJ6# |
4 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-22013 |
FJ62,HJ6# |
4 | ||
| 90521-22011 |
FJ62,HJ6# |
4 | ||
| 90521-22012 |
FJ62,HJ6# |
4 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
FJ62,HJ6# |
1 | ||
| 45244 - YOKE, STEERING WORM | ||||
| 45244-60020 |
FJ62,HJ6# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-60030 |
FJ62,HJ6# |
1 | ||
| 45260 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45260-60080 |
FJ62,HJ6# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60220 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 45283A - PLATE, BEAM CHANGE & TURN SIGNAL CAUTION | ||||
| 45283-22010 |
FJ62,HJ6# |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2217016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,下側 |
1 | ||
| 45286-2225016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,上側 |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45287-2217016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,下側 |
1 | ||
| 45286-2225016 |
FJ62..IV4;FJ62,HJ6#..GX,VX SEPIA BROWN,TRIM4#,上側 |
1 | ||
| 45289A - SUPPORT, STEERING COLUMN COVER | ||||
| 45289-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35030 |
FJ62,HJ6#..CBR,DSL,TD |
1 | ||
| 45636 - PROTECTOR, INTERMEDIATE LINK JOINT, UPPER | ||||
| 45636-60070 |
FJ62,HJ6# |
1 | ||
| 45637 - PROTECTOR, INTER LINK JOINT, LWR NO.1 | ||||
| 45637-60050 |
FJ62,HJ6# |
1 | ||
| 45804 - LEVER SUB-ASSY, STEERING TILT | ||||
| 45804-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45813 - COLLAR, TILT STEERING SUPPORT, NO.1 | ||||
| 45813-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.003−18.010 |
1 | ||
| 45813-22040 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.017−18.024 |
1 | ||
| 45813-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.989−17.996 |
1 | ||
| 45813-22030 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.010−18.017 |
1 | ||
| 45813-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.996−18.003 |
1 | ||
| 45814 - COLLAR, TILT STEERING SUPPORT, NO.2 | ||||
| 45814-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=17.982−18.000 |
1 | ||
| 45814-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX 外径=18.000−18.018 |
1 | ||
| 45815 - SHIM, TILT STEERING SUPPORT | ||||
| 45815-22070 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.5 |
1 | ||
| 45815-22080 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.8 |
1 | ||
| 45815-22090 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=1.4,T=1.4 |
1 | ||
| 45815-22100 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=1.8,T=1.8 |
1 | ||
| 45815-22060 |
FJ62..IV4;FJ62,HJ6#..GX,VX 厚さ=0.2 |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-22011 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45819A - COLLAR(FOR TILT LEVER RETAINER) | ||||
| 90387-08002 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45821B - REINFORCE, TILT STEERING SUPPORT, NO.1 | ||||
| 45821-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90507-14001 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45826B - PIN(FOR STEERING TILT LEVER) | ||||
| 72538-12010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-22050 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-14010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45898A - BOLT, RETURN SPRING SET | ||||
| 45898-22010 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| 45899A - COVER, TILT STEERING SUPPORT STOPPER | ||||
| 45899-22020 |
FJ62..IV4;FJ62,HJ6#..GX,VX |
1 | ||
| Common parts | ||||
| 90109-08112 | ||||
| 90119-06348 | ||||
| 90119-08042 | ||||
| 90119-08185 | ||||
| 90119-10212 | ||||
| 90164-50048 | ||||
| 90179-10178 | ||||
| 90201-06204 | ||||
| 90201-08065 | ||||
| 90930-04008 | ||||
| 91611-40816 | ||||
| 91611-60618 | ||||
| 91611-60840 | ||||
| 91656-40825 | ||||
| 91666-60825 | ||||
| 93315-14012 | ||||
| 94110-50800 | ||||
| 94182-10600 | ||||
| 94182-10800 | ||||
| 94531-00800 | ||||
| 94612-11001 | ||||
| 96451-00600 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
