FJ62V-MRC (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

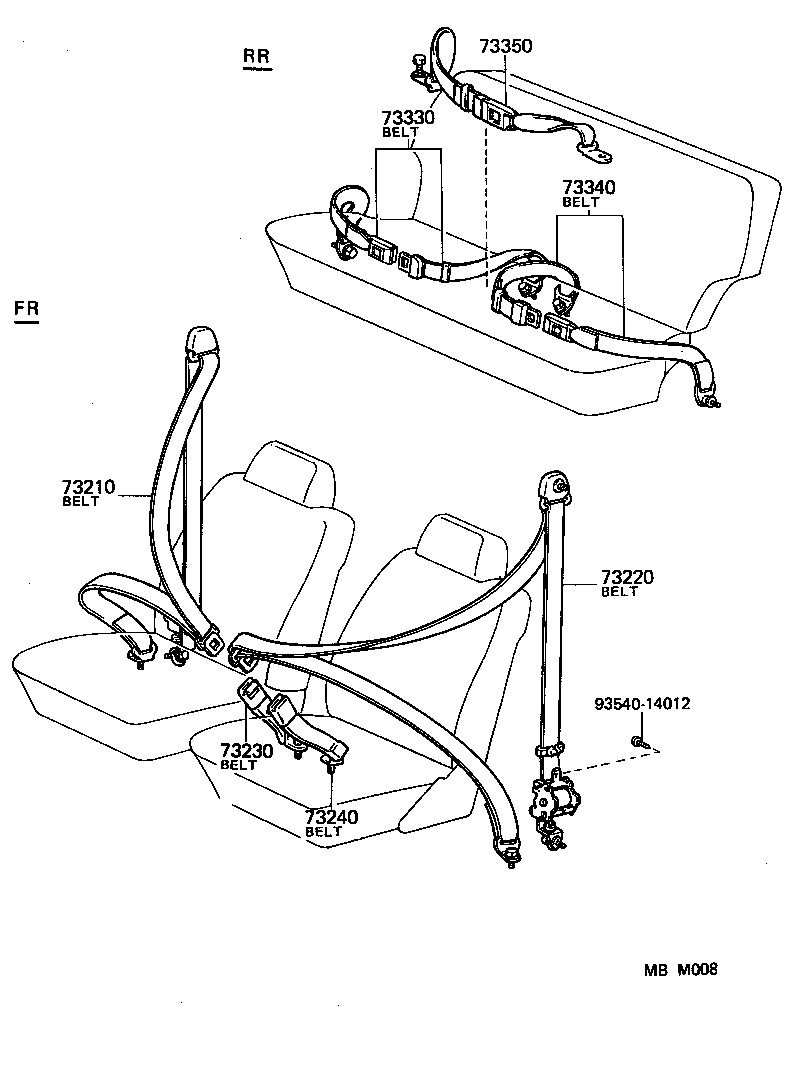

ILLUST NO. 1 OF 2(8708- )CBU

Click highlighted areas on diagram

diagram 73210 73220 73230 73240 73330 73340 73350 9354014012
Part # Description Qty Price
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-90A2206

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-90A1106

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-90A1906

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-90A1906

FJ62,HJ6#

SEPIA BROWN,TRIM4#

 1
73330 - BELT ASSY, REAR SEAT LAP TYPE, RH
73330-90A3406

FJ62,HJ60..CBU..(CBR,DSL)

SEPIA BROWN,TRIM4#

 1
73340 - BELT ASSY, REAR SEAT LAP TYPE, LH
73330-90A3406

FJ62,HJ60..CBU..(CBR,DSL)

SEPIA BROWN,TRIM4#

 1
73350 - BELT ASSY, REAR SEAT LAP TYPE, CENTER
73330-90A3206

FJ62,HJ60..CBU..(CBR,DSL)

SEPIA BROWN,TRIM4#

 1
Common parts
93540-14012

ILLUST NO. 2 OF 2(8808- )FJ62

Click highlighted areas on diagram

diagram 73530A 73540A 73550
Part # Description Qty Price
