FJ62V-MRC (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )

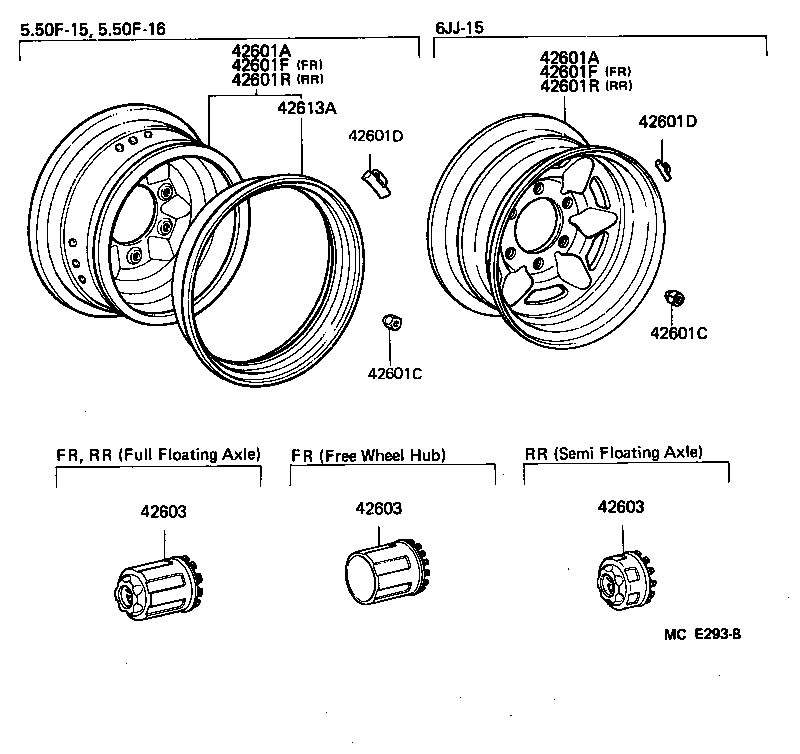

Click highlighted areas on diagram

diagram 42601A 42601A 42601C 42601C 42601D 42601D 42601F 42601F 42601R 42601R 42603 42603 42603 42613A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 1
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 1
42601A - WHEEL, DISC (FOR SPARE)
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 1
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 1
42601C - NUT, HUB (FOR AXLE)
90942-01047

FJ62,HJ6#

 24
42601C - NUT, HUB (FOR AXLE)
90942-01047

FJ62,HJ6#

 24
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03052

FJ62,HJ60..STD

50G,50G,5.50F-15,5.50F-16

 1
90942-03079

FJ62,HJ60..STD..CBU

20G,厚さ=10

 1
90942-03045

FJ62,HJ60..STD

20G,20G,5.50F-15,5.50F-16

 1
90942-03064

FJ62,HJ60..STD

70G,70G,5.50F-15,5.50F-16

 1
90942-03051

FJ62,HJ60..STD

80G,80G,5.50F-15,5.50F-16

 1
90942-03081

FJ62,HJ60..STD..CBU

40G,厚さ=9.3

 1
90942-03050

FJ62,HJ60..STD

30G,30G,5.50F-15,5.50F-16

 1
90942-03047

FJ62,HJ60..STD

40G,40G,5.50F-15,5.50F-16

 1
90942-03082

FJ62,HJ60..STD..CBU

50G,厚さ=9.3

 1
90942-03049

FJ62,HJ60..STD

60G,60G,5.50F-15,5.50F-16

 1
90942-03080

FJ62,HJ60..STD..CBU

30G,厚さ=9.3

 1
90942-03053

FJ62,HJ60..STD

100G,100G,5.50F-15,5.50F-16

 1
90942-03083

FJ62,HJ60..STD..CBU

60G,厚さ=9.3

 1
90942-03107

FJ62,HJ60..STD..CBU

10G,厚さ=8

 1
90942-03084

FJ62,HJ60..STD..CBU

70G,厚さ=9.3

 1
90942-03085

FJ62,HJ60..STD..CBU

80G,厚さ=9.3

 1
90942-03086

FJ62,HJ60..STD..CBU

100G

 1
90942-03106

FJ62,HJ60..STD

10G,10G,5.50F-15,5.50F-16

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03052

FJ62,HJ60..STD

50G,50G,5.50F-15,5.50F-16

 1
90942-03079

FJ62,HJ60..STD..CBU

20G,厚さ=10

 1
90942-03045

FJ62,HJ60..STD

20G,20G,5.50F-15,5.50F-16

 1
90942-03064

FJ62,HJ60..STD

70G,70G,5.50F-15,5.50F-16

 1
90942-03051

FJ62,HJ60..STD

80G,80G,5.50F-15,5.50F-16

 1
90942-03081

FJ62,HJ60..STD..CBU

40G,厚さ=9.3

 1
90942-03050

FJ62,HJ60..STD

30G,30G,5.50F-15,5.50F-16

 1
90942-03047

FJ62,HJ60..STD

40G,40G,5.50F-15,5.50F-16

 1
90942-03082

FJ62,HJ60..STD..CBU

50G,厚さ=9.3

 1
90942-03049

FJ62,HJ60..STD

60G,60G,5.50F-15,5.50F-16

 1
90942-03080

FJ62,HJ60..STD..CBU

30G,厚さ=9.3

 1
90942-03053

FJ62,HJ60..STD

100G,100G,5.50F-15,5.50F-16

 1
90942-03083

FJ62,HJ60..STD..CBU

60G,厚さ=9.3

 1
90942-03107

FJ62,HJ60..STD..CBU

10G,厚さ=8

 1
90942-03084

FJ62,HJ60..STD..CBU

70G,厚さ=9.3

 1
90942-03085

FJ62,HJ60..STD..CBU

80G,厚さ=9.3

 1
90942-03086

FJ62,HJ60..STD..CBU

100G

 1
90942-03106

FJ62,HJ60..STD

10G,10G,5.50F-15,5.50F-16

 1
42601F - WHEEL, DISC (FOR FRONT)
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 2
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 2
42601F - WHEEL, DISC (FOR FRONT)
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 2
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 2
42601R - WHEEL, DISC (FOR REAR)
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 2
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 2
42601R - WHEEL, DISC (FOR REAR)
42601-3526005

FJ62,HJ60..STD..CBU

6JJ−15,ﾎﾜｲﾄ,WHITE,045 ,3F4 ,4E9

 2
42610-60012

FJ62,HJ60..STD..CBU

5.50F−15,#

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35080

FJ62..STD..CBU

*STE,FR,W/*FWH

 2
42603-60012

FJ62..STD..CBU

RR,*FFA

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35080

FJ62..STD..CBU

*STE,FR,W/*FWH

 2
42603-60012

FJ62..STD..CBU

RR,*FFA

 2
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35080

FJ62..STD..CBU

*STE,FR,W/*FWH

 2
42603-60012

FJ62..STD..CBU

RR,*FFA

 2
42613A - RING, DISC WHEEL SIDE
42613-35010

FJ62,HJ60..STD..CBU

 5
