FJ62V-MNC (1987)

Toyota Land Cruiser Van

Production Aug 1987 - Jan 1990
Engine 3F
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CBU

Click highlighted areas on diagram

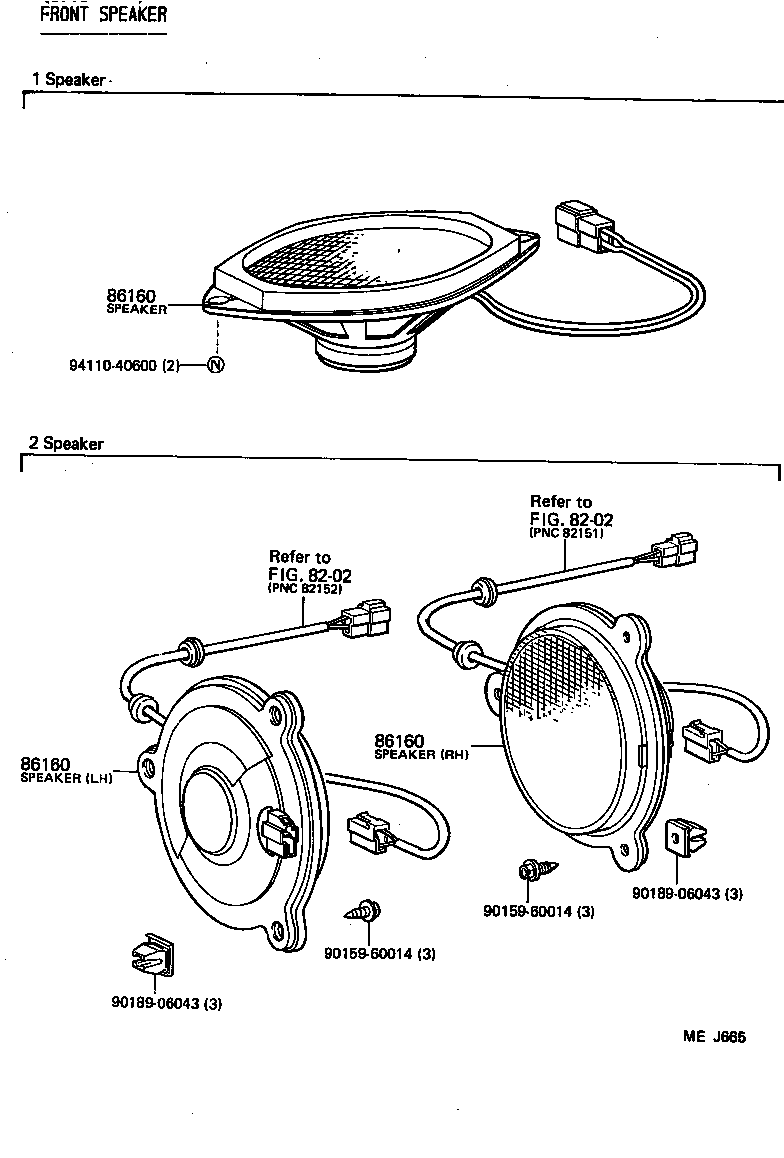

FRONT SPEAKER

diagram 8202 8202 86160 86160 86160 9015960014 9015960014 9018906043 9018906043 9411040600
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A00

FJ62,HJ60..CBU..(CBR,DSL)

1 SPEAKER

 1
86160-90A02

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,左側

 1
86160-90A01

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,右側

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A00

FJ62,HJ60..CBU..(CBR,DSL)

1 SPEAKER

 1
86160-90A02

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,左側

 1
86160-90A01

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,右側

 1
86160 - SPEAKER ASSY, FRONT NO.1
86160-90A00

FJ62,HJ60..CBU..(CBR,DSL)

1 SPEAKER

 1
86160-90A02

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,左側

 1
86160-90A01

FJ62,HJ60..CBU..(CBR,DSL)

2 SPEAKER,右側

 1
Common parts
90159-60014
90189-06043
94110-40600
Linked diagrams
8202
