FJ62V-MNC (1987)
Toyota Land Cruiser Van

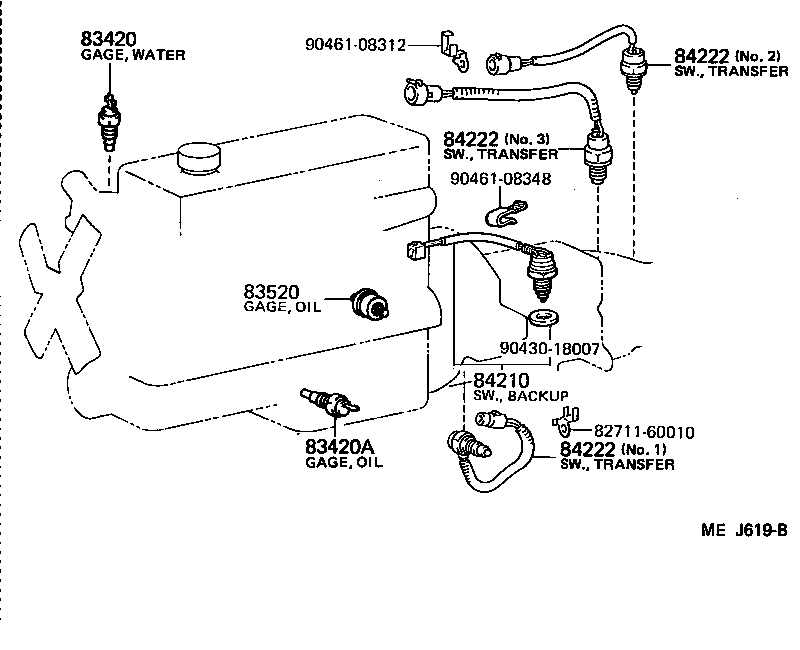

ILLUST NO. 1 OF 6(8708- )CBR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
FJ62,HJ6# |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-60010 |
FJ62 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-60021 |
FJ62,HJ6#..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60040 |
FJ62,HJ6#..CBU NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ6# NO.2 |
1 | ||
| 84222-60071 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60040 |
FJ62,HJ6#..CBU NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ6# NO.2 |
1 | ||
| 84222-60071 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60040 |
FJ62,HJ6#..CBU NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ6# NO.2 |
1 | ||
| 84222-60071 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) NO.4 |
2 | ||
| Common parts | ||||
| 82711-60010 | ||||
| 90430-18007 | ||||
| 90461-08312 | ||||
| 90461-08348 | ||||

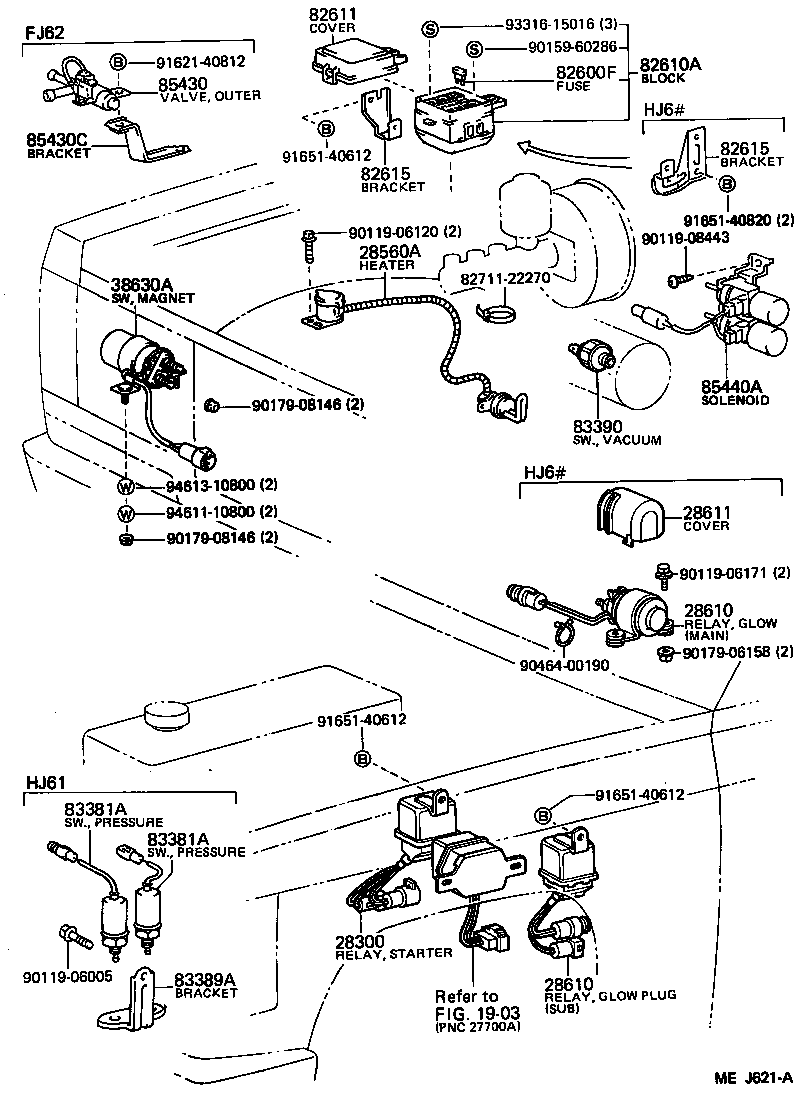

ILLUST NO. 2 OF 6(8708- )CBR,DSL,TD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 38630A - SWITCH ASSY, MAGNET | ||||
| 38630-60040 |
FJ62..CBU |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
FJ62..CBU 10A |
2 | ||
| 90982-09005 |
FJ62..CBR 7.5A |
5 | ||
| 90982-09003 |
FJ62..CBU..CBR 15A |
9 | ||
| 82610A - BLOCK ASSY, FUSE | ||||
| 82610-90K02 |
FJ62..CBU..CBR |
1 | ||
| 82611 - COVER, FUSE BLOCK | ||||
| 82611-90K00 |
FJ62..CBU |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K00 |
FJ62..CBU..CBR |
1 | ||
| 82615 - BRACKET, FUSE | ||||
| 82615-90K00 |
FJ62..CBU..CBR |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 85430-60020 |
FJ62..CBR |
1 | ||
| 85430C - BRACKET, OUTER VENT CONTROL VALVE | ||||
| 77756-60020 |
FJ62..CBU..CBR |
1 | ||
| 85440A - SOLENOID ASSY, FOUR WHEEL DRIVE CONTROL | ||||
| 85440-60120 |
FJ62..CBU |
1 | ||
| Common parts | ||||
| 82711-22270 | ||||
| 90119-06005 | ||||
| 90119-06120 | ||||
| 90119-06171 | ||||
| 90119-08443 | ||||
| 90159-60286 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90464-00190 | ||||
| 91621-40812 | ||||
| 91651-40612 | ||||
| 91651-40820 | ||||
| 93316-15016 | ||||
| 94611-10800 | ||||
| 94613-10800 | ||||
| Linked diagrams | ||||
| 1903 | ||||

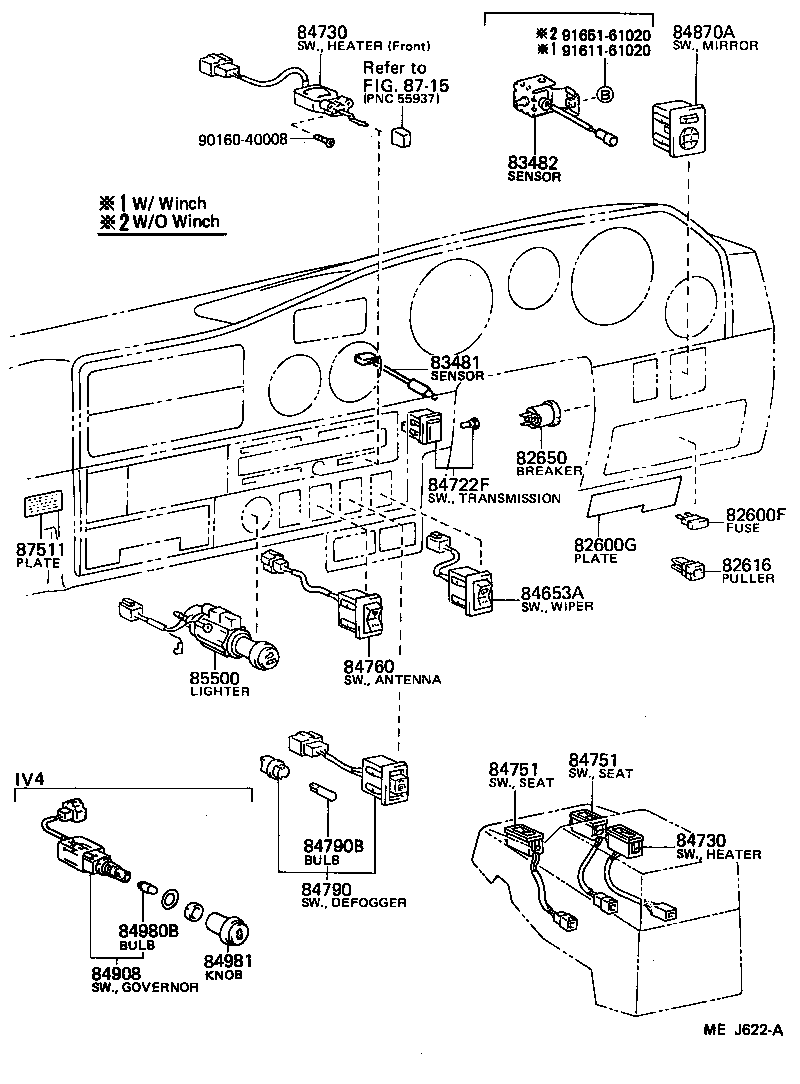

ILLUST NO. 3 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09002 |
FJ62..CBU 10A |
2 | ||
| 90982-09005 |
FJ62..CBR 7.5A |
5 | ||
| 90982-09003 |
FJ62..CBU..CBR 15A |
9 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-90A16 |
FJ62..CBU |
1 | ||
| 82683-90A21 |
FJ62..CBU |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
FJ62,HJ6# |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-12020 |
FJ62,HJ6#..CBU 14A |
1 | ||
| 82650-20011 |
FJ62,HJ6#..CBU 30A |
2 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A02 |
FJ62,HJ60..GX ROOF |
1 | ||
| 83481-90A01 |
FJ62,HJ60..GX COWL HARNESS |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-90A00 |
FJ62,HJ60..GX ｱﾘ(ｱｸｾｻﾘ ﾒ-ﾀ) |
1 | ||
| 83482-90A01 |
FJ62..GX ｱﾘ(ｳｲﾝﾁ & ｱｸｾｻﾘ ﾒ-ﾀ) |
1 | ||
| 84722F - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-60070 |
FJ62..CBU |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A02 |
FJ62,HJ6# FRONT |
1 | ||
| 84730-90A00 |
FJ62,HJ6# FRONT |
1 | ||
| 84732-90A00 |
FJ62,HJ6#..CBU REAR |
1 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-90A02 |
FJ62,HJ6# FRONT |
1 | ||
| 84730-90A00 |
FJ62,HJ6# FRONT |
1 | ||
| 84732-90A00 |
FJ62,HJ6#..CBU REAR |
1 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-90A01 |
FJ62,HJ6#..GX,VX |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-90A09 |
FJ62..GX,VX |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-14060 |
FJ62,HJ6#..GX,VX |
1 | ||
| 84870-90A00 |
FJ62,HJ6#..GX,VX |
1 | ||
| 84870-22040 |
FJ62,HJ6#..GX,VX |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-90A07 |
FJ62..CBU |
1 | ||
| Common parts | ||||
| 90160-40008 | ||||
| 91611-61020 | ||||
| 91651-61020 | ||||
| Linked diagrams | ||||
| 8715 | ||||

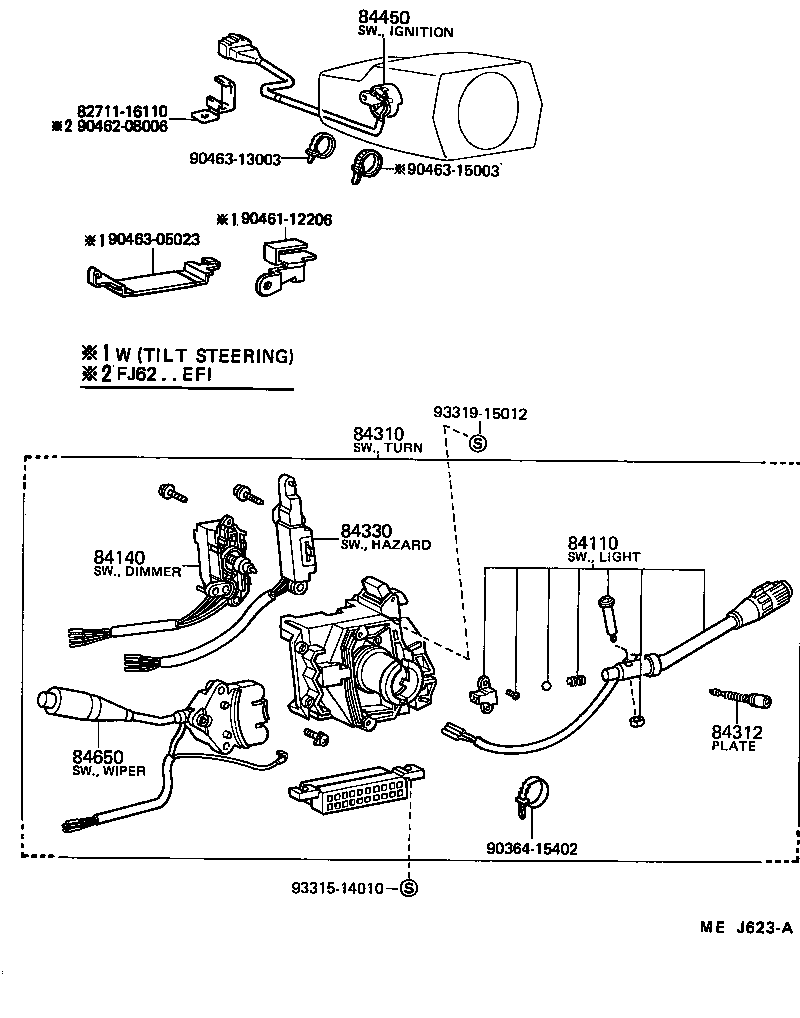

ILLUST NO. 4 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-69275 |
FJ62..IV4;FJ62..GX,VX |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-35060 |
FJ62..IV4;FJ62..GX,VX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-60660 |
FJ62..IV4;FJ62..GX,VX |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-20011 |
FJ62,HJ6# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-29125 |
FJ62..IV4;FJ62..GX,VX |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-60080 |
FJ62..IV4;FJ62,HJ6#..(GX,VX)..(CBR,DSL,TD) |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-69325 |
FJ62..IV4;FJ62..GX,VX |
1 | ||
| Common parts | ||||
| 82711-16110 | ||||
| 90364-15402 | ||||
| 90461-12206 | ||||
| 90462-08006 | ||||
| 90463-05023 | ||||
| 90463-13003 | ||||
| 90463-15003 | ||||
| 93315-14010 | ||||
| 93319-15012 | ||||

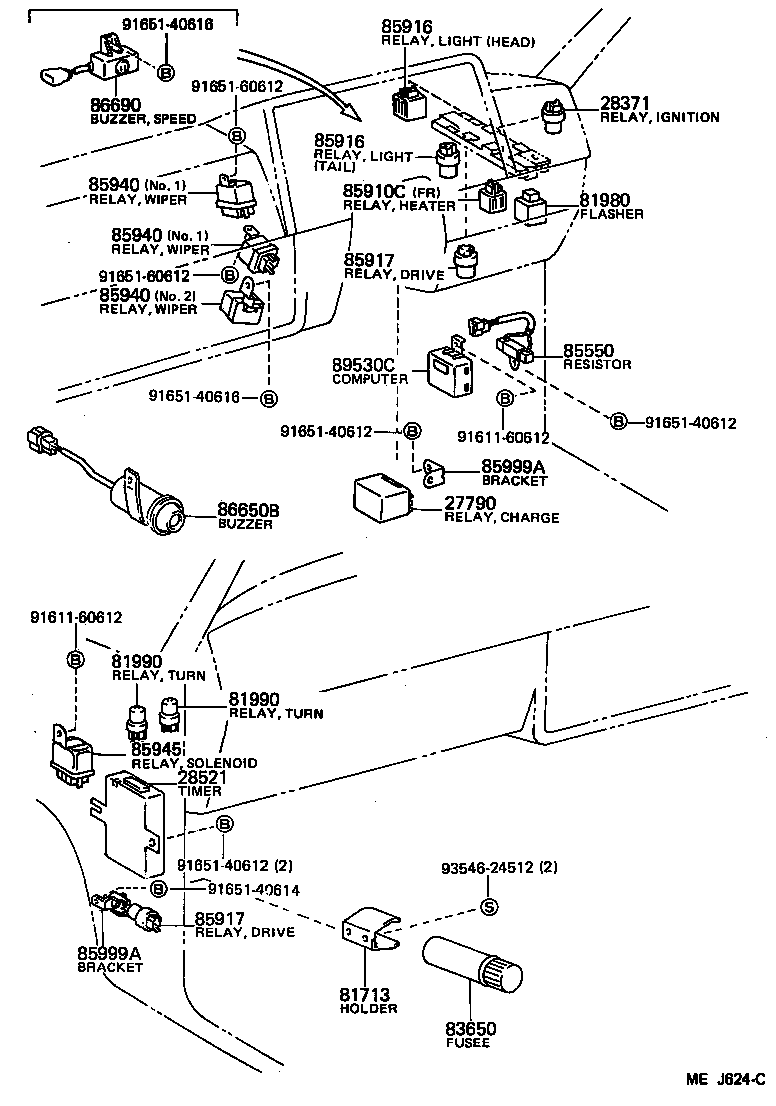

ILLUST NO. 5 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 90987-02004 |
3F#..FJ62 |
1 | ||
| 81713 - HOLDER, FUSEE | ||||
| 81713-90500 |
FJ62,HJ6# |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-16010 |
FJ62 |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01003 |
FJ62,HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
FJ62 FRONT |
1 | ||
| 90987-04002 |
FJ62 FRONT |
1 | ||
| 88630-14010 |
FJ62..CBU REAR |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FJ62 HEAD |
1 | ||
| 90987-01003 |
FJ62 TAIL |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-02006 |
FJ62 HEAD |
1 | ||
| 90987-01003 |
FJ62 TAIL |
1 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
FJ62..CBU |
2 | ||
| 85917 - RELAY, FRONT DRIVE | ||||
| 90987-03001 |
FJ62..CBU |
2 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A08 |
FJ62..CBU NO.2,ｶﾝｹﾂ ﾖｳ |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A08 |
FJ62..CBU NO.2,ｶﾝｹﾂ ﾖｳ |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A08 |
FJ62..CBU NO.2,ｶﾝｹﾂ ﾖｳ |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# FRONT DRIVE RELAY |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# FRONT DRIVE RELAY |
1 | ||
| Common parts | ||||
| 91611-60612 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-60612 | ||||
| 93546-24512 | ||||

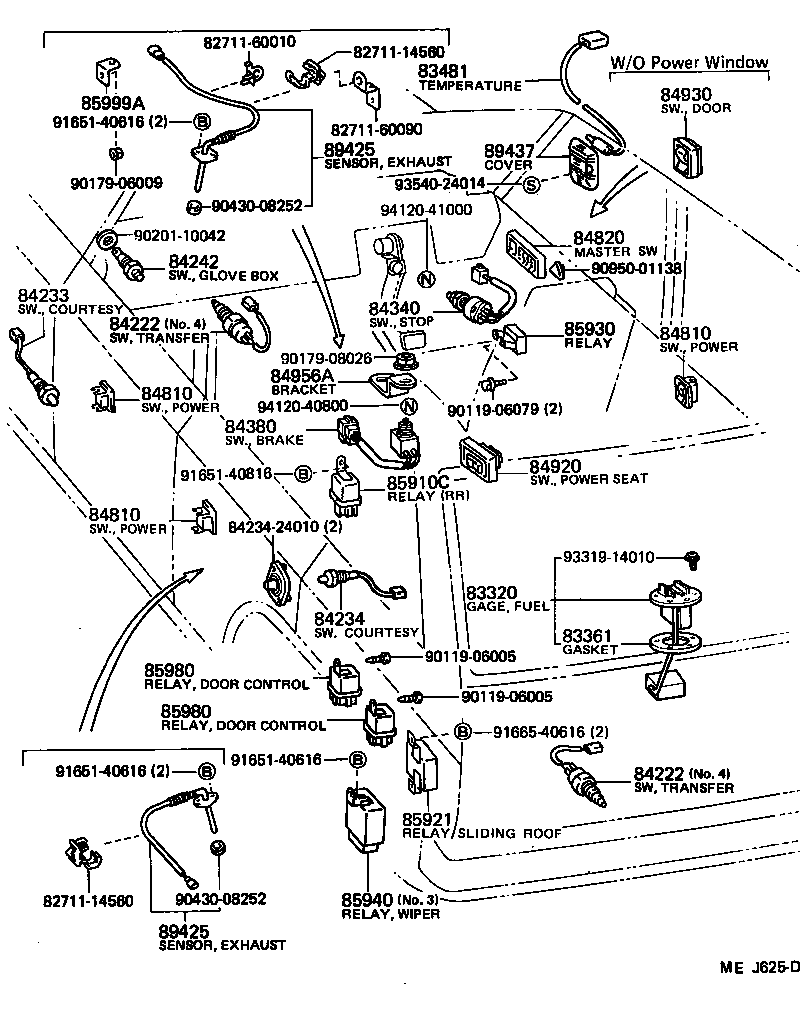

ILLUST NO. 6 OF 6(8708- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69015 |
FJ62,HJ6#..CBU |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
FJ62,HJ6# |
1 | ||
| 83481 - SENSOR, INNER AMBIENT TEMPERATURE | ||||
| 83481-90A02 |
FJ62,HJ60..GX ROOF |
1 | ||
| 83481-90A01 |
FJ62,HJ60..GX COWL HARNESS |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60040 |
FJ62,HJ6#..CBU NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ6# NO.2 |
1 | ||
| 84222-60071 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) NO.4 |
2 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-60021 |
FJ62,HJ6# NO.1 |
1 | ||
| 84222-60040 |
FJ62,HJ6#..CBU NO.3 |
1 | ||
| 84222-60030 |
FJ62,HJ6# NO.2 |
1 | ||
| 84222-60071 |
FJ62,HJ6#..CBU..(CBR,DSL,TD) NO.4 |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-22051 |
FJ62,HJ6# |
2 | ||
| 84231-28010 |
FJ62,HJ6# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84230-22051 |
FJ62,HJ6# |
2 | ||
| 84231-28010 |
FJ62,HJ6# |
2 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-90A00 |
FJ62,HJ6# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-22072 |
FJ62,HJ6# |
1 | ||
| 84380 - SWITCH ASSY, BRAKE WARNING TEST | ||||
| 84380-20010 |
FJ62,HJ6# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0203 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0306 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0206 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0203 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0306 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0206 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-90A0203 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,FRONT |
1 | ||
| 84810-90A0306 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,REAR |
2 | ||
| 84810-90A0206 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4#,FRONT |
1 | ||
| 84810-90A0303 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1#,REAR |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-90A0703 |
FJ62,HJ60..GX SHADOW GRAY,TRIM1# |
1 | ||
| 84820-90A0706 |
FJ62,HJ60..GX SEPIA BROWN,TRIM4# |
1 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-90A0203 |
FJ62,HJ60..GX GRAY,TRIM1# |
1 | ||
| 84930-90A0206 |
FJ62,HJ60..GX BROWN,TRIM4# |
1 | ||
| 84956A - BRACKET, HAND BRAKE SIGNAL SWITCH | ||||
| 84956-60030 |
FJ62,HJ6# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
FJ62 FRONT |
1 | ||
| 90987-04002 |
FJ62 FRONT |
1 | ||
| 88630-14010 |
FJ62..CBU REAR |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 85930-90A00 |
FJ62..GX |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-90A08 |
FJ62..CBU NO.2,ｶﾝｹﾂ ﾖｳ |
1 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 88630-14010 |
FJ62..GX |
2 | ||
| 85980 - RELAY ASSY, DOOR CONTROL | ||||
| 88630-14010 |
FJ62..GX |
2 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-12050 |
FJ62,HJ6# FRONT DRIVE RELAY |
1 | ||
| 89437 - COVER, SENSOR | ||||
| 89437-90A00 |
FJ62,HJ60..GX AMBIENT TEMP.SENSOR |
1 | ||
| Common parts | ||||
| 82711-14560 | ||||
| 82711-60010 | ||||
| 82711-60090 | ||||
| 84234-24010 | ||||
| 90119-06005 | ||||
| 90119-06079 | ||||
| 90179-06009 | ||||
| 90179-08026 | ||||
| 90201-10042 | ||||
| 90430-08252 | ||||
| 90950-01138 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91665-40616 | ||||
| 93319-14010 | ||||
| 93540-24014 | ||||
| 94120-40800 | ||||
| 94120-41000 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
